IslandPath Analysis: Listeria monocytogenes EGD-e

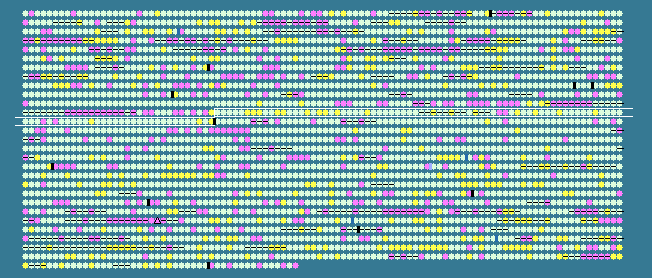

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1133	 40.83	0	1173643..1174122	+	159	16803181	-	lmo1141	-	hypothetical protein
1134	 40.44	0	1174241..1175605	+	454	16803182	-	lmo1142	-	hypothetical protein
1135	 40.90	0	1175602..1176156	+	184	16803183	-	lmo1143	-	hypothetical protein
1136	 36.47	0	1176304..1176654	+	116	16803184	-	lmo1144	-	hypothetical protein
1137	 39.12	0	1176660..1177091	+	143	16803185	-	lmo1145	-	hypothetical protein
1138	 43.07	+1	1177116..1177865	+	249	16803186	-	lmo1146	-	hypothetical protein
1139	 42.65	+1	1177862..1178419	+	185	16803187	-	lmo1147	-	hypothetical protein
1140	 41.63	+1	1178421..1179167	+	248	16803188	-	lmo1148	-	hypothetical protein
1141	 38.72	0	1179168..1179743	+	191	16803189	-	lmo1149	-	hypothetical protein
1142	 38.19	0	1180152..1181036	-	294	16803190	-	lmo1150	-	transcriptional regulator PocR
1143	 47.22	+2	1181338..1181625	+	95	16803191	-	lmo1151	-	hypothetical protein
1144	 42.17	+1	1181720..1182421	+	233	16803192	-	lmo1152	-	hypothetical protein
1145	 41.14	0	1182440..1184104	+	554	16803193	-	lmo1153	-	hypothetical protein
1146	 39.70	0	1184142..1184801	+	219	16803194	-	lmo1154	-	hypothetical protein
1147	 38.60	0	1184818..1185330	+	170	16803195	-	lmo1155	-	hypothetical protein
1148	 42.83	+1	1185375..1187195	+	606	16803196	-	lmo1156	-	hypothetical protein
1149	 39.08	0	1187192..1187539	+	115	16803197	-	lmo1157	-	hypothetical protein
1150	 42.69	+1	1187552..1187989	+	145	16803198	-	lmo1158	-	hypothetical protein
1151	 43.84	+1	1188014..1188289	+	91	16803199	-	lmo1159	-	hypothetical protein
1152	 39.78	0	1188293..1188928	+	211	16803200	-	lmo1160	-	hypothetical protein
1153	 43.93	+1	1188949..1189788	+	279	16803201	-	lmo1161	-	hypothetical protein
1154	 39.58	0	1189785..1190264	+	159	16803202	-	lmo1162	-	hypothetical protein
1155	 40.53	0	1190269..1190532	+	87	16803203	-	lmo1163	-	hypothetical protein
1156	 41.06	0	1190547..1191542	+	331	16803204	-	lmo1164	-	ATP:cob(I)alamin adenosyltransferase protein PduO
1157	 40.43	0	1191549..1192958	+	469	16803205	-	lmo1165	-	hypothetical protein
1158	 41.64	+1	1192974..1194092	+	372	16803206	-	lmo1166	-	hypothetical protein
1159	 40.85	0	1194120..1194824	+	234	16803207	glpF	lmo1167	-	hypothetical protein
1160	 40.12	0	1194890..1196083	+	397	16803208	AckA2	lmo1168	-	hypothetical protein
1161	 40.15	0	1196097..1197182	+	361	16803209	cobD	lmo1169	-	threonine-phosphate decarboxylase
1162	 40.98	0	1197172..1198047	+	291	16803210	-	lmo1170	-	hypothetical protein
1163	 38.33	0	1198637..1199776	+	379	16803211	pduQ	lmo1171	-	hypothetical protein
1164	 40.55	0	1200051..1200632	+	193	16803212	-	lmo1172	-	hypothetical protein
1165	 37.45	0	1200625..1202082	+	485	16803213	-	lmo1173	-	hypothetical protein
1166	 39.87	0	1202171..1203592	+	473	16803214	eutA	lmo1174	-	reactivating factor for ethanolamine ammonia lyase
1167	 40.59	0	1203634..1204998	+	454	16803215	eutB	lmo1175	-	hypothetical protein
1168	 38.78	0	1205018..1205899	+	293	16803216	eutC	lmo1176	-	ethanolamine ammonia-lyase small subunit
1169	 41.59	+1	1205922..1206575	+	217	16803217	-	lmo1177	-	hypothetical protein
1170	 37.36	0	1206590..1207111	+	173	16803218	-	lmo1178	-	hypothetical protein
1171	 39.63	0	1207111..1208571	+	486	16803219	-	lmo1179	-	hypothetical protein
1172	 47.37	+2	1208603..1208887	+	94	16803220	-	lmo1180	-	hypothetical protein
1173	 35.85	0	1209053..1209808	+	251	16803221	-	lmo1181	-	hypothetical protein
1174	 38.32	0	1209821..1210462	+	213	16803222	-	lmo1182	-	hypothetical protein
1175	 37.17	0	1210459..1211031	+	190	16803223	-	lmo1183	-	hypothetical protein
1176	 45.19	+2	1211046..1211315	+	89	16803224	-	lmo1184	-	hypothetical protein
1177	 39.19	0	1211308..1211853	+	181	16803225	-	lmo1185	-	hypothetical protein
1178	 39.48	0	1211869..1212990	+	373	16803226	-	lmo1186	-	hypothetical protein
1179	 36.04	0	1212983..1213426	+	147	16803227	-	lmo1187	-	hypothetical protein
1180	 31.82	-1	1213636..1215087	+	483	16803228	-	lmo1188	-	hypothetical protein
1181	 31.70	-1	1215128..1215679	-	183	16803229	-	lmo1189	-	hypothetical protein
1182	 40.00	0	1215993..1216487	+	164	16803230	-	lmo1190	-	hypothetical protein
1183	 42.24	+1	1216820..1218178	+	452	16803231	cbiA	lmo1191	-	cobyrinic acid a,c-diamide synthase
1184	 41.14	0	1218175..1219122	+	315	16803232	cobD	lmo1192	-	cobalamin biosynthesis protein
1185	 38.39	0	1219135..1219767	+	210	16803233	cbiC	lmo1193	-	precorrin-8X methylmutase
1186	 42.60	+1	1219783..1220904	+	373	16803234	cbiD	lmo1194	-	cobalt-precorrin-6A synthase
1187	 35.68	0	1220901..1221497	+	198	16803235	cbiE	lmo1195	-	cobalt-precorrin-6Y C(5)-methyltransferase
1188	 38.25	0	1221487..1222056	+	189	16803236	-	lmo1196	-	cobalt-precorrin-6Y C(15)-methyltransferase
1189	 40.80	0	1222062..1222811	+	249	16803237	cbiF	lmo1197	-	hypothetical protein
1190	 41.86	+1	1222798..1223829	+	343	16803238	cbiG	lmo1198	-	cobalamin biosynthesis protein CbiG
1191	 40.77	0	1223826..1224551	+	241	16803239	cbiH	lmo1199	-	precorrin-3B C17-methyltransferase
1192	 39.44	0	1224548..1225300	+	250	16803240	-	lmo1200	-	hypothetical protein
1193	 39.95	0	1225300..1226781	+	493	16803241	-	lmo1201	-	hypothetical protein
1194	 38.80	0	1226778..1227563	+	261	16803242	cbiK	lmo1202	-	hypothetical protein
1195	 37.97	0	1227556..1228266	+	236	16803243	cbiL	lmo1203	-	cobalt-precorrin-2 C(20)-methyltransferase
1196	 42.40	+1	1228347..1228997	+	216	161410730	-	lmo1204	-	cobalt transport protein CbiM
1197	 38.38	0	1228994..1229290	+	98	16803245	-	lmo1205	-	cobalt transport protein CbiN
1198	 35.69	0	1229277..1229954	+	225	16803246	cbiQ	lmo1206	-	hypothetical protein
1199	 38.54	0	1229967..1230773	+	268	16803247	-	lmo1207	-	hypothetical protein
1200	 41.28	0	1230773..1232308	+	511	16803248	cbiP	lmo1208	-	cobyric acid synthase
1201	 40.56	0	1232272..1232838	+	188	16803249	-	lmo1209	-	hypothetical protein
1202	 38.25	0	1232884..1233351	-	155	16803250	-	lmo1210	-	hypothetical protein
1203	 36.22	0	1233366..1233815	-	149	16803251	-	lmo1211	-	hypothetical protein
1204	 34.27	-1	1233904..1234434	+	176	16803252	-	lmo1212	-	hypothetical protein
1205	 37.50	0	1234465..1234776	+	103	16803253	-	lmo1213	-	hypothetical protein
1206	 34.06	-1	1234779..1235330	+	183	16803254	-	lmo1214	-	hypothetical protein
1207	 36.21	0	1235670..1236539	+	289	16803255	-	lmo1215	-	hypothetical protein
1208	 37.99	0	1236836..1237822	+	328	16803256	-	lmo1216	-	hypothetical protein
1209	 40.46	0	1237934..1239013	+	359	16803257	-	lmo1217	-	hypothetical protein
1210	 39.53	0	1239039..1239797	+	252	16803258	-	lmo1218	-	hypothetical protein
1211	 37.78	0	1239842..1240201	-	119	16803259	-	lmo1219	-	hypothetical protein
1212	 41.67	+1	1240358..1240681	+	107	16803260	-	lmo1220	-	hypothetical protein
1213	 39.98	0	1241048..1242100	+	350	16803261	pheS	lmo1221	-	phenylalanyl-tRNA synthetase subunit alpha
1214	 41.34	0	1242100..1244508	+	802	16803262	pheT	lmo1222	-	phenylalanyl-tRNA synthetase beta subunit
1215	 38.75	0	1244669..1245370	+	233	16803263	-	lmo1223	-	hypothetical protein
1216	 36.53	0	1245384..1248794	+	1136	16803264	-	lmo1224	-	hypothetical protein
1217	 35.98	0	1248892..1249344	+	150	16803265	-	lmo1225	-	hypothetical protein
1218	 40.58	0	1249360..1252560	+	1066	16803266	-	lmo1226	-	hypothetical protein
1219	 37.33	0	1252667..1253341	+	224	16803267	-	lmo1227	-	uracil-DNA glycosylase
1220	 40.02	0	1253379..1254305	-	308	16803268	rnhC	lmo1228	-	ribonuclease HIII
1221	 39.77	0	1254459..1254722	+	87	16803269	-	lmo1229	-	hypothetical protein
1222	 34.99	0	1254722..1255264	+	180	16803270	-	lmo1230	-	hypothetical protein
1223	 39.40	0	1255357..1257069	+	570	16803271	-	lmo1231	-	hypothetical protein
1224	 40.08	0	1257092..1259449	+	785	16803272	-	lmo1232	-	recombination and DNA strand exchange inhibitor protein
1225	 40.71	0	1259530..1259841	+	103	16803273	trxA	lmo1233	-	thioredoxin
1226	 39.62	0	1259917..1261728	+	603	16803274	uvrC	lmo1234	-	excinuclease ABC subunit C
1227	 40.41	0	1261917..1263131	+	404	16803275	-	lmo1235	-	aspartate kinase
1228	 36.57	0	1263187..1263681	-	164	16803276	-	lmo1236	-	hypothetical protein
1229	 39.95	0	1263829..1264629	+	266	16803277	racE	lmo1237	-	hypothetical protein
1230	 42.57	+1	1264642..1265388	+	248	16803278	rph	lmo1238	-	ribonuclease PH
1231	 40.03	0	1265392..1266003	+	203	16803279	-	lmo1239	-	hypothetical protein
1232	 43.24	+1	1266040..1266564	+	174	16803280	-	lmo1240	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
