IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes EGD-e

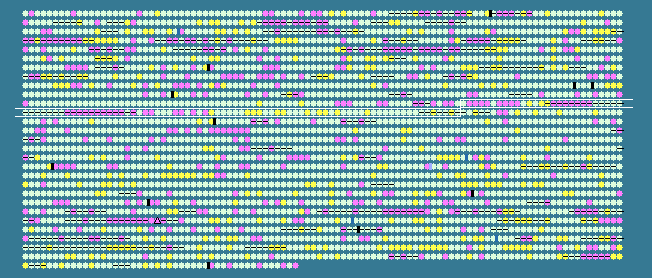

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.00 STD DEV: 3.37
Listeria monocytogenes EGD-e, complete genome - 1..2944528
2846 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1074	 36.19	0	1116532..1117092	+	186	16803122	-	lmo1082	-	hypothetical protein
1075	 33.23	-1	1117093..1118079	+	328	16803123	-	lmo1083	-	hypothetical protein
1076	 33.33	-1	1118082..1118912	+	276	16803124	-	lmo1084	-	hypothetical protein
1077	 32.33	-1	1118932..1121022	+	696	16803125	-	lmo1085	-	hypothetical protein
1078	 32.35	-1	1121098..1121808	+	236	16803126	ispD	lmo1086	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1079	 36.55	0	1121805..1122830	+	341	16803127	-	lmo1087	-	hypothetical protein
1080	 32.21	-1	1122918..1124078	+	386	16803128	tagB	lmo1088	-	hypothetical protein
1081	 33.33	-1	1124079..1124462	+	127	16803129	tagD	lmo1089	-	hypothetical protein
1082	 33.13	-1	1124484..1125467	+	327	16803130	-	lmo1090	-	hypothetical protein
1083	 33.43	-1	1125482..1126495	+	337	16803131	-	lmo1091	-	hypothetical protein
1084	 39.30	0	1126704..1128194	+	496	16803132	-	lmo1092	-	nicotinate phosphoribosyltransferase
1085	 42.67	+1	1128206..1129030	+	274	16803133	nadE	lmo1093	-	NAD synthetase
1086	 40.13	0	1129043..1129351	+	102	16803134	-	lmo1094	-	hypothetical protein
1087	 42.96	+1	1129412..1129816	+	134	16803135	-	lmo1095	-	hypothetical protein
1088	 42.97	+1	1129945..1131501	+	518	16803136	guaA	lmo1096	-	bifunctional GMP synthase/glutamine amidotransferase protein
1089	 33.83	-1	1131558..1132760	-	400	16803137	-	lmo1097	-	hypothetical protein
1090	 29.87	-2	1133466..1133696	-	76	16803138	-	lmo1098	-	hypothetical protein
1091	 31.90	-1	1133698..1134117	-	139	16803139	-	lmo1099	-	hypothetical protein
1092	 34.23	-1	1134472..1136595	-	707	16803140	cadA	lmo1100	-	cadmium resistance protein
1093	 29.14	-2	1136900..1137400	+	166	16803141	-	lmo1101	-	hypothetical protein
1094	 27.98	-2	1137533..1137868	-	111	16803142	-	lmo1102	-	hypothetical protein
1095	 34.10	-1	1137997..1138914	-	305	16803143	-	lmo1103	-	hypothetical protein
1096	 40.45	0	1138930..1139940	-	336	16803144	-	lmo1104	-	hypothetical protein
1097	 38.89	0	1139940..1142099	-	719	16803145	-	lmo1105	-	hypothetical protein
1098	 38.43	0	1142099..1144549	-	816	16803146	-	lmo1106	-	hypothetical protein
1099	 37.63	0	1144533..1144928	-	131	16803147	-	lmo1107	-	hypothetical protein
1100	 39.52	0	1145211..1145711	-	166	16803148	-	lmo1108	-	hypothetical protein
1101	 40.54	0	1145723..1145944	-	73	16803149	-	lmo1109	-	hypothetical protein
1102	 37.80	0	1145941..1146231	-	96	16803150	-	lmo1110	-	hypothetical protein
1103	 39.49	0	1146228..1147412	-	394	16803151	-	lmo1111	-	hypothetical protein
1104	 38.54	0	1147603..1149003	-	466	16803152	-	lmo1112	-	hypothetical protein
1105	 39.47	0	1149011..1149385	-	124	16803153	-	lmo1113	-	hypothetical protein
1106	 36.51	0	1149406..1149720	-	104	16803154	-	lmo1114	-	hypothetical protein
1107	 35.23	0	1149887..1152475	-	862	16803155	-	lmo1115	-	hypothetical protein
1108	 31.27	-1	1153010..1153783	+	257	16803156	-	lmo1116	-	hypothetical protein
1109	 33.05	-1	1153848..1154204	+	118	16803157	-	lmo1117	-	hypothetical protein
1110	 27.27	-2	1154864..1156381	-	505	16803158	-	lmo1118	-	hypothetical protein
1111	 28.67	-2	1156384..1157241	-	285	16803159	-	lmo1119	-	hypothetical protein
1112	 34.05	-1	1157592..1158008	+	138	16803160	-	lmo1120	-	hypothetical protein
1113	 26.02	-2	1158020..1158388	+	122	16803161	-	lmo1121	-	hypothetical protein
1114	 31.19	-2	1158425..1158844	+	139	16803162	-	lmo1122	-	hypothetical protein
1115	 28.27	-2	1158930..1159403	+	157	16803163	-	lmo1123	-	hypothetical protein
1116	 31.51	-1	1159393..1159830	+	145	16803164	-	lmo1124	-	hypothetical protein
1117	 31.46	-1	1160220..1160753	+	177	16803165	-	lmo1125	-	hypothetical protein
1118	 36.42	0	1160778..1161230	+	150	16803166	-	lmo1126	-	hypothetical protein
1119	 33.55	-1	1161220..1161675	+	151	16803167	-	lmo1127	-	hypothetical protein
1120	 40.57	0	1161689..1162711	-	340	16803168	-	lmo1128	-	hypothetical protein
1121	 33.98	-1	1162666..1163280	-	204	16803169	-	lmo1129	-	hypothetical protein
1122	 33.47	-1	1163277..1163996	-	239	16803170	-	lmo1130	-	hypothetical protein
1123	 37.18	0	1164245..1165960	+	571	16803171	-	lmo1131	-	hypothetical protein
1124	 38.25	0	1165962..1167608	+	548	16803172	-	lmo1132	-	hypothetical protein
1125	 36.57	0	1167645..1167953	-	102	16803173	-	lmo1133	-	hypothetical protein
1126	 31.03	-2	1168021..1168368	+	115	16803174	-	lmo1134	-	hypothetical protein
1127	 32.90	-1	1168390..1169541	+	383	16803175	-	lmo1135	-	hypothetical protein
1128	 38.70	0	1170002..1171621	+	539	16803176	-	lmo1136	-	hypothetical protein
1129	 31.03	-2	1171662..1172009	-	115	16803177	-	lmo1137	-	hypothetical protein
1130	 39.27	0	1172076..1172648	-	190	16803178	-	lmo1138	-	ATP-dependent Clp protease proteolytic subunit
1131	 34.17	-1	1172797..1173036	-	79	16803179	-	lmo1139	-	hypothetical protein
1132	 41.91	+1	1173144..1173551	-	135	16803180	-	lmo1140	-	hypothetical protein
1133	 40.83	0	1173643..1174122	+	159	16803181	-	lmo1141	-	hypothetical protein
1134	 40.44	0	1174241..1175605	+	454	16803182	-	lmo1142	-	hypothetical protein
1135	 40.90	0	1175602..1176156	+	184	16803183	-	lmo1143	-	hypothetical protein
1136	 36.47	0	1176304..1176654	+	116	16803184	-	lmo1144	-	hypothetical protein
1137	 39.12	0	1176660..1177091	+	143	16803185	-	lmo1145	-	hypothetical protein
1138	 43.07	+1	1177116..1177865	+	249	16803186	-	lmo1146	-	hypothetical protein
1139	 42.65	+1	1177862..1178419	+	185	16803187	-	lmo1147	-	hypothetical protein
1140	 41.63	+1	1178421..1179167	+	248	16803188	-	lmo1148	-	hypothetical protein
1141	 38.72	0	1179168..1179743	+	191	16803189	-	lmo1149	-	hypothetical protein
1142	 38.19	0	1180152..1181036	-	294	16803190	-	lmo1150	-	transcriptional regulator PocR
1143	 47.22	+2	1181338..1181625	+	95	16803191	-	lmo1151	-	hypothetical protein
1144	 42.17	+1	1181720..1182421	+	233	16803192	-	lmo1152	-	hypothetical protein
1145	 41.14	0	1182440..1184104	+	554	16803193	-	lmo1153	-	hypothetical protein
1146	 39.70	0	1184142..1184801	+	219	16803194	-	lmo1154	-	hypothetical protein
1147	 38.60	0	1184818..1185330	+	170	16803195	-	lmo1155	-	hypothetical protein
1148	 42.83	+1	1185375..1187195	+	606	16803196	-	lmo1156	-	hypothetical protein
1149	 39.08	0	1187192..1187539	+	115	16803197	-	lmo1157	-	hypothetical protein
1150	 42.69	+1	1187552..1187989	+	145	16803198	-	lmo1158	-	hypothetical protein
1151	 43.84	+1	1188014..1188289	+	91	16803199	-	lmo1159	-	hypothetical protein
1152	 39.78	0	1188293..1188928	+	211	16803200	-	lmo1160	-	hypothetical protein
1153	 43.93	+1	1188949..1189788	+	279	16803201	-	lmo1161	-	hypothetical protein
1154	 39.58	0	1189785..1190264	+	159	16803202	-	lmo1162	-	hypothetical protein
1155	 40.53	0	1190269..1190532	+	87	16803203	-	lmo1163	-	hypothetical protein
1156	 41.06	0	1190547..1191542	+	331	16803204	-	lmo1164	-	ATP:cob(I)alamin adenosyltransferase protein PduO
1157	 40.43	0	1191549..1192958	+	469	16803205	-	lmo1165	-	hypothetical protein
1158	 41.64	+1	1192974..1194092	+	372	16803206	-	lmo1166	-	hypothetical protein
1159	 40.85	0	1194120..1194824	+	234	16803207	glpF	lmo1167	-	hypothetical protein
1160	 40.12	0	1194890..1196083	+	397	16803208	AckA2	lmo1168	-	hypothetical protein
1161	 40.15	0	1196097..1197182	+	361	16803209	cobD	lmo1169	-	threonine-phosphate decarboxylase
1162	 40.98	0	1197172..1198047	+	291	16803210	-	lmo1170	-	hypothetical protein
1163	 38.33	0	1198637..1199776	+	379	16803211	pduQ	lmo1171	-	hypothetical protein
1164	 40.55	0	1200051..1200632	+	193	16803212	-	lmo1172	-	hypothetical protein
1165	 37.45	0	1200625..1202082	+	485	16803213	-	lmo1173	-	hypothetical protein
1166	 39.87	0	1202171..1203592	+	473	16803214	eutA	lmo1174	-	reactivating factor for ethanolamine ammonia lyase
1167	 40.59	0	1203634..1204998	+	454	16803215	eutB	lmo1175	-	hypothetical protein
1168	 38.78	0	1205018..1205899	+	293	16803216	eutC	lmo1176	-	ethanolamine ammonia-lyase small subunit
1169	 41.59	+1	1205922..1206575	+	217	16803217	-	lmo1177	-	hypothetical protein
1170	 37.36	0	1206590..1207111	+	173	16803218	-	lmo1178	-	hypothetical protein
1171	 39.63	0	1207111..1208571	+	486	16803219	-	lmo1179	-	hypothetical protein
1172	 47.37	+2	1208603..1208887	+	94	16803220	-	lmo1180	-	hypothetical protein
1173	 35.85	0	1209053..1209808	+	251	16803221	-	lmo1181	-	hypothetical protein
38.00	MEAN

3.37	STD DEV
