IslandPath Analysis: Listeria monocytogenes str. 4b F2365

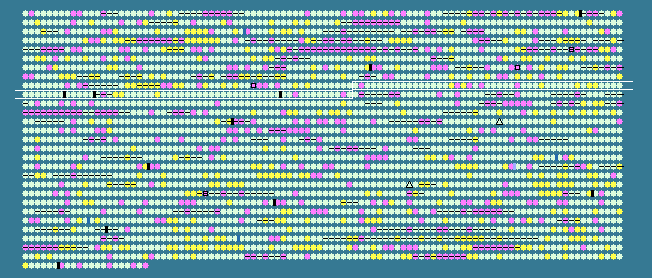

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
856	 37.45	0	887596..889443	-	615	46907080	-	LMOf2365_0866	-	amidase
857	 31.67	-1	889977..890156	+	59	46907081	-	LMOf2365_0867	-	hypothetical protein
858	 34.52	0	890376..891134	+	252	46907082	-	LMOf2365_0868	-	hypothetical protein
859	 37.66	0	891214..891768	+	184	46907083	-	LMOf2365_0869	-	TetR family transcriptional regulator
860	 38.89	0	891785..892126	+	113	46907084	sugE-1	LMOf2365_0870	-	SugE protein
861	 38.63	0	892129..892449	+	106	46907085	sugE-2	LMOf2365_0871	-	SugE protein
862	 40.88	0	892599..893711	+	370	46907086	ddl	LMOf2365_0872	-	D-alanyl-alanine synthetase A
863	 39.37	0	893775..895148	+	457	46907087	murF	LMOf2365_0873	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
864	 39.36	0	895215..895928	+	237	46907088	-	LMOf2365_0874	-	alpha/beta fold family hydrolase
865	 38.50	0	895940..896965	-	341	46907089	-	LMOf2365_0875	-	DNA-binding transcriptional regulator, putative
866	 38.56	0	897209..898528	+	439	46907090	-	LMOf2365_0876	-	sugar ABC transporter, sugar-binding protein
867	 38.34	0	898525..899403	+	292	46907091	-	LMOf2365_0877	-	sugar ABC transporter, permease protein
868	 37.77	0	899390..900223	+	277	46907092	-	LMOf2365_0878	-	sugar ABC transporter, permease protein
869	 40.31	0	900239..901771	+	510	46907093	treC-1	LMOf2365_0879	-	trehalose-6-phosphate hydrolase
870	 40.77	0	901773..902687	+	304	46907094	-	LMOf2365_0880	-	hypothetical protein
871	 38.86	0	902709..903776	+	355	46907095	-	LMOf2365_0881	-	hypothetical protein
872	 42.17	+1	903773..905446	+	557	46907096	-	LMOf2365_0882	-	phosphoglucomutase/phosphomannomutase family protein
873	 30.56	-2	905422..905529	+	35	46907097	-	LMOf2365_0883	-	hypothetical protein
874	 43.27	+1	905902..907461	+	519	46907098	-	LMOf2365_0884	-	ATP-dependent RNA helicase DeaD
875	 25.42	-2	907581..907757	+	58	46907099	-	LMOf2365_0885	-	hypothetical protein
876	 34.97	0	907905..908393	+	162	46907100	-	LMOf2365_0886	-	hypothetical protein
877	 33.69	-1	908425..908982	-	185	46907101	-	LMOf2365_0887	-	hypothetical protein
878	 36.24	0	909084..910082	+	332	46907102	-	LMOf2365_0888	-	hypothetical protein
879	 36.54	0	910099..910410	+	103	46907103	-	LMOf2365_0889	-	hypothetical protein
880	 40.11	0	910443..910796	-	117	46907104	-	LMOf2365_0890	-	hypothetical protein
881	 41.09	0	910930..912090	+	386	46907105	-	LMOf2365_0891	-	major facilitator family transporter
882	 37.25	0	912298..914316	+	672	46907106	-	LMOf2365_0892	-	PTS system IIA component domain-containing protein
883	 33.94	-1	914331..914660	+	109	46907107	-	LMOf2365_0893	-	PTS system, beta-glucoside-specific, IIA component
884	 35.71	0	914661..914996	+	111	46907108	-	LMOf2365_0894	-	PTS system, beta-glucoside-specific, IIB component
885	 39.89	0	915016..916341	+	441	46907109	-	LMOf2365_0895	-	PTS system, beta-glucoside-specific, IIC component
886	 40.33	0	916362..917090	+	242	46907110	-	LMOf2365_0896	-	glucosamine-6-phosphate isomerase, putative
887	 45.42	+2	917192..918043	+	283	46907111	-	LMOf2365_0897	-	aldo/keto reductase family oxidoreductase
888	 39.84	0	918061..918828	+	255	46907112	-	LMOf2365_0898	-	hypothetical protein
889	 37.94	0	918946..920334	+	462	46907113	-	LMOf2365_0899	-	lysM domain-containing protein
890	 36.69	0	920380..920856	-	158	46907114	-	LMOf2365_0900	-	hypothetical protein
891	 39.13	0	920989..921471	+	160	46907115	-	LMOf2365_0901	-	hypothetical protein
892	 39.63	0	921464..922939	+	491	46907116	-	LMOf2365_0902	-	hypothetical protein
893	 41.59	+1	923089..924468	+	459	46907117	hemG	LMOf2365_0903	-	protoporphyrinogen oxidase
894	 36.97	0	924470..924826	+	118	46907118	acpS	LMOf2365_0904	-	holo-(acyl-carrier-protein) synthase
895	 41.82	+1	924845..925951	+	368	46907119	alr	LMOf2365_0905	-	alanine racemase
896	 41.58	+1	926157..926435	+	92	46907120	-	LMOf2365_0906	-	hypothetical protein
897	 37.99	0	927036..927872	+	278	46907121	rsbR	LMOf2365_0908	-	modulator protein RsbR
898	 38.38	0	927878..928234	+	118	46907122	rsbS	LMOf2365_0909	-	anti-sigma factor B antagonist
899	 37.89	0	928231..928647	+	138	46907123	rsbT	LMOf2365_0910	-	anti-sigma B factor RsbT
900	 36.32	0	928664..929668	+	334	46907124	-	LMOf2365_0911	-	sigma factor B regulator protein
901	 36.52	0	929818..930162	+	114	46907125	-	LMOf2365_0912	-	anti-sigma factor antagonist
902	 36.71	0	930146..930619	+	157	46907126	-	LMOf2365_0913	-	serine-protein kinase RsbW
903	 38.72	0	930597..931376	+	259	46907127	sigB	LMOf2365_0914	-	RNA polymerase sigma factor SigB
904	 37.83	0	931377..931976	+	199	46907128	-	LMOf2365_0915	-	sigma-B negative effector, putative
905	 40.99	0	932181..933812	+	543	46907129	-	LMOf2365_0916	-	sulfate permease family protein
906	 40.27	0	933883..936060	+	725	46907130	-	LMOf2365_0917	-	S1 RNA-binding domain-containing protein
907	 39.10	0	936060..936527	+	155	46907131	-	LMOf2365_0918	-	hypothetical protein
908	 36.28	0	936896..937336	+	146	46907132	-	LMOf2365_0919	-	hypothetical protein
909	 34.98	0	937352..937837	+	161	46907133	-	LMOf2365_0920	-	hypothetical protein
910	 35.88	0	937892..938284	+	130	46907134	-	LMOf2365_0921	-	hypothetical protein
911	 38.46	0	938430..939716	+	428	46907135	celB	LMOf2365_0922	-	PTS system, cellobiose-specific, IIC component
912	 39.92	0	939797..940510	+	237	46907136	-	LMOf2365_0923	-	GntR family transcriptional regulator
913	 35.96	0	941006..941386	+	126	46907137	-	LMOf2365_0924	-	OsmC/Ohr family protein
914	 33.94	-1	941355..941519	+	54	46907138	-	LMOf2365_0925	-	hypothetical protein
915	 39.41	0	941501..942175	+	224	46907139	-	LMOf2365_0926	-	hypothetical protein
916	 42.77	+1	942306..942803	+	165	46907140	-	LMOf2365_0927	-	hypothetical protein
917	 42.44	+1	942839..944188	+	449	46907141	gor	LMOf2365_0928	-	glutathione reductase
918	 40.59	0	944217..944891	+	224	46907142	-	LMOf2365_0929	-	phosphoglycerate mutase family protein
919	 35.62	0	944934..946070	-	378	46907143	-	LMOf2365_0930	-	hypothetical protein
920	 40.20	0	946211..946603	+	130	46907144	-	LMOf2365_0931	-	GntR family transcriptional regulator
921	 36.87	0	946606..947709	+	367	46907145	-	LMOf2365_0932	-	hypothetical protein
922	 37.50	0	947792..948295	+	167	46907146	-	LMOf2365_0933	-	hypothetical protein
923	 42.07	+1	948409..949221	+	270	46907147	-	LMOf2365_0934	-	formate/nitrite transporter family protein
924	 40.49	0	949446..950912	+	488	46907148	gabD	LMOf2365_0935	-	succinate-semialdehyde dehydrogenase
925	 37.25	0	951056..951361	+	101	46907149	-	LMOf2365_0936	-	PTS system, cellobiose-specific, IIB component
926	 38.46	0	951366..952634	+	422	46907150	-	LMOf2365_0937	-	PTS system, IIC component
927	 37.89	0	952649..952999	+	116	46907151	-	LMOf2365_0938	-	PTS system, beta-glucoside-specific, IIA component
928	 37.95	0	953011..954462	+	483	46907152	bglH-2	LMOf2365_0939	-	beta-glucosidase
929	 36.07	0	954535..956433	+	632	46907153	-	LMOf2365_0940	-	PRD/PTS system IIA 2 domain-containing protein
930	 39.25	0	956725..958296	+	523	46907154	-	LMOf2365_0941	-	ABC transporter, ATP-binding protein
931	 39.39	0	958418..959458	+	346	46907155	-	LMOf2365_0942	-	ABC transporter, permease protein, putative
932	 35.12	0	959477..960316	+	279	46907156	-	LMOf2365_0943	-	hypothetical protein
933	 37.35	0	960405..961325	+	306	46907157	coaA	LMOf2365_0944	-	pantothenate kinase
934	 39.97	0	961441..962163	+	240	46907158	-	LMOf2365_0945	-	ABC transporter, ATP-binding protein
935	 38.89	0	962163..963278	+	371	46907159	-	LMOf2365_0946	-	ABC transporter, permease protein
936	 38.60	0	963331..963957	+	208	46907160	-	LMOf2365_0947	-	TetR family transcriptional regulator
937	 35.88	0	963989..965950	-	653	46907161	-	LMOf2365_0948	-	sulfatase family protein
938	 39.90	0	966209..966832	+	207	46907162	-	LMOf2365_0949	-	DNA-3-methyladenine glycosylase, putative
939	 35.13	0	966941..967609	+	222	46907163	-	LMOf2365_0950	-	sortase family protein
940	 37.98	0	967722..968453	+	243	46907164	-	LMOf2365_0951	-	hypothetical protein
941	 35.54	0	968477..969472	+	331	46907165	-	LMOf2365_0952	-	lipoyltransferase and lipoate-protein ligase family protein
942	 35.15	0	969512..970117	-	201	46907166	-	LMOf2365_0953	-	hypothetical protein
943	 41.01	0	970244..972301	-	685	46907167	-	LMOf2365_0954	-	dolichyl-phosphate-mannose-protein mannosyltransferase family protein
944	 36.67	0	973818..974327	+	169	46907168	-	LMOf2365_0956	-	RNA methyltransferase
945	 39.81	0	974340..975080	+	246	46907169	-	LMOf2365_0957	-	nitroreductase family protein
946	 29.63	-2	975130..975291	-	53	46907170	-	LMOf2365_0958	-	hypothetical protein
947	 38.78	0	975379..975837	-	152	46907171	-	LMOf2365_0959	-	low molecular weight phosphotyrosine protein phosphatase family protein
948	 35.48	0	975850..976596	-	248	46907172	-	LMOf2365_0960	-	hypothetical protein
949	 37.25	0	976692..977660	-	322	46907173	-	LMOf2365_0961	-	hypothetical protein
950	 35.94	0	977672..979477	-	601	46907174	-	LMOf2365_0962	-	histidine kinase domain-containing protein
951	 35.88	0	979680..980150	+	156	46907175	-	LMOf2365_0963	-	peroxide resistance protein Dpr
952	 37.29	0	980384..980686	+	100	46907176	-	LMOf2365_0964	-	hypothetical protein
953	 38.28	0	980799..981929	+	376	46907177	-	LMOf2365_0965	-	putative lipoprotein
954	 33.77	-1	981939..982166	+	75	46907178	-	LMOf2365_0966	-	hypothetical protein
955	 38.83	0	982365..983582	-	405	46907179	-	LMOf2365_0967	-	transporter, putative
37.91	MEAN

3.60	STD DEV
