IslandPath Analysis: Listeria monocytogenes str. 4b F2365

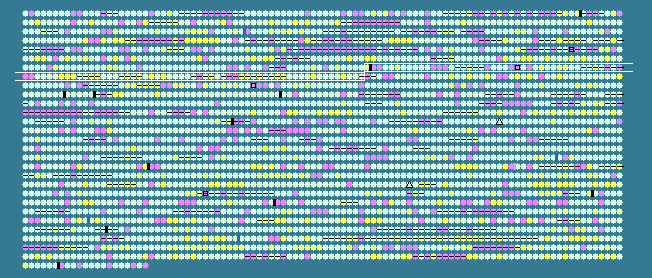

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
658	 42.42	+1	683391..683984	+	197	46906882	-	LMOf2365_0666	-	UbiE/COQ5 family methlytransferase
659	 31.85	-1	684684..685355	+	223	46906883	-	LMOf2365_0667	-	hypothetical protein
660	 30.65	-2	685385..685570	+	61	46906884	-	LMOf2365_0668	-	hypothetical protein
661	 34.64	0	686111..686644	+	177	46906885	-	LMOf2365_0670	-	transcriptional regulator, putative
662	 39.11	0	686708..687625	+	305	46906886	-	LMOf2365_0671	-	aldo/keto reductase family oxidoreductase
663	 43.06	+1	687891..689771	+	626	46906887	cadA	LMOf2365_0672	-	cadmium-translocating P-type ATPase
664	 37.17	0	689866..690594	+	242	46906888	-	LMOf2365_0673	-	hypothetical protein
665	 39.02	0	690734..691384	+	216	46906889	-	LMOf2365_0674	-	transaldolase, putative
666	 37.40	0	691427..693268	-	613	46906890	-	LMOf2365_0675	-	sulfatase family protein
667	 38.51	0	693482..694873	+	463	46906891	-	LMOf2365_0676	-	amino acid permease family protein
668	 40.83	0	694963..695802	+	279	46906892	-	LMOf2365_0677	-	glyoxalase family protein
669	 34.04	-1	695885..696169	-	94	46906893	-	LMOf2365_0678	-	hypothetical protein
670	 32.70	-1	696267..697217	+	316	46906894	-	LMOf2365_0679	-	magnesium transporter CorA family protein
671	 33.80	-1	697241..697882	+	213	46906895	-	LMOf2365_0680	-	GntR family transcriptional regulator
672	 38.83	0	697925..700615	+	896	46906896	-	LMOf2365_0681	-	phage infection protein
673	 36.11	0	700661..701308	+	215	46906897	-	LMOf2365_0682	-	GntR family transcriptional regulator
674	 39.29	0	701318..701854	-	178	46906898	-	LMOf2365_0683	-	acetyltransferase
675	 41.54	+1	701841..702827	-	328	46906899	-	LMOf2365_0684	-	hypothetical protein
676	 38.68	0	702982..703224	+	80	46906900	-	LMOf2365_0685	-	hypothetical protein
677	 41.24	0	703292..703999	+	235	46906901	-	LMOf2365_0686	-	serine/threonine protein phosphatase family protein
678	 26.23	-2	704427..706565	+	712	46906902	-	LMOf2365_0687	-	hypothetical protein
679	 35.99	0	706695..707258	-	187	46906903	-	LMOf2365_0688	-	hypothetical protein
680	 40.05	0	707378..707794	+	138	46906904	-	LMOf2365_0689	-	hypothetical protein
681	 36.67	0	707837..708466	+	209	46906905	-	LMOf2365_0690	-	endonuclease
682	 32.78	-1	708463..709359	-	298	46906906	-	LMOf2365_0691	-	transcriptional activator, putative
683	 31.56	-1	709593..709874	+	93	46906907	-	LMOf2365_0692	-	IS3 family transposase OrfA
684	 36.85	0	710152..712626	+	824	46906908	-	LMOf2365_0693	-	cell wall surface anchor family protein
685	 33.18	-1	712807..713478	+	223	46906909	-	LMOf2365_0693.1	-	hypothetical protein
686	 38.53	0	713667..715283	+	538	46906910	-	LMOf2365_0694	-	cell wall surface anchor family protein
687	 44.98	+1	715369..715677	-	102	46906911	-	LMOf2365_0695	-	carboxymuconolactone decarboxylase family protein
688	 40.32	0	715740..716555	-	271	46906912	thiD-2	LMOf2365_0696	-	phosphomethylpyrimidine kinase
689	 38.06	0	716581..717447	-	288	46906913	-	LMOf2365_0697	-	Cof-like hydrolase
690	 42.20	+1	717621..718184	+	187	46906914	-	LMOf2365_0698	-	acetyltransferase
691	 42.80	+1	718181..718444	+	87	46906915	-	LMOf2365_0699	-	hypothetical protein
692	 40.74	0	718454..718831	+	125	46906916	-	LMOf2365_0700	-	hypothetical protein
693	 39.85	0	718945..719880	+	311	46906917	-	LMOf2365_0701	-	ABC transporter, ATP-binding protein
694	 40.21	0	719873..720643	+	256	46906918	-	LMOf2365_0702	-	ABC transporter, permease protein
695	 34.85	0	720762..720893	+	43	46906919	-	LMOf2365_0703	-	hypothetical protein
696	 41.84	+1	720906..721787	+	293	46906920	-	LMOf2365_0704	-	short chain dehydrogenase/reductase family oxidoreductase
697	 40.68	0	721805..721981	+	58	46906921	-	LMOf2365_0705	-	hypothetical protein
698	 27.45	-2	723238..723339	+	33	46906922	-	LMOf2365_0707	-	hypothetical protein
699	 37.06	0	723626..724054	+	142	46906923	-	LMOf2365_0708	-	hypothetical protein
700	 34.29	-1	724093..724302	-	69	46906924	-	LMOf2365_0709	-	hypothetical protein
701	 34.09	-1	724321..725241	-	306	46906925	-	LMOf2365_0710	-	hypothetical protein
702	 34.29	-1	725613..725927	+	104	46906926	-	LMOf2365_0711	-	hypothetical protein
703	 37.89	0	725920..726687	+	255	46906927	fliP	LMOf2365_0712	-	flagellar biosynthesis protein FliP
704	 40.66	0	726700..726972	+	90	46906928	fliQ	LMOf2365_0713	-	flagellar biosynthesis protein FliQ
705	 37.14	0	726975..727736	+	253	46906929	fliR	LMOf2365_0714	-	flagellar biosynthesis protein FliR
706	 41.17	0	727752..728798	+	348	46906930	flhB	LMOf2365_0715	-	flagellar biosynthesis protein FlhB
707	 41.52	+1	728845..730920	+	691	46906931	flhA	LMOf2365_0716	-	flagellar biosynthesis protein FlhA
708	 41.99	+1	730942..732165	+	407	46906932	-	LMOf2365_0717	-	flagellar biosynthesis regulator FlhF
709	 43.08	+1	732162..732941	+	259	46906933	flgG	LMOf2365_0718	-	flagellar basal body rod protein FlgG
710	 39.54	0	732970..733758	+	262	46906934	cheR	LMOf2365_0719	-	chemotaxis protein methyltransferase CheR
711	 37.50	0	733783..734118	+	111	46906935	-	LMOf2365_0720	-	hypothetical protein
712	 43.66	+1	734145..734996	+	283	46906936	motA	LMOf2365_0721	-	flagellar motor protein MotA
713	 42.27	+1	734956..735783	+	275	46906937	motB	LMOf2365_0722	-	chemotaxis protein MotB
714	 37.65	0	735784..736293	+	169	46906938	-	LMOf2365_0723	-	hypothetical protein
715	 38.30	0	736316..738229	+	637	46906939	-	LMOf2365_0724	-	glycosyl transferase, group 2 family protein
716	 37.40	0	738242..739150	+	302	46906940	cheV	LMOf2365_0725	-	chemotaxis protein CheV
717	 38.77	0	739388..740251	+	287	46906941	-	LMOf2365_0726	-	flagellin
718	 41.94	+1	740526..740885	+	119	46906942	cheY	LMOf2365_0727	-	chemotaxis protein CheY
719	 40.66	0	740905..742761	+	618	46906943	cheA	LMOf2365_0728	-	chemotaxis protein CheA
720	 44.00	+1	742774..743073	+	99	46906944	-	LMOf2365_0729	-	flagellar motor switch protein
721	 37.96	0	743092..743502	+	136	46906945	-	LMOf2365_0730	-	hypothetical protein
722	 42.88	+1	743518..744564	+	348	46906946	-	LMOf2365_0731	-	hypothetical protein
723	 40.66	0	744566..744988	+	140	46906947	flgD	LMOf2365_0732	-	flagellar basal body rod modification protein
724	 42.72	+1	745008..746243	+	411	46906948	flgE	LMOf2365_0733	-	flagellar hook protein FlgE
725	 37.97	0	746257..746493	+	78	46906949	-	LMOf2365_0734	-	flagellar motor switch protein
726	 41.09	0	746514..747506	+	330	46906950	fliM	LMOf2365_0735	-	flagellar motor switch protein FliM
727	 40.00	0	747542..749056	+	504	46906951	-	LMOf2365_0736	-	flagellar motor switch protein
728	 40.98	0	749080..750465	+	461	46906952	-	LMOf2365_0737	-	hypothetical protein
729	 36.08	0	750488..751654	+	388	46906953	-	LMOf2365_0738	-	hypothetical protein
730	 33.98	-1	751761..752225	+	154	46906954	-	LMOf2365_0739	-	hypothetical protein
731	 36.13	0	752235..752663	+	142	46906955	-	LMOf2365_0740	-	hypothetical protein
732	 41.81	+1	752683..754203	+	506	46906956	flgK	LMOf2365_0741	-	flagellar hook-associated protein FlgK
733	 37.90	0	754215..755090	+	291	46906957	flgL	LMOf2365_0742	-	flagellar hook-associated protein FlgL
734	 40.85	0	755102..756391	+	429	161611352	fliD	LMOf2365_0743	-	flagellar capping protein
735	 33.85	-1	756410..756796	+	128	46906959	-	LMOf2365_0744	-	flagellar protein FliS, putative
736	 33.33	-1	756768..757049	+	93	46906960	-	LMOf2365_0745	-	hypothetical protein
737	 41.79	+1	757070..757471	+	133	46906961	flgB	LMOf2365_0746	-	flagellar basal body rod protein FlgB
738	 41.85	+1	757483..757893	+	136	46906962	flgC	LMOf2365_0747	-	flagellar basal body rod protein FlgC
739	 40.07	0	757910..758206	+	98	46906963	fliE	LMOf2365_0748	-	flagellar hook-basal body protein FliE
740	 41.44	0	758274..759926	+	550	46906964	fliF	LMOf2365_0749	-	flagellar MS-ring protein
741	 40.83	0	759929..761035	+	368	46906965	fliG	LMOf2365_0750	-	flagellar motor switch protein G
742	 39.25	0	761022..761714	+	230	46906966	fliH	LMOf2365_0751	-	flagellar assembly protein H
743	 42.86	+1	761711..763012	+	433	46906967	fliI	LMOf2365_0752	-	flagellum-specific ATP synthase
744	 41.55	+1	763029..763697	+	222	46906968	-	LMOf2365_0753	-	Slt family transglycosylase
745	 37.67	0	763711..764355	+	214	46906969	-	LMOf2365_0754	-	hypothetical protein
746	 40.37	0	764474..764800	+	108	46906970	-	LMOf2365_0755	-	PadR family transcriptional regulator
747	 39.20	0	764800..765123	+	107	46906971	-	LMOf2365_0756	-	hypothetical protein
748	 39.20	0	765166..765813	-	215	46906972	-	LMOf2365_0757	-	fibronectin-binding protein
749	 42.75	+1	766084..767814	+	576	46906973	-	LMOf2365_0758	-	pyruvate oxidase
750	 38.48	0	767976..769781	+	601	46906974	-	LMOf2365_0759	-	methyl-accepting chemotaxis protein, putative
751	 40.47	0	769794..770522	+	242	46906975	-	LMOf2365_0760	-	hypothetical protein
752	 38.03	0	770565..770777	-	70	46906976	-	LMOf2365_0761	-	hypothetical protein
753	 39.48	0	771225..773030	+	601	46906977	glmS	LMOf2365_0762	-	D-fructose-6-phosphate amidotransferase
754	 41.43	0	773143..773883	+	246	46906978	-	LMOf2365_0763	-	riboflavin kinase/FMN adenylyltransferase, putative
755	 39.58	0	773966..774445	+	159	46906979	-	LMOf2365_0764	-	hypothetical protein
756	 34.51	0	774459..774797	+	112	46906980	-	LMOf2365_0765	-	hypothetical protein
757	 39.51	0	774942..775346	+	134	46906981	-	LMOf2365_0766	-	hypothetical protein
37.91	MEAN

3.60	STD DEV
