IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

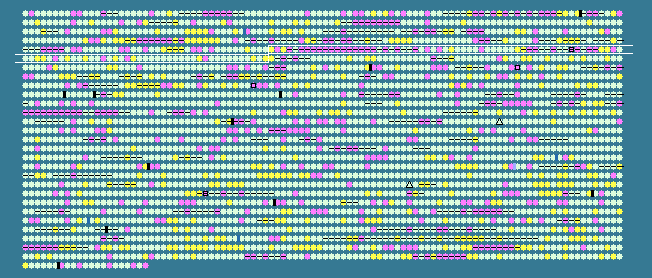

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
442	 42.03	+1	465893..466639	+	248	46906666	-	LMOf2365_0448	-	short chain dehydrogenase/reductase family oxidoreductase
443	 34.04	-1	466835..467260	+	141	46906667	-	LMOf2365_0449	-	hypothetical protein
444	 41.67	+1	467516..474103	+	2195	46906668	-	LMOf2365_0450	-	wall-associated protein, putative
445	 30.23	-2	474103..474585	+	160	46906669	-	LMOf2365_0451	-	hypothetical protein
446	 37.72	0	474856..474969	+	37	46906670	-	LMOf2365_0452	-	hypothetical protein
447	 33.33	-1	475465..475815	+	116	46906671	-	LMOf2365_0453	-	hypothetical protein
448	 30.63	-2	475978..476568	+	196	46906672	-	LMOf2365_0454	-	hypothetical protein
449	 30.20	-2	476595..477041	+	148	46906673	-	LMOf2365_0455	-	hypothetical protein
450	 29.39	-2	477058..477666	+	202	46906674	-	LMOf2365_0456	-	hypothetical protein
451	 28.84	-2	477810..478076	+	88	46906675	-	LMOf2365_0457	-	hypothetical protein
452	 28.85	-2	478116..478472	+	118	46906676	-	LMOf2365_0458	-	hypothetical protein
453	 19.22	-2	478648..478902	+	84	46906677	-	LMOf2365_0459	-	hypothetical protein
454	 22.02	-2	478915..479082	+	55	46906678	-	LMOf2365_0460	-	hypothetical protein
455	 27.88	-2	479199..479693	+	164	46906679	-	LMOf2365_0461	-	hypothetical protein
456	 32.96	-1	479903..480169	+	88	46906680	-	LMOf2365_0462	-	hypothetical protein
457	 30.54	-2	480288..481076	+	262	46906681	-	LMOf2365_0463	-	hypothetical protein
458	 29.43	-2	481229..481894	+	221	46906682	-	LMOf2365_0464	-	hypothetical protein
459	 27.08	-2	482137..482376	-	79	46906683	-	LMOf2365_0465	-	hypothetical protein
460	 34.86	0	482394..482981	+	195	46906684	-	LMOf2365_0466	-	hypothetical protein
461	 31.29	-1	483006..483152	+	48	46906685	-	LMOf2365_0467	-	hypothetical protein
462	 35.59	0	483130..483705	+	191	46906686	-	LMOf2365_0468	-	HEAT repeat-containing PBS lyase
463	 26.98	-2	483744..483869	+	41	46906687	-	LMOf2365_0469	-	hypothetical protein
464	 37.25	0	483988..484089	+	33	46906688	-	LMOf2365_0470	-	hypothetical protein
465	 37.04	0	484412..486814	+	800	46906689	inlA	LMOf2365_0471	-	internalin A
466	 32.26	-1	488906..489373	-	155	46906690	-	LMOf2365_0473	-	hypothetical protein
467	 40.66	0	489490..490335	+	281	46906691	-	LMOf2365_0474	-	YtfG protein, putative
468	 32.82	-1	490530..491108	+	192	46906692	-	LMOf2365_0475	-	hypothetical protein
469	 38.22	0	491141..492409	-	422	46906693	-	LMOf2365_0476	-	hypothetical protein
470	 32.74	-1	492547..493050	+	167	46906694	-	LMOf2365_0477	-	hypothetical protein
471	 41.09	0	493092..495128	-	678	46906695	-	LMOf2365_0478	-	penicillin-binding protein
472	 43.49	+1	495300..495614	+	104	46906696	-	LMOf2365_0479	-	hypothetical protein
473	 38.39	0	495751..496680	+	309	46906697	-	LMOf2365_0480	-	transcriptional regulator, putative
474	 35.70	0	496728..497276	-	182	46906698	-	LMOf2365_0481	-	hypothetical protein
475	 38.15	0	497510..498235	+	241	46906699	-	LMOf2365_0482	-	hypothetical protein
476	 38.14	0	498279..498944	-	221	46906700	-	LMOf2365_0483	-	hypothetical protein
477	 34.39	0	498965..499720	-	251	46906701	-	LMOf2365_0484	-	hypothetical protein
478	 39.12	0	499837..501996	-	719	46906702	-	LMOf2365_0485	-	peptidase, putative
479	 39.69	0	501993..503141	-	382	46906703	-	LMOf2365_0486	-	hypothetical protein
480	 40.40	0	503146..504093	-	315	46906704	-	LMOf2365_0487	-	magnesium chelatase, subunit ChII family protein
481	 37.18	0	504261..505844	+	527	46906705	-	LMOf2365_0488	-	hypothetical protein
482	 39.56	0	505978..507261	+	427	46906706	-	LMOf2365_0489	-	cytosine/purines/uracil/thiamine/allantoin permease family protein
483	 43.32	+1	507262..508362	+	366	46906707	-	LMOf2365_0490	-	hypothetical protein
484	 44.42	+1	508355..509905	+	516	46906708	-	LMOf2365_0491	-	hydantoinase/oxoprolinase family protein
485	 33.77	-1	510079..510306	-	75	46906709	-	LMOf2365_0492	-	hypothetical protein
486	 32.55	-1	510541..512079	+	512	46906710	-	LMOf2365_0493	-	hypothetical protein
487	 37.26	0	512381..514495	+	704	46906711	-	LMOf2365_0494	-	hypothetical protein
488	 38.02	0	514631..516700	+	689	46906712	-	LMOf2365_0495	-	putative lipoprotein
489	 33.54	-1	516766..517239	+	157	46906713	-	LMOf2365_0496	-	hypothetical protein
490	 37.65	0	517259..517744	+	161	46906714	-	LMOf2365_0497	-	hypothetical protein
491	 38.30	0	517796..518077	+	93	46906715	-	LMOf2365_0498	-	cell wall surface anchor family protein
492	 33.71	-1	518151..518417	+	88	46906716	-	LMOf2365_0499	-	IS3 family transposase OrfA
493	 26.55	-2	518926..519102	+	58	46906717	-	LMOf2365_0500	-	hypothetical protein
494	 35.76	0	519153..519770	+	205	46906718	-	LMOf2365_0501	-	hypothetical protein
495	 28.70	-2	520080..520424	+	114	46906719	-	LMOf2365_0502	-	hypothetical protein
496	 29.22	-2	520831..521073	+	80	46906720	-	LMOf2365_0503	-	hypothetical protein
497	 41.72	+1	521156..522133	-	325	46906721	-	LMOf2365_0504	-	HD domain-containing protein
498	 46.13	+2	522237..522572	+	111	46906722	-	LMOf2365_0505	-	hypothetical protein
499	 32.22	-1	523033..523392	+	119	46906723	-	LMOf2365_0506	-	hypothetical protein
500	 39.04	0	523644..524204	+	186	46906724	-	LMOf2365_0507	-	hypothetical protein
501	 39.62	0	524314..526014	+	566	46906725	-	LMOf2365_0508	-	antigen, putative
502	 40.94	0	526165..527268	+	367	46906726	-	LMOf2365_0509	-	hypothetical protein
503	 42.08	+1	527358..527837	+	159	46906727	-	LMOf2365_0510	-	hypothetical protein
504	 42.90	+1	527995..528360	+	121	46906728	-	LMOf2365_0511	-	heme-degrading monooxygenase IsdG
505	 38.94	0	528853..530154	+	433	46906729	-	LMOf2365_0513	-	hypothetical protein
506	 29.10	-2	530167..530544	+	125	46906730	-	LMOf2365_0514	-	hypothetical protein
507	 41.15	0	530778..531353	+	191	46906731	-	LMOf2365_0515	-	hypothetical protein
508	 46.78	+2	531418..531588	+	56	46906732	rpmF	LMOf2365_0516	-	50S ribosomal protein L32
509	 41.29	0	531680..532408	+	242	46906733	-	LMOf2365_0517	-	MutT/nudix family protein
510	 38.03	0	532445..533338	-	297	46906734	-	LMOf2365_0518	-	LysR family transcriptional regulator
511	 41.85	+1	533536..535530	+	664	46906735	-	LMOf2365_0519	-	NADH:flavin oxidoreductase
512	 38.93	0	535630..536505	+	291	46906736	aroE	LMOf2365_0520	-	shikimate 5-dehydrogenase
513	 41.11	0	536571..537329	+	252	46906737	aroD	LMOf2365_0521	-	3-dehydroquinate dehydratase
514	 32.23	-1	537398..538306	-	302	46906738	-	LMOf2365_0522	-	LysR family transcriptional regulator
515	 38.44	0	538381..540141	-	586	46906739	-	LMOf2365_0523	-	CocE/NonD family hydrolase
516	 43.77	+1	540333..540926	+	197	46906740	-	LMOf2365_0524	-	lipase/acylhydrolase family protein
517	 40.31	0	541112..542071	+	319	46906741	-	LMOf2365_0525	-	hypothetical protein
518	 32.44	-1	542146..542370	+	74	46906742	-	LMOf2365_0526	-	hypothetical protein
519	 43.11	+1	542537..542986	+	149	46906743	rpiB-2	LMOf2365_0527	-	ribose 5-phosphate isomerase B
520	 40.66	0	542983..543651	+	222	46906744	-	LMOf2365_0528	-	ribulose-phosphate 3-epimerase family protein
521	 37.17	0	543658..544308	+	216	46906745	-	LMOf2365_0529	-	transaldolase, putative
522	 36.05	0	544417..546477	+	686	46906746	-	LMOf2365_0530	-	PTS system IIA component domain-containing protein
523	 38.81	0	546481..547083	+	200	46906747	-	LMOf2365_0531	-	SIS domain-containing protein
524	 40.17	0	547111..547578	+	155	46906748	-	LMOf2365_0532	-	PTS system, IIA component
525	 35.84	0	547595..547993	+	132	46906749	-	LMOf2365_0533	-	hypothetical protein
526	 38.56	0	548004..548654	+	216	46906750	rpe-1	LMOf2365_0534	-	ribulose-phosphate 3-epimerase
527	 40.88	0	548651..549697	+	348	46906751	-	LMOf2365_0535	-	alcohol dehydrogenase, zinc-dependent
528	 36.05	0	549713..550006	+	97	46906752	-	LMOf2365_0536	-	PTS system, galactitol-specific, IIB component, putative
529	 40.17	0	550021..551292	+	423	46906753	-	LMOf2365_0537	-	PTS system, galactitol-specific, IIC component, putative
530	 42.84	+1	551432..552367	+	311	46906754	prs-2	LMOf2365_0538	-	ribose-phosphate pyrophosphokinase
531	 31.43	-1	552989..553567	+	192	46906755	-	LMOf2365_0539	-	putative lipoprotein
532	 38.47	0	553674..554354	+	226	46906756	-	LMOf2365_0540	-	glutamine amidotransferase, class I
533	 39.44	0	554379..554738	-	119	46906757	-	LMOf2365_0541	-	hypothetical protein
534	 40.31	0	554745..555203	-	152	46906758	-	LMOf2365_0542	-	MarR family transcriptional regulator
535	 36.94	0	555585..557414	+	609	46906759	-	LMOf2365_0543	-	cell wall surface anchor family protein
536	 38.66	0	557515..557946	+	143	46906760	-	LMOf2365_0544	-	universal stress protein
537	 38.02	0	557993..559423	-	476	46906761	-	LMOf2365_0545	-	CapA domain-containing protein
538	 38.36	0	559544..560359	-	271	46906762	-	LMOf2365_0546	-	phosphoglycerate mutase family protein
539	 44.44	+1	560640..561008	-	122	46906763	-	LMOf2365_0547	-	hypothetical protein
540	 41.38	0	561155..562570	+	471	46906764	-	LMOf2365_0548	-	EmrB/QacA family drug resistance transporter
541	 42.39	+1	562702..563706	+	334	46906765	-	LMOf2365_0549	-	hypothetical protein
37.91	MEAN

3.60	STD DEV
