IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

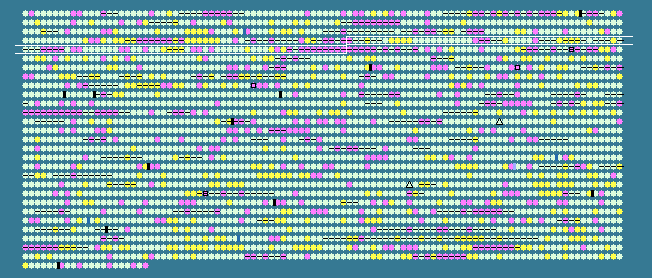

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
355	 32.59	-1	385524..385793	+	89	46906579	-	LMOf2365_0359	-	hypothetical protein
356	 36.59	0	385787..385909	+	40	46906580	-	LMOf2365_0360	-	hypothetical protein
357	 38.10	0	386169..386357	+	62	46906581	-	LMOf2365_0361	-	hypothetical protein
358	 47.00	+2	386477..388474	-	665	46906582	tkt-1	LMOf2365_0362	-	transketolase
359	 40.64	0	388476..389132	-	218	46906583	-	LMOf2365_0363	-	putative translaldolase
360	 40.92	0	389179..389943	-	254	46906584	-	LMOf2365_0364	-	short chain dehydrogenase
361	 40.04	0	389968..390414	-	148	46906585	rpiB-1	LMOf2365_0365	-	ribose 5-phosphate isomerase B
362	 42.09	+1	390421..391185	-	254	46906586	tpiA-1	LMOf2365_0366	-	triosephosphate isomerase
363	 45.16	+2	391189..391839	-	216	46906587	-	LMOf2365_0367	-	dihydroxyacetone kinase
364	 42.17	+1	391861..392856	-	331	46906588	-	LMOf2365_0368	-	dihydroxyacetone kinase
365	 41.52	+1	392878..393219	-	113	46906589	-	LMOf2365_0369	-	hypothetical protein
366	 38.66	0	393235..393666	-	143	46906590	-	LMOf2365_0370	-	hypothetical protein
367	 39.68	0	393751..394128	-	125	46906591	-	LMOf2365_0371	-	hypothetical protein
368	 35.95	0	394311..395075	+	254	46906592	-	LMOf2365_0372	-	DeoR family transcriptional regulator
369	 38.20	0	395141..395551	+	136	46906593	-	LMOf2365_0373	-	acetyltransferase
370	 37.34	0	395649..397418	+	589	46906594	-	LMOf2365_0374	-	internalin
371	 39.69	0	397459..398985	-	508	46906595	-	LMOf2365_0375	-	long-chain acyl-CoA synthetase, putative
372	 39.25	0	399222..400742	+	506	46906596	-	LMOf2365_0376	-	fumarate reductase flavoprotein subunit
373	 38.35	0	400946..401962	+	338	46906597	-	LMOf2365_0377	-	YhhX family oxidoreductase
374	 39.14	0	404018..404878	+	286	46906598	-	LMOf2365_0379	-	hypothetical protein
375	 38.39	0	404935..405705	+	256	46906599	-	LMOf2365_0380	-	DeoR family transcriptional regulator
376	 23.68	-2	405689..405916	-	75	46906600	-	LMOf2365_0381	-	hypothetical protein
377	 33.01	-1	406017..406634	-	205	46906601	-	LMOf2365_0382	-	S51 family peptidase
378	 33.86	-1	406729..407676	+	315	46906602	-	LMOf2365_0383	-	hypothetical protein
379	 39.41	0	407726..408235	+	169	46906603	-	LMOf2365_0384	-	MutT/nudix family protein
380	 38.06	0	408331..409050	+	239	46906604	-	LMOf2365_0385	-	hypothetical protein
381	 41.67	+1	409087..409422	+	111	46906605	phnA	LMOf2365_0386	-	alkylphosphonate utilization operon protein PhnA
382	 39.08	0	409462..410175	-	237	46906606	-	LMOf2365_0387	-	GntR family transcriptional regulator
383	 38.60	0	410332..411774	+	480	46906607	-	LMOf2365_0388	-	glycosy hydrolase family protein
384	 38.73	0	411767..413101	+	444	46906608	-	LMOf2365_0389	-	PTS system, beta-glucoside-specific, IIC component
385	 40.26	0	413119..413421	+	100	46906609	-	LMOf2365_0390	-	PTS system, beta-glucoside-specific, IIB component
386	 31.28	-1	413508..413702	+	64	46906610	-	LMOf2365_0391	-	hypothetical protein
387	 41.04	0	413741..414661	-	306	46906611	-	LMOf2365_0392	-	hypothetical protein
388	 40.71	0	414764..415183	+	139	46906612	-	LMOf2365_0393	-	hypothetical protein
389	 40.68	0	415232..415993	-	253	46906613	-	LMOf2365_0394	-	DeoR family transcriptional regulator
390	 44.04	+1	416188..417654	+	488	46906614	mmsA	LMOf2365_0395	-	methylmalonate-semialdehyde dehydrogenase
391	 42.82	+1	417667..418488	+	273	46906615	-	LMOf2365_0396	-	IolB protein, putative
392	 41.92	+1	418505..419482	+	325	46906616	-	LMOf2365_0397	-	IolC protein, putative
393	 45.99	+2	419492..421411	+	639	46906617	-	LMOf2365_0398	-	thiamine-pyrophosphate-requiring enzyme
394	 38.71	0	421544..421915	+	123	46906618	-	LMOf2365_0399	-	hypothetical protein
395	 37.13	0	422009..422377	+	122	46906619	-	LMOf2365_0400	-	hypothetical protein
396	 37.63	0	422401..423516	-	371	46906620	-	LMOf2365_0401	-	hypothetical protein
397	 40.84	0	423647..424312	+	221	46906621	ung-1	LMOf2365_0402	-	uracil-DNA glycosylase
398	 40.33	0	424480..424779	+	99	46906622	-	LMOf2365_0403	-	hypothetical protein
399	 42.12	+1	424776..425720	+	314	46906623	-	LMOf2365_0404	-	hypothetical protein
400	 38.22	0	425755..426204	+	149	46906624	-	LMOf2365_0405	-	hypothetical protein
401	 35.56	0	426315..427031	+	238	46906625	-	LMOf2365_0406	-	NLP/P60 family protein
402	 36.15	0	427087..427512	+	141	46906626	-	LMOf2365_0407	-	acetyltransferase
403	 41.07	0	427515..428315	-	266	46906627	proC	LMOf2365_0408	-	pyrroline-5-carboxylate reductase
404	 30.05	-2	428664..428876	+	70	46906628	-	LMOf2365_0409	-	hypothetical protein
405	 31.37	-1	428922..429023	+	33	46906629	-	LMOf2365_0410	-	hypothetical protein
406	 30.39	-2	429060..429161	+	33	46906630	-	LMOf2365_0411	-	hypothetical protein
407	 34.31	0	429199..429300	+	33	46906631	-	LMOf2365_0412	-	hypothetical protein
408	 35.87	0	429391..430614	+	407	46906632	-	LMOf2365_0413	-	cell wall surface anchor family protein
409	 30.88	-1	430731..431381	+	216	46906633	-	LMOf2365_0414	-	GntR family transcriptional regulator
410	 32.00	-1	431426..432025	+	199	46906634	-	LMOf2365_0415	-	hypothetical protein
411	 35.70	0	432043..432717	+	224	46906635	-	LMOf2365_0416	-	ABC transporter, ATP-binding protein
412	 35.45	0	432702..433880	+	392	46906636	-	LMOf2365_0417	-	ABC transporter, permease protein, putative
413	 34.72	0	433899..434042	+	47	46906637	-	LMOf2365_0418	-	hypothetical protein
414	 37.89	0	434113..434595	+	160	46906638	-	LMOf2365_0419	-	hypothetical protein
415	 40.09	0	436683..439316	+	877	46906639	-	LMOf2365_0421	-	alpha-mannosidase
416	 37.73	0	439349..441283	+	644	46906640	-	LMOf2365_0422	-	PRD/PTS system IIA 2 domain-containing protein
417	 32.37	-1	441410..441826	+	138	46906641	-	LMOf2365_0423	-	hypothetical protein
418	 31.55	-1	441823..442215	+	130	46906642	-	LMOf2365_0424	-	hypothetical protein
419	 40.97	0	442324..443331	+	335	46906643	-	LMOf2365_0425	-	phosphate transporter family protein
420	 39.37	0	443347..443727	+	126	46906644	-	LMOf2365_0426	-	glyoxalase family protein
421	 32.32	-1	443796..444188	+	130	46906645	-	LMOf2365_0427	-	hypothetical protein
422	 39.24	0	444201..444623	+	140	46906646	-	LMOf2365_0428	-	hypothetical protein
423	 35.52	0	444851..447322	+	823	46906647	inlF	LMOf2365_0429	-	internalin
424	 41.94	+1	447370..449973	-	867	46906648	-	LMOf2365_0430	-	phosphoenolpyruvate synthase
425	 41.52	+1	450173..451051	-	292	46906649	-	LMOf2365_0431	-	hypothetical protein
426	 41.67	+1	451388..451579	+	63	46906650	-	LMOf2365_0432	-	hypothetical protein
427	 42.47	+1	451606..452415	+	269	46906651	-	LMOf2365_0433	-	ZIP zinc transporter family protein
428	 36.26	0	452708..454108	+	466	46906652	-	LMOf2365_0434	-	polysaccharide deacetylase family protein
429	 34.31	0	454235..454438	+	67	46906653	-	LMOf2365_0435	-	DNA-binding protein
430	 30.17	-2	454440..454850	+	136	46906654	-	LMOf2365_0436	-	hypothetical protein
431	 36.33	0	454903..455202	-	99	46906655	-	LMOf2365_0437	-	hypothetical protein
432	 34.05	-1	455283..455837	-	184	46906656	-	LMOf2365_0438	-	hypothetical protein
433	 39.85	0	455984..456796	+	270	46906657	-	LMOf2365_0439	-	Cof-like hydrolase
434	 41.26	0	456815..457672	-	285	46906658	-	LMOf2365_0440	-	sugar transporter, putative
435	 38.48	0	457835..459796	+	653	46906659	-	LMOf2365_0441	-	PRD/PTS system IIA 2 domain-containing protein
436	 36.77	0	459796..460260	+	154	46906660	-	LMOf2365_0442	-	PTS system, fructose-specific, IIA component
437	 39.56	0	460257..460577	+	106	46906661	-	LMOf2365_0443	-	PTS system, fructose-specific, IIB component
438	 43.18	+1	460590..461696	+	368	46906662	-	LMOf2365_0444	-	PTS system, fructose-specific, IIC component
439	 41.35	0	461712..464294	+	860	46906663	-	LMOf2365_0445	-	glycosy hydrolase family protein
440	 35.16	0	464317..465192	-	291	46906664	-	LMOf2365_0446	-	LysR family transcriptional regulator
441	 39.47	0	465310..465879	+	189	46906665	-	LMOf2365_0447	-	acetyltransferase
442	 42.03	+1	465893..466639	+	248	46906666	-	LMOf2365_0448	-	short chain dehydrogenase/reductase family oxidoreductase
443	 34.04	-1	466835..467260	+	141	46906667	-	LMOf2365_0449	-	hypothetical protein
444	 41.67	+1	467516..474103	+	2195	46906668	-	LMOf2365_0450	-	wall-associated protein, putative
445	 30.23	-2	474103..474585	+	160	46906669	-	LMOf2365_0451	-	hypothetical protein
446	 37.72	0	474856..474969	+	37	46906670	-	LMOf2365_0452	-	hypothetical protein
447	 33.33	-1	475465..475815	+	116	46906671	-	LMOf2365_0453	-	hypothetical protein
448	 30.63	-2	475978..476568	+	196	46906672	-	LMOf2365_0454	-	hypothetical protein
449	 30.20	-2	476595..477041	+	148	46906673	-	LMOf2365_0455	-	hypothetical protein
450	 29.39	-2	477058..477666	+	202	46906674	-	LMOf2365_0456	-	hypothetical protein
451	 28.84	-2	477810..478076	+	88	46906675	-	LMOf2365_0457	-	hypothetical protein
452	 28.85	-2	478116..478472	+	118	46906676	-	LMOf2365_0458	-	hypothetical protein
453	 19.22	-2	478648..478902	+	84	46906677	-	LMOf2365_0459	-	hypothetical protein
454	 22.02	-2	478915..479082	+	55	46906678	-	LMOf2365_0460	-	hypothetical protein
37.91	MEAN

3.60	STD DEV
