IslandPath Analysis: Listeria monocytogenes str. 4b F2365

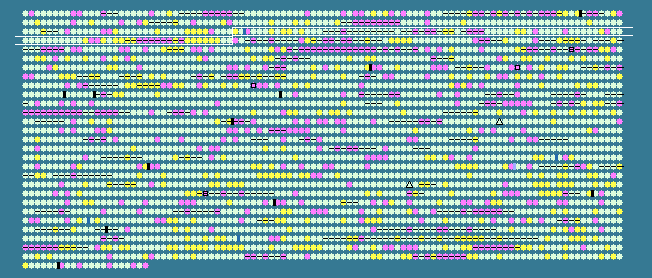

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
236	 42.37	+1	239677..240672	+	331	85700164	-	LMOf2365_0239	-	dihydrouridine synthase family protein
237	 39.14	0	240787..242283	+	498	46906461	lysS	LMOf2365_0240	-	lysyl-tRNA synthetase
238	 31.37	-1	253816..254274	+	152	46906462	ctsR	LMOf2365_0241	-	transcriptional regulator CtsR
239	 39.69	0	254287..254805	+	172	46906463	-	LMOf2365_0242	-	UVR domain-containing protein
240	 36.75	0	254802..255824	+	340	46906464	-	LMOf2365_0243	-	ATP:guanido phosphotransferase
241	 40.40	0	255853..258315	+	820	46906465	-	LMOf2365_0244	-	ClpC ATPase
242	 41.92	+1	258462..259835	+	457	46906466	radA	LMOf2365_0245	-	DNA repair protein RadA
243	 35.38	0	259968..261041	+	357	46906467	-	LMOf2365_0246	-	PIN/TRAM domain-containing protein
244	 41.77	+1	261061..261759	+	232	46906468	ispD	LMOf2365_0247	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
245	 42.19	+1	261752..262225	+	157	46906469	ispF	LMOf2365_0248	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
246	 37.94	0	262244..263719	+	491	46906470	gltX	LMOf2365_0249	-	glutamyl-tRNA synthetase
247	 43.74	+1	264118..264732	+	204	46906471	cysE	LMOf2365_0250	-	serine O-acetyltransferase
248	 40.40	0	264739..266154	+	471	46906472	cysS	LMOf2365_0251	-	cysteinyl-tRNA synthetase
249	 41.08	0	266158..266583	+	141	46906473	-	LMOf2365_0252	-	hypothetical protein
250	 40.74	0	266567..267322	+	251	46906474	-	LMOf2365_0253	-	RNA methyltransferase
251	 40.74	0	267325..267837	+	170	46906475	-	LMOf2365_0254	-	hypothetical protein
252	 37.46	0	267918..268523	+	201	46906476	sigH	LMOf2365_0255	-	RNA polymerase factor sigma-70
253	 39.33	0	268627..268776	+	49	46906477	rpmG	LMOf2365_0256	-	50S ribosomal protein L33
254	 31.67	-1	268796..268975	+	59	46906478	secE	LMOf2365_0257	-	preprotein translocase subunit SecE
255	 38.76	0	269105..269638	+	177	46906479	nusG	LMOf2365_0258	-	transcription antitermination protein NusG
256	 35.67	0	269693..270163	+	156	46906480	-	LMOf2365_0259	-	hypothetical protein
257	 40.85	0	270290..270715	+	141	46906481	rplK	LMOf2365_0260	-	50S ribosomal protein L11
258	 40.14	0	270755..271444	+	229	46906482	rplA	LMOf2365_0261	-	50S ribosomal protein L1
259	 39.92	0	271692..272192	+	166	46906483	rplJ	LMOf2365_0262	-	50S ribosomal protein L10
260	 39.12	0	272271..272633	+	120	46906484	rplL	LMOf2365_0263	-	50S ribosomal protein L7/L12
261	 38.05	0	272767..273381	+	204	46906485	-	LMOf2365_0264	-	hypothetical protein
262	 39.86	0	273728..274906	+	392	46906486	-	LMOf2365_0265	-	hypothetical protein
263	 35.04	0	275051..276046	+	331	46906487	-	LMOf2365_0266	-	DegA family transcriptional regulator
264	 38.22	0	276184..277410	+	408	46906488	-	LMOf2365_0267	-	sugar ABC transporter, sugar-binding protein
265	 37.14	0	277428..278765	+	445	46906489	-	LMOf2365_0268	-	sugar ABC transporter, permease protein
266	 33.81	-1	278767..279597	+	276	46906490	-	LMOf2365_0269	-	sugar ABC transporter, permease protein
267	 37.22	0	279612..281309	+	565	46906491	malL-2	LMOf2365_0270	-	oligo-1,6-glucosidase
268	 32.92	-1	281310..282752	+	480	46906492	gtfA	LMOf2365_0271	-	sucrose phosphorylase
269	 30.08	-2	282818..283063	+	81	46906493	-	LMOf2365_0272	-	hypothetical protein
270	 36.19	0	283072..283176	+	34	46906494	-	LMOf2365_0273	-	hypothetical protein
271	 42.00	+1	283309..286863	+	1184	46906495	rpoB	LMOf2365_0274	-	DNA-directed RNA polymerase subunit beta
272	 41.51	+1	287034..290639	+	1201	46906496	rpoC	LMOf2365_0275	-	DNA-directed RNA polymerase subunit beta'
273	 40.23	0	290739..291260	+	173	46906497	-	LMOf2365_0276	-	hypothetical protein
274	 40.66	0	291326..292786	+	486	46906498	-	LMOf2365_0277	-	glycosy hydrolase family protein
275	 30.63	-2	293001..293444	+	147	46906499	-	LMOf2365_0278	-	hypothetical protein
276	 27.44	-2	293496..295157	+	553	46906500	-	LMOf2365_0279	-	ABC transporter, ATP-binding protein, putative
277	 28.83	-2	295154..296929	+	591	46906501	-	LMOf2365_0280	-	ABC transporter, ATP-binding/permease protein
278	 37.28	0	297720..299366	+	548	46906502	inlC2	LMOf2365_0281	-	internalin C2
279	 36.56	0	299575..301281	+	568	46906503	inlD	LMOf2365_0282	-	internalin D
280	 36.27	0	301493..302992	+	499	46906504	inlE	LMOf2365_0283	-	internalin E
281	 38.25	0	303126..304265	+	379	161611353	-	LMOf2365_0284	-	succinyl-diaminopimelate desuccinylase
282	 39.09	0	304412..304828	+	138	46906506	-	LMOf2365_0285	-	MarR family transcriptional regulator
283	 42.60	+1	304835..305794	+	319	46906507	-	LMOf2365_0286	-	glyoxalase family protein
284	 42.61	+1	305866..306501	+	211	46906508	-	LMOf2365_0287	-	phosphoglycerate mutase family protein
285	 41.23	0	306585..308471	+	628	46906509	-	LMOf2365_0288	-	transporter, putative
286	 34.35	0	308500..309585	-	361	46906510	-	LMOf2365_0289	-	leucine-rich repeat-containing protein
287	 39.23	0	309719..310345	-	208	46906511	-	LMOf2365_0290	-	hypothetical protein
288	 40.92	0	310346..311782	-	478	46906512	-	LMOf2365_0291	-	glycosy hydrolase family protein
289	 38.13	0	311902..312714	-	270	46906513	-	LMOf2365_0292	-	HAD superfamily hydrolase
290	 37.50	0	312850..313353	+	167	46906514	-	LMOf2365_0293	-	acetyltransferase
291	 33.18	-1	313390..314052	-	220	46906515	-	LMOf2365_0294	-	hypothetical protein
292	 37.13	0	314310..315152	-	280	46906516	-	LMOf2365_0295	-	competence protein ComEC/Rec2-related protein
293	 38.32	0	315169..315990	-	273	46906517	-	LMOf2365_0296	-	HAD superfamily hydrolase
294	 38.58	0	316106..317077	+	323	46906518	-	LMOf2365_0297	-	Gfo/Idh/MocA family oxidoreductase
295	 38.33	0	317115..318215	-	366	46906519	-	LMOf2365_0298	-	sugar ABC transporter, ATP-binding protein
296	 39.61	0	318506..320656	+	716	46906520	nrdD	LMOf2365_0299	-	anaerobic ribonucleoside triphosphate reductase
297	 45.65	+2	320649..321200	+	183	46906521	nrdG	LMOf2365_0300	-	anaerobic ribonucleoside-triphosphate reductase activating protein
298	 31.99	-1	321344..322015	-	223	46906522	-	LMOf2365_0301	-	hypothetical protein
299	 39.10	0	322180..322959	-	259	46906523	-	LMOf2365_0302	-	carbon-nitrogen family hydrolase
300	 40.42	0	323049..323711	-	220	46906524	-	LMOf2365_0303	-	ABC transporter, permease protein
301	 41.20	0	323708..324724	-	338	46906525	-	LMOf2365_0304	-	ABC transporter, ATP-binding protein
302	 35.64	0	324739..325560	-	273	46906526	-	LMOf2365_0305	-	ABC transporter, substrate-binding protein, putative
303	 40.44	0	325941..327122	+	393	46906527	-	LMOf2365_0306	-	transaminase
304	 39.36	0	327335..328048	+	237	46906528	-	LMOf2365_0307	-	DNA-binding response regulator
305	 39.66	0	328233..330065	+	610	46906529	-	LMOf2365_0308	-	sensory box histidine kinase
306	 35.37	0	330062..331384	+	440	46906530	-	LMOf2365_0309	-	hypothetical protein
307	 36.90	0	331387..332226	+	279	46906531	-	LMOf2365_0310	-	hypothetical protein
308	 38.27	0	332347..333177	+	276	46906532	-	LMOf2365_0311	-	metallo-beta-lactamase family protein
309	 39.79	0	333275..334777	+	500	46906533	-	LMOf2365_0312	-	serine protease
310	 38.54	0	335107..335202	+	31	46906534	-	LMOf2365_0313	-	hypothetical protein
311	 46.04	+2	335465..335944	+	159	46906535	-	LMOf2365_0314	-	SPOUT methyltransferase superfamily protein
312	 33.33	-1	335976..336839	-	287	46906536	-	LMOf2365_0315	-	LysR family transcriptional regulator
313	 32.79	-1	336958..337695	+	245	46906537	-	LMOf2365_0316	-	nitroreductase family protein
314	 41.94	+1	337906..338544	+	212	46906538	-	LMOf2365_0317	-	hypothetical protein
315	 38.25	0	338549..340420	-	623	46906539	-	LMOf2365_0318	-	PRD/PTS system IIA 2 domain-containing protein
316	 42.54	+1	340519..341832	-	437	46906540	-	LMOf2365_0319	-	PTS system, IIC component
317	 43.30	+1	341837..342127	-	96	46906541	-	LMOf2365_0320	-	PTS system, cellobiose-specific, IIB component
318	 43.53	+1	342144..343535	-	463	46906542	-	LMOf2365_0321	-	glycosy hydrolase family protein
319	 42.69	+1	343528..343869	-	113	46906543	-	LMOf2365_0322	-	PTS system, beta-glucoside-specific, IIA component
320	 26.44	-2	343921..344007	+	28	46906544	-	LMOf2365_0323	-	hypothetical protein
321	 30.40	-2	344509..346176	-	555	46906545	-	LMOf2365_0325	-	type II restriction enzyme Sau3AI, putative
322	 32.85	-1	346304..346510	+	68	46906546	-	LMOf2365_0326	-	DNA-binding protein
323	 32.98	-1	346513..347922	+	469	46906547	-	LMOf2365_0327	-	C-5 cytosine-specific DNA methylase family protein
324	 27.84	-2	348172..349026	+	284	46906548	-	LMOf2365_0328	-	hypothetical protein
325	 30.81	-1	349247..349801	+	184	46906549	-	LMOf2365_0329	-	putative lipoprotein
326	 43.52	+1	349992..351071	+	359	46906550	-	LMOf2365_0330	-	threonine aldolase family protein
327	 32.03	-1	351321..352241	+	306	46906551	-	LMOf2365_0331	-	M48 family peptidase
328	 46.06	+2	352266..353051	+	261	46906552	-	LMOf2365_0332	-	hypothetical protein
329	 46.52	+2	353274..353948	+	224	46906553	-	LMOf2365_0333	-	TENA/THI-4 family protein
330	 48.50	+2	353953..354750	+	265	46906554	thiM	LMOf2365_0334	-	hydroxyethylthiazole kinase
331	 45.27	+2	354747..355550	+	267	46906555	thiD-1	LMOf2365_0335	-	phosphomethylpyrimidine kinase
332	 46.51	+2	355547..356191	+	214	46906556	thiE	LMOf2365_0336	-	thiamine-phosphate pyrophosphorylase
333	 42.16	+1	356218..357633	-	471	46906557	bglH-1	LMOf2365_0337	-	beta-glucosidase
334	 39.95	0	357848..359116	-	422	46906558	-	LMOf2365_0338	-	cell wall surface anchor family protein
335	 40.15	0	359444..360103	+	219	46906559	-	LMOf2365_0339	-	hypothetical protein
37.91	MEAN

3.60	STD DEV
