IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

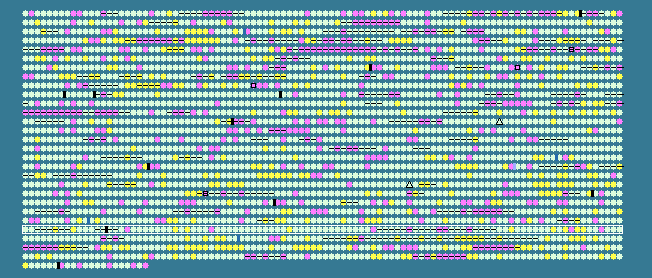

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2401	 40.05	0	2478928..2479671	-	247	46908625	est-2	LMOf2365_2425	-	carboxylesterase
2402	 37.22	0	2479854..2480573	-	239	46908626	-	LMOf2365_2426	-	hypothetical protein
2403	 38.69	0	2480706..2480873	-	55	46908627	-	LMOf2365_2427	-	hypothetical protein
2404	 40.76	0	2480982..2482274	-	430	46908628	eno	LMOf2365_2428	-	enolase
2405	 40.38	0	2482410..2483942	-	510	46908629	gpmA	LMOf2365_2429	-	phosphoglyceromutase
2406	 41.93	+1	2483944..2484699	-	251	46908630	tpiA-2	LMOf2365_2430	-	triosephosphate isomerase
2407	 39.55	0	2484745..2485935	-	396	46908631	pgk	LMOf2365_2431	-	phosphoglycerate kinase
2408	 39.07	0	2486070..2487080	-	336	46908632	gap	LMOf2365_2432	-	glyceraldehyde-3-phosphate dehydrogenase
2409	 42.50	+1	2487113..2488159	-	348	46908633	-	LMOf2365_2433	-	transcriptional regulator, putative
2410	 38.91	0	2488600..2489943	-	447	46908634	-	LMOf2365_2434	-	RNA polymerase factor sigma-54
2411	 38.19	0	2490103..2491029	-	308	46908635	-	LMOf2365_2435	-	renal dipeptidase family protein
2412	 34.81	0	2493351..2493959	-	202	46908636	-	LMOf2365_2437	-	TetR family transcriptional regulator
2413	 36.73	0	2493976..2494476	-	166	46908637	-	LMOf2365_2438	-	hypothetical protein
2414	 35.71	0	2494607..2494942	+	111	46908638	-	LMOf2365_2439	-	hypothetical protein
2415	 39.32	0	2495190..2496626	-	478	46908639	-	LMOf2365_2440	-	chitin-binding protein/carbohydrate-binding protein
2416	 39.36	0	2496783..2497379	+	198	46908640	clpP	LMOf2365_2441	-	ATP-dependent Clp protease proteolytic subunit
2417	 38.15	0	2497428..2498819	-	463	46908641	-	LMOf2365_2442	-	amino acid permease family protein
2418	 32.90	-1	2499036..2500202	+	388	46908642	-	LMOf2365_2443	-	leucine-rich repeat-containing protein
2419	 40.12	0	2500255..2501271	-	338	46908643	-	LMOf2365_2444	-	NADPH dehydrogenase NamA
2420	 40.43	0	2501298..2502269	-	323	46908644	-	LMOf2365_2445	-	hypothetical protein
2421	 40.35	0	2502277..2503245	-	322	46908645	-	LMOf2365_2446	-	hypothetical protein
2422	 39.27	0	2503247..2504122	-	291	46908646	-	LMOf2365_2447	-	hypothetical protein
2423	 39.69	0	2504230..2505960	-	576	46908647	-	LMOf2365_2448	-	phosphoglucomutase/phosphomannomutase family protein
2424	 39.94	0	2506002..2507045	-	347	46908648	mro	LMOf2365_2449	-	aldose 1-epimerase
2425	 39.13	0	2507080..2508063	-	327	46908649	galE	LMOf2365_2450	-	UDP-glucose 4-epimerase
2426	 41.67	+1	2508183..2509142	-	319	46908650	trxB	LMOf2365_2451	-	thioredoxin-disulfide reductase
2427	 36.38	0	2509221..2510696	-	491	46908651	-	LMOf2365_2452	-	TPR domain-containing protein
2428	 43.17	+1	2510781..2511278	-	165	46908652	-	LMOf2365_2453	-	hexapeptide transferase family protein
2429	 37.61	0	2511282..2511935	-	217	46908653	-	LMOf2365_2454	-	pyrophosphatase PpaX
2430	 37.17	0	2511979..2512812	-	277	46908654	lgt	LMOf2365_2455	-	prolipoprotein diacylglyceryl transferase
2431	 39.40	0	2512898..2513836	-	312	46908655	hprK	LMOf2365_2456	-	HPr kinase/phosphorylase
2432	 33.05	-1	2514023..2514376	-	117	46908656	-	LMOf2365_2457	-	hypothetical protein
2433	 37.81	0	2514385..2514585	-	66	46908657	-	LMOf2365_2458	-	PspC domain-containing protein, truncated
2434	 38.78	0	2514609..2515820	-	403	46908658	-	LMOf2365_2459	-	PspC domain-containing protein
2435	 34.76	0	2515887..2517149	-	420	46908659	-	LMOf2365_2460	-	hypothetical protein
2436	 38.77	0	2517358..2520228	-	956	46908660	uvrA	LMOf2365_2461	-	excinuclease ABC, A subunit
2437	 40.01	0	2520236..2522212	-	658	46908661	uvrB	LMOf2365_2462	-	excinuclease ABC subunit B
2438	 35.42	0	2522463..2522702	-	79	46908662	-	LMOf2365_2463	-	hypothetical protein
2439	 36.11	0	2522723..2523370	-	215	46908663	-	LMOf2365_2464	-	HD domain-containing protein
2440	 34.63	0	2523392..2523778	-	128	46908664	-	LMOf2365_2465	-	hypothetical protein
2441	 38.24	0	2523884..2524189	-	101	46908665	-	LMOf2365_2466	-	ArsR family transcriptional regulator
2442	 37.88	0	2524457..2525116	-	219	46908666	-	LMOf2365_2467	-	phosphate transport system protein PhoU
2443	 39.49	0	2525129..2525908	-	259	46908667	-	LMOf2365_2468	-	phosphate ABC transporter, ATP-binding protein
2444	 38.48	0	2525923..2526738	-	271	46908668	-	LMOf2365_2469	-	phosphate ABC transporter, ATP-binding protein
2445	 42.26	+1	2526766..2527650	-	294	46908669	-	LMOf2365_2470	-	phosphate ABC transporter, permease protein
2446	 40.38	0	2527647..2528597	-	316	46908670	-	LMOf2365_2471	-	phosphate ABC transporter, permease protein
2447	 40.15	0	2528664..2529572	-	302	46908671	-	LMOf2365_2472	-	phosphate ABC transporter, phosphate-binding protein
2448	 38.68	0	2529828..2531603	-	591	46908672	-	LMOf2365_2473	-	histidine kinase
2449	 36.24	0	2531603..2532325	-	240	46908673	phoP	LMOf2365_2474	-	DNA-binding response regulator PhoP
2450	 38.01	0	2532464..2533639	-	391	46908674	-	LMOf2365_2475	-	hypothetical protein
2451	 36.02	0	2533667..2535115	-	482	46908675	cls-2	LMOf2365_2476	-	cardiolipin synthetase
2452	 38.29	0	2535239..2536549	-	436	46908676	-	LMOf2365_2477	-	M48 family peptidase
2453	 37.23	0	2536669..2537874	-	401	46908677	-	LMOf2365_2478	-	NLP/P60 family protein
2454	 37.18	0	2537950..2538834	-	294	46908678	ftsX	LMOf2365_2479	-	cell division ABC transporter, permease protein FtsX
2455	 39.01	0	2538824..2539510	-	228	46908679	ftsE	LMOf2365_2480	-	cell division ATP-binding protein FtsE
2456	 38.54	0	2540017..2540880	-	287	46908680	-	LMOf2365_2481	-	YitT family protein
2457	 38.29	0	2540886..2541987	-	366	46908681	prfB	LMOf2365_2482	-	peptide chain release factor 2
2458	 38.23	0	2542072..2544585	-	837	46908682	secA	LMOf2365_2483	-	preprotein translocase subunit SecA
2459	 34.40	0	2544816..2545379	-	187	46908683	yfiA	LMOf2365_2484	-	ribosomal subunit interface protein
2460	 34.70	0	2545574..2546230	-	218	46908684	-	LMOf2365_2485	-	comFC family protein
2461	 39.24	0	2546223..2547542	-	439	46908685	-	LMOf2365_2486	-	helicase family protein
2462	 38.85	0	2547738..2548589	-	283	46908686	-	LMOf2365_2487	-	DegV family protein
2463	 37.99	0	2548610..2549296	-	228	46908687	degU	LMOf2365_2488	-	DNA-binding response regulator DegU
2464	 36.64	0	2549681..2550316	+	211	46908688	-	LMOf2365_2489	-	hypothetical protein
2465	 33.52	-1	2550318..2550863	+	181	46908689	-	LMOf2365_2490	-	acetyltransferase
2466	 36.36	0	2551039..2552097	+	352	46908690	-	LMOf2365_2491	-	transcriptional regulator, putative
2467	 35.23	0	2552135..2553187	-	350	46908691	-	LMOf2365_2492	-	glycosyl transferase, group 4 family protein
2468	 38.04	0	2553195..2554319	-	374	46908692	-	LMOf2365_2493	-	N-acylamino acid racemase
2469	 38.23	0	2554320..2555054	-	244	46908693	-	LMOf2365_2494	-	teichoic acid biosynthesis protein A
2470	 34.05	-1	2555181..2556014	-	277	46908694	-	LMOf2365_2495	-	LysM domain-containing protein
2471	 34.15	-1	2556405..2556770	-	121	46908695	ssb-2	LMOf2365_2496	-	single-strand binding protein
2472	 37.70	0	2557021..2557455	-	144	46908696	fabZ	LMOf2365_2497	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase
2473	 36.85	0	2557478..2558473	-	331	46908697	-	LMOf2365_2498	-	mbl protein
2474	 38.44	0	2558636..2559928	-	430	46908698	murA-1	LMOf2365_2499	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2475	 25.74	-2	2560110..2560346	-	78	46908699	-	LMOf2365_2500	-	hypothetical protein
2476	 41.23	0	2560468..2560872	-	134	46908700	atpC	LMOf2365_2501	-	F0F1 ATP synthase subunit epsilon
2477	 40.65	0	2560894..2562315	-	473	46908701	atpD-2	LMOf2365_2502	-	F0F1 ATP synthase subunit beta
2478	 38.72	0	2562376..2563248	-	290	46908702	atpG	LMOf2365_2503	-	F0F1 ATP synthase subunit gamma
2479	 41.32	0	2563286..2564800	-	504	46908703	atpA-2	LMOf2365_2504	-	F0F1 ATP synthase subunit alpha
2480	 36.48	0	2564827..2565366	-	179	46908704	atpH	LMOf2365_2505	-	F0F1 ATP synthase subunit delta
2481	 38.01	0	2565363..2565875	-	170	46908705	atpF	LMOf2365_2506	-	F0F1 ATP synthase subunit B
2482	 43.38	+1	2565963..2566181	-	72	46908706	atpE	LMOf2365_2507	-	F0F1 ATP synthase subunit C
2483	 37.24	0	2566253..2566969	-	238	46908707	atpB	LMOf2365_2508	-	F0F1 ATP synthase subunit A
2484	 36.34	0	2566976..2567374	-	132	46908708	atpI	LMOf2365_2509	-	ATP synthase protein I
2485	 40.53	0	2568205..2569344	-	379	46908709	-	LMOf2365_2510	-	UDP-N-acetylglucosamine 2-epimerase
2486	 40.48	0	2569462..2570091	-	209	46908710	upp	LMOf2365_2511	-	uracil phosphoribosyltransferase
2487	 39.61	0	2570229..2571470	-	413	46908711	glyA	LMOf2365_2512	-	serine hydroxymethyltransferase
2488	 39.71	0	2571606..2572013	-	135	46908712	-	LMOf2365_2513	-	low molecular weight phosphotyrosine protein phosphatase family protein
2489	 42.97	+1	2572010..2573047	-	345	46908713	-	LMOf2365_2514	-	Sua5/YciO/YrdC/YwlC family protein
2490	 38.38	0	2573348..2574199	-	283	46908714	-	LMOf2365_2515	-	HemK family modification methylase
2491	 42.90	+1	2574186..2575262	-	358	46908715	prfA	LMOf2365_2516	-	peptide chain release factor 1
2492	 34.03	-1	2575285..2575860	-	191	46908716	-	LMOf2365_2517	-	thymidine kinase
2493	 45.10	+1	2575972..2576838	-	288	46908717	thrB	LMOf2365_2518	-	homoserine kinase
2494	 42.23	+1	2576838..2577893	-	351	46908718	thrC	LMOf2365_2519	-	threonine synthase
2495	 40.87	0	2577896..2579182	-	428	46908719	hom	LMOf2365_2520	-	homoserine dehydrogenase
2496	 40.65	0	2579404..2579649	-	81	46908720	rpmE2	LMOf2365_2521	-	50S ribosomal protein L31 type B
2497	 30.14	-2	2579751..2580188	-	145	46908721	gtcA	LMOf2365_2522	-	cell wall teichoic acid glycosylation protein GtcA
2498	 39.23	0	2580221..2581492	-	423	46908722	rho	LMOf2365_2523	-	transcription termination factor Rho
2499	 40.80	0	2581597..2582868	-	423	46908723	murA-2	LMOf2365_2524	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2500	 38.08	0	2582985..2584058	-	357	46908724	-	LMOf2365_2525	-	hypothetical protein
37.91	MEAN

3.60	STD DEV
