IslandPath Analysis: Listeria monocytogenes str. 4b F2365

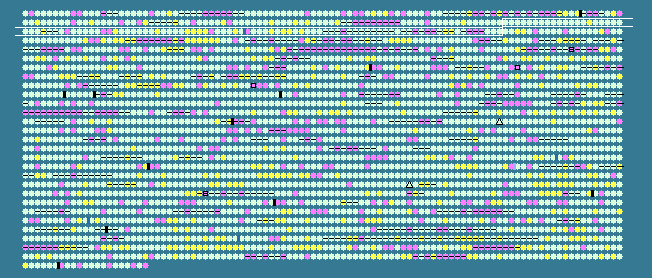

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
181	 37.53	0	176313..177170	+	285	46906405	-	LMOf2365_0184	-	glucose uptake protein
182	 36.82	0	177238..178500	+	420	46906406	-	LMOf2365_0185	-	hypothetical protein
183	 38.07	0	178648..179913	-	421	46906407	-	LMOf2365_0186	-	cell wall surface anchor family protein
184	 39.84	0	180191..181051	+	286	46906408	-	LMOf2365_0187	-	glucose uptake protein
185	 38.59	0	181120..183117	+	665	46906409	metG	LMOf2365_0188	-	methionyl-tRNA synthetase
186	 37.28	0	183281..184495	+	404	46906410	-	LMOf2365_0189	-	xylose repressor protein
187	 37.43	0	184531..185409	+	292	46906411	-	LMOf2365_0190	-	sugar ABC transporter, permease protein
188	 38.16	0	185409..186257	+	282	46906412	-	LMOf2365_0191	-	sugar ABC transporter, permease protein
189	 37.39	0	186285..187541	+	418	46906413	-	LMOf2365_0192	-	sugar ABC transporter, sugar-binding protein
190	 40.21	0	187624..190926	+	1100	46906414	-	LMOf2365_0193	-	glycosy hydrolase family protein
191	 39.57	0	190929..193220	+	763	46906415	-	LMOf2365_0194	-	alpha-glucosidase
192	 37.91	0	193224..194885	+	553	46906416	malL-1	LMOf2365_0195	-	oligo-1,6-glucosidase
193	 38.97	0	194958..195755	+	265	46906417	-	LMOf2365_0196	-	TatD family deoxyribonuclease
194	 36.02	0	196047..197273	+	408	46906418	-	LMOf2365_0197	-	hypothetical protein
195	 41.84	+1	197375..197950	+	191	46906419	-	LMOf2365_0198	-	primase-related protein
196	 39.86	0	197943..198830	+	295	46906420	ksgA	LMOf2365_0199	-	dimethyladenosine transferase
197	 34.88	0	198950..199207	+	85	46906421	-	LMOf2365_0200	-	hypothetical protein
198	 41.38	0	199346..200227	+	293	46906422	ispE	LMOf2365_0201	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
199	 39.84	0	200249..200986	+	245	46906423	-	LMOf2365_0202	-	hypothetical protein
200	 38.83	0	201150..201968	+	272	46906424	purR	LMOf2365_0203	-	purine operon repressor
201	 36.14	0	202144..202821	+	225	46906425	-	LMOf2365_0204	-	hypothetical protein
202	 40.26	0	202870..203562	+	230	46906426	-	LMOf2365_0205	-	ABC transporter, ATP-binding protein
203	 38.71	0	203559..204767	+	402	46906427	-	LMOf2365_0206	-	ABC transporter, permease protein
204	 42.39	+1	205451..205759	+	102	46906428	spoVG-1	LMOf2365_0207	-	regulatory protein SpoVG
205	 39.81	0	205878..206186	+	102	46906429	spoVG-2	LMOf2365_0208	-	regulatory protein SpoVG
206	 40.32	0	206573..207946	+	457	46906430	-	LMOf2365_0209	-	UDP-N-acetylglucosamine pyrophosphorylase
207	 38.98	0	207997..208953	+	318	46906431	prs-1	LMOf2365_0210	-	ribose-phosphate pyrophosphokinase
208	 33.19	-1	208997..209710	-	237	46906432	prfA	LMOf2365_0211	-	listeriolysin regulatory protein
209	 36.06	0	209983..210936	-	317	46906433	plcA	LMOf2365_0212	-	1-phosphatidylinositol phosphodiesterase
210	 35.91	0	211179..212768	+	529	46906434	hly	LMOf2365_0213	-	listeriolysin O
211	 38.29	0	213099..214631	+	510	46906435	mpl	LMOf2365_0214	-	zinc metallopeptidase
212	 39.83	0	214831..216645	+	604	46906436	actA	LMOf2365_0215	-	actin-assembly inducing protein
213	 36.18	0	216708..217550	+	280	46906437	plcB	LMOf2365_0216	-	phospholipase C
214	 31.17	-1	217622..217945	+	107	46906438	-	LMOf2365_0217	-	hypothetical protein
215	 34.20	-1	218078..218539	+	153	46906439	-	LMOf2365_0218	-	putative lipoprotein
216	 41.74	+1	218592..218924	-	110	46906440	-	LMOf2365_0219	-	hypothetical protein
217	 38.01	0	218991..219674	-	227	46906441	-	LMOf2365_0220	-	hypothetical protein
218	 39.70	0	219743..220684	-	313	46906442	ldh	LMOf2365_0221	-	L-lactate dehydrogenase
219	 39.42	0	220978..221601	+	207	46906443	-	LMOf2365_0222	-	50S ribosomal protein L25/general stress protein Ctc
220	 40.34	0	221691..222275	+	194	46906444	-	LMOf2365_0223	-	acetyltransferase
221	 38.32	0	222382..222942	+	186	46906445	pth	LMOf2365_0224	-	peptidyl-tRNA hydrolase
222	 41.05	0	223056..226595	+	1179	46906446	mfd	LMOf2365_0225	-	transcription-repair coupling factor
223	 41.51	+1	226626..228215	+	529	46906447	-	LMOf2365_0226	-	polysaccharide biosynthesis family protein
224	 37.99	0	228239..228517	+	92	46906448	-	LMOf2365_0227	-	S4 domain-containing protein
225	 35.66	0	228746..229132	+	128	46906449	-	LMOf2365_0228	-	cell division protein DivIC, putative
226	 41.03	0	229283..229711	+	142	46906450	-	LMOf2365_0229	-	hypothetical protein
227	 38.57	0	229818..231764	+	648	46906451	-	LMOf2365_0230	-	hypoxanthine phosphoribosyltransferase, fusion
228	 41.76	+1	232111..234186	+	691	46906452	ftsH	LMOf2365_0231	-	ATP-dependent metalloprotease FtsH
229	 41.92	+1	234302..235081	+	259	46906453	-	LMOf2365_0232	-	pantothenate kinase
230	 41.47	0	235097..235981	+	294	46906454	-	LMOf2365_0233	-	redox-regulated chaperone protein
231	 41.75	+1	236097..237023	+	308	46906455	cysK	LMOf2365_0234	-	cysteine synthase A
232	 31.85	-1	237468..237602	+	44	46906456	-	LMOf2365_0235	-	hypothetical protein
233	 40.36	0	237674..238741	+	355	46906457	folP	LMOf2365_0236	-	dihydropteroate synthase
234	 36.27	0	238755..239129	+	124	46906458	folB	LMOf2365_0237	-	dihydroneopterin aldolase
235	 36.88	0	239122..239601	+	159	46906459	folK	LMOf2365_0238	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
236	 42.37	+1	239677..240672	+	331	85700164	-	LMOf2365_0239	-	dihydrouridine synthase family protein
237	 39.14	0	240787..242283	+	498	46906461	lysS	LMOf2365_0240	-	lysyl-tRNA synthetase
238	 31.37	-1	253816..254274	+	152	46906462	ctsR	LMOf2365_0241	-	transcriptional regulator CtsR
239	 39.69	0	254287..254805	+	172	46906463	-	LMOf2365_0242	-	UVR domain-containing protein
240	 36.75	0	254802..255824	+	340	46906464	-	LMOf2365_0243	-	ATP:guanido phosphotransferase
241	 40.40	0	255853..258315	+	820	46906465	-	LMOf2365_0244	-	ClpC ATPase
242	 41.92	+1	258462..259835	+	457	46906466	radA	LMOf2365_0245	-	DNA repair protein RadA
243	 35.38	0	259968..261041	+	357	46906467	-	LMOf2365_0246	-	PIN/TRAM domain-containing protein
244	 41.77	+1	261061..261759	+	232	46906468	ispD	LMOf2365_0247	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
245	 42.19	+1	261752..262225	+	157	46906469	ispF	LMOf2365_0248	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
246	 37.94	0	262244..263719	+	491	46906470	gltX	LMOf2365_0249	-	glutamyl-tRNA synthetase
247	 43.74	+1	264118..264732	+	204	46906471	cysE	LMOf2365_0250	-	serine O-acetyltransferase
248	 40.40	0	264739..266154	+	471	46906472	cysS	LMOf2365_0251	-	cysteinyl-tRNA synthetase
249	 41.08	0	266158..266583	+	141	46906473	-	LMOf2365_0252	-	hypothetical protein
250	 40.74	0	266567..267322	+	251	46906474	-	LMOf2365_0253	-	RNA methyltransferase
251	 40.74	0	267325..267837	+	170	46906475	-	LMOf2365_0254	-	hypothetical protein
252	 37.46	0	267918..268523	+	201	46906476	sigH	LMOf2365_0255	-	RNA polymerase factor sigma-70
253	 39.33	0	268627..268776	+	49	46906477	rpmG	LMOf2365_0256	-	50S ribosomal protein L33
254	 31.67	-1	268796..268975	+	59	46906478	secE	LMOf2365_0257	-	preprotein translocase subunit SecE
255	 38.76	0	269105..269638	+	177	46906479	nusG	LMOf2365_0258	-	transcription antitermination protein NusG
256	 35.67	0	269693..270163	+	156	46906480	-	LMOf2365_0259	-	hypothetical protein
257	 40.85	0	270290..270715	+	141	46906481	rplK	LMOf2365_0260	-	50S ribosomal protein L11
258	 40.14	0	270755..271444	+	229	46906482	rplA	LMOf2365_0261	-	50S ribosomal protein L1
259	 39.92	0	271692..272192	+	166	46906483	rplJ	LMOf2365_0262	-	50S ribosomal protein L10
260	 39.12	0	272271..272633	+	120	46906484	rplL	LMOf2365_0263	-	50S ribosomal protein L7/L12
261	 38.05	0	272767..273381	+	204	46906485	-	LMOf2365_0264	-	hypothetical protein
262	 39.86	0	273728..274906	+	392	46906486	-	LMOf2365_0265	-	hypothetical protein
263	 35.04	0	275051..276046	+	331	46906487	-	LMOf2365_0266	-	DegA family transcriptional regulator
264	 38.22	0	276184..277410	+	408	46906488	-	LMOf2365_0267	-	sugar ABC transporter, sugar-binding protein
265	 37.14	0	277428..278765	+	445	46906489	-	LMOf2365_0268	-	sugar ABC transporter, permease protein
266	 33.81	-1	278767..279597	+	276	46906490	-	LMOf2365_0269	-	sugar ABC transporter, permease protein
267	 37.22	0	279612..281309	+	565	46906491	malL-2	LMOf2365_0270	-	oligo-1,6-glucosidase
268	 32.92	-1	281310..282752	+	480	46906492	gtfA	LMOf2365_0271	-	sucrose phosphorylase
269	 30.08	-2	282818..283063	+	81	46906493	-	LMOf2365_0272	-	hypothetical protein
270	 36.19	0	283072..283176	+	34	46906494	-	LMOf2365_0273	-	hypothetical protein
271	 42.00	+1	283309..286863	+	1184	46906495	rpoB	LMOf2365_0274	-	DNA-directed RNA polymerase subunit beta
272	 41.51	+1	287034..290639	+	1201	46906496	rpoC	LMOf2365_0275	-	DNA-directed RNA polymerase subunit beta'
273	 40.23	0	290739..291260	+	173	46906497	-	LMOf2365_0276	-	hypothetical protein
274	 40.66	0	291326..292786	+	486	46906498	-	LMOf2365_0277	-	glycosy hydrolase family protein
275	 30.63	-2	293001..293444	+	147	46906499	-	LMOf2365_0278	-	hypothetical protein
276	 27.44	-2	293496..295157	+	553	46906500	-	LMOf2365_0279	-	ABC transporter, ATP-binding protein, putative
277	 28.83	-2	295154..296929	+	591	46906501	-	LMOf2365_0280	-	ABC transporter, ATP-binding/permease protein
278	 37.28	0	297720..299366	+	548	46906502	inlC2	LMOf2365_0281	-	internalin C2
279	 36.56	0	299575..301281	+	568	46906503	inlD	LMOf2365_0282	-	internalin D
280	 36.27	0	301493..302992	+	499	46906504	inlE	LMOf2365_0283	-	internalin E
37.91	MEAN

3.60	STD DEV
