IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

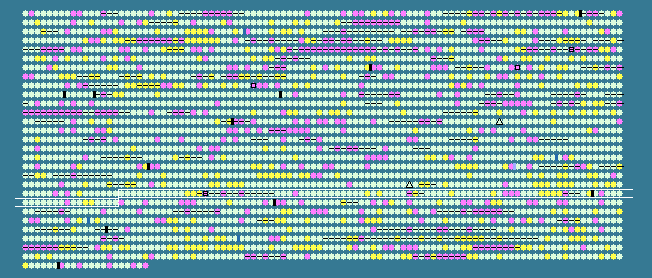

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2017	 40.23	0	2069359..2070663	-	434	46908241	-	LMOf2365_2037	-	hypothetical protein
2018	 41.35	0	2070667..2073324	-	885	46908242	-	LMOf2365_2038	-	glycosy hydrolase family protein
2019	 35.66	0	2073321..2073578	-	85	46908243	-	LMOf2365_2039	-	hypothetical protein
2020	 40.88	0	2073579..2076677	+	1032	46908244	-	LMOf2365_2040	-	alpha-D-mannosidase
2021	 40.30	0	2076746..2076946	-	66	46908245	-	LMOf2365_2041	-	cold-shock domain-contain protein
2022	 38.36	0	2077235..2077930	-	231	46908246	-	LMOf2365_2042	-	PAP2 family protein
2023	 38.28	0	2077944..2078933	-	329	46908247	dapF	LMOf2365_2043	-	diaminopimelate epimerase
2024	 40.74	0	2079045..2081810	-	921	46908248	ileS	LMOf2365_2044	-	isoleucyl-tRNA synthetase
2025	 36.36	0	2082093..2082620	-	175	46908249	divIVA	LMOf2365_2045	-	cell division protein DivIVA
2026	 37.93	0	2082716..2083237	-	173	46908250	-	LMOf2365_2046	-	3H domain-containing protein
2027	 38.84	0	2083242..2084348	-	368	46908251	-	LMOf2365_2047	-	carbon-sulfur lyase
2028	 43.16	+1	2084480..2085934	+	484	46908252	nadB	LMOf2365_2048	-	L-aspartate oxidase
2029	 42.43	+1	2085931..2086776	+	281	46908253	nadC	LMOf2365_2049	-	nicotinate-nucleotide pyrophosphorylase
2030	 41.69	+1	2086773..2087873	+	366	46908254	nadA	LMOf2365_2050	-	quinolinate synthetase
2031	 34.08	-1	2088198..2088464	-	88	46908255	-	LMOf2365_2051	-	IS3 family transposase OrfA
2032	 37.91	0	2088540..2088845	-	101	46908256	-	LMOf2365_2052	-	cell wall surface anchor family protein
2033	 36.63	0	2088873..2089358	-	161	46908257	-	LMOf2365_2053	-	hypothetical protein
2034	 33.12	-1	2089378..2089851	-	157	46908258	-	LMOf2365_2054	-	hypothetical protein
2035	 38.75	0	2089917..2091911	-	664	46908259	-	LMOf2365_2055	-	hypothetical protein
2036	 39.00	0	2092046..2094127	-	693	46908260	-	LMOf2365_2056	-	hypothetical protein
2037	 33.14	-1	2094391..2095929	-	512	46908261	-	LMOf2365_2057	-	hypothetical protein
2038	 35.77	0	2095951..2096730	-	259	46908262	-	LMOf2365_2058	-	methyltransferase, putative
2039	 36.36	0	2096758..2097351	-	197	46908263	-	LMOf2365_2059	-	TetR family transcriptional regulator
2040	 38.87	0	2098525..2099301	-	258	46908264	-	LMOf2365_2060	-	S4 domain-containing protein
2041	 34.71	0	2099426..2099716	-	96	46908265	-	LMOf2365_2061	-	YGGT family protein
2042	 37.69	0	2099739..2100197	-	152	46908266	-	LMOf2365_2062	-	hypothetical protein
2043	 37.54	0	2100201..2100890	-	229	46908267	-	LMOf2365_2063	-	hypothetical protein
2044	 40.82	0	2101009..2102184	-	391	46908268	ftsZ	LMOf2365_2064	-	cell division protein FtsZ
2045	 38.64	0	2102251..2103531	-	426	46908269	ftsA	LMOf2365_2065	-	cell division protein FtsA
2046	 33.58	-1	2103897..2104709	-	270	46908270	-	LMOf2365_2066	-	cell division protein FtsQ
2047	 39.47	0	2104732..2105823	-	363	46908271	murG	LMOf2365_2067	-	N-acetylglucosaminyl transferase
2048	 38.89	0	2105820..2107187	-	455	46908272	murD	LMOf2365_2068	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
2049	 37.38	0	2107329..2108291	-	320	46908273	mraY	LMOf2365_2069	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2050	 40.24	0	2108350..2109825	-	491	46908274	murE	LMOf2365_2070	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
2051	 38.16	0	2110000..2112255	-	751	46908275	-	LMOf2365_2071	-	penicillin-binding protein
2052	 34.99	0	2112252..2112614	-	120	46908276	-	LMOf2365_2072	-	cell division protein FtsL
2053	 38.87	0	2112631..2113569	-	312	46908277	mraW	LMOf2365_2073	-	S-adenosyl-methyltransferase MraW
2054	 37.27	0	2113582..2114013	-	143	46908278	mraZ	LMOf2365_2074	-	cell division protein MraZ
2055	 37.34	0	2114216..2115463	-	415	46908279	-	LMOf2365_2075	-	hypothetical protein
2056	 37.25	0	2115581..2117395	+	604	46908280	-	LMOf2365_2076	-	solute-binding family 5 protein
2057	 36.91	0	2117703..2118596	-	297	46908281	panE	LMOf2365_2077	-	2-dehydropantoate 2-reductase
2058	 43.68	+1	2118746..2118919	-	57	46908282	rpmF	LMOf2365_2078	-	50S ribosomal protein L32
2059	 39.48	0	2119010..2119546	-	178	46908283	-	LMOf2365_2079	-	hypothetical protein
2060	 42.54	+1	2119676..2120848	+	390	46908284	-	LMOf2365_2080	-	hypothetical protein
2061	 40.43	0	2120930..2123170	+	746	46908285	drrC	LMOf2365_2081	-	daunorubicin resistance protein
2062	 38.52	0	2123213..2124253	-	346	46908286	-	LMOf2365_2082	-	hypothetical protein
2063	 40.58	0	2124272..2124754	-	160	46908287	coaD	LMOf2365_2083	-	pantetheine-phosphate adenylyltransferase
2064	 37.81	0	2124757..2125314	-	185	46908288	-	LMOf2365_2084	-	methyltransferase, putative
2065	 34.40	0	2125411..2125692	-	93	46908289	-	LMOf2365_2085	-	hypothetical protein
2066	 43.11	+1	2125723..2126172	-	149	46908290	-	LMOf2365_2086	-	hypothetical protein
2067	 35.63	0	2126220..2127263	-	347	46908291	-	LMOf2365_2087	-	hypothetical protein
2068	 37.97	0	2127423..2128328	-	301	46908292	ctaB	LMOf2365_2088	-	protoheme IX farnesyltransferase
2069	 40.85	0	2128564..2129481	+	305	46908293	-	LMOf2365_2089	-	cytochrome oxidase assembly protein
2070	 37.73	0	2129628..2130332	+	234	46908294	-	LMOf2365_2090	-	ion transport protein, putative
2071	 39.88	0	2130338..2130979	-	213	46908295	-	LMOf2365_2091	-	MOSC domain-containing protein
2072	 42.07	+1	2130998..2131615	-	205	46908296	-	LMOf2365_2092	-	hypothetical protein
2073	 39.36	0	2131628..2133253	-	541	46908297	-	LMOf2365_2093	-	copper resistance domain-containing protein
2074	 37.50	0	2133393..2133584	+	63	46908298	-	LMOf2365_2094	-	hypothetical protein
2075	 35.92	0	2133646..2134032	+	128	46908299	mscL	LMOf2365_2095	-	large conductance mechanosensitive channel protein
2076	 36.39	0	2134167..2134559	-	130	46908300	-	LMOf2365_2096	-	hypothetical protein
2077	 38.10	0	2134604..2134813	-	69	46908301	-	LMOf2365_2097	-	hypothetical protein
2078	 36.40	0	2134964..2135941	-	325	46908302	cbH	LMOf2365_2098	-	choloylglycine hydrolase
2079	 41.93	+1	2136196..2137824	-	542	46908303	groEL	LMOf2365_2099	-	chaperonin GroEL
2080	 39.65	0	2137858..2138142	-	94	46908304	groES	LMOf2365_2100	-	co-chaperonin GroES
2081	 30.48	-2	2138240..2138344	+	34	46908305	-	LMOf2365_2101	-	hypothetical protein
2082	 34.06	-1	2138377..2139063	+	228	46908306	-	LMOf2365_2102	-	CAAX amino terminal protease family protein
2083	 30.30	-2	2139065..2139262	+	65	46908307	-	LMOf2365_2103	-	hypothetical protein
2084	 37.04	0	2139296..2139943	-	215	46908308	-	LMOf2365_2104	-	redox-sensing transcriptional repressor Rex
2085	 38.97	0	2140253..2142205	+	650	46908309	-	LMOf2365_2105	-	ABC transporter, ATP-binding protein
2086	 40.21	0	2142230..2143189	+	319	46908310	-	LMOf2365_2106	-	hypothetical protein
2087	 41.94	+1	2143734..2144756	-	340	46908311	-	LMOf2365_2107	-	O-sialoglycoprotein endopeptidase
2088	 41.67	+1	2144753..2145208	-	151	46908312	rimI	LMOf2365_2108	-	ribosomal-protein-alanine acetyltransferase
2089	 44.88	+1	2145205..2145897	-	230	46908313	-	LMOf2365_2109	-	hypothetical protein
2090	 41.99	+1	2145894..2146355	-	153	46908314	-	LMOf2365_2110	-	hypothetical protein
2091	 33.07	-1	2146460..2147602	-	380	46908315	-	LMOf2365_2111	-	putative lipoprotein
2092	 37.80	0	2147739..2148119	-	126	46908316	-	LMOf2365_2112	-	putative lipoprotein
2093	 34.73	0	2148214..2148570	-	118	46908317	-	LMOf2365_2113	-	CrcB protein, putative
2094	 40.00	0	2148560..2148949	-	129	46908318	-	LMOf2365_2114	-	CrcB protein
2095	 42.58	+1	2149055..2149681	-	208	46908319	-	LMOf2365_2115	-	hypothetical protein
2096	 37.66	0	2150838..2152526	-	562	46908320	-	LMOf2365_2117	-	cell wall surface anchor family protein
2097	 33.02	-1	2152623..2153894	-	423	46908321	-	LMOf2365_2118	-	DNA-binding protein
2098	 37.54	0	2154530..2155861	-	443	46908322	-	LMOf2365_2119	-	MATE efflux family protein
2099	 37.56	0	2155871..2156461	-	196	46908323	-	LMOf2365_2120	-	TetR family transcriptional regulator
2100	 39.27	0	2156572..2157615	-	347	46908324	-	LMOf2365_2121	-	lipase
2101	 38.93	0	2157848..2159062	+	404	46908325	argG	LMOf2365_2122	-	argininosuccinate synthase
2102	 40.92	0	2159066..2160436	+	456	46908326	argH	LMOf2365_2123	-	argininosuccinate lyase
2103	 40.75	0	2160604..2162127	+	507	46908327	-	LMOf2365_2124	-	glycine betaine transporter
2104	 36.87	0	2162171..2162368	-	65	46908328	-	LMOf2365_2125	-	hypothetical protein
2105	 37.63	0	2162372..2163022	-	216	46908329	-	LMOf2365_2126	-	hypothetical protein
2106	 39.44	0	2163024..2163956	-	310	46908330	-	LMOf2365_2127	-	carbohydrate kinase
2107	 38.07	0	2163974..2165323	-	449	46908331	-	LMOf2365_2128	-	PTS system, galactitol-specific, IIC component, putative
2108	 34.42	0	2165351..2165626	-	91	46908332	-	LMOf2365_2129	-	PTS system galactitol-specific enzyme IIB component
2109	 35.26	0	2165632..2166099	-	155	46908333	-	LMOf2365_2130	-	PTS system galactitol-specific enzyme IIA component
2110	 36.97	0	2166107..2168113	-	668	46908334	-	LMOf2365_2131	-	hypothetical protein
2111	 41.84	+1	2168294..2169739	-	481	46908335	-	LMOf2365_2132	-	transcriptional regulator, GntR family/aminotransferase family protein
2112	 45.61	+2	2169863..2170750	+	295	46908336	-	LMOf2365_2133	-	pyridoxine biosynthesis protein
2113	 40.39	0	2170752..2171318	+	188	46908337	-	LMOf2365_2134	-	glutamine amidotransferase subunit PdxT
2114	 41.00	0	2171357..2172334	-	325	46908338	eutD	LMOf2365_2135	-	phosphotransacetylase
2115	 39.04	0	2172654..2172881	+	75	46908339	-	LMOf2365_2136	-	ferrous iron transport protein A
2116	 41.35	0	2172878..2174872	+	664	46908340	feoB	LMOf2365_2137	-	ferrous iron transport protein B
37.91	MEAN

3.60	STD DEV
