IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

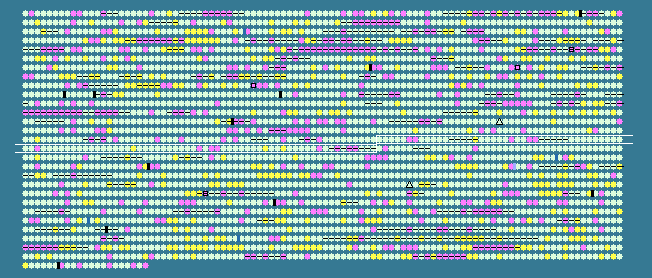

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1460	 37.19	0	1469301..1469741	-	146	46907684	-	LMOf2365_1475	-	hypothetical protein
1461	 36.73	0	1469929..1470753	-	274	46907685	-	LMOf2365_1476	-	hypothetical protein
1462	 36.09	0	1470788..1472854	-	688	46907686	glyS	LMOf2365_1477	-	glycyl-tRNA synthetase, beta subunit
1463	 39.62	0	1472847..1473737	-	296	46907687	glyQ	LMOf2365_1478	-	glycyl-tRNA synthetase subunit alpha
1464	 36.59	0	1474020..1474787	-	255	46907688	recO	LMOf2365_1479	-	DNA repair protein RecO
1465	 33.06	-1	1474833..1475552	+	239	46907689	-	LMOf2365_1480	-	hypothetical protein
1466	 34.22	-1	1475599..1476504	-	301	46907690	era	LMOf2365_1481	-	GTP-binding protein Era
1467	 41.16	0	1476501..1476896	-	131	46907691	cdd	LMOf2365_1482	-	cytidine deaminase
1468	 36.36	0	1476921..1477316	-	131	46907692	dgkA	LMOf2365_1483	-	diacylglycerol kinase
1469	 39.30	0	1477294..1477779	-	161	46907693	-	LMOf2365_1484	-	putative metalloprotease
1470	 35.42	0	1477796..1479952	-	718	46907694	-	LMOf2365_1485	-	HDIG domain-containing protein
1471	 37.08	0	1479968..1480927	-	319	46907695	-	LMOf2365_1486	-	PhoH family protein
1472	 39.91	0	1481115..1481570	-	151	46907696	-	LMOf2365_1487	-	GatB/Yqey domain-containing protein
1473	 36.78	0	1481581..1481754	-	57	46907697	rpsU	LMOf2365_1488	-	30S ribosomal protein S21
1474	 38.15	0	1481952..1482719	-	255	46907698	-	LMOf2365_1489	-	hypothetical protein
1475	 38.73	0	1482720..1483664	-	314	46907699	prmA	LMOf2365_1490	-	ribosomal protein L11 methyltransferase
1476	 41.73	+1	1483736..1484866	-	376	46907700	dnaJ	LMOf2365_1491	-	chaperone protein DnaJ
1477	 39.20	0	1485008..1486849	-	613	46907701	dnaK	LMOf2365_1492	-	chaperone protein DnaK
1478	 38.19	0	1486883..1487458	-	191	46907702	grpE	LMOf2365_1493	-	co-chaperone GrpE
1479	 37.38	0	1487500..1488537	-	345	46907703	hrcA	LMOf2365_1494	-	heat-inducible transcription repressor
1480	 36.44	0	1488684..1489841	-	385	46907704	-	LMOf2365_1495	-	coproporphyrinogen III oxidase
1481	 36.54	0	1489930..1490958	-	342	46907705	-	LMOf2365_1496	-	hypothetical protein
1482	 34.02	-1	1491071..1491508	+	145	46907706	-	LMOf2365_1497	-	MerR family transcriptional regulator
1483	 37.06	0	1491554..1493380	-	608	46907707	lepA	LMOf2365_1498	-	GTP-binding protein LepA
1484	 39.22	0	1493625..1493879	+	84	46907708	rpsT	LMOf2365_1499	-	30S ribosomal protein S20
1485	 34.40	0	1493965..1494996	-	343	46907709	holA	LMOf2365_1500	-	DNA polymerase III subunit delta
1486	 33.84	-1	1495064..1497223	-	719	46907710	-	LMOf2365_1501	-	comEC/Rec2 family protein
1487	 38.32	0	1497321..1497881	-	186	46907711	-	LMOf2365_1502	-	zinc-binding, ComEB family protein
1488	 36.64	0	1497953..1498588	-	211	46907712	-	LMOf2365_1503	-	ComEA family DNA-binding protein
1489	 35.38	0	1498658..1499389	-	243	46907713	-	LMOf2365_1504	-	hypothetical protein
1490	 38.38	0	1499445..1499801	-	118	46907714	-	LMOf2365_1505	-	iojap-related protein
1491	 38.19	0	1499806..1500381	-	191	46907715	-	LMOf2365_1506	-	hypothetical protein
1492	 38.98	0	1500368..1500934	-	188	46907716	nadD	LMOf2365_1507	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
1493	 35.05	0	1500952..1501242	-	96	46907717	-	LMOf2365_1508	-	hypothetical protein
1494	 37.47	0	1501242..1502063	-	273	46907718	aroE-2	LMOf2365_1509	-	shikimate 5-dehydrogenase
1495	 38.78	0	1502083..1503183	-	366	46907719	-	LMOf2365_1510	-	GTP-binding protein YqeH
1496	 36.78	0	1503180..1503701	-	173	46907720	-	LMOf2365_1511	-	hypothetical protein
1497	 38.92	0	1503863..1505671	+	602	46907721	-	LMOf2365_1512	-	M3 family peptidase
1498	 38.60	0	1505707..1506408	-	233	46907722	-	LMOf2365_1513	-	MTA/SAH nucleosidase
1499	 37.66	0	1506458..1507081	-	207	46907723	-	LMOf2365_1514	-	hypothetical protein
1500	 37.68	0	1507132..1507614	-	160	46907724	-	LMOf2365_1515	-	transcription elongation factor GreA
1501	 34.76	0	1507808..1508437	-	209	46907725	udk	LMOf2365_1516	-	uridine kinase
1502	 37.61	0	1508434..1509087	-	217	46907726	-	LMOf2365_1517	-	O-methyltransferase family protein
1503	 32.68	-1	1509163..1510233	-	356	46907727	-	LMOf2365_1518	-	hypothetical protein
1504	 38.76	0	1510436..1511062	+	208	46907728	-	LMOf2365_1519	-	DedA family protein
1505	 34.98	0	1511108..1511410	-	100	46907729	-	LMOf2365_1520	-	hypothetical protein
1506	 41.25	0	1511426..1511842	-	138	46907730	-	LMOf2365_1521	-	hypothetical protein
1507	 34.80	0	1511839..1512111	-	90	46907731	-	LMOf2365_1522	-	hypothetical protein
1508	 39.62	0	1512203..1514842	-	879	46907732	alaS	LMOf2365_1523	-	alanyl-tRNA synthetase
1509	 36.93	0	1515149..1515844	-	231	46907733	-	LMOf2365_1524	-	ABC transporter, ATP-binding protein
1510	 39.13	0	1515853..1517352	-	499	46907734	-	LMOf2365_1525	-	ABC transporter, permease protein
1511	 36.97	0	1517519..1518205	+	228	46907735	-	LMOf2365_1526	-	DNA-binding response regulator
1512	 34.45	0	1518211..1519641	+	476	46907736	-	LMOf2365_1527	-	sensor histidine kinase
1513	 40.30	0	1519683..1522079	-	798	46907737	-	LMOf2365_1528	-	RecD/TraA family helicase
1514	 36.02	0	1522107..1522775	-	222	46907738	-	LMOf2365_1529	-	TPR domain-containing protein
1515	 37.92	0	1522786..1523526	-	246	46907739	-	LMOf2365_1530	-	hypothetical protein
1516	 40.05	0	1523645..1524760	-	371	46907740	trmU	LMOf2365_1531	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1517	 39.25	0	1524779..1525927	-	382	46907741	-	LMOf2365_1532	-	carbon-sulfur lyase
1518	 41.20	0	1526308..1527591	-	427	46907742	-	LMOf2365_1533	-	recombination factor protein RarA
1519	 41.61	+1	1527740..1528162	+	140	46907743	-	LMOf2365_1534	-	Rrf2 family protein
1520	 40.63	0	1528407..1529612	+	401	46907744	-	LMOf2365_1535	-	ammonium transporter
1521	 40.98	0	1529626..1529991	+	121	46907745	-	LMOf2365_1536	-	nitrogen regulatory protein P-II
1522	 36.75	0	1530141..1530521	+	126	46907746	-	LMOf2365_1537	-	hypothetical protein
1523	 39.25	0	1530561..1532336	-	591	46907747	aspS	LMOf2365_1538	-	aspartyl-tRNA synthetase
1524	 37.72	0	1532338..1533615	-	425	46907748	hisS	LMOf2365_1539	-	histidyl-tRNA synthetase
1525	 40.81	0	1534066..1535349	+	427	46907749	ami	LMOf2365_1540	-	N-acetylmuramoyl-L-alanine amidase
1526	 39.96	0	1535387..1535839	-	150	46907750	dtd	LMOf2365_1541	-	D-tyrosyl-tRNA deacylase
1527	 37.89	0	1535855..1538071	-	738	46907751	relA	LMOf2365_1542	-	GTP pyrophosphokinase
1528	 36.21	0	1538277..1538798	-	173	46907752	apt	LMOf2365_1543	-	adenine phosphoribosyltransferase
1529	 38.44	0	1538788..1541139	-	783	46907753	recJ	LMOf2365_1544	-	single-stranded-DNA-specific exonuclease RecJ
1530	 32.75	-1	1541244..1541588	-	114	46907754	-	LMOf2365_1545	-	hypothetical protein
1531	 38.98	0	1541686..1543950	-	754	46907755	secDF	LMOf2365_1546	-	bifunctional preprotein translocase subunit SecD/SecF
1532	 34.36	0	1544051..1544341	-	96	46907756	-	LMOf2365_1547	-	hypothetical protein
1533	 33.33	-1	1544484..1544813	-	109	46907757	yajC	LMOf2365_1548	-	preprotein translocase, YajC subunit
1534	 40.00	0	1544847..1545986	-	379	46907758	tgt	LMOf2365_1549	-	queuine tRNA-ribosyltransferase
1535	 39.84	0	1546073..1547101	-	342	46907759	queA	LMOf2365_1550	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1536	 40.87	0	1547105..1548112	-	335	46907760	ruvB	LMOf2365_1551	-	Holliday junction DNA helicase B
1537	 38.12	0	1548128..1548733	-	201	46907761	ruvA	LMOf2365_1552	-	holliday junction DNA helicase RuvA
1538	 40.81	0	1548857..1549792	-	311	46907762	ldh-2	LMOf2365_1553	-	L-lactate dehydrogenase
1539	 38.57	0	1549862..1550587	-	241	46907763	-	LMOf2365_1554	-	hypothetical protein
1540	 39.58	0	1550698..1551546	-	282	46907764	pheA	LMOf2365_1555	-	prephenate dehydratase
1541	 41.94	+1	1551613..1552902	-	429	46907765	obgE	LMOf2365_1556	-	GTPase ObgE
1542	 39.42	0	1553061..1554554	-	497	46907766	glpK	LMOf2365_1557	-	glycerol kinase
1543	 40.90	0	1554629..1555447	-	272	46907767	glpF-2	LMOf2365_1558	-	glycerol uptake facilitator protein
1544	 42.61	+1	1555813..1556103	-	96	46907768	rpmA	LMOf2365_1559	-	50S ribosomal protein L27
1545	 40.25	0	1556117..1556434	-	105	46907769	-	LMOf2365_1560	-	hypothetical protein
1546	 37.54	0	1556453..1556761	-	102	46907770	rplU	LMOf2365_1561	-	50S ribosomal protein L21
1547	 36.71	0	1556918..1558279	-	453	46907771	-	LMOf2365_1562	-	ribonuclease
1548	 36.58	0	1558332..1559132	-	266	46907772	minD	LMOf2365_1563	-	septum site-determining protein MinD
1549	 34.51	0	1559135..1559812	-	225	46907773	minC	LMOf2365_1564	-	septum formation inhibitor
1550	 30.64	-2	1559990..1560508	-	172	46907774	mreD	LMOf2365_1565	-	cell shape-determining protein MreD
1551	 36.37	0	1560511..1561398	-	295	46907775	mreC	LMOf2365_1566	-	rod shape-determining protein MreC
1552	 37.57	0	1561484..1562497	-	337	46907776	mreB	LMOf2365_1567	-	cell shape determining protein MreB
1553	 27.78	-2	1562752..1562859	-	35	46907777	-	LMOf2365_1568	-	hypothetical protein
1554	 36.59	0	1562949..1563623	-	224	46907778	radC	LMOf2365_1569	-	DNA repair protein RadC
1555	 26.44	-2	1563635..1564345	-	236	46907779	-	LMOf2365_1570	-	type IV leader peptidase family protein
1556	 25.00	-2	1564425..1564532	-	35	46907780	-	LMOf2365_1571	-	hypothetical protein
1557	 34.81	0	1564557..1565846	-	429	46907781	folC	LMOf2365_1572	-	folylpolyglutamate synthase
1558	 36.01	0	1565908..1568559	-	883	46907782	valS	LMOf2365_1573	-	valyl-tRNA synthetase
1559	 40.47	0	1568883..1570172	-	429	46907783	hemL	LMOf2365_1574	-	glutamate-1-semialdehyde aminotransferase
37.91	MEAN

3.60	STD DEV
