IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

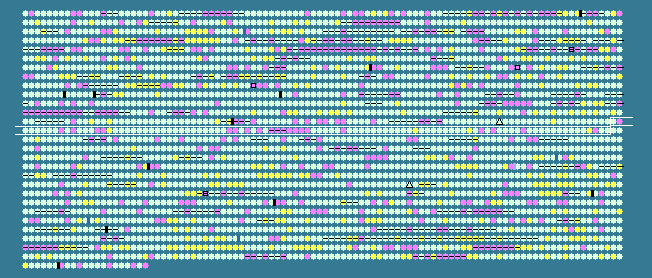

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1299	 39.20	0	1305562..1306788	+	408	46907523	-	LMOf2365_1314	-	hypothetical protein
1300	 27.93	-2	1306804..1306914	+	36	46907524	-	LMOf2365_1315	-	hypothetical protein
1301	 39.02	0	1306990..1307358	+	122	46907525	glnR	LMOf2365_1316	-	transcriptional repressor GlnR
1302	 39.25	0	1307429..1308763	+	444	46907526	glnA	LMOf2365_1317	-	glutamine synthetase, type I
1303	 36.88	0	1308907..1310202	+	431	46907527	arsB	LMOf2365_1318	-	arsenical pump membrane protein
1304	 37.33	0	1310236..1310760	-	174	46907528	-	LMOf2365_1319	-	acetyltransferase
1305	 38.70	0	1310791..1311405	-	204	46907529	lexA	LMOf2365_1320	-	LexA repressor
1306	 34.55	0	1311562..1311891	+	109	46907530	-	LMOf2365_1321	-	hypothetical protein
1307	 32.89	-1	1311985..1312212	+	75	46907531	-	LMOf2365_1322	-	hypothetical protein
1308	 39.85	0	1312359..1314353	+	664	46907532	tkt-2	LMOf2365_1323	-	transketolase
1309	 33.75	-1	1314574..1314813	+	79	46907533	-	LMOf2365_1324	-	hypothetical protein
1310	 37.57	0	1314862..1315593	-	243	46907534	-	LMOf2365_1325	-	hypothetical protein
1311	 37.87	0	1315615..1316121	-	168	46907535	-	LMOf2365_1326	-	ParB-like nuclease domain-containing protein
1312	 35.40	0	1316131..1317435	-	434	46907536	-	LMOf2365_1327	-	hypothetical protein
1313	 31.67	-1	1317425..1318624	-	399	46907537	-	LMOf2365_1328	-	SNF2 family protein
1314	 29.07	-2	1318608..1318982	-	124	46907538	-	LMOf2365_1329	-	hypothetical protein
1315	 41.43	0	1319275..1320003	+	242	46907539	pyrH	LMOf2365_1330	-	uridylate kinase
1316	 36.02	0	1320003..1320560	+	185	46907540	frr	LMOf2365_1331	-	ribosome recycling factor
1317	 38.87	0	1320791..1321549	+	252	46907541	uppS	LMOf2365_1332	-	undecaprenyl diphosphate synthase
1318	 34.60	0	1321563..1322351	+	262	46907542	cdsA	LMOf2365_1333	-	phosphatidate cytidylyltransferase
1319	 39.90	0	1322366..1323508	+	380	46907543	dxr	LMOf2365_1334	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1320	 39.19	0	1323522..1324784	+	420	46907544	-	LMOf2365_1335	-	membrane-associated zinc metalloprotease, putative
1321	 39.19	0	1324825..1326531	+	568	46907545	proS	LMOf2365_1336	-	prolyl-tRNA synthetase
1322	 39.31	0	1326637..1330971	+	1444	46907546	polC	LMOf2365_1337	-	DNA polymerase III PolC
1323	 37.61	0	1331153..1331620	+	155	46907547	-	LMOf2365_1338	-	hypothetical protein
1324	 39.86	0	1331650..1332768	+	372	46907548	nusA	LMOf2365_1339	-	transcription elongation factor NusA
1325	 39.30	0	1332783..1333067	+	94	46907549	-	LMOf2365_1340	-	hypothetical protein
1326	 39.33	0	1333060..1333359	+	99	46907550	-	LMOf2365_1341	-	ribosomal protein L7A family protein
1327	 39.51	0	1333382..1335730	+	782	46907551	infB	LMOf2365_1342	-	translation initiation factor IF-2
1328	 40.14	0	1335727..1336005	+	92	46907552	-	LMOf2365_1343	-	hypothetical protein
1329	 38.26	0	1336022..1336366	+	114	46907553	rbfA	LMOf2365_1344	-	ribosome-binding factor A
1330	 39.89	0	1336462..1337376	+	304	46907554	truB	LMOf2365_1345	-	tRNA pseudouridine synthase B
1331	 38.20	0	1337446..1338390	+	314	46907555	ribF	LMOf2365_1346	-	riboflavin biosynthesis protein RibF
1332	 37.41	0	1338527..1338796	+	89	46907556	rpsO	LMOf2365_1347	-	30S ribosomal protein S15
1333	 39.83	0	1339044..1341215	+	723	46907557	pnp	LMOf2365_1348	-	polynucleotide phosphorylase/polyadenylase
1334	 39.39	0	1341254..1342294	-	346	46907558	-	LMOf2365_1349	-	hypothetical protein
1335	 32.68	-1	1342457..1342918	-	153	46907559	-	LMOf2365_1350	-	hypothetical protein
1336	 33.61	-1	1342964..1343320	-	118	46907560	-	LMOf2365_1351	-	hypothetical protein
1337	 34.67	0	1343518..1343667	+	49	161611350	rpmG	LMOf2365_1352	-	50S ribosomal protein L33
1338	 32.96	-1	1343723..1344262	+	179	46907562	-	LMOf2365_1353	-	5-formyltetrahydrofolate cyclo-ligase family protein
1339	 36.10	0	1344343..1345899	+	518	46907563	-	LMOf2365_1354	-	rhomboid family protein
1340	 26.29	-2	1345912..1346124	+	70	46907564	-	LMOf2365_1355	-	hypothetical protein
1341	 37.46	0	1346149..1347117	+	322	46907565	glcK	LMOf2365_1356	-	glucokinase
1342	 31.50	-1	1347263..1348354	+	363	46907566	-	LMOf2365_1357	-	putative lipoprotein
1343	 31.76	-1	1348372..1348689	-	105	46907567	-	LMOf2365_1358	-	hypothetical protein
1344	 31.84	-1	1348686..1349153	-	155	46907568	-	LMOf2365_1359	-	hypothetical protein
1345	 31.93	-1	1349116..1349400	-	94	46907569	-	LMOf2365_1360	-	ATP-binding protein
1346	 32.39	-1	1349393..1349815	-	140	46907570	-	LMOf2365_1361	-	hypothetical protein
1347	 34.26	-1	1349812..1350135	-	107	46907571	-	LMOf2365_1362	-	general secretion pathway protein G
1348	 32.95	-1	1350150..1351181	-	343	46907572	-	LMOf2365_1363	-	general secretion pathway protein F
1349	 38.12	0	1351159..1352181	-	340	46907573	-	LMOf2365_1364	-	general secretion pathway protein E
1350	 37.47	0	1352720..1353808	+	362	46907574	gcvT	LMOf2365_1365	-	glycine cleavage system aminomethyltransferase T
1351	 37.79	0	1353824..1355170	+	448	46907575	gcvP1	LMOf2365_1366	-	glycine dehydrogenase subunit 1
1352	 40.10	0	1355185..1356633	+	482	46907576	gcvP2	LMOf2365_1367	-	glycine dehydrogenase subunit 2
1353	 35.17	0	1356672..1357052	-	126	46907577	-	LMOf2365_1368	-	rhodanese-like domain-containing protein
1354	 31.87	-1	1357114..1357386	-	90	46907578	-	LMOf2365_1369	-	hypothetical protein
1355	 37.06	0	1357399..1358364	-	321	46907579	-	LMOf2365_1370	-	hypothetical protein
1356	 36.53	0	1358544..1359605	+	353	46907580	-	LMOf2365_1371	-	M24 family peptidase
1357	 37.81	0	1359708..1360265	+	185	46907581	efp	LMOf2365_1372	-	elongation factor P
1358	 37.50	0	1360424..1360903	+	159	46907582	accB	LMOf2365_1373	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1359	 40.22	0	1360917..1362281	+	454	46907583	accC	LMOf2365_1374	-	acetyl-CoA carboxylase biotin carboxylase subunit
1360	 36.52	0	1362285..1362692	+	135	46907584	-	LMOf2365_1375	-	hypothetical protein
1361	 35.40	0	1362723..1363109	+	128	46907585	nusB	LMOf2365_1376	-	transcription antitermination protein NusB
1362	 38.25	0	1363206..1364060	+	284	46907586	folD	LMOf2365_1377	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
1363	 39.17	0	1364079..1365431	+	450	46907587	xseA	LMOf2365_1378	-	exodeoxyribonuclease VII large subunit
1364	 36.40	0	1365421..1365648	+	75	46907588	xseB	LMOf2365_1379	-	exodeoxyribonuclease VII, small subunit
1365	 37.98	0	1365651..1366532	+	293	46907589	-	LMOf2365_1380	-	geranyltranstransferase
1366	 43.28	+1	1366731..1366931	+	66	46907590	-	LMOf2365_1381	-	cold-shock domain-contain protein
1367	 40.22	0	1367098..1368927	+	609	46907591	dxs	LMOf2365_1382	-	1-deoxy-D-xylulose-5-phosphate synthase
1368	 39.03	0	1368924..1369748	+	274	46907592	-	LMOf2365_1383	-	hemolysin A
1369	 35.56	0	1369939..1370388	+	149	46907593	argR	LMOf2365_1384	-	arginine repressor
1370	 38.53	0	1370411..1372102	+	563	46907594	recN	LMOf2365_1385	-	DNA repair protein RecN
1371	 38.64	0	1372232..1373098	+	288	46907595	-	LMOf2365_1386	-	phosphate acetyl/butyryltransferase family protein
1372	 39.89	0	1373235..1374302	+	355	46907596	-	LMOf2365_1387	-	butyrate kinase
1373	 39.92	0	1374317..1375744	+	475	46907597	-	LMOf2365_1388	-	dihydrolipoamide dehydrogenase
1374	 41.37	0	1375769..1376764	+	331	46907598	-	LMOf2365_1389	-	2-oxoisovalerate dehydrogenase E1 component, alpha subunit
1375	 41.77	+1	1376781..1377764	+	327	46907599	-	LMOf2365_1390	-	2-oxoisovalerate dehydrogenase E1 component, beta subunit
1376	 39.81	0	1377795..1379045	+	416	46907600	-	LMOf2365_1391	-	2-oxoisovalerate dehydrogenase E2 component, dihydrolipamide acetyltransferase
1377	 33.33	-1	1379201..1379317	-	38	46907601	-	LMOf2365_1392	-	hypothetical protein
1378	 37.82	0	1379419..1380510	+	363	46907602	-	LMOf2365_1393	-	M20/M25/M40 family peptidase
1379	 29.17	-2	1380510..1380629	+	39	46907603	-	LMOf2365_1394	-	hypothetical protein
1380	 39.39	0	1380655..1382073	+	472	46907604	gnd	LMOf2365_1395	-	6-phosphogluconate dehydrogenase
1381	 39.50	0	1382264..1382944	+	226	46907605	-	LMOf2365_1396	-	DNA-binding response regulator
1382	 36.23	0	1382941..1384392	+	483	46907606	-	LMOf2365_1397	-	sensor histidine kinase
1383	 35.75	0	1384429..1385256	-	275	46907607	-	LMOf2365_1398	-	OxaA-like protein precursor
1384	 33.69	-1	1385293..1385574	-	93	46907608	-	LMOf2365_1399	-	hypothetical protein
1385	 37.23	0	1385660..1385941	-	93	46907609	-	LMOf2365_1400	-	acylphosphatase, putative
1386	 37.64	0	1386081..1386428	+	115	46907610	-	LMOf2365_1401	-	hypothetical protein
1387	 40.58	0	1386457..1387533	+	358	46907611	fni	LMOf2365_1402	-	isopentenyl pyrophosphate isomerase
1388	 39.17	0	1387573..1388532	-	319	46907612	-	LMOf2365_1403	-	hypothetical protein
1389	 39.02	0	1388813..1389709	+	298	46907613	-	LMOf2365_1404	-	hypothetical protein
1390	 38.65	0	1389860..1392133	+	757	46907614	-	LMOf2365_1405	-	FtsK/SpoIIIE family protein
1391	 37.02	0	1392167..1393006	-	279	46907615	-	LMOf2365_1406	-	pyrroline-5-carboxylate reductase
1392	 38.18	0	1393359..1394432	+	357	46907616	-	LMOf2365_1407	-	surface antigen
1393	 38.46	0	1394864..1396405	+	513	46907617	-	LMOf2365_1408	-	ABC transporter, ATP-binding protein
1394	 39.98	0	1396398..1397450	+	350	46907618	-	LMOf2365_1409	-	ABC transporter, permease protein, putative
1395	 41.54	+1	1397447..1398397	+	316	46907619	-	LMOf2365_1410	-	ABC transporter, permease protein, putative
1396	 33.87	-1	1398514..1399806	+	430	46907620	-	LMOf2365_1411	-	hypothetical protein
1397	 36.67	0	1399787..1401073	+	428	46907621	-	LMOf2365_1412	-	M16 family peptidase
1398	 37.16	0	1401165..1401896	+	243	46907622	-	LMOf2365_1413	-	3-ketoacyl-acyl carrier protein reductase, putative
37.91	MEAN

3.60	STD DEV
