IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

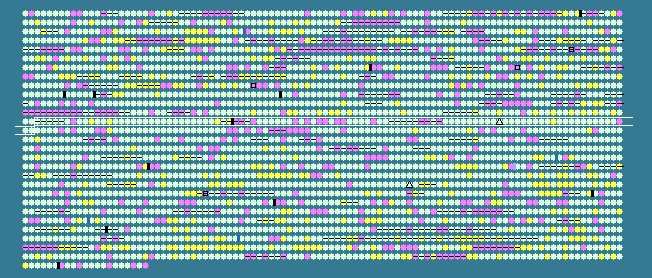

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1203	 40.43	0	1207894..1209429	+	511	46907427	cobQ	LMOf2365_1217	-	cobyric acid synthase
1204	 41.09	0	1209393..1209959	+	188	46907428	-	LMOf2365_1218	-	ATP:cob(I)alamin adenosyltransferase, putative
1205	 37.82	0	1210004..1210471	-	155	46907429	-	LMOf2365_1219	-	hypothetical protein
1206	 36.00	0	1210486..1210935	-	149	46907430	-	LMOf2365_1220	-	hypothetical protein
1207	 35.78	0	1211024..1211554	+	176	46907431	-	LMOf2365_1221	-	hypothetical protein
1208	 37.82	0	1211585..1211896	+	103	46907432	-	LMOf2365_1222	-	PadR family transcriptional regulator
1209	 33.51	-1	1211899..1212450	+	183	46907433	-	LMOf2365_1223	-	hypothetical protein
1210	 37.35	0	1212913..1213659	+	248	46907434	-	LMOf2365_1224	-	N-acetylmuramoyl-L-alanine amidase
1211	 38.17	0	1213929..1214942	+	337	46907435	-	LMOf2365_1225	-	N-acetylmuramoyl-L-alanine amidase
1212	 41.48	0	1215054..1216133	+	359	46907436	-	LMOf2365_1226	-	peptidase, putative
1213	 39.39	0	1216159..1216917	+	252	46907437	-	LMOf2365_1227	-	RNA methyltransferase
1214	 38.06	0	1216962..1217321	-	119	46907438	-	LMOf2365_1228	-	hypothetical protein
1215	 42.28	+1	1217478..1217801	+	107	46907439	-	LMOf2365_1229	-	hypothetical protein
1216	 40.08	0	1218169..1219221	+	350	46907440	pheS	LMOf2365_1230	-	phenylalanyl-tRNA synthetase subunit alpha
1217	 40.76	0	1219221..1221629	+	802	46907441	pheT	LMOf2365_1231	-	phenylalanyl-tRNA synthetase, beta subunit
1218	 38.89	0	1221790..1222491	+	233	46907442	-	LMOf2365_1232	-	ABC transporter, ATP-binding protein
1219	 37.38	0	1222505..1225915	+	1136	46907443	-	LMOf2365_1233	-	ABC transporter, permease protein
1220	 35.10	0	1226013..1226465	+	150	46907444	-	LMOf2365_1234	-	MarR family transcriptional regulator
1221	 40.64	0	1226481..1229681	+	1066	46907445	-	LMOf2365_1235	-	MmpL family membrane protein
1222	 38.81	0	1229785..1230459	+	224	46907446	ung-2	LMOf2365_1236	-	uracil-DNA glycosylase
1223	 40.82	0	1230497..1231378	-	293	46907447	-	LMOf2365_1237	-	ribonuclease HIII
1224	 40.45	0	1231532..1231840	+	102	46907448	-	LMOf2365_1238	-	hypothetical protein
1225	 35.54	0	1231840..1232382	+	180	46907449	-	LMOf2365_1239	-	CvpA family protein
1226	 39.29	0	1232474..1234186	+	570	46907450	-	LMOf2365_1240	-	hypothetical protein
1227	 40.97	0	1234209..1236566	+	785	46907451	mutS-1	LMOf2365_1241	-	recombination and DNA strand exchange inhibitor protein
1228	 40.06	0	1236647..1236958	+	103	46907452	trx-1	LMOf2365_1242	-	thioredoxin
1229	 39.13	0	1237034..1238845	+	603	46907453	uvrC	LMOf2365_1243	-	excinuclease ABC subunit C
1230	 40.33	0	1239026..1240240	+	404	46907454	-	LMOf2365_1244	-	aspartate kinase
1231	 37.04	0	1240296..1240781	-	161	46907455	-	LMOf2365_1245	-	hypothetical protein
1232	 40.07	0	1240938..1241738	+	266	46907456	murI	LMOf2365_1246	-	glutamate racemase
1233	 42.84	+1	1241751..1242497	+	248	46907457	rph	LMOf2365_1247	-	ribonuclease PH
1234	 40.36	0	1242501..1243112	+	203	46907458	-	LMOf2365_1248	-	HAM1 family protein
1235	 43.62	+1	1243149..1243673	+	174	46907459	-	LMOf2365_1249	-	phosphoesterase family protein
1236	 30.83	-1	1244302..1244421	+	39	46907460	-	LMOf2365_1251	-	hypothetical protein
1237	 29.54	-2	1244457..1244930	+	157	46907461	-	LMOf2365_1252	-	hypothetical protein
1238	 35.26	0	1245036..1245398	+	120	46907462	-	LMOf2365_1253	-	hypothetical protein
1239	 33.39	-1	1246066..1249314	+	1082	46907463	-	LMOf2365_1254	-	cell wall surface anchor family protein
1240	 37.82	0	1249437..1250795	+	452	46907464	-	LMOf2365_1255	-	hypothetical protein
1241	 37.37	0	1250838..1251431	-	197	46907465	-	LMOf2365_1256	-	hypothetical protein
1242	 37.25	0	1251568..1251975	-	135	46907466	-	LMOf2365_1257	-	hypothetical protein
1243	 37.50	0	1252140..1252739	+	199	46907467	-	LMOf2365_1258	-	phosphoglycerate mutase family protein
1244	 36.78	0	1252771..1253031	-	86	46907468	-	LMOf2365_1259	-	hypothetical protein
1245	 36.73	0	1253155..1254567	+	470	46907469	dbpA	LMOf2365_1260	-	ATP-dependent RNA helicase DbpA
1246	 31.44	-1	1254592..1254855	+	87	46907470	-	LMOf2365_1261	-	hypothetical protein
1247	 36.27	0	1255023..1255499	+	158	46907471	-	LMOf2365_1262	-	MutT/nudix family protein
1248	 33.33	-1	1255537..1255782	-	81	46907472	-	LMOf2365_1263	-	hypothetical protein
1249	 37.65	0	1255779..1256984	-	401	46907473	-	LMOf2365_1264	-	transporter, putative
1250	 33.48	-1	1257189..1257848	+	219	46907474	-	LMOf2365_1265	-	transcriptional regulator, putative
1251	 30.86	-1	1257820..1258062	+	80	46907475	-	LMOf2365_1266	-	hypothetical protein
1252	 35.57	0	1258149..1258997	-	282	46907476	-	LMOf2365_1267	-	hypothetical protein
1253	 28.70	-2	1259195..1259302	-	35	46907477	-	LMOf2365_1268	-	hypothetical protein
1254	 28.26	-2	1259327..1259464	-	45	46907478	-	LMOf2365_1269	-	hypothetical protein
1255	 37.25	0	1259615..1260328	+	237	46907479	treR	LMOf2365_1270	-	trehalose operon transcriptional repressor
1256	 38.92	0	1260359..1262005	-	548	46907480	treC-2	LMOf2365_1271	-	trehalose-6-phosphate hydrolase
1257	 39.33	0	1262024..1263508	-	494	46907481	treB	LMOf2365_1272	-	PTS system, trehalose-specific, IIBC component
1258	 35.06	0	1263626..1264087	+	153	46907482	-	LMOf2365_1273	-	MutT/nudix family protein
1259	 32.90	-1	1264126..1264590	-	154	46907483	-	LMOf2365_1274	-	hypothetical protein
1260	 37.81	0	1264779..1265693	+	304	46907484	-	LMOf2365_1275	-	alpha/beta fold family hydrolase
1261	 39.18	0	1265719..1266966	-	415	46907485	proA	LMOf2365_1276	-	gamma-glutamyl phosphate reductase
1262	 37.79	0	1266950..1267780	-	276	46907486	proB	LMOf2365_1277	-	gamma-glutamyl kinase
1263	 37.02	0	1267927..1269066	-	379	46907487	-	LMOf2365_1278	-	hypothetical protein
1264	 34.85	0	1269146..1269541	-	131	46907488	-	LMOf2365_1279	-	ans operon transcriptional repressor, putative
1265	 35.19	0	1269692..1269907	+	71	46907489	-	LMOf2365_1280	-	DNA-binding protein
1266	 34.46	0	1270031..1270564	+	177	46907490	-	LMOf2365_1281	-	hypothetical protein
1267	 32.88	-1	1270580..1271245	+	221	46907491	-	LMOf2365_1282	-	putative lipoprotein
1268	 34.08	-1	1271507..1272445	+	312	46907492	-	LMOf2365_1283	-	hypothetical protein
1269	 37.69	0	1272560..1273843	+	427	46907493	tig	LMOf2365_1284	-	trigger factor
1270	 33.33	-1	1273929..1274021	+	30	46907494	-	LMOf2365_1285	-	hypothetical protein
1271	 37.30	0	1274028..1275287	+	419	46907495	clpX	LMOf2365_1286	-	ATP-dependent protease ATP-binding subunit
1272	 35.45	0	1275406..1275972	+	188	46907496	-	LMOf2365_1287	-	signal peptidase I
1273	 39.12	0	1276007..1276576	+	189	46907497	-	LMOf2365_1288	-	signal peptidase I
1274	 36.83	0	1276678..1277220	+	180	46907498	-	LMOf2365_1289	-	signal peptidase I
1275	 38.43	0	1277230..1278093	+	287	46907499	rbgA	LMOf2365_1290	-	ribosomal biogenesis GTPase
1276	 37.53	0	1278090..1278875	+	261	46907500	rnhB	LMOf2365_1291	-	ribonuclease HII
1277	 35.89	0	1279009..1279869	+	286	46907501	-	LMOf2365_1292	-	Smf family protein
1278	 37.52	0	1280142..1282220	+	692	46907502	topA	LMOf2365_1293	-	DNA topoisomerase I
1279	 40.08	0	1282283..1283587	+	434	46907503	gid	LMOf2365_1294	-	tRNA (uracil-5-)-methyltransferase Gid
1280	 37.87	0	1283870..1284772	+	300	46907504	xerC	LMOf2365_1295	-	integrase/recombinase XerC
1281	 40.37	0	1284793..1285332	+	179	46907505	hslV	LMOf2365_1296	-	ATP-dependent protease peptidase subunit
1282	 37.43	0	1285364..1286755	+	463	46907506	hslU	LMOf2365_1297	-	ATP-dependent protease ATP-binding subunit
1283	 36.54	0	1286776..1287555	+	259	46907507	-	LMOf2365_1298	-	transcriptional repressor CodY
1284	 37.38	0	1287658..1288077	+	139	46907508	-	LMOf2365_1299	-	4-hydroxybenzoyl-CoA thioesterase family protein
1285	 38.14	0	1288100..1288411	+	103	46907509	-	LMOf2365_1300	-	hypothetical protein
1286	 38.14	0	1288414..1289286	+	290	46907510	-	LMOf2365_1301	-	aldose epimerase family protein
1287	 40.37	0	1289328..1289924	-	198	46907511	-	LMOf2365_1302	-	hypothetical protein
1288	 39.22	0	1290082..1290489	+	135	46907512	-	LMOf2365_1303	-	CoA-binding domain-containing protein
1289	 42.33	+1	1290670..1292637	+	655	46907513	parE	LMOf2365_1304	-	DNA topoisomerase IV subunit B
1290	 38.01	0	1292634..1295093	+	819	46907514	parC	LMOf2365_1305	-	DNA topoisomerase IV subunit A
1291	 39.53	0	1295176..1295643	+	155	46907515	luxS	LMOf2365_1306	-	S-ribosylhomocysteinase
1292	 36.02	0	1296271..1298097	+	608	46907516	-	LMOf2365_1307	-	hypothetical protein
1293	 36.78	0	1298130..1300016	-	628	46907517	-	LMOf2365_1308	-	acyltransferase family protein
1294	 38.05	0	1300229..1300927	+	232	46907518	-	LMOf2365_1309	-	glycerophosphoryl diester phosphodiesterase, putative
1295	 38.10	0	1301160..1302836	+	558	46907519	glpD	LMOf2365_1310	-	glycerol-3-phosphate dehydrogenase, aerobic
1296	 37.25	0	1302963..1303880	+	305	46907520	miaA	LMOf2365_1311	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1297	 35.47	0	1304002..1304235	+	77	46907521	hfq	LMOf2365_1312	-	hfq protein
1298	 37.15	0	1304340..1305569	+	409	46907522	-	LMOf2365_1313	-	GTP-binding domain-containing protein
1299	 39.20	0	1305562..1306788	+	408	46907523	-	LMOf2365_1314	-	hypothetical protein
1300	 27.93	-2	1306804..1306914	+	36	46907524	-	LMOf2365_1315	-	hypothetical protein
1301	 39.02	0	1306990..1307358	+	122	46907525	glnR	LMOf2365_1316	-	transcriptional repressor GlnR
1302	 39.25	0	1307429..1308763	+	444	46907526	glnA	LMOf2365_1317	-	glutamine synthetase, type I
37.91	MEAN

3.60	STD DEV
