IslandPathversion 1.0

IslandPath Analysis: Listeria monocytogenes str. 4b F2365

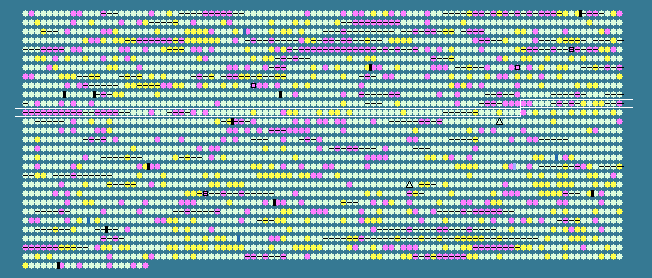

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1084	 33.68	-1	1110083..1112407	+	774	46907308	-	LMOf2365_1097	-	glycosyl transferase, group 2 family protein
1085	 32.05	-1	1112404..1113414	+	336	46907309	-	LMOf2365_1098	-	hypothetical protein
1086	 35.25	0	1113463..1114350	-	295	46907310	galU	LMOf2365_1099	-	UTP-glucose-1-phosphate uridylyltransferase
1087	 34.59	0	1114574..1115287	+	237	46907311	ispD	LMOf2365_1100	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1088	 39.08	0	1115280..1116305	+	341	46907312	-	LMOf2365_1101	-	alcohol dehydrogenase, zinc-dependent
1089	 36.23	0	1116448..1117827	+	459	46907313	-	LMOf2365_1102	-	glycosyl transferase, group 2 family protein
1090	 34.29	-1	1117827..1118981	+	384	46907314	-	LMOf2365_1103	-	teichoic acid biosynthesis domain-containing protein
1091	 36.11	0	1118994..1120145	+	383	46907315	-	LMOf2365_1104	-	teichoic acid biosynthesis protein B, putative
1092	 33.33	-1	1120210..1120593	+	127	46907316	tagD	LMOf2365_1105	-	glycerol-3-phosphate cytidylyltransferase
1093	 38.83	0	1120711..1122201	+	496	46907317	-	LMOf2365_1106	-	nicotinate phosphoribosyltransferase
1094	 42.18	+1	1122213..1123037	+	274	46907318	nadE	LMOf2365_1107	-	NAD synthetase
1095	 37.54	0	1123050..1123358	+	102	46907319	-	LMOf2365_1108	-	hypothetical protein
1096	 43.21	+1	1123418..1123822	+	134	46907320	-	LMOf2365_1109	-	PTS system, IIB component, putative
1097	 43.37	+1	1123963..1125507	+	514	46907321	guaA	LMOf2365_1110	-	bifunctional GMP synthase/glutamine amidotransferase protein
1098	 34.73	0	1125798..1126154	+	118	46907322	-	LMOf2365_1111	-	hypothetical protein
1099	 38.10	0	1126762..1126887	-	41	46907323	-	LMOf2365_1112	-	hypothetical protein
1100	 30.07	-2	1126911..1127798	+	295	46907324	-	LMOf2365_1113	-	ABC transporter, ATP-binding protein
1101	 28.80	-2	1127798..1128547	+	249	46907325	-	LMOf2365_1114	-	ABC transporter, permease protein
1102	 30.50	-2	1128588..1128905	+	105	46907326	-	LMOf2365_1115	-	hypothetical protein
1103	 29.57	-2	1128902..1129777	+	291	46907327	-	LMOf2365_1116	-	hypothetical protein
1104	 28.98	-2	1129785..1130702	+	305	46907328	-	LMOf2365_1117	-	hypothetical protein
1105	 30.37	-2	1130695..1132008	+	437	46907329	-	LMOf2365_1118	-	hypothetical protein
1106	 24.49	-2	1132001..1132588	+	195	46907330	-	LMOf2365_1119	-	CAAX amino terminal protease family protein
1107	 31.65	-1	1132833..1133606	+	257	46907331	-	LMOf2365_1120	-	AraC family transcriptional regulator
1108	 33.05	-1	1133671..1134027	+	118	46907332	-	LMOf2365_1121	-	glyoxalase family protein
1109	 27.38	-2	1134444..1134779	-	111	46907333	-	LMOf2365_1122	-	hypothetical protein
1110	 27.06	-2	1134754..1135566	-	270	46907334	-	LMOf2365_1123	-	hypothetical protein
1111	 37.32	0	1136256..1136606	+	116	46907335	-	LMOf2365_1125	-	hypothetical protein
1112	 35.46	0	1136609..1136749	+	46	46907336	-	LMOf2365_1126	-	hypothetical protein
1113	 26.29	-2	1136761..1137129	+	122	46907337	-	LMOf2365_1127	-	hypothetical protein
1114	 29.76	-2	1137166..1137585	+	139	46907338	-	LMOf2365_1128	-	hypothetical protein
1115	 28.06	-2	1137671..1138144	+	157	46907339	-	LMOf2365_1129	-	hypothetical protein
1116	 32.19	-1	1138134..1138571	+	145	46907340	-	LMOf2365_1130	-	hypothetical protein
1117	 35.99	0	1138975..1139313	+	112	46907341	-	LMOf2365_1131	-	hypothetical protein
1118	 37.84	0	1139331..1139774	+	147	46907342	-	LMOf2365_1132	-	acetyltransferase
1119	 35.09	0	1139774..1140229	+	151	46907343	-	LMOf2365_1133	-	hypothetical protein
1120	 40.14	0	1140243..1141241	-	332	46907344	-	LMOf2365_1134	-	hypothetical protein
1121	 34.51	0	1141238..1141834	-	198	46907345	-	LMOf2365_1135	-	acetyltransferase
1122	 32.36	-1	1141831..1142550	-	239	46907346	-	LMOf2365_1136	-	hypothetical protein
1123	 36.83	0	1142801..1144516	+	571	46907347	-	LMOf2365_1137	-	ABC transporter, ATP-binding/permease protein
1124	 38.25	0	1144518..1146164	+	548	46907348	-	LMOf2365_1138	-	ABC transporter, ATP-binding/permease protein
1125	 36.89	0	1146203..1146511	-	102	46907349	-	LMOf2365_1139	-	hypothetical protein
1126	 31.90	-1	1146579..1146926	+	115	46907350	-	LMOf2365_1140	-	MerR family transcriptional regulator
1127	 33.07	-1	1146951..1148090	+	379	46907351	-	LMOf2365_1141	-	hypothetical protein
1128	 39.49	0	1148209..1148679	+	156	46907352	-	LMOf2365_1142	-	hypothetical protein
1129	 34.02	-1	1148676..1148966	+	96	46907353	-	LMOf2365_1143	-	hypothetical protein
1130	 37.17	0	1149246..1150781	+	511	46907354	-	LMOf2365_1144	-	cell wall surface anchor family protein
1131	 32.47	-1	1150816..1151163	-	115	46907355	-	LMOf2365_1145	-	hypothetical protein
1132	 39.62	0	1151228..1151800	-	190	46907356	clpP-1	LMOf2365_1146	-	ATP-dependent Clp protease proteolytic subunit
1133	 40.20	0	1151931..1152338	-	135	46907357	-	LMOf2365_1147	-	hypothetical protein
1134	 39.38	0	1152430..1152909	+	159	46907358	-	LMOf2365_1148	-	siroheme synthase subunit family protein
1135	 39.93	0	1153028..1154392	+	454	46907359	-	LMOf2365_1149	-	PduS protein
1136	 40.54	0	1154389..1154943	+	184	46907360	-	LMOf2365_1150	-	PduT protein
1137	 38.46	0	1155091..1155441	+	116	46907361	pduU	LMOf2365_1151	-	propanediol utilization protein PduU
1138	 40.05	0	1155447..1155878	+	143	46907362	-	LMOf2365_1152	-	propanediol utilization protein PduV
1139	 43.41	+1	1155903..1156646	+	247	46907363	-	LMOf2365_1153	-	hypothetical protein
1140	 38.10	0	1156651..1157196	+	181	46907364	cobU	LMOf2365_1154	-	cobinamide kinase/cobinamide phosphate guanylyltransferase
1141	 40.70	0	1157198..1157944	+	248	46907365	cobS	LMOf2365_1155	-	cobalamin 5'-phosphate synthase
1142	 38.54	0	1157945..1158520	+	191	46907366	cobC	LMOf2365_1156	-	alpha-ribazole-5'-phosphate phosphatase
1143	 37.97	0	1158930..1159814	-	294	46907367	-	LMOf2365_1157	-	transcriptional regulator PocR, putative
1144	 33.93	-1	1159883..1160050	-	55	46907368	-	LMOf2365_1158	-	hypothetical protein
1145	 47.57	+2	1160117..1160404	+	95	46907369	pduA	LMOf2365_1159	-	propanediol utilization protein PduA
1146	 42.31	+1	1160499..1161200	+	233	46907370	pduB	LMOf2365_1160	-	propanediol utilization protein PduB
1147	 41.20	0	1161219..1162883	+	554	46907371	pduC	LMOf2365_1161	-	glycerol dehydratase large subunit
1148	 40.30	0	1162921..1163580	+	219	46907372	pduD	LMOf2365_1162	-	propanediol utilization: dehydratase, medium subunit
1149	 39.38	0	1163597..1164109	+	170	46907373	pduE	LMOf2365_1163	-	propanediol utilization: dehydratase, small subunit
1150	 42.72	+1	1164155..1165975	+	606	46907374	pduG	LMOf2365_1164	-	propanediol utilization: diol dehydratase reactivation
1151	 38.79	0	1165972..1166319	+	115	46907375	-	LMOf2365_1165	-	PduH protein
1152	 42.92	+1	1166332..1166769	+	145	46907376	-	LMOf2365_1166	-	propanediol utilization protein PduK, putative
1153	 43.84	+1	1166794..1167069	+	91	46907377	-	LMOf2365_1167	-	propanediol utilization protein PduJ, putative
1154	 40.41	0	1167073..1167708	+	211	46907378	-	LMOf2365_1168	-	propanediol utilization protein PduL
1155	 44.05	+1	1167729..1168568	+	279	46907379	eutJ	LMOf2365_1169	-	ethanolamine utilization protein
1156	 37.71	0	1168565..1169044	+	159	46907380	pduM	LMOf2365_1170	-	propanediol utilization protein PduM
1157	 40.53	0	1169049..1169312	+	87	46907381	pduN	LMOf2365_1171	-	propanediol utilization: polyhedral bodies
1158	 40.06	0	1169327..1170322	+	331	46907382	-	LMOf2365_1172	-	PduO protein
1159	 40.50	0	1170329..1171738	+	469	46907383	pduP	LMOf2365_1173	-	CoA-dependent propionaldehyde dehydrogenase
1160	 40.21	0	1171754..1172872	+	372	46907384	pduQ	LMOf2365_1174	-	propanol dehydrogenase
1161	 40.00	0	1172900..1173604	+	234	46907385	glpF-1	LMOf2365_1175	-	glycerol uptake facilitator protein
1162	 40.12	0	1173670..1174863	+	397	46907386	-	LMOf2365_1176	-	propionate/acetate kinase, putative
1163	 39.13	0	1174877..1175962	+	361	46907387	-	LMOf2365_1177	-	threonine-phosphate decarboxylase
1164	 42.01	+1	1175952..1176827	+	291	46907388	-	LMOf2365_1178	-	propanediol utilization protein PduX
1165	 39.64	0	1176851..1176961	-	36	46907389	-	LMOf2365_1179	-	hypothetical protein
1166	 36.46	0	1176998..1177093	-	31	46907390	-	LMOf2365_1180	-	hypothetical protein
1167	 37.98	0	1177417..1178556	+	379	46907391	-	LMOf2365_1181	-	alcohol dehydrogenase, iron-dependent
1168	 39.09	0	1178840..1179412	+	190	46907392	-	LMOf2365_1182	-	transcription antiterminator response regulator, putative
1169	 37.31	0	1179405..1180862	+	485	46907393	-	LMOf2365_1183	-	sensor histidine kinase
1170	 39.80	0	1180952..1182373	+	473	46907394	eutA	LMOf2365_1184	-	reactivating factor for ethanolamine ammonia lyase
1171	 40.66	0	1182415..1183779	+	454	46907395	eutB	LMOf2365_1185	-	ethanolamine ammonia-lyase heavy chain
1172	 39.00	0	1183799..1184680	+	293	46907396	eutC	LMOf2365_1186	-	ethanolamine ammonia-lyase small subunit
1173	 40.83	0	1184703..1185356	+	217	46907397	eutL	LMOf2365_1187	-	ethanolamine utilization protein
1174	 37.74	0	1185371..1185892	+	173	46907398	-	LMOf2365_1188	-	ethanolamine utilization protein, putative
1175	 39.90	0	1185892..1187352	+	486	46907399	-	LMOf2365_1189	-	aldehyde dehydrogenase family protein
1176	 47.02	+2	1187384..1187668	+	94	46907400	-	LMOf2365_1190	-	ethanolamine utilization protein, putative
1177	 37.04	0	1187834..1188589	+	251	46907401	-	LMOf2365_1191	-	hypothetical protein
1178	 39.10	0	1188602..1189243	+	213	46907402	-	LMOf2365_1192	-	hypothetical protein
1179	 36.86	0	1189246..1189812	+	188	46907403	-	LMOf2365_1193	-	hypothetical protein
1180	 46.30	+2	1189827..1190096	+	89	46907404	-	LMOf2365_1194	-	carboxysome protein, putative
1181	 40.11	0	1190089..1190634	+	181	46907405	-	LMOf2365_1195	-	hypothetical protein
1182	 39.66	0	1190650..1191771	+	373	46907406	-	LMOf2365_1196	-	hypothetical protein
1183	 36.04	0	1191764..1192207	+	147	46907407	-	LMOf2365_1197	-	hypothetical protein
37.91	MEAN

3.60	STD DEV
