IslandPath Analysis: Listeria monocytogenes str. 4b F2365

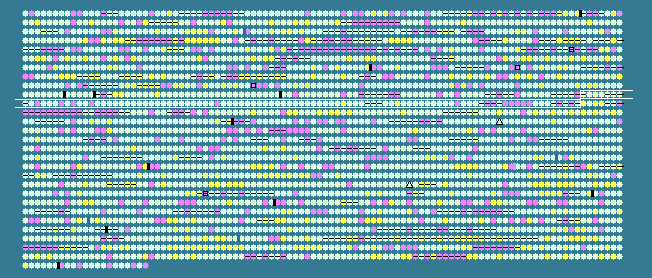

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.91 STD DEV: 3.60
Listeria monocytogenes str. 4b F2365, complete genome - 1..2905187
2821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
994	 34.97	0	1016236..1016664	+	142	46907218	-	LMOf2365_1006	-	hypothetical protein
995	 35.96	0	1016661..1017572	+	303	46907219	-	LMOf2365_1007	-	ABC transporter, ATP-binding protein
996	 39.96	0	1018500..1020068	+	522	46907220	prfC	LMOf2365_1009	-	peptide chain release factor 3
997	 36.27	0	1020194..1020601	+	135	46907221	-	LMOf2365_1010	-	MarR family transcriptional regulator
998	 38.84	0	1020654..1022015	+	453	46907222	-	LMOf2365_1011	-	MATE efflux family protein
999	 39.97	0	1022297..1023064	+	255	46907223	-	LMOf2365_1012	-	TerC family membrane protein
1000	 38.67	0	1023167..1023934	+	255	46907224	-	LMOf2365_1013	-	TerC family membrane protein
1001	 38.71	0	1023975..1025312	+	445	46907225	-	LMOf2365_1014	-	cation transport protein
1002	 35.77	0	1025392..1025760	-	122	46907226	-	LMOf2365_1015	-	hypothetical protein
1003	 33.04	-1	1025790..1026821	-	343	46907227	-	LMOf2365_1016	-	hypothetical protein
1004	 37.71	0	1027006..1027485	+	159	46907228	ogt-2	LMOf2365_1017	-	methylated-DNA-protein-cysteine methyltransferase
1005	 39.70	0	1027501..1029669	-	722	46907229	-	LMOf2365_1018	-	ATP-dependent Clp protease, ATP-binding subunit ClpE
1006	 36.11	0	1029833..1030444	-	203	46907230	-	LMOf2365_1019	-	CAAX amino terminal protease family protein
1007	 32.32	-1	1030590..1031381	+	263	46907231	-	LMOf2365_1020	-	hypothetical protein
1008	 35.64	0	1031382..1032854	-	490	46907232	-	LMOf2365_1021	-	phytoene dehydrogenase, putative
1009	 31.93	-1	1032959..1033243	-	94	46907233	-	LMOf2365_1022	-	hypothetical protein
1010	 39.70	0	1033550..1033816	+	88	46907234	ptsH	LMOf2365_1023	-	phosphocarrier protein HPr
1011	 38.39	0	1033816..1035534	+	572	46907235	ptsI	LMOf2365_1024	-	phosphoenolpyruvate-protein phosphotransferase
1012	 33.33	-1	1035647..1036681	+	344	46907236	-	LMOf2365_1025	-	hypothetical protein
1013	 40.65	0	1036694..1037554	+	286	46907237	-	LMOf2365_1026	-	3-hydroxyisobutyrate dehydrogenase family protein
1014	 40.05	0	1037593..1038738	-	381	46907238	-	LMOf2365_1027	-	aromatic amino acid aminotransferase, putative
1015	 36.94	0	1038958..1039179	+	73	46907239	-	LMOf2365_1028	-	hypothetical protein
1016	 34.62	0	1039484..1039717	+	77	46907240	-	LMOf2365_1029	-	hypothetical protein
1017	 34.66	0	1039919..1040371	+	150	46907241	-	LMOf2365_1030	-	CBS domain-containing protein
1018	 38.79	0	1040368..1041246	+	292	46907242	-	LMOf2365_1031	-	LysR family transcriptional regulator
1019	 40.08	0	1041294..1042004	+	236	46907243	-	LMOf2365_1032	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase, putative
1020	 40.14	0	1042068..1043183	+	371	46907244	-	LMOf2365_1033	-	M20/M25/M40 family peptidase
1021	 38.53	0	1043227..1044072	-	281	46907245	-	LMOf2365_1034	-	mechanosensitive ion channel family protein
1022	 39.61	0	1044444..1045637	+	397	46907246	-	LMOf2365_1035	-	glycine betaine/L-proline ABC transporter, ATP-binding protein
1023	 40.40	0	1045630..1046478	+	282	46907247	-	LMOf2365_1036	-	glycine betaine/L-proline ABC transporter, permease protein
1024	 38.10	0	1046492..1047394	+	300	46907248	-	LMOf2365_1037	-	glycine betaine/L-proline ABC transporter, glycine betaine/L-proline-binding protein
1025	 34.76	0	1047509..1048000	+	163	46907249	-	LMOf2365_1038	-	PTS system, glucose-specific, IIA component, putative
1026	 39.66	0	1048112..1048807	+	231	46907250	-	LMOf2365_1039	-	cutC family protein
1027	 39.86	0	1048888..1049760	+	290	46907251	-	LMOf2365_1040	-	hypothetical protein
1028	 37.73	0	1049904..1050608	+	234	46907252	-	LMOf2365_1041	-	hypothetical protein
1029	 38.81	0	1050605..1051663	+	352	46907253	-	LMOf2365_1042	-	histidine kinase, putative
1030	 38.18	0	1051660..1052298	+	212	46907254	-	LMOf2365_1043	-	DNA-binding response regulator
1031	 39.39	0	1052317..1052976	+	219	46907255	-	LMOf2365_1044	-	TrkA domain-containing protein
1032	 35.94	0	1053132..1054052	+	306	46907256	-	LMOf2365_1045	-	hypothetical protein
1033	 34.27	-1	1054049..1054900	+	283	46907257	-	LMOf2365_1046	-	hypothetical protein
1034	 35.92	0	1054941..1055906	-	321	46907258	-	LMOf2365_1047	-	transcriptional regulator, putative
1035	 38.43	0	1056015..1057682	-	555	46907259	-	LMOf2365_1048	-	metallo-beta-lactamase family protein
1036	 36.67	0	1057689..1057898	-	69	46907260	-	LMOf2365_1049	-	hypothetical protein
1037	 38.52	0	1058382..1059152	+	256	46907261	-	LMOf2365_1050	-	Cof-like hydrolase
1038	 36.35	0	1059200..1060228	-	342	46907262	-	LMOf2365_1051	-	LacI family transcription regulator
1039	 38.46	0	1060491..1061894	+	467	46907263	-	LMOf2365_1052	-	hypothetical protein
1040	 39.88	0	1061910..1062734	+	274	46907264	-	LMOf2365_1053	-	transketolase, N-terminal subunit
1041	 41.24	0	1062727..1063674	+	315	46907265	-	LMOf2365_1054	-	transketolase, C-terminal subunit, putative
1042	 37.98	0	1063671..1065134	+	487	46907266	glpK-1	LMOf2365_1055	-	glycerol kinase
1043	 37.10	0	1065131..1066987	+	618	46907267	-	LMOf2365_1056	-	PTS system, beta-glucoside-specific, IIABC component
1044	 36.26	0	1067007..1068272	+	421	46907268	-	LMOf2365_1057	-	hypothetical protein
1045	 34.95	0	1068333..1069136	-	267	46907269	-	LMOf2365_1058	-	hypothetical protein
1046	 40.21	0	1069204..1069785	-	193	46907270	mobA	LMOf2365_1059	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1047	 37.86	0	1069766..1070428	-	220	46907271	modC	LMOf2365_1060	-	molybdenum ABC transporter, ATP-binding protein
1048	 38.24	0	1070431..1071102	-	223	46907272	modB	LMOf2365_1061	-	molybdenum ABC transporter, permease protein
1049	 39.17	0	1071206..1071976	+	256	46907273	modA	LMOf2365_1062	-	molybdenum ABC transporter, molybdenum-binding protein
1050	 39.87	0	1072071..1073294	+	407	46907274	moeA	LMOf2365_1063	-	molybdopterin biosynthesis protein MoeA
1051	 37.65	0	1073273..1073758	+	161	46907275	mobB	LMOf2365_1064	-	molybdopterin-guanine dinucleotide biosynthesis protein B
1052	 39.72	0	1073755..1074177	+	140	46907276	moaE	LMOf2365_1065	-	molybdenum cofactor biosynthesis protein E
1053	 38.15	0	1074161..1074409	+	82	46907277	moaD	LMOf2365_1066	-	molybdenum cofactor biosynthesis protein D
1054	 42.03	+1	1074422..1074904	+	160	46907278	moaC	LMOf2365_1067	-	molybdenum cofactor biosynthesis protein C
1055	 38.02	0	1074933..1075934	+	333	46907279	moaA	LMOf2365_1068	-	molybdenum cofactor biosynthesis protein A
1056	 41.10	0	1075969..1076457	-	162	46907280	moaB	LMOf2365_1069	-	molybdenum cofactor biosynthesis protein B
1057	 37.74	0	1076469..1077467	-	332	46907281	moeB	LMOf2365_1070	-	molybdopterin biosynthesis protein MoeB
1058	 37.66	0	1077599..1078153	+	184	46907282	-	LMOf2365_1071	-	hypothetical protein
1059	 39.67	0	1078202..1078753	-	183	46907283	def	LMOf2365_1072	-	peptide deformylase
1060	 40.86	0	1079587..1080702	+	371	46907284	pdhA	LMOf2365_1073	-	pyruvate dehydrogenase complex, E1 component, pyruvate dehydrogenase alpha subunit
1061	 41.31	0	1080705..1081682	+	325	46907285	pdhB	LMOf2365_1074	-	pyruvate dehydrogenase complex, E1 component, pyruvate dehydrogenase beta subunit
1062	 40.37	0	1081793..1083427	+	544	46907286	-	LMOf2365_1075	-	dihydrolipoamide acetyltransferase
1063	 41.88	+1	1083432..1084835	+	467	46907287	-	LMOf2365_1076	-	dihydrolipoamide dehydrogenase
1064	 35.26	0	1085022..1085333	+	103	46907288	-	LMOf2365_1077	-	hypothetical protein
1065	 36.79	0	1085462..1086415	+	317	46907289	-	LMOf2365_1078	-	lactate/malate dehydrogenase family protein
1066	 37.73	0	1086415..1086687	+	90	46907290	-	LMOf2365_1079	-	hypothetical protein
1067	 36.91	0	1086709..1087239	+	176	46907291	-	LMOf2365_1080	-	hypothetical protein
1068	 35.24	0	1087297..1088241	-	314	46907292	-	LMOf2365_1081	-	magnesium transporter CorA family protein
1069	 39.35	0	1088442..1089056	-	204	46907293	-	LMOf2365_1082	-	hypothetical protein
1070	 39.28	0	1089187..1089960	+	257	46907294	-	LMOf2365_1083	-	inositol monophosphatase family protein
1071	 39.10	0	1090152..1091990	+	612	46907295	typA	LMOf2365_1084	-	GTP-binding protein TypA
1072	 35.84	0	1092168..1093043	+	291	46907296	-	LMOf2365_1085	-	hypothetical protein
1073	 33.33	-1	1093075..1093305	-	76	46907297	-	LMOf2365_1086	-	hypothetical protein
1074	 35.82	0	1093511..1093792	+	93	46907298	-	LMOf2365_1087	-	hypothetical protein
1075	 36.89	0	1093968..1095176	+	402	46907299	-	LMOf2365_1088	-	cell cycle protein FtsW
1076	 39.47	0	1095454..1098894	+	1146	46907300	pyc	LMOf2365_1089	-	pyruvate carboxylase
1077	 35.23	0	1099048..1099941	+	297	46907301	-	LMOf2365_1090	-	ABC transporter, substrate-binding protein
1078	 33.46	-1	1100235..1101026	+	263	46907302	-	LMOf2365_1091	-	techoic acid ABC transporter, efflux permease
1079	 33.43	-1	1101039..1102046	+	335	46907303	-	LMOf2365_1092	-	techoic acid ABC transporter, ATP-binding protein, putative
1080	 36.22	0	1102270..1104594	+	774	46907304	-	LMOf2365_1093	-	N-acetylmuramoyl-L-alanine amidase
1081	 31.99	-1	1104657..1106663	-	668	46907305	-	LMOf2365_1094	-	hypothetical protein
1082	 33.74	-1	1106955..1107938	+	327	46907306	-	LMOf2365_1095	-	glycosyl transferase, group 2 family protein
1083	 32.05	-1	1107950..1110052	+	700	46907307	-	LMOf2365_1096	-	hypothetical protein
1084	 33.68	-1	1110083..1112407	+	774	46907308	-	LMOf2365_1097	-	glycosyl transferase, group 2 family protein
1085	 32.05	-1	1112404..1113414	+	336	46907309	-	LMOf2365_1098	-	hypothetical protein
1086	 35.25	0	1113463..1114350	-	295	46907310	galU	LMOf2365_1099	-	UTP-glucose-1-phosphate uridylyltransferase
1087	 34.59	0	1114574..1115287	+	237	46907311	ispD	LMOf2365_1100	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1088	 39.08	0	1115280..1116305	+	341	46907312	-	LMOf2365_1101	-	alcohol dehydrogenase, zinc-dependent
1089	 36.23	0	1116448..1117827	+	459	46907313	-	LMOf2365_1102	-	glycosyl transferase, group 2 family protein
1090	 34.29	-1	1117827..1118981	+	384	46907314	-	LMOf2365_1103	-	teichoic acid biosynthesis domain-containing protein
1091	 36.11	0	1118994..1120145	+	383	46907315	-	LMOf2365_1104	-	teichoic acid biosynthesis protein B, putative
1092	 33.33	-1	1120210..1120593	+	127	46907316	tagD	LMOf2365_1105	-	glycerol-3-phosphate cytidylyltransferase
1093	 38.83	0	1120711..1122201	+	496	46907317	-	LMOf2365_1106	-	nicotinate phosphoribosyltransferase
37.91	MEAN

3.60	STD DEV
