IslandPathversion 1.0

IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

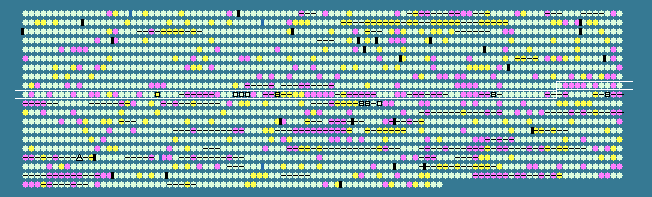

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
890	 36.16	0	956693..957364	+	223	116618064	-	LEUM_0956	-	DNA-binding response regulator
891	 33.15	-1	957365..958432	+	355	116618065	-	LEUM_0957	-	Signal transduction histidine kinase
892	 33.91	-1	958518..959039	+	173	116618066	-	LEUM_0958	-	hypothetical protein
893	 33.76	-1	959265..959498	+	77	116618067	-	LEUM_0959	-	hypothetical protein
894	 33.33	-1	959678..960286	+	202	116618068	-	LEUM_0960	-	hypothetical protein
895	 35.69	0	960457..961689	+	410	116618069	-	LEUM_0961	-	transcriptional regulator
896	 33.78	-1	962039..962482	+	147	116618070	-	LEUM_0962	-	transcriptional regulator
897	 36.74	0	962472..963821	+	449	116618071	-	LEUM_0963	-	major facilitator superfamily permease
898	 39.35	0	964019..966709	+	896	116618072	-	LEUM_0964	-	cation transport ATPase
899	 33.33	-1	966907..967338	+	143	116618073	-	LEUM_0965	-	hypothetical protein
900	 37.88	0	967511..968389	+	292	116618074	-	LEUM_0966	-	aldo/keto reductase
901	 37.85	0	968948..969412	+	154	116618075	-	LEUM_0968	-	hypothetical protein
902	 33.51	-1	969471..970043	+	190	116618076	-	LEUM_0969	-	putative threonine efflux protein
903	 34.48	-1	970083..971042	-	319	116618077	-	LEUM_0970	-	2-hydroxyacid dehydrogenase
904	 39.24	0	971346..972209	+	287	116618078	-	LEUM_0971	-	Short-chain alcohol dehydrogenase
905	 32.92	-1	972702..973181	+	159	116618079	-	LEUM_0972	-	peptidase E
906	 36.56	0	973394..974044	+	216	116618080	-	LEUM_0973	-	hypothetical protein
907	 38.78	0	974148..975470	+	440	116618081	-	LEUM_0974	-	nucleotidyltransferase/DNA polymerase for DNA repair
908	 35.96	0	975463..975843	+	126	116618082	-	LEUM_0975	-	hypothetical protein
909	 33.73	-1	975830..976081	+	83	116618083	-	LEUM_0976	-	hypothetical protein
910	 40.86	0	976334..978154	+	606	116618084	-	LEUM_0977	-	pyruvate oxidase
911	 39.01	0	978307..978729	+	140	116618085	-	LEUM_0978	-	molecular chaperone (small heat shock protein)
912	 33.96	-1	978891..979526	-	211	116618086	-	LEUM_0979	-	nucleoside-diphosphate-sugar epimerase
913	 30.99	-2	979984..980496	+	170	116618087	-	LEUM_0980	-	hypothetical protein
914	 40.80	0	980817..981164	+	115	116618088	-	LEUM_0981	-	acetylornithine deacetylase/succinyl-diaminopimelate desuccinylase-like protein
915	 41.67	+1	981193..981420	+	75	116618089	-	LEUM_0982	-	hypothetical protein
916	 32.59	-1	981773..982174	+	133	116618090	-	LEUM_0983	-	biotin carboxyl carrier protein
917	 37.29	0	982174..983514	+	446	116618091	-	LEUM_0984	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha / biotin carboxylase
918	 40.52	0	984294..985058	+	254	116618092	-	LEUM_0986	-	lactam utilization protein B related protein
919	 37.88	0	985071..986303	+	410	116618093	-	LEUM_0987	-	manganese transporter NRAMP
920	 33.89	-1	986315..987031	+	238	116618094	-	LEUM_0988	-	allophanate hydrolase subunit 1
921	 37.57	0	987028..988041	+	337	116618095	-	LEUM_0989	-	allophanate hydrolase subunit 2
922	 35.98	0	988057..989229	+	390	116618096	-	LEUM_0990	-	aminotransferase
923	 45.88	+2	991310..991867	+	185	116618097	-	LEUM_0992	-	transposase
924	 40.87	0	993261..994613	+	450	116618098	-	LEUM_0994	-	major facilitator superfamily permease
925	 40.64	0	994708..996966	+	752	116618099	-	LEUM_0995	-	maltose phosphorylase
926	 38.21	0	997023..998006	+	327	116618100	-	LEUM_0996	-	aldose 1-epimerase
927	 41.22	+1	998009..998680	+	223	116618101	-	LEUM_0997	-	HAD family sugar phosphatase
928	 32.54	-1	999155..999280	+	41	116618102	-	LEUM_0998	-	hypothetical protein
929	 31.09	-2	999287..999553	+	88	116618103	-	LEUM_0999	-	hypothetical protein
930	 31.67	-1	1000355..1000954	+	199	116618104	-	LEUM_1001	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
931	 24.84	-2	1002117..1002422	+	101	116618105	-	LEUM_1002	-	hypothetical protein
932	 28.61	-2	1002501..1002881	+	126	116618106	-	LEUM_1003	-	hypothetical protein
933	 32.44	-1	1003365..1004258	-	297	116618107	-	LEUM_1004	-	malolactic fermentation system transcription activator
934	 37.75	0	1004401..1006029	+	542	116618108	-	LEUM_1005	-	malate dehydrogenase
935	 40.22	0	1006046..1007308	+	420	116618109	-	LEUM_1006	-	Na+/malate symporter
936	 38.68	0	1008358..1008600	+	80	116618110	-	LEUM_1008	-	transposase
937	 39.55	0	1008646..1009449	+	267	116618111	-	LEUM_1009	-	transposase
938	 37.86	0	1009626..1009868	-	80	116618112	-	LEUM_1010	-	transposase
939	 33.97	-1	1010072..1012105	+	677	116618113	-	LEUM_1011	-	K+ transporter
940	 40.66	0	1012485..1013276	+	263	116618114	-	LEUM_1012	-	hypothetical protein
941	 30.29	-2	1013766..1014947	+	393	116618115	-	LEUM_1013	-	hypothetical protein
942	 29.85	-2	1014999..1015946	+	315	116618116	-	LEUM_1014	-	P-loop ATPase
943	 46.17	+2	1015940..1016344	-	134	116618117	-	LEUM_1015	-	transposase
944	 51.68	+2	1016555..1017001	-	148	116618118	-	LEUM_1016	-	ribonuclease HI
945	 44.40	+1	1017239..1018765	+	508	116618119	-	LEUM_1017	-	ABC-type proline/glycine betaine transport systems, permease and substrate binding protein
946	 47.63	+2	1018766..1019737	+	323	116618120	-	LEUM_1018	-	ABC-type proline/glycine betaine transport systems, ATPase component
947	 50.68	+2	1019815..1021146	+	443	116618121	-	LEUM_1019	-	glutathione reductase
948	 33.33	-1	1021278..1021439	+	53	116618122	-	LEUM_1020	-	hypothetical protein
949	 29.35	-2	1021436..1021912	+	158	116618123	-	LEUM_1021	-	hypothetical protein
950	 30.10	-2	1022712..1023857	+	381	116618124	-	LEUM_1022	-	hypothetical protein
951	 30.00	-2	1023971..1024120	+	49	116618125	-	LEUM_1023	-	hypothetical protein
952	 29.78	-2	1025448..1027418	+	656	116618126	-	LEUM_1024	-	ATPase or kinase
953	 41.00	0	1027503..1028285	+	260	116618127	-	LEUM_1025	-	hypothetical protein
954	 43.69	+1	1028611..1029672	+	353	116618128	-	LEUM_1026	-	hypothetical protein
955	 34.27	-1	1029708..1030028	+	106	116618129	-	LEUM_1027	-	hypothetical protein
956	 33.89	-1	1030117..1030656	+	179	116618130	-	LEUM_1028	-	hypothetical protein
957	 34.21	-1	1030672..1030899	+	75	116618131	-	LEUM_1029	-	hypothetical protein
958	 33.60	-1	1030901..1031269	+	122	116618132	-	LEUM_1030	-	hypothetical protein
959	 31.34	-1	1031404..1032006	+	200	116618133	-	LEUM_1031	-	hypothetical protein
960	 37.75	0	1032070..1034109	+	679	116618134	-	LEUM_1032	-	hypothetical protein
961	 39.64	0	1034109..1035281	+	390	116618135	-	LEUM_1033	-	surface antigen
962	 36.57	0	1035297..1035821	+	174	116618136	-	LEUM_1034	-	hypothetical protein
963	 33.51	-1	1035811..1036377	+	188	116618137	-	LEUM_1035	-	hypothetical protein
964	 32.24	-1	1036390..1036848	+	152	116618138	-	LEUM_1036	-	hypothetical protein
965	 36.29	0	1036877..1039375	+	832	116618139	-	LEUM_1037	-	conjugal transfer protein, ATPase
966	 29.17	-2	1039389..1039532	+	47	116618140	-	LEUM_1038	-	hypothetical protein
967	 31.03	-2	1039601..1041160	+	519	116618141	-	LEUM_1039	-	primosomal protein N'
968	 34.77	0	1041147..1042535	+	462	116618142	-	LEUM_1040	-	DNA segregation ATPase FtsK/SpoIIIE related protein
969	 31.41	-1	1042535..1042846	+	103	116618143	-	LEUM_1041	-	hypothetical protein
970	 26.55	-2	1043037..1043891	-	284	116618144	-	LEUM_1042	-	hypothetical protein
971	 38.05	0	1044090..1044386	+	98	116618145	-	LEUM_1043	-	hypothetical protein
972	 37.02	0	1044773..1046401	+	542	116618146	-	LEUM_1044	-	transcriptional regulator
973	 39.06	0	1046398..1046589	+	63	116618147	-	LEUM_1045	-	hypothetical protein
974	 31.52	-1	1046660..1048144	+	494	116618148	-	LEUM_1046	-	phytoene dehydrogenase
975	 29.69	-2	1048145..1049023	+	292	116618149	-	LEUM_1047	-	farnesyl-diphosphate farnesyltransferase
976	 33.05	-1	1049063..1050109	+	348	116618150	-	LEUM_1048	-	peptide ABC transporter permease
977	 32.74	-1	1050114..1050788	+	224	116618151	-	LEUM_1049	-	peptide ABC transporter ATPase
978	 33.82	-1	1050918..1051328	+	136	116618152	-	LEUM_1050	-	hypothetical protein
979	 38.75	0	1051827..1053008	+	393	116618153	-	LEUM_1051	-	IS30 family transposase
980	 36.32	0	1053615..1053848	+	77	116618154	-	LEUM_1052	-	XRE family transcriptional regulator
981	 36.11	0	1053838..1054809	+	323	116618155	-	LEUM_1053	-	hypothetical protein
982	 36.96	0	1054837..1055112	+	91	116618156	-	LEUM_1054	-	hypothetical protein
983	 34.73	0	1055081..1055437	+	118	116618157	-	LEUM_1055	-	hypothetical protein
984	 36.01	0	1055427..1055837	+	136	116618158	-	LEUM_1056	-	single-stranded DNA-binding protein
985	 36.53	0	1055842..1056810	+	322	116618159	-	LEUM_1057	-	hypothetical protein
986	 34.92	0	1057017..1057394	+	125	116618160	-	LEUM_1058	-	hypothetical protein
987	 36.13	0	1057410..1058195	+	261	116618161	-	LEUM_1059	-	DNA-entry nuclease
988	 33.61	-1	1058196..1058909	+	237	116618162	-	LEUM_1060	-	hypothetical protein
989	 37.78	0	1058899..1059213	+	104	116618163	-	LEUM_1061	-	hypothetical protein
37.86	MEAN

3.35	STD DEV
