IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

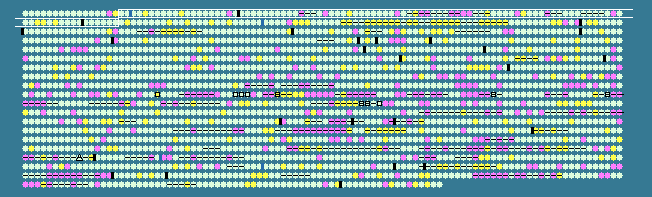

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.86   STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
17	 38.62	0	20180..20974	+	264	116617191	-	LEUM_0017	-	amidohydrolase
18	 39.58	0	20987..22171	+	394	116617192	-	LEUM_0018	-	transaminase
19	 36.73	0	29609..30814	+	401	116617193	-	LEUM_0038	-	major facilitator superfamily permease
20	 37.07	0	30860..31636	-	258	116617194	-	LEUM_0039	-	HAD family sugar phosphatase
21	 41.67	+1	31872..32315	+	147	116617195	-	LEUM_0040	-	hypothetical protein
22	 39.77	0	32315..33106	+	263	116617196	-	LEUM_0041	-	hypothetical protein
23	 39.68	0	33142..33582	-	146	116617197	-	LEUM_0042	-	acetyltransferase
24	 35.61	0	33684..35882	+	732	116617198	-	LEUM_0043	-	phosphoglycerol transferase/alkaline phosphatase superfamily protein
25	 40.21	0	35936..36997	+	353	116617199	-	LEUM_0044	-	glycosyltransferase
26	 40.82	0	37065..37505	+	146	116617200	-	LEUM_0045	-	MerR family transcriptional regulator
27	 41.39	+1	37588..38481	+	297	116617201	-	LEUM_0046	-	pseudouridylate synthase, 23S RNA-specific
28	 40.50	0	38555..39307	-	250	116617202	-	LEUM_0047	-	glycerol uptake facilitator related permease
29	 40.16	0	39400..41451	-	683	116617203	-	LEUM_0048	-	cation transport ATPase
30	 39.91	0	41448..41873	-	141	116617204	-	LEUM_0049	-	transcriptional regulator
31	 37.16	0	42075..42440	+	121	116617205	-	LEUM_0050	-	GntR family transcriptional regulator
32	 35.54	0	42437..43342	+	301	116617206	-	LEUM_0051	-	ABC-type multidrug transport system, ATPase component
33	 40.92	0	43501..44172	+	223	116617207	-	LEUM_0052	-	hypothetical protein
34	 38.96	0	44198..45103	+	301	116617208	-	LEUM_0053	-	ABC-type multidrug transport system, ATPase component
35	 34.11	-1	45107..45874	+	255	116617209	-	LEUM_0054	-	ABC-type transport system for multi-copper enzyme maturation, permease component
36	 40.30	0	45926..46786	-	286	116617210	-	LEUM_0055	-	aldo/keto reductase
37	 39.05	0	47279..48397	-	372	116617211	-	LEUM_0057	-	acetylornithine aminotransferase
38	 38.23	0	48408..49142	-	244	116617212	-	LEUM_0058	-	acetylglutamate kinase
39	 39.92	0	49186..50400	-	404	116617213	-	LEUM_0059	-	glutamate N-acetyltransferase / N-acetylglutamate synthase
40	 39.00	0	50445..51485	-	346	116617214	argC	LEUM_0060	-	N-acetyl-gamma-glutamyl-phosphate reductase
41	 41.03	0	51610..52116	-	168	116617215	-	LEUM_0061	-	phospholipid-binding protein
42	 38.06	0	52119..52499	-	126	116617216	-	LEUM_0062	-	hypothetical protein
43	 34.68	0	52610..52906	+	98	116617217	-	LEUM_0063	-	hypothetical protein
44	 40.84	0	52927..53592	-	221	116617218	-	LEUM_0064	-	K+ transport systems, NAD-binding component
45	 40.38	0	53624..55027	-	467	116617219	-	LEUM_0065	-	Trk-type K+ transport systems, membrane component
46	 36.57	0	55344..56549	+	401	116617220	-	LEUM_0066	-	major facilitator superfamily permease
47	 33.89	-1	56606..57328	-	240	116617221	-	LEUM_0067	-	hypothetical protein
48	 34.85	0	57501..57764	+	87	116617222	-	LEUM_0068	-	XRE family transcriptional regulator
49	 40.35	0	57869..58039	+	56	116617223	-	LEUM_0069	-	hypothetical protein
50	 39.90	0	58211..58408	+	65	116617224	-	LEUM_0070	-	hypothetical protein
51	 31.30	-1	59113..59358	+	81	116617225	-	LEUM_0071	-	hypothetical protein
52	 36.75	0	59397..59777	+	126	116617226	-	LEUM_0072	-	metal-dependent membrane protease
53	 39.63	0	59955..61511	+	518	116617227	-	LEUM_0073	-	ABC-type uncharacterized transport systems, ATPase component
54	 40.55	0	61511..62632	+	373	116617228	-	LEUM_0074	-	ABC-type uncharacterized transport system, permease component
55	 42.74	+1	62634..63590	+	318	116617229	-	LEUM_0075	-	ABC transporter permease
56	 40.00	0	63630..64544	-	304	116617230	-	LEUM_0076	-	malate dehydrogenase (NAD)
57	 39.15	0	64660..65415	-	251	116617231	-	LEUM_0077	-	ABC-type uncharacterized transport system, ATPase component
58	 39.33	0	65408..66307	-	299	116617232	-	LEUM_0078	-	ribose/xylose/arabinose/galactoside ABC-type transporter permease
59	 41.09	0	66304..67308	-	334	116617233	-	LEUM_0079	-	ABC-type uncharacterized transport system, periplasmic component
60	 34.86	0	67775..68362	+	195	116617234	-	LEUM_0080	-	XRE family transcriptional regulator
61	 36.31	0	68420..69157	+	245	116617235	-	LEUM_0081	-	Short-chain alcohol dehydrogenase
62	 34.92	0	69273..69398	+	41	116617236	-	LEUM_0082	-	hypothetical protein
63	 32.67	-1	70221..71570	-	449	116617237	-	LEUM_0083	-	lactococcin A ABC transporter permease protein
64	 36.08	0	71588..73735	-	715	116617238	-	LEUM_0084	-	bacteriocin-processing peptidase
65	 37.85	0	73966..74142	+	58	116617239	-	LEUM_0085	-	hypothetical protein
66	 43.21	+1	74173..74334	+	53	116617240	-	LEUM_0086	-	hypothetical protein
67	 29.08	-2	74331..74636	+	101	116617241	-	LEUM_0087	-	hypothetical protein
68	 28.99	-2	74793..74930	+	45	116617242	-	LEUM_0088	-	hypothetical protein
69	 41.11	0	74945..75124	+	59	116617243	-	LEUM_0089	-	hypothetical protein
70	 39.55	0	75286..75462	+	58	116617244	-	LEUM_0090	-	hypothetical protein
71	 38.01	0	75747..75917	+	56	116617245	-	LEUM_0091	-	hypothetical protein
72	 30.52	-2	75923..76135	+	70	116617246	-	LEUM_0092	-	hypothetical protein
73	 33.20	-1	76407..77132	-	241	116617247	-	LEUM_0093	-	response regulator
74	 32.11	-1	77138..78448	-	436	116617248	-	LEUM_0094	-	signal transduction protein
75	 32.50	-1	78626..78745	+	39	116617249	-	LEUM_0095	-	hypothetical protein
76	 38.81	0	78901..79704	+	267	116617250	-	LEUM_0096	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
77	 35.45	0	79688..80254	+	188	116617251	-	LEUM_0097	-	hypothetical protein
78	 41.63	+1	80451..81848	+	465	116617252	-	LEUM_0098	-	fumarate reductase, flavoprotein subunit
79	 35.24	0	82029..82919	+	296	116617253	-	LEUM_0099	-	XRE-family DNA-binding domain-containing protein
80	 35.39	0	82926..83654	+	242	116617254	-	LEUM_0100	-	hypothetical protein
81	 40.51	0	83851..85953	+	700	116617255	-	LEUM_0101	-	glycosyltransferase
82	 36.22	0	85974..86978	+	334	116617256	-	LEUM_0102	-	glycosyltransferase-like protein
83	 30.64	-2	87061..87543	+	160	116617257	-	LEUM_0103	-	GtcA family membrane protein
84	 41.58	+1	87724..89094	+	456	116617258	-	LEUM_0104	-	NAD(FAD)-dependent dehydrogenase
85	 37.04	0	89182..89721	-	179	116617259	-	LEUM_0105	-	periplasmic/secreted protein
86	 39.15	0	90826..91908	+	360	116617260	-	LEUM_0107	-	glutathione S-transferase
87	 38.58	0	91883..93217	+	444	116617261	-	LEUM_0108	-	propionate catabolism protein
88	 34.23	-1	93239..93796	+	185	116617262	-	LEUM_0109	-	acetyltransferase
89	 35.28	0	93811..94479	+	222	116617263	-	LEUM_0110	-	ABC-type amino acid transport system, permease component
90	 36.52	0	94494..95246	+	250	116617264	-	LEUM_0111	-	ABC-type polar amino acid transport system, ATPase component
91	 36.52	0	95281..96096	+	271	116617265	-	LEUM_0112	-	ABC-type amino acid transport system, periplasmic component
92	 40.45	0	96122..97288	+	388	116617266	-	LEUM_0113	-	metal-dependent amidase/aminoacylase/carboxypeptidase
93	 37.78	0	97303..97617	+	104	116617267	-	LEUM_0114	-	thioredoxin
94	 38.42	0	98013..98759	+	248	116617268	-	LEUM_0115	-	metal-dependent hydrolase
95	 36.86	0	98761..100092	+	443	116617269	-	LEUM_0116	-	amino acid transporter
96	 39.12	0	100143..100919	+	258	116617270	-	LEUM_0117	-	acetoin reductase
97	 36.00	0	100967..101830	+	287	116617271	-	LEUM_0118	-	ABC-type metal ion transport system, periplasmic component/surface antigen
98	 36.07	0	101869..102525	+	218	116617272	-	LEUM_0119	-	ABC-type amino acid transport system, permease component
99	 33.48	-1	102506..103186	+	226	116617273	-	LEUM_0120	-	ABC-type amino acid transport system, permease component
100	 36.03	0	103179..103919	+	246	116617274	-	LEUM_0121	-	ABC-type polar amino acid transport system, ATPase component
101	 35.82	0	103980..104825	+	281	116617275	-	LEUM_0122	-	amino acid ABC transporter periplasmic protein
102	 39.39	0	104881..106002	+	373	116617276	solA	LEUM_0123	-	N-methyltryptophan oxidase
103	 41.35	+1	106151..106549	+	132	116617277	-	LEUM_0124	-	camphor resistance protein CrcB
104	 43.95	+1	106546..106884	+	112	116617278	-	LEUM_0125	-	camphor resistance protein CrcB
105	 40.93	0	106928..107809	+	293	116617279	-	LEUM_0126	-	hypothetical protein
106	 41.63	+1	107893..108531	+	212	116617280	-	LEUM_0127	-	hemolysin III-like protein
107	 40.14	0	108674..110128	+	484	116617281	-	LEUM_0128	-	D-xylose proton-symporter
108	 39.49	0	110334..111503	+	389	116617282	-	LEUM_0129	-	transcriptional regulator/sugar kinase, xylose operon regulator
109	 38.23	0	111678..113024	+	448	116617283	-	LEUM_0130	-	xylose isomerase
110	 40.87	0	113171..114682	+	503	116617284	-	LEUM_0131	-	xylulokinase
111	 36.96	0	115011..115892	+	293	116617285	-	LEUM_0133	-	undecaprenyl pyrophosphate phosphatase
112	 38.76	0	116440..117471	+	343	116617286	-	LEUM_0134	-	uroporphyrinogen-III decarboxylase
113	 36.93	0	117464..118465	+	333	116617287	-	LEUM_0135	-	uroporphyrinogen-III decarboxylase
114	 38.10	0	118481..119341	+	286	116617288	-	LEUM_0136	-	ABC-type amino acid transport systems, periplasmic component
115	 38.59	0	119365..120087	+	240	116617289	-	LEUM_0137	-	ABC-type amino acid transport permease component
116	 36.15	0	120084..120794	+	236	116617290	-	LEUM_0138	-	ABC-type amino acid transport permease component
37.86	MEAN

3.35	STD DEV
