IslandPathversion 1.0

IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

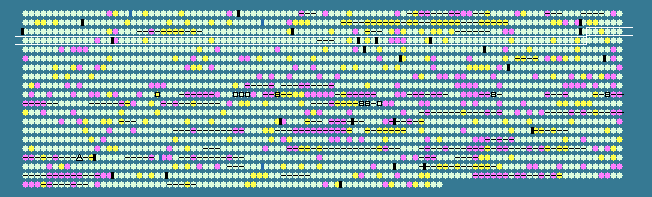

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
295	 38.08	0	299939..300886	+	315	116617469	-	LEUM_0344	-	ribonucleoside hydrolase RihC
296	 38.61	0	300963..301682	+	239	116617470	-	LEUM_0345	-	cell division SAM-dependent methyltransferase
297	 41.73	+1	301701..302462	+	253	116617471	-	LEUM_0346	-	chromosome segregation ATPase
298	 39.89	0	302452..303351	+	299	116617472	-	LEUM_0347	-	chromosome segregation DNA-binding protein
299	 38.10	0	303351..303560	+	69	116617473	-	LEUM_0348	-	hypothetical protein
300	 40.24	0	303562..304662	+	366	116617474	-	LEUM_0349	-	GTPase, translation factor
301	 38.48	0	304707..305405	+	232	116617475	-	LEUM_0350	-	hypothetical protein
302	 38.24	0	305442..306134	+	230	116617476	-	LEUM_0351	-	DNA-binding response regulator
303	 37.48	0	306131..307216	+	361	116617477	-	LEUM_0352	-	Signal transduction histidine kinase
304	 37.08	0	307224..308558	+	444	116617478	-	LEUM_0353	-	D-alanyl-D-alanine carboxypeptidase
305	 38.46	0	308693..309394	+	233	116617479	-	LEUM_0354	-	glucosamine-6-phosphate isomerase
306	 40.80	0	309442..310794	+	450	116617480	-	LEUM_0355	-	glucose-6-phosphate isomerase
307	 36.42	0	310914..311528	-	204	116617481	-	LEUM_0356	-	GntR family transcriptional regulator
308	 39.70	0	311744..312937	+	397	116617482	-	LEUM_0357	-	ABC-type proline/glycine betaine transport system, ATPase component
309	 39.22	0	312930..314645	+	571	116617483	-	LEUM_0358	-	ABC-type proline/glycine betaine transport system, permease component
310	 36.25	0	314684..315163	-	159	116617484	-	LEUM_0359	-	hypothetical protein
311	 36.77	0	315178..316398	-	406	116617485	-	LEUM_0360	-	ABC-type Na+ efflux pump, permease component
312	 40.72	0	316391..317284	-	297	116617486	-	LEUM_0361	-	ABC-type uncharacterized transport system, ATPase component
313	 33.12	-1	317296..317763	-	155	116617487	-	LEUM_0362	-	hypothetical protein
314	 36.23	0	317756..317962	-	68	116617488	-	LEUM_0363	-	transcriptional regulator
315	 38.43	0	318106..318321	+	71	116617489	-	LEUM_0364	-	hypothetical protein
316	 29.41	-2	318663..318968	+	101	116617490	-	LEUM_0366	-	hypothetical protein
317	 34.73	0	319399..319899	-	166	116617491	-	LEUM_0367	-	amidase
318	 37.75	0	320524..321270	+	248	116617492	-	LEUM_0368	-	ABC-type amino acid transport system, permease component
319	 37.56	0	321321..322148	+	275	116617493	-	LEUM_0369	-	ABC-type amino acid transport system, periplasmic component
320	 38.01	0	322161..322865	+	234	116617494	-	LEUM_0370	-	ABC-type amino acid transport system, permease component
321	 41.60	+1	322868..323605	+	245	116617495	-	LEUM_0371	-	ABC-type polar amino acid transport system, ATPase component
322	 37.54	0	323638..324873	+	411	116617496	-	LEUM_0372	-	2-aminoadipate aminotransferase / aromatic amino acid aminotransferase
323	 36.01	0	324885..325856	+	323	116617497	-	LEUM_0373	-	lactate dehydrogenase related 2-hydroxyacid dehydrogenase
324	 39.02	0	325867..326640	+	257	116617498	-	LEUM_0374	-	ABC-type polar amino acid transport system, ATPase component
325	 37.86	0	326637..327872	+	411	116617499	-	LEUM_0375	-	major facilitator superfamily permease
326	 40.38	0	328023..329243	+	406	116617500	-	LEUM_0376	-	queuine/archaeosine tRNA-ribosyltransferase
327	 36.64	0	329335..329697	+	120	116617501	-	LEUM_0377	-	protein translocase subunit yajC
328	 37.55	0	329755..330489	+	244	116617502	-	LEUM_0378	-	alpha/beta fold family hydrolase
329	 36.41	0	330476..333010	+	844	116617503	-	LEUM_0379	-	lysyl-tRNA synthetase (class II)
330	 36.09	0	333068..333721	+	217	116617504	-	LEUM_0380	-	HD superfamily hydrolase
331	 41.21	+1	333723..334217	+	164	116617505	-	LEUM_0381	-	ADP-ribose pyrophosphatase
332	 41.40	+1	334214..334870	+	218	116617506	-	LEUM_0382	-	phosphoglycerate mutase family protein
333	 38.79	0	335069..336259	+	396	116617507	-	LEUM_0383	-	major facilitator superfamily permease
334	 38.27	0	336262..337740	+	492	116617508	-	LEUM_0384	-	glycosidase
335	 37.70	0	337936..339654	+	572	116617509	-	LEUM_0385	-	ABC-type multidrug transport system, ATPase and permease component
336	 36.98	0	339654..341435	+	593	116617510	-	LEUM_0386	-	ABC-type multidrug transport system, ATPase and permease component
337	 38.88	0	341614..342840	+	408	116617511	-	LEUM_0387	-	1,2-diacylglycerol 3-glucosyltransferase
338	 34.82	0	342841..343848	+	335	116617512	-	LEUM_0388	-	glycosyltransferase
339	 39.60	0	343858..344895	+	345	116617513	-	LEUM_0389	-	integral membrane protein
340	 34.47	-1	344888..345151	+	87	116617514	-	LEUM_0390	-	hypothetical protein
341	 36.03	0	345266..347341	+	691	116617515	-	LEUM_0391	-	phosphoglycerol transferase/alkaline phosphatase superfamily protein
342	 38.61	0	347458..349467	+	669	116617516	-	LEUM_0392	-	excinuclease ABC subunit B
343	 40.36	0	349499..352357	+	952	116617517	-	LEUM_0393	-	excinuclease ABC subunit A
344	 40.04	0	352455..353423	+	322	116617518	-	LEUM_0394	-	hypothetical protein
345	 37.67	0	353424..354368	+	314	116617519	-	LEUM_0395	-	hypothetical protein
346	 40.30	0	354456..355058	+	200	116617520	-	LEUM_0396	-	ATP-dependent Clp protease proteolytic subunit ClpP
347	 35.35	0	355130..355774	-	214	116617521	-	LEUM_0397	-	CBS domain-containing protein
348	 40.56	0	355900..356466	+	188	116617522	-	LEUM_0398	-	peptidyl-tRNA hydrolase
349	 38.84	0	356467..360006	+	1179	116617523	-	LEUM_0399	-	transcription-repair coupling factor
350	 35.11	0	360022..360303	+	93	116617524	-	LEUM_0400	-	ribosome-associated heat shock protein implicated in the recycling of the 50S subunit S4-like protein
351	 37.34	0	360385..360783	+	132	116617525	-	LEUM_0401	-	septum formation initiator
352	 38.13	0	360814..362106	+	430	116617526	-	LEUM_0402	-	tRNA(Ile)-lysidine synthetase, MesJ
353	 37.78	0	362107..362646	+	179	116617527	-	LEUM_0403	-	hypoxanthine phosphoribosyltransferase
354	 41.32	+1	362674..364776	+	700	116617528	-	LEUM_0404	-	ATP-dependent Zn protease
355	 41.83	+1	364885..365778	+	297	116617529	-	LEUM_0405	-	disulfide bond chaperones of the HSP33 family
356	 39.78	0	365865..367352	+	495	116617530	-	LEUM_0406	-	lysyl-tRNA synthetase (class II)
357	 40.07	0	367822..368355	+	177	116617531	-	LEUM_0410	-	ribosomal large subunit pseudouridine synthase E
358	 41.42	+1	368426..369142	+	238	116617532	-	LEUM_0411	-	hypothetical protein
359	 40.40	0	369191..370138	-	315	116617533	-	LEUM_0412	-	ferrochelatase
360	 39.68	0	370951..372399	+	482	116617534	-	LEUM_0414	-	xanthine/uracil/vitamin C permease
361	 36.70	0	372519..373319	+	266	116617535	-	LEUM_0415	-	ABC-type multidrug transport system, ATPase component
362	 32.65	-1	373316..374044	+	242	116617536	-	LEUM_0416	-	hypothetical protein
363	 31.62	-1	374022..374489	+	155	116617537	-	LEUM_0417	-	response regulator
364	 32.36	-1	374476..374886	+	136	116617538	-	LEUM_0418	-	hypothetical protein
365	 40.08	0	375020..377110	+	696	116617539	-	LEUM_0419	-	DNA topoisomerase I, TopA
366	 36.78	0	377143..378969	-	608	116617540	-	LEUM_0420	-	major facilitator superfamily permease
367	 34.61	0	379192..379740	+	182	116617541	-	LEUM_0421	-	TetR family transcriptional regulator
368	 41.44	+1	379852..380973	+	373	116617542	-	LEUM_0422	-	alanine racemase
369	 41.14	0	381189..381713	+	174	116617543	-	LEUM_0424	-	phosphatidylglycerophosphatase A related protein
370	 39.07	0	381824..382990	+	388	116617544	-	LEUM_0425	-	N-acetylglucosamine 6-phosphate deacetylase
371	 42.35	+1	382995..383693	+	232	116617545	-	LEUM_0426	-	GntR family transcriptional regulator
372	 40.80	0	383727..384422	-	231	116617546	-	LEUM_0427	-	ABC-type metal ion transport system, permease component
373	 38.15	0	384425..385504	-	359	116617547	-	LEUM_0428	-	ABC-type metal ion transport system, ATPase component
374	 39.39	0	385501..386838	-	445	116617548	-	LEUM_0429	-	acetylornithine deacetylase/succinyl-diaminopimelate desuccinylase
375	 38.08	0	386884..387726	-	280	116617549	-	LEUM_0430	-	ABC-type metal ion transport system, periplasmic component/surface antigen
376	 36.64	0	387754..388599	-	281	116617550	-	LEUM_0431	-	ABC-type metal ion transport system, periplasmic component/surface antigen
377	 36.82	0	389047..389706	-	219	116617551	-	LEUM_0432	-	hypothetical protein
378	 37.08	0	389803..391644	+	613	116617552	-	LEUM_0433	-	hypothetical protein
379	 40.92	0	391916..394579	+	887	116617553	-	LEUM_0434	-	cation transport ATPase
380	 38.48	0	394586..395032	+	148	116617554	-	LEUM_0435	-	hypothetical protein
381	 37.90	0	395103..396044	-	313	116617555	-	LEUM_0436	-	hypothetical protein
382	 42.05	+1	396254..397309	+	351	116617556	-	LEUM_0437	-	ABC transporter periplasmic protein
383	 39.29	0	397567..399009	+	480	116617557	-	LEUM_0438	-	ABC-type amino acid transport system, permease and periplasmic component
384	 37.32	0	399006..399758	+	250	116617558	-	LEUM_0439	-	ABC-type polar amino acid transport system, ATPase component
385	 37.62	0	399825..401270	+	481	116617559	-	LEUM_0440	-	ABC-type amino acid transport system, permease and periplasmic component
386	 37.40	0	402393..404186	+	597	116617560	-	LEUM_0442	-	oligopeptidase F
387	 40.51	0	404297..404686	+	129	116617561	-	LEUM_0443	-	cytidine deaminase
388	 38.32	0	404703..405143	+	146	116617562	-	LEUM_0444	-	purine deoxyribosyltransferase
389	 42.37	+1	405143..406072	+	309	116617563	-	LEUM_0445	-	lactate dehydrogenase related enzyme
390	 37.13	0	406092..406460	+	122	116617564	-	LEUM_0446	-	transcriptional regulator
391	 38.63	0	406737..407813	+	358	116617565	-	LEUM_0447	-	phenylalanyl-tRNA synthetase, alpha subunit
392	 38.01	0	407816..410272	+	818	116617566	-	LEUM_0448	-	phenylalanyl-tRNA synthetase beta subunit
393	 41.65	+1	410353..411639	+	428	116617567	-	LEUM_0449	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
394	 38.95	0	411732..411998	+	88	116617568	-	LEUM_0450	-	50S ribosomal protein L31P
37.86	MEAN

3.35	STD DEV
