IslandPathversion 1.0

IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

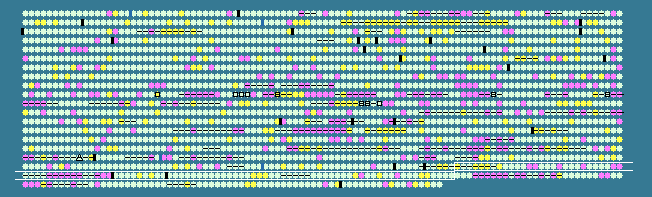

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1773	 43.41	+1	1845006..1846523	-	505	116618947	-	LEUM_1871	-	F0F1 ATP synthase subunit alpha
1774	 35.91	0	1846536..1847078	-	180	116618948	-	LEUM_1872	-	F0F1-type ATP synthase, delta subunit
1775	 41.27	+1	1847090..1847593	-	167	116618949	-	LEUM_1873	-	F0F1-type ATP synthase, subunit b
1776	 47.37	+2	1847620..1847847	-	75	116618950	-	LEUM_1874	-	F0F1-type ATP synthase, subunit c
1777	 41.74	+1	1848020..1848745	-	241	116618951	-	LEUM_1875	-	F0F1-type ATP synthase, subunit a
1778	 41.43	+1	1849103..1850374	-	423	116618952	-	LEUM_1876	-	xanthine/uracil permease
1779	 40.76	0	1850501..1851214	-	237	116618953	-	LEUM_1877	-	phosphoglycerate mutase
1780	 45.27	+2	1851322..1851522	-	66	116618954	-	LEUM_1878	-	cold-shock DNA-binding protein family protein
1781	 36.14	0	1851701..1852378	-	225	116618955	-	LEUM_1879	-	hypothetical protein
1782	 40.81	0	1852375..1853886	-	503	116618956	-	LEUM_1880	-	major facilitator superfamily permease
1783	 36.96	0	1854007..1854696	-	229	116618957	-	LEUM_1881	-	pantothenate kinase
1784	 38.75	0	1854696..1857059	-	787	116618958	-	LEUM_1882	-	superfamily I DNA/RNA helicase
1785	 33.81	-1	1857293..1857712	+	139	116618959	-	LEUM_1883	-	transcriptional regulator
1786	 33.66	-1	1857709..1858632	+	307	116618960	-	LEUM_1884	-	Co/Zn/Cd cation transporter
1787	 39.19	0	1858757..1859746	+	329	116618961	-	LEUM_1885	-	membrane-associated phospholipid phosphatase
1788	 34.62	0	1859821..1860441	-	206	116618962	-	LEUM_1886	-	acetyltransferase
1789	 38.94	0	1860599..1860901	+	100	116618963	-	LEUM_1887	-	prebacteriocin
1790	 32.43	-1	1861105..1861545	-	146	116618964	-	LEUM_1888	-	hypothetical protein
1791	 37.91	0	1861812..1862423	-	203	116618965	-	LEUM_1889	-	XRE family transcriptional regulator
1792	 37.69	0	1862574..1863698	-	374	116618966	-	LEUM_1890	-	proline dipeptidase
1793	 38.65	0	1863718..1866465	-	915	116618967	-	LEUM_1891	-	hypothetical protein
1794	 32.36	-1	1866589..1867206	+	205	116618968	-	LEUM_1892	-	transcriptional regulator
1795	 34.65	0	1867351..1868712	-	453	116618969	-	LEUM_1893	-	GntR family transcriptional regulator
1796	 39.51	0	1868911..1869849	+	312	116618970	-	LEUM_1894	-	hypothetical protein
1797	 37.23	0	1869911..1871527	-	538	116618971	-	LEUM_1895	-	subtilisin-like serine protease
1798	 35.52	0	1871931..1872479	+	182	116618972	-	LEUM_1896	-	acetyltransferase
1799	 33.83	-1	1872822..1873430	+	202	116618973	-	LEUM_1897	-	TetR family transcriptional regulator
1800	 34.13	-1	1873609..1874112	+	167	116618974	-	LEUM_1898	-	topology modulation protein
1801	 35.66	0	1874207..1874722	+	171	116618975	-	LEUM_1899	-	hypothetical protein
1802	 36.15	0	1874773..1875942	-	389	116618976	-	LEUM_1900	-	thymidine kinase
1803	 38.89	0	1876252..1876791	+	179	116618977	-	LEUM_1901	-	acetyltransferase
1804	 35.67	0	1876871..1877212	+	113	116618978	-	LEUM_1902	-	hypothetical protein
1805	 33.33	-1	1877311..1877811	+	166	116618979	-	LEUM_1903	-	TPR repeat-containing protein
1806	 31.77	-1	1877946..1878521	+	191	116618980	-	LEUM_1904	-	hypothetical protein
1807	 31.37	-1	1878789..1878941	+	50	116618981	-	LEUM_1905	-	hypothetical protein
1808	 31.62	-1	1879054..1879287	+	77	116618982	-	LEUM_1906	-	hypothetical protein
1809	 34.06	-1	1879371..1879646	+	91	116618983	-	LEUM_1907	-	hypothetical protein
1810	 32.37	-1	1879716..1879922	+	68	116618984	-	LEUM_1908	-	hypothetical protein
1811	 36.48	0	1879970..1880128	+	52	116618985	-	LEUM_1909	-	hypothetical protein
1812	 35.42	0	1880191..1880430	+	79	116618986	-	LEUM_1910	-	hypothetical protein
1813	 30.12	-2	1880539..1880880	+	113	116618987	-	LEUM_1911	-	hypothetical protein
1814	 32.34	-1	1881017..1881823	-	268	116618988	-	LEUM_1912	-	mRNA degradation ribonuclease J1/J2enzyme
1815	 33.33	-1	1882225..1882596	+	123	116618989	-	LEUM_1913	-	hypothetical protein
1816	 41.04	0	1883091..1884647	-	518	116618990	-	LEUM_1915	-	ABC transporter ATPase
1817	 35.34	0	1884668..1885615	-	315	116618991	-	LEUM_1916	-	XRE family transcriptional regulator
1818	 34.50	-1	1885729..1887009	+	426	116618992	-	LEUM_1917	-	major facilitator superfamily permease
1819	 40.24	0	1887015..1887347	+	110	116618993	-	LEUM_1918	-	lactoylglutathione lyase related lyase
1820	 43.30	+1	1887402..1888454	-	350	116618994	-	LEUM_1919	-	alcohol dehydrogenase
1821	 40.49	0	1888625..1889896	-	423	116618995	-	LEUM_1920	-	major facilitator superfamily permease
1822	 41.79	+1	1890045..1891262	-	405	116618996	-	LEUM_1921	-	phosphoglycerate kinase
1823	 35.98	0	1891348..1892178	-	276	116618997	-	LEUM_1922	-	hypothetical protein
1824	 37.00	0	1892175..1893620	-	481	116618998	-	LEUM_1923	-	glycosyltransferase
1825	 38.42	0	1893959..1894843	-	294	116618999	-	LEUM_1926	-	hypothetical protein
1826	 40.94	0	1894937..1896829	-	630	116619000	-	LEUM_1927	-	oligopeptidase O3
1827	 39.10	0	1896935..1897870	-	311	116619001	-	LEUM_1928	-	ABC-type oligopeptide transport system, ATPase component
1828	 40.29	0	1897873..1898922	-	349	116619002	-	LEUM_1929	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
1829	 38.69	0	1898937..1899962	-	341	116619003	-	LEUM_1930	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease component
1830	 39.32	0	1899974..1900891	-	305	116619004	-	LEUM_1931	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease component
1831	 39.45	0	1900975..1902609	-	544	116619005	-	LEUM_1932	-	ABC-type oligopeptide transport system, periplasmic component
1832	 36.36	0	1902963..1903622	-	219	116619006	-	LEUM_1933	-	ABC-type amino acid transport system, permease component
1833	 36.76	0	1903633..1904274	-	213	116619007	-	LEUM_1934	-	ABC-type amino acid transport system, permease component
1834	 38.06	0	1904274..1905140	-	288	116619008	-	LEUM_1935	-	amino acid ABC transporter periplasmic protein
1835	 38.21	0	1905232..1905969	-	245	116619009	-	LEUM_1936	-	ABC-type polar amino acid transport system, ATPase component
1836	 39.17	0	1906153..1907952	-	599	116619010	-	LEUM_1937	-	ABC-type multidrug transport system, ATPase and permease component
1837	 38.83	0	1907936..1909717	-	593	116619011	-	LEUM_1938	-	ABC-type multidrug transport system, ATPase and permease component
1838	 36.81	0	1909806..1910813	-	335	116619012	-	LEUM_1939	-	hypothetical protein
1839	 43.01	+1	1910901..1911995	-	364	116619013	-	LEUM_1940	-	aspartate semialdehyde dehydrogenase
1840	 42.86	+1	1912005..1913117	-	370	116619014	-	LEUM_1941	-	alanine racemase
1841	 42.04	+1	1913509..1914174	+	221	116619015	-	LEUM_1942	-	hypothetical protein
1842	 34.88	0	1914259..1914711	-	150	116619016	-	LEUM_1943	-	BadM/Rrf2 family transcriptional regulator
1843	 40.03	0	1914765..1916930	-	721	116619017	-	LEUM_1944	-	hypothetical protein
1844	 37.71	0	1917024..1917503	-	159	116619018	-	LEUM_1945	-	SPOUT methyltransferase superfamily protein
1845	 40.18	0	1918134..1919273	-	379	116619019	-	LEUM_1946	-	trypsin-like serine protease
1846	 35.32	0	1919334..1920137	-	267	116619020	-	LEUM_1947	-	hypothetical protein
1847	 36.74	0	1920194..1921486	-	430	116619021	-	LEUM_1948	-	hypothetical protein
1848	 39.42	0	1921476..1923347	-	623	116619022	-	LEUM_1949	-	PAS/PAC sensor signal transduction histidine kinase
1849	 38.56	0	1923409..1924116	-	235	116619023	-	LEUM_1950	-	DNA-binding response regulator
1850	 41.08	0	1924225..1925205	-	326	116619024	-	LEUM_1951	-	phosphoribosylpyrophosphate synthetase
1851	 38.96	0	1925310..1925807	-	165	116619025	-	LEUM_1952	-	thiol peroxidase (atypical 2-Cys peroxiredoxin)
1852	 38.38	0	1925907..1926719	-	270	116619026	-	LEUM_1953	-	HAD superfamily hydrolase
1853	 37.43	0	1926827..1927753	-	308	116619027	-	LEUM_1954	-	3-isopropylmalate dehydrogenase
1854	 37.66	0	1927856..1928248	+	130	116619028	-	LEUM_1955	-	endoribonuclease L-PSP
1855	 41.31	+1	1928284..1929549	-	421	116619029	-	LEUM_1956	-	threonine dehydratase
1856	 41.67	+1	1929621..1930664	-	347	116619030	-	LEUM_1957	-	ketol-acid reductoisomerase
1857	 33.33	-1	1930701..1930946	-	81	116619031	-	LEUM_1958	-	acetolactate synthase small subunit
1858	 41.33	+1	1930946..1932658	-	570	116619032	-	LEUM_1959	-	acetolactate synthase, large subunit
1859	 36.36	0	1932977..1933768	+	263	116619033	-	LEUM_1960	-	ABC-type molybdenum transport system, ATPase component/photorepair protein PhrA
1860	 41.61	+1	1934181..1936622	-	813	116619034	-	LEUM_1961	-	putative phosphoketolase
1861	 40.47	0	1936809..1937537	-	242	116619035	-	LEUM_1962	-	GntR family transcriptional regulator
1862	 40.53	0	1937630..1938115	+	161	116619036	-	LEUM_1963	-	hypothetical protein
1863	 33.52	-1	1938108..1938650	+	180	116619037	-	LEUM_1964	-	hypothetical protein
1864	 40.44	0	1938789..1940252	-	487	116619038	-	LEUM_1965	-	primary replicative DNA helicase
1865	 39.96	0	1940254..1940706	-	150	116619039	-	LEUM_1966	-	50S ribosomal protein L9P
1866	 40.58	0	1940723..1942750	-	675	116619040	-	LEUM_1967	-	signal protein
1867	 43.16	+1	1942920..1943204	-	94	116619041	-	LEUM_1968	-	SSU ribosomal protein S18P
1868	 42.15	+1	1943237..1943803	-	188	116619042	-	LEUM_1969	-	single-stranded DNA-binding protein
1869	 40.74	0	1943837..1944133	-	98	116619043	-	LEUM_1970	-	ribosomal protein S6
1870	 40.11	0	1944391..1945821	-	476	116619044	-	LEUM_1971	-	dipeptidase
1871	 36.59	0	1945818..1946645	-	275	116619045	-	LEUM_1972	-	ABC-type cobalt transport system, permease component CbiQ related transporter
1872	 40.91	0	1946647..1948323	-	558	116619046	-	LEUM_1973	-	ABC-type cobalt transport system, ATPase component
37.86	MEAN

3.35	STD DEV
