IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

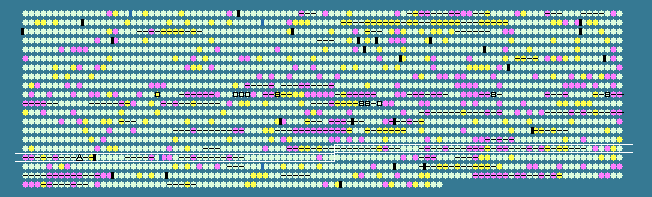

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1553	 35.47	0	1627910..1628143	-	77	116618727	-	LEUM_1633	-	hypothetical protein
1554	 36.05	0	1628143..1628289	-	48	116618728	-	LEUM_1634	-	hypothetical protein
1555	 39.12	0	1628302..1632672	-	1456	116618729	-	LEUM_1635	-	hypothetical protein
1556	 36.21	0	1632686..1633798	-	370	116618730	-	LEUM_1636	-	hypothetical protein
1557	 39.34	0	1633864..1639074	-	1736	116618731	-	LEUM_1637	-	SLT domain-containing protein
1558	 34.44	-1	1639075..1639254	-	59	116618732	-	LEUM_1638	-	hypothetical protein
1559	 34.57	0	1639293..1639697	-	134	116618733	-	LEUM_1639	-	hypothetical protein
1560	 41.51	+1	1640038..1640673	-	211	116618734	-	LEUM_1640	-	hypothetical protein
1561	 34.13	-1	1640677..1641051	-	124	116618735	-	LEUM_1641	-	hypothetical protein
1562	 36.21	0	1641051..1641467	-	138	116618736	-	LEUM_1642	-	hypothetical protein
1563	 37.10	0	1641457..1641828	-	123	116618737	-	LEUM_1643	-	hypothetical protein
1564	 37.24	0	1641821..1642153	-	110	116618738	-	LEUM_1644	-	hypothetical protein
1565	 40.55	0	1642164..1643327	-	387	116618739	-	LEUM_1645	-	phage phi-C31 gp36 major capsid-like protein
1566	 37.68	0	1643338..1644027	-	229	116618740	-	LEUM_1646	-	protease subunit of ATP-dependent Clp protease
1567	 39.90	0	1644024..1645166	-	380	116618741	-	LEUM_1647	-	hypothetical protein
1568	 30.16	-2	1645171..1645359	-	62	116618742	-	LEUM_1648	-	hypothetical protein
1569	 35.73	0	1645356..1647236	-	626	116618743	-	LEUM_1649	-	Phage terminase-like protein, large subunit
1570	 37.23	0	1647223..1647786	-	187	116618744	-	LEUM_1650	-	Phage terminase, small subunit
1571	 33.91	-1	1648035..1648208	-	57	116618745	-	LEUM_1651	-	hypothetical protein
1572	 39.46	0	1648302..1648742	-	146	116618746	-	LEUM_1652	-	restriction endonuclease
1573	 41.10	0	1648838..1649146	-	102	116618747	-	LEUM_1653	-	hypothetical protein
1574	 38.81	0	1649213..1649413	-	66	116618748	-	LEUM_1654	-	hypothetical protein
1575	 33.55	-1	1649472..1649933	-	153	116618749	-	LEUM_1655	-	hypothetical protein
1576	 30.00	-2	1650027..1650716	-	229	116618750	-	LEUM_1656	-	hypothetical protein
1577	 32.39	-1	1650780..1651097	-	105	116618751	-	LEUM_1657	-	hypothetical protein
1578	 43.43	+1	1651144..1651341	-	65	116618752	-	LEUM_1658	-	hypothetical protein
1579	 36.08	0	1651402..1651656	-	84	116618753	-	LEUM_1659	-	hypothetical protein
1580	 28.57	-2	1652070..1652195	-	41	116618754	-	LEUM_1660	-	hypothetical protein
1581	 32.12	-1	1652192..1652770	-	192	116618755	-	LEUM_1661	-	hypothetical protein
1582	 40.90	0	1652889..1653311	-	140	116618756	-	LEUM_1662	-	hypothetical protein
1583	 34.52	0	1653567..1653734	-	55	116618757	-	LEUM_1663	-	hypothetical protein
1584	 39.23	0	1653731..1654171	-	146	116618758	-	LEUM_1664	-	hypothetical protein
1585	 33.08	-1	1654174..1654572	-	132	116618759	-	LEUM_1665	-	hypothetical protein
1586	 38.74	0	1654565..1654786	-	73	116618760	-	LEUM_1666	-	hypothetical protein
1587	 33.87	-1	1654906..1655091	-	61	116618761	-	LEUM_1667	-	hypothetical protein
1588	 42.84	+1	1655094..1655798	-	234	116618762	-	LEUM_1668	-	hypothetical protein
1589	 35.59	0	1655798..1655974	-	58	116618763	-	LEUM_1669	-	hypothetical protein
1590	 42.00	+1	1655984..1656133	-	49	116618764	-	LEUM_1670	-	hypothetical protein
1591	 41.86	+1	1656130..1656903	-	257	116618765	-	LEUM_1671	-	DNA replication protein
1592	 35.37	0	1656900..1657733	-	277	116618766	-	LEUM_1672	-	hypothetical protein
1593	 37.29	0	1657873..1658529	-	218	116618767	-	LEUM_1673	-	hypothetical protein
1594	 40.84	0	1658508..1659440	-	310	116618768	-	LEUM_1674	-	recombinational DNA repair protein (RecE pathway)
1595	 38.05	0	1659443..1659781	-	112	116618769	-	LEUM_1675	-	hypothetical protein
1596	 31.88	-1	1659874..1660080	-	68	116618770	-	LEUM_1676	-	XRE family transcriptional regulator
1597	 35.53	0	1660206..1660433	+	75	116618771	-	LEUM_1677	-	hypothetical protein
1598	 26.19	-2	1660420..1660587	-	55	116618772	-	LEUM_1678	-	hypothetical protein
1599	 46.67	+2	1660599..1660763	-	54	116618773	-	LEUM_1679	-	hypothetical protein
1600	 38.89	0	1660775..1661494	-	239	116618774	-	LEUM_1680	-	phage-encoded protein
1601	 34.16	-1	1661500..1661742	-	80	116618775	-	LEUM_1681	-	hypothetical protein
1602	 30.48	-2	1661811..1662020	+	69	116618776	-	LEUM_1682	-	hypothetical protein
1603	 35.37	0	1661998..1662144	-	48	116618777	-	LEUM_1683	-	hypothetical protein
1604	 42.13	+1	1662161..1662376	-	71	116618778	-	LEUM_1684	-	hypothetical protein
1605	 35.67	0	1662426..1662767	+	113	116618779	-	LEUM_1685	-	hypothetical protein
1606	 32.51	-1	1662824..1663066	-	80	116618780	-	LEUM_1686	-	hypothetical protein
1607	 35.12	0	1663352..1663687	+	111	116618781	-	LEUM_1687	-	XRE family transcriptional regulator
1608	 35.48	0	1663700..1663978	+	92	116618782	-	LEUM_1688	-	thimet peptidase
1609	 37.05	0	1664045..1664797	+	250	116618783	-	LEUM_1689	-	hypothetical protein
1610	 35.34	0	1664933..1665979	+	348	116618784	-	LEUM_1690	-	integrase
1611	 35.13	0	1666159..1666548	-	129	116618785	-	LEUM_1691	-	hypothetical protein
1612	 42.86	+1	1666755..1666838	-	27	116618786	-	LEUM_1692	-	hypothetical protein
1613	 39.74	0	1667466..1668980	+	504	116618787	-	LEUM_1694	-	phosphoenolpyruvate carboxylase
1614	 34.43	-1	1669078..1669989	+	303	116618788	-	LEUM_1695	-	diacylglycerol kinase family protein
1615	 38.33	0	1670007..1670966	-	319	116618789	-	LEUM_1696	-	ADP-ribosylglycohydrolase
1616	 39.38	0	1670985..1672142	-	385	116618790	-	LEUM_1697	-	S-adenosylmethionine synthetase
1617	 35.51	0	1672504..1673331	+	275	116618791	-	LEUM_1698	-	hypothetical protein
1618	 39.15	0	1673377..1674270	-	297	116618792	-	LEUM_1699	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1619	 35.08	0	1674263..1675006	-	247	116618793	-	LEUM_1700	-	glycerophosphoryl diester phosphodiesterase
1620	 38.25	0	1675090..1675272	+	60	116618794	-	LEUM_1701	-	hypothetical protein
1621	 35.31	0	1675301..1675705	-	134	116618795	-	LEUM_1702	-	rhodanese-related sulfurtransferase
1622	 29.66	-2	1675772..1676479	-	235	116618796	-	LEUM_1703	-	adaptor protein
1623	 36.78	0	1676536..1676970	-	144	116618797	-	LEUM_1704	-	arsenate reductase
1624	 34.14	-1	1682489..1682860	-	123	116618798	-	LEUM_1709	-	hypothetical protein
1625	 33.59	-1	1682867..1683250	-	127	116618799	-	LEUM_1710	-	RNA-binding protein
1626	 38.95	0	1683323..1683910	-	195	116618800	-	LEUM_1711	-	peptidyl-prolyl cis-trans isomerase
1627	 38.03	0	1683950..1684162	-	70	116618801	-	LEUM_1712	-	DNA-directed RNA polymerase, subunit K/omega
1628	 40.20	0	1684173..1684769	-	198	116618802	-	LEUM_1713	-	guanylate kinase
1629	 33.94	-1	1685026..1685352	+	108	116618803	-	LEUM_1714	-	hypothetical protein
1630	 34.91	0	1685403..1686479	-	358	116618804	-	LEUM_1715	-	hypothetical protein
1631	 37.04	0	1686543..1686893	-	116	116618805	-	LEUM_1716	-	hypothetical protein
1632	 39.20	0	1687049..1689451	-	800	116618806	-	LEUM_1717	-	MutS family ATPase
1633	 36.78	0	1689510..1690031	-	173	116618807	-	LEUM_1718	-	membrane ancor connecting MutS2 with cell-division Z-ring
1634	 34.86	0	1690028..1690420	-	130	116618808	-	LEUM_1719	-	stimulator of FtsZ polymerization and component of cell-division Z-ring
1635	 29.37	-2	1690528..1690905	-	125	116618809	-	LEUM_1720	-	hypothetical protein
1636	 38.71	0	1691084..1691995	+	303	116618810	-	LEUM_1721	-	ribonuclease HIII
1637	 38.23	0	1692013..1692543	-	176	116618811	-	LEUM_1722	-	hypothetical protein
1638	 38.42	0	1692546..1692938	-	130	116618812	-	LEUM_1723	-	methyl-accepting chemotaxis-like protein
1639	 40.91	0	1693083..1694639	-	518	116618813	-	LEUM_1724	-	HD superfamily hydrolase
1640	 37.20	0	1694775..1695239	-	154	116618814	smpB	LEUM_1725	-	SsrA-binding protein
1641	 40.77	0	1695251..1697575	-	774	116618815	-	LEUM_1726	-	exoribonuclease R
1642	 39.66	0	1697681..1697917	-	78	116618816	-	LEUM_1727	-	preprotein translocase subunit SecG
1643	 39.92	0	1697995..1698768	-	257	116618817	-	LEUM_1728	-	rRNA methylase
1644	 36.36	0	1698828..1699751	-	307	116618818	-	LEUM_1729	-	preprotein translocase subunit YidC
1645	 38.46	0	1699823..1700095	-	90	116618819	-	LEUM_1730	-	acylphosphatase
1646	 39.24	0	1700082..1701182	-	366	116618820	-	LEUM_1731	-	Signal transduction histidine kinase
1647	 36.67	0	1701195..1701884	-	229	116618821	-	LEUM_1732	-	DNA-binding response regulator
1648	 35.71	0	1701981..1702526	-	181	116618822	-	LEUM_1733	-	metal-binding protein
1649	 38.45	0	1702528..1703700	-	390	116618823	-	LEUM_1734	-	hypothetical protein
1650	 34.13	-1	1703700..1704452	-	250	116618824	-	LEUM_1735	-	SAM-dependent methyltransferase
1651	 40.53	0	1704540..1704914	-	124	116618825	-	LEUM_1736	-	Iojap family protein
1652	 37.26	0	1704918..1705502	-	194	116618826	-	LEUM_1737	-	HD superfamily NAD metabolism hydrolase
37.86	MEAN

3.35	STD DEV
