IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

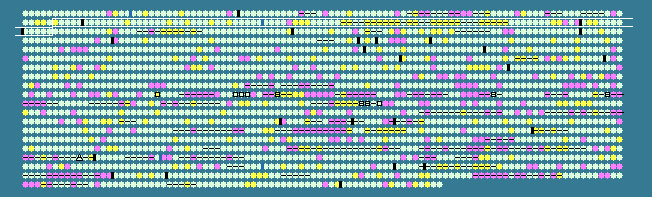

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
106	 41.63	+1	107893..108531	+	212	116617280	-	LEUM_0127	-	hemolysin III-like protein
107	 40.14	0	108674..110128	+	484	116617281	-	LEUM_0128	-	D-xylose proton-symporter
108	 39.49	0	110334..111503	+	389	116617282	-	LEUM_0129	-	transcriptional regulator/sugar kinase, xylose operon regulator
109	 38.23	0	111678..113024	+	448	116617283	-	LEUM_0130	-	xylose isomerase
110	 40.87	0	113171..114682	+	503	116617284	-	LEUM_0131	-	xylulokinase
111	 36.96	0	115011..115892	+	293	116617285	-	LEUM_0133	-	undecaprenyl pyrophosphate phosphatase
112	 38.76	0	116440..117471	+	343	116617286	-	LEUM_0134	-	uroporphyrinogen-III decarboxylase
113	 36.93	0	117464..118465	+	333	116617287	-	LEUM_0135	-	uroporphyrinogen-III decarboxylase
114	 38.10	0	118481..119341	+	286	116617288	-	LEUM_0136	-	ABC-type amino acid transport systems, periplasmic component
115	 38.59	0	119365..120087	+	240	116617289	-	LEUM_0137	-	ABC-type amino acid transport permease component
116	 36.15	0	120084..120794	+	236	116617290	-	LEUM_0138	-	ABC-type amino acid transport permease component
117	 37.55	0	120805..121587	+	260	116617291	-	LEUM_0139	-	ABC-type polar amino acid transport system, ATPase component
118	 41.40	+1	121706..123217	+	503	116617292	-	LEUM_0140	-	peptide chain release factor 3
119	 38.31	0	123307..123849	+	180	116617293	-	LEUM_0141	-	hypothetical protein
120	 37.28	0	124136..124693	+	185	116617294	-	LEUM_0142	-	hypothetical protein
121	 41.06	0	124732..125559	+	275	116617295	-	LEUM_0143	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
122	 40.06	0	125576..126259	-	227	116617296	-	LEUM_0144	-	hypothetical protein
123	 40.54	0	126386..127162	+	258	116617297	-	LEUM_0145	-	acetoin reductase
124	 41.07	0	127389..130091	+	900	116617298	-	LEUM_0146	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
125	 41.38	+1	130124..131614	-	496	116617299	-	LEUM_0147	-	tRNA (uracil-5-)-methyltransferase related enzyme
126	 37.97	0	131686..132849	-	387	116617300	-	LEUM_0148	-	hypothetical protein
127	 36.00	0	133123..133347	+	74	116617301	-	LEUM_0149	-	hypothetical protein
128	 43.05	+1	133404..135554	+	716	116617302	-	LEUM_0150	-	ATP-binding subunit of Clp protease and DnaK/DnaJ chaperones
129	 35.85	0	135662..136654	+	330	116617303	-	LEUM_0151	-	hypothetical protein
130	 39.40	0	136666..137604	+	312	116617304	-	LEUM_0152	-	ADP-ribose pyrophosphatase with uncharacterized conserved domain
131	 40.39	0	137636..139066	-	476	116617305	-	LEUM_0153	-	fumarase
132	 42.50	+1	139184..139870	-	228	116617306	-	LEUM_0154	-	ribose-5-phosphate isomerase
133	 38.65	0	139867..140148	-	93	116617307	-	LEUM_0155	-	acetyltransferase
134	 38.70	0	140381..140920	+	179	116617308	-	LEUM_0156	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
135	 41.97	+1	141112..142338	+	408	116617309	-	LEUM_0157	-	DNA repair protein RadA
136	 38.40	0	142341..142715	+	124	116617310	-	LEUM_0158	-	hypothetical protein
137	 37.13	0	142761..143999	-	412	116617311	-	LEUM_0159	-	hypothetical protein
138	 35.20	0	144134..144721	+	195	116617312	-	LEUM_0160	-	transcriptional regulator
139	 41.22	+1	144820..146316	+	498	116617313	-	LEUM_0161	-	glutamyl-tRNA synthetase
140	 39.94	0	146458..147864	+	468	116617314	-	LEUM_0162	-	cysteinyl-tRNA synthetase
141	 40.37	0	155266..156573	+	435	116617315	-	LEUM_0182	-	seryl-tRNA synthetase
142	 39.72	0	156709..159120	+	803	116617316	-	LEUM_0183	-	protein translocase subunit secA
143	 40.57	0	159171..160289	+	372	116617317	-	LEUM_0184	-	peptide chain release factor 2
144	 40.59	0	160435..162915	+	826	116617318	-	LEUM_0185	-	ATP-binding subunit of Clp protease and DnaK/DnaJ chaperones
145	 33.79	-1	162920..163579	-	219	116617319	-	LEUM_0186	-	Type II secretory pathway, prepilin signal peptidase PulO
146	 43.72	+1	163832..164245	+	137	116617320	rpsL	LEUM_0187	-	30S ribosomal protein S12
147	 42.89	+1	164261..164731	+	156	116617321	-	LEUM_0188	-	30S ribosomal protein S7
148	 42.09	+1	164892..167003	+	703	116617322	-	LEUM_0189	-	translation elongation factor 2 (EF-2/EF-G)
149	 38.11	0	167094..168287	+	397	116617323	-	LEUM_0190	-	cyanate permease
150	 36.95	0	168368..169474	+	368	116617324	-	LEUM_0191	-	ABC-type spermidine/putrescine transport systems, ATPase component
151	 37.97	0	169464..170282	+	272	116617325	-	LEUM_0192	-	spermidine/putrescine ABC transporter permease protein
152	 36.46	0	170296..171126	+	276	116617326	-	LEUM_0193	-	spermidine/putrescine ABC transporter permease protein
153	 34.91	0	171128..172207	+	359	116617327	-	LEUM_0194	-	spermidine/putrescine-binding periplasmic protein
154	 43.37	+1	172504..172812	+	102	116617328	-	LEUM_0195	-	SSU ribosomal protein S10P
155	 43.67	+1	172886..173572	+	228	116617329	-	LEUM_0196	-	50S ribosomal protein L3P
156	 41.19	0	173605..174228	+	207	116617330	-	LEUM_0197	-	50S ribosomal protein L4P
157	 40.28	0	174228..174515	+	95	116617331	-	LEUM_0198	-	50S ribosomal protein L23P
158	 45.32	+2	174537..175370	+	277	116617332	rplB	LEUM_0199	-	50S ribosomal protein L2
159	 42.29	+1	175388..175666	+	92	116617333	-	LEUM_0200	-	SSU ribosomal protein S19P
160	 43.98	+1	175681..176037	+	118	116617334	-	LEUM_0201	-	50S ribosomal protein L22P
161	 43.90	+1	176037..176708	+	223	116617335	-	LEUM_0202	-	SSU ribosomal protein S3P
162	 44.93	+2	176723..177136	+	137	116617336	rplP	LEUM_0203	-	50S ribosomal protein L16
163	 41.55	+1	177136..177342	+	68	116617337	-	LEUM_0204	-	50S ribosomal protein L29P
164	 39.33	0	177365..177631	+	88	116617338	-	LEUM_0205	-	SSU ribosomal protein S17P
165	 45.53	+2	177680..178048	+	122	116617339	-	LEUM_0206	-	50S ribosomal protein L14P
166	 42.39	+1	178072..178380	+	102	116617340	-	LEUM_0207	-	50S ribosomal protein L24P
167	 39.41	0	178404..178946	+	180	116617341	rplE	LEUM_0208	-	50S ribosomal protein L5
168	 41.10	0	179080..179478	+	132	116617342	-	LEUM_0209	-	SSU ribosomal protein S8P
169	 42.09	+1	179503..180039	+	178	116617343	-	LEUM_0210	-	50S ribosomal protein L6P
170	 44.92	+2	180120..180473	+	117	116617344	-	LEUM_0211	-	50S ribosomal protein L18P
171	 44.77	+2	180493..180999	+	168	116617345	-	LEUM_0212	-	SSU ribosomal protein S5P
172	 43.17	+1	181011..181193	+	60	116617346	rpmD	LEUM_0213	-	50S ribosomal protein L30
173	 42.07	+1	181224..181658	+	144	116617347	-	LEUM_0214	-	50S ribosomal protein L15P
174	 38.43	0	181658..182992	+	444	116617348	-	LEUM_0215	-	protein translocase subunit secY/sec61 alpha
175	 39.72	0	182985..183548	+	187	116617349	-	LEUM_0216	-	adenylate kinase
176	 41.20	0	183655..183870	+	71	116617350	-	LEUM_0217	-	translation initiation factor 1
177	 42.50	+1	183915..184034	+	39	116617351	-	LEUM_0218	-	50S ribosomal protein L36P
178	 44.09	+1	184111..184482	+	123	116617352	rpsM	LEUM_0219	-	30S ribosomal protein S13
179	 47.03	+2	184608..184994	+	128	116617353	-	LEUM_0220	-	30S ribosomal protein S11
180	 42.65	+1	185042..185986	+	314	116617354	-	LEUM_0221	-	DNA-directed RNA polymerase, alpha subunit/40 kD subunit
181	 42.45	+1	186023..186406	+	127	116617355	-	LEUM_0222	-	50S ribosomal protein L17P
182	 36.34	0	186448..187446	-	332	116617356	-	LEUM_0223	-	geranylgeranyl pyrophosphate synthase
183	 40.04	0	187515..189185	-	556	116617357	-	LEUM_0224	-	NADH dehydrogenase, FAD-containing subunit
184	 39.07	0	189360..190178	+	272	116617358	-	LEUM_0225	-	ABC-type cobalt transport system, ATPase component
185	 40.44	0	190154..191011	+	285	116617359	-	LEUM_0226	-	ABC-type cobalt transport system, ATPase component
186	 38.18	0	191004..191807	+	267	116617360	-	LEUM_0227	-	ABC-type cobalt transport system, permease component CbiQ related transporter
187	 39.84	0	191828..192595	+	255	116617361	-	LEUM_0228	-	pseudouridylate synthase
188	 36.25	0	192645..193055	+	136	116617362	-	LEUM_0229	-	hypothetical protein
189	 42.57	+1	193193..193636	+	147	116617363	rplM	LEUM_0230	-	50S ribosomal protein L13
190	 43.69	+1	193655..194050	+	131	116617364	-	LEUM_0231	-	SSU ribosomal protein S9P
191	 32.03	-1	194240..195157	+	305	116617365	-	LEUM_0232	-	fhu operon transcription regulator
192	 39.66	0	195180..196364	-	394	116617366	-	LEUM_0233	-	NADH:flavin oxidoreductase
193	 29.41	-2	196602..196805	-	67	116617367	-	LEUM_0234	-	hypothetical protein
194	 34.82	0	197625..197960	+	111	116617368	-	LEUM_0238	-	hypothetical protein
195	 43.70	+1	197957..198766	+	269	116617369	-	LEUM_0239	-	triosephosphate isomerase
196	 42.99	+1	198908..200233	+	441	116617370	-	LEUM_0240	-	enolase
197	 36.39	0	200330..200917	+	195	116617371	-	LEUM_0241	-	DNA-3-methyladenine glycosylase I
198	 38.13	0	200993..202471	+	492	116617372	-	LEUM_0242	-	exopolyphosphatase
199	 37.65	0	202480..204612	+	710	116617373	-	LEUM_0243	-	polyphosphate kinase
200	 40.58	0	204609..205574	+	321	116617374	-	LEUM_0244	-	exopolyphosphatase
201	 36.32	0	205711..206346	-	211	116617375	-	LEUM_0246	-	hypothetical protein
202	 37.78	0	206364..207644	+	426	116617376	-	LEUM_0247	-	superfamily II DNA/RNA helicase
203	 36.74	0	207658..208332	+	224	116617377	-	LEUM_0248	-	amidophosphoribosyltransferase
204	 37.18	0	208469..209014	+	181	116617378	-	LEUM_0249	-	SSU ribosomal protein S30P / sigma 54 modulation protein
205	 37.56	0	209162..210700	+	512	116617379	-	LEUM_0250	-	hypothetical protein
37.86	MEAN

3.35	STD DEV
