IslandPathversion 1.0

IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

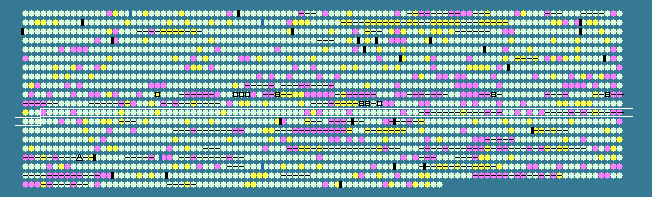

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1104	 33.78	-1	1175171..1176073	-	300	116618278	-	LEUM_1178	-	tyrosine recombinase XerC subunit
1105	 34.47	-1	1176215..1176655	+	146	116618279	-	LEUM_1179	-	hypothetical protein
1106	 41.15	0	1176689..1178032	-	447	116618280	-	LEUM_1180	-	hypothetical protein
1107	 36.20	0	1178086..1178364	-	92	116618281	-	LEUM_1181	-	hypothetical protein
1108	 40.99	0	1178590..1179033	-	147	116618282	-	LEUM_1182	-	purine deoxyribosyltransferase
1109	 34.12	-1	1179300..1179935	+	211	116618283	-	LEUM_1183	-	hypothetical protein
1110	 36.96	0	1179963..1181120	-	385	116618284	-	LEUM_1184	-	hydroxymethylglutaryl-CoA synthase
1111	 38.08	0	1181256..1182878	-	540	116618285	-	LEUM_1185	-	ABC transporter ATPase
1112	 34.93	0	1183042..1183479	-	145	116618286	-	LEUM_1186	-	hypothetical protein
1113	 38.89	0	1183528..1184265	-	245	116618287	-	LEUM_1187	-	hypothetical protein
1114	 40.74	0	1184265..1185155	-	296	116618288	-	LEUM_1188	-	50S ribosomal protein L11P methyltransferase
1115	 40.99	0	1185142..1186212	-	356	116618289	-	LEUM_1189	-	NADPH:quinone reductase related Zn-dependent oxidoreductase
1116	 37.50	0	1186209..1187000	-	263	116618290	-	LEUM_1190	-	hypothetical protein
1117	 41.98	+1	1186984..1188846	-	620	116618291	-	LEUM_1191	-	GTP-binding protein LepA
1118	 39.03	0	1188966..1190018	-	350	116618292	-	LEUM_1192	-	dehydrogenase
1119	 39.89	0	1190062..1192119	-	685	116618293	-	LEUM_1193	-	glycyl-tRNA synthetase, beta subunit
1120	 39.81	0	1192157..1193098	-	313	116618294	glyQ	LEUM_1194	-	glycyl-tRNA synthetase subunit alpha
1121	 36.75	0	1193376..1194488	-	370	116618295	-	LEUM_1195	-	hypothetical protein
1122	 39.56	0	1194571..1195116	-	181	116618296	-	LEUM_1196	-	ribosome recycling factor
1123	 42.29	+1	1195116..1195841	-	241	116618297	-	LEUM_1197	-	uridylate kinase
1124	 40.87	0	1195988..1196863	-	291	116618298	-	LEUM_1198	-	translation elongation factor Ts (EF-Ts)
1125	 40.54	0	1196973..1197749	-	258	116618299	-	LEUM_1199	-	SSU ribosomal protein S2P
1126	 35.53	0	1197895..1198167	-	90	116618300	-	LEUM_1200	-	URI-like endonuclease
1127	 39.08	0	1198164..1198928	-	254	116618301	-	LEUM_1201	-	O-methyltransferase
1128	 38.81	0	1198988..1199626	+	212	116618302	-	LEUM_1202	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1129	 35.02	0	1199637..1199873	-	78	116618303	-	LEUM_1203	-	hypothetical protein
1130	 38.34	0	1200123..1200761	+	212	116618304	-	LEUM_1204	-	XRE family transcriptional regulator
1131	 39.65	0	1200801..1201433	-	210	116618305	-	LEUM_1205	-	orotate phosphoribosyltransferase
1132	 39.37	0	1201434..1202129	-	231	116618306	-	LEUM_1206	-	orotidine-5'-phosphate decarboxylase
1133	 40.91	0	1202174..1205353	-	1059	116618307	-	LEUM_1207	-	carbamoyl-phosphate synthase large subunit
1134	 41.53	+1	1205346..1206431	-	361	116618308	-	LEUM_1208	-	carbamoyl-phosphate synthase small subunit
1135	 40.61	0	1206428..1207705	-	425	116618309	-	LEUM_1209	-	dihydroorotase
1136	 38.26	0	1207710..1208603	-	297	116618310	-	LEUM_1210	-	aspartate carbamoyltransferase catalytic subunit
1137	 37.02	0	1208781..1209404	-	207	116618311	-	LEUM_1211	-	Signal peptidase I
1138	 36.16	0	1209465..1209818	-	117	116618312	-	LEUM_1212	-	hypothetical protein
1139	 38.19	0	1209907..1211967	-	686	116618313	-	LEUM_1213	-	membrane carboxypeptidase (penicillin-binding protein)
1140	 38.43	0	1211971..1212441	-	156	116618314	-	LEUM_1214	-	ArgR family transcriptional regulator
1141	 39.07	0	1212554..1214245	-	563	116618315	-	LEUM_1215	-	arginyl-tRNA synthetase
1142	 38.89	0	1214525..1214794	-	89	116618316	-	LEUM_1216	-	hypothetical protein
1143	 39.64	0	1214849..1216054	-	401	116618317	-	LEUM_1217	-	phosphopantothenoylcysteine decarboxylase / phosphopantothenate-cysteine ligase
1144	 36.75	0	1216125..1216622	-	165	116618318	-	LEUM_1218	-	hypothetical protein
1145	 40.20	0	1216619..1217434	-	271	116618319	-	LEUM_1219	-	membrane protease family stomatin/prohibitin-like protein
1146	 37.36	0	1217446..1217793	-	115	116618320	-	LEUM_1220	-	hypothetical protein
1147	 39.71	0	1217898..1218101	-	67	116618321	-	LEUM_1221	-	hypothetical protein
1148	 33.33	-1	1219144..1219662	-	172	116618322	-	LEUM_1222	-	hypothetical protein
1149	 42.59	+1	1219650..1219703	-	17	116618323	-	LEUM_1223	-	hypothetical protein
1150	 33.33	-1	1220231..1220449	+	72	116618324	-	LEUM_1224	-	hypothetical protein
1151	 39.85	0	1220775..1221434	-	219	116618325	-	LEUM_1225	-	S-adenosylmethionine-dependent methyltransferase
1152	 37.61	0	1221447..1222733	-	428	116618326	-	LEUM_1226	-	ABC transporter permease
1153	 37.11	0	1222723..1223463	-	246	116618327	-	LEUM_1227	-	ABC-type multidrug transport system, ATPase component
1154	 38.06	0	1223626..1224048	+	140	116618328	-	LEUM_1228	-	diadenosine tetraphosphate (Ap4A) hydrolase and other HIT family hydrolases
1155	 29.22	-2	1224083..1224325	+	80	116618329	-	LEUM_1229	-	hypothetical protein
1156	 37.53	0	1224381..1225310	+	309	116618330	-	LEUM_1230	-	parvulin-like peptidyl-prolyl isomerase
1157	 37.48	0	1225390..1226595	-	401	116618331	-	LEUM_1231	-	major facilitator superfamily permease
1158	 37.33	0	1226607..1227806	-	399	116618332	-	LEUM_1232	-	aminotransferase
1159	 37.81	0	1227819..1228757	-	312	116618333	-	LEUM_1233	-	lactate dehydrogenase related dehydrogenase
1160	 39.28	0	1228776..1229498	-	240	116618334	-	LEUM_1234	-	ABC-type polar amino acid transport system, ATPase component
1161	 39.24	0	1229491..1230150	-	219	116618335	-	LEUM_1235	-	ABC-type amino acid transport system, pemease component
1162	 34.41	-1	1230162..1230998	-	278	116618336	-	LEUM_1236	-	ABC-type amino acid transport system, periplasmic component
1163	 37.43	0	1231001..1232197	-	398	116618337	-	LEUM_1237	-	cystathionine gamma-synthase
1164	 34.33	-1	1232519..1233424	+	301	116618338	-	LEUM_1238	-	LysR family transcriptional regulator
1165	 39.16	0	1233704..1234441	-	245	116618339	fabG	LEUM_1239	-	3-ketoacyl-(acyl-carrier-protein) reductase
1166	 38.35	0	1234438..1234995	-	185	116618340	-	LEUM_1240	-	hypothetical protein
1167	 40.88	0	1235069..1236367	-	432	116618341	-	LEUM_1241	-	DNA-directed RNA polymerase, sigma subunit (sigma70/sigma32)
1168	 32.12	-1	1238515..1239336	-	273	116618342	-	LEUM_1243	-	AraC-like transcriptional regulator
1169	 38.01	0	1239361..1241499	-	712	116618343	-	LEUM_1244	-	alpha-xylosidase YicI
1170	 37.46	0	1241519..1242922	-	467	116618344	-	LEUM_1245	-	Na+/xyloside symporter related transporter
1171	 35.14	0	1243467..1243910	+	147	116618345	-	LEUM_1246	-	hypothetical protein
1172	 37.09	0	1243903..1244115	+	70	116618346	-	LEUM_1247	-	hypothetical protein
1173	 36.07	0	1244126..1244344	+	72	116618347	-	LEUM_1248	-	hypothetical protein
1174	 42.46	+1	1244629..1244913	-	94	116618348	-	LEUM_1249	-	hypothetical protein
1175	 38.89	0	1244912..1245235	+	107	116618349	-	LEUM_1250	-	hypothetical protein
1176	 34.50	-1	1245248..1245505	+	85	116618350	-	LEUM_1251	-	hypothetical protein
1177	 34.75	0	1246246..1248501	-	751	116618351	-	LEUM_1252	-	subtilisin-like serine protease
1178	 32.47	-1	1248494..1249540	-	348	116618352	-	LEUM_1253	-	ATPase of the AAA+ class
1179	 37.94	0	1249919..1250548	+	209	116618353	-	LEUM_1254	-	hypothetical protein
1180	 33.33	-1	1250598..1250840	-	80	116618354	-	LEUM_1255	-	hypothetical protein
1181	 37.24	0	1250852..1251619	-	255	116618355	-	LEUM_1256	-	hypothetical protein
1182	 40.08	0	1251638..1252348	-	236	116618356	-	LEUM_1257	-	hypothetical protein
1183	 31.75	-1	1252332..1252646	-	104	116618357	-	LEUM_1258	-	hypothetical protein
1184	 37.39	0	1252636..1253349	-	237	116618358	-	LEUM_1259	-	hypothetical protein
1185	 30.72	-2	1253367..1253672	-	101	116618359	-	LEUM_1260	-	hypothetical protein
1186	 36.59	0	1253662..1254459	-	265	116618360	-	LEUM_1261	-	DNA-entry nuclease
1187	 34.00	-1	1254554..1254853	-	99	116618361	-	LEUM_1262	-	hypothetical protein
1188	 36.33	0	1255062..1256030	-	322	116618362	-	LEUM_1263	-	hypothetical protein
1189	 36.50	0	1256036..1256446	-	136	116618363	-	LEUM_1264	-	single-stranded DNA-binding protein
1190	 34.47	-1	1256436..1256786	-	116	116618364	-	LEUM_1265	-	hypothetical protein
1191	 35.21	0	1256764..1257030	-	88	116618365	-	LEUM_1266	-	hypothetical protein
1192	 34.29	-1	1257057..1257998	-	313	116618366	-	LEUM_1267	-	hypothetical protein
1193	 34.74	0	1258010..1258222	-	70	116618367	-	LEUM_1268	-	XRE family transcriptional regulator
1194	 30.95	-2	1258464..1258757	-	97	116618368	-	LEUM_1269	-	hypothetical protein
1195	 40.45	0	1258779..1259621	-	280	116618369	-	LEUM_1270	-	phosphotransferase system, mannose/fructose/N-acetylgalactosamine-specific component IID
1196	 42.25	+1	1259623..1260486	-	287	116618370	-	LEUM_1271	-	phosphotransferase system, mannose/fructose/N-acetylgalactosamine-specific component IIC
1197	 37.98	0	1260512..1261006	-	164	116618371	-	LEUM_1272	-	phosphotransferase system, mannose/fructose/N-acetylgalactosamine-specific component IIB
1198	 39.35	0	1261022..1261453	-	143	116618372	-	LEUM_1273	-	phosphotransferase system, mannose/fructose-specific component IIA
1199	 32.29	-1	1261636..1262211	-	191	116618373	-	LEUM_1274	-	transcriptional regulator
1200	 33.60	-1	1262354..1263490	+	378	116618374	-	LEUM_1275	-	alpha/beta fold family hydrolase
1201	 36.11	0	1263593..1263736	+	47	116618375	-	LEUM_1276	-	hypothetical protein
1202	 37.72	0	1263777..1264643	-	288	116618376	-	LEUM_1277	-	Rossmann fold nucleotide-binding protein for DNA uptake
1203	 37.75	0	1264698..1266575	-	625	116618377	-	LEUM_1278	-	ABC transporter ATPase
37.86	MEAN

3.35	STD DEV
