IslandPath Analysis: Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293

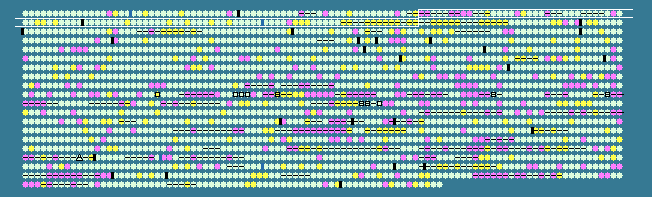

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.86 STD DEV: 3.35
Leuconostoc mesenteroides subsp. mesenteroides ATCC 8293, complete genome - 1..2038396
1970 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
67	 29.08	-2	74331..74636	+	101	116617241	-	LEUM_0087	-	hypothetical protein
68	 28.99	-2	74793..74930	+	45	116617242	-	LEUM_0088	-	hypothetical protein
69	 41.11	0	74945..75124	+	59	116617243	-	LEUM_0089	-	hypothetical protein
70	 39.55	0	75286..75462	+	58	116617244	-	LEUM_0090	-	hypothetical protein
71	 38.01	0	75747..75917	+	56	116617245	-	LEUM_0091	-	hypothetical protein
72	 30.52	-2	75923..76135	+	70	116617246	-	LEUM_0092	-	hypothetical protein
73	 33.20	-1	76407..77132	-	241	116617247	-	LEUM_0093	-	response regulator
74	 32.11	-1	77138..78448	-	436	116617248	-	LEUM_0094	-	signal transduction protein
75	 32.50	-1	78626..78745	+	39	116617249	-	LEUM_0095	-	hypothetical protein
76	 38.81	0	78901..79704	+	267	116617250	-	LEUM_0096	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
77	 35.45	0	79688..80254	+	188	116617251	-	LEUM_0097	-	hypothetical protein
78	 41.63	+1	80451..81848	+	465	116617252	-	LEUM_0098	-	fumarate reductase, flavoprotein subunit
79	 35.24	0	82029..82919	+	296	116617253	-	LEUM_0099	-	XRE-family DNA-binding domain-containing protein
80	 35.39	0	82926..83654	+	242	116617254	-	LEUM_0100	-	hypothetical protein
81	 40.51	0	83851..85953	+	700	116617255	-	LEUM_0101	-	glycosyltransferase
82	 36.22	0	85974..86978	+	334	116617256	-	LEUM_0102	-	glycosyltransferase-like protein
83	 30.64	-2	87061..87543	+	160	116617257	-	LEUM_0103	-	GtcA family membrane protein
84	 41.58	+1	87724..89094	+	456	116617258	-	LEUM_0104	-	NAD(FAD)-dependent dehydrogenase
85	 37.04	0	89182..89721	-	179	116617259	-	LEUM_0105	-	periplasmic/secreted protein
86	 39.15	0	90826..91908	+	360	116617260	-	LEUM_0107	-	glutathione S-transferase
87	 38.58	0	91883..93217	+	444	116617261	-	LEUM_0108	-	propionate catabolism protein
88	 34.23	-1	93239..93796	+	185	116617262	-	LEUM_0109	-	acetyltransferase
89	 35.28	0	93811..94479	+	222	116617263	-	LEUM_0110	-	ABC-type amino acid transport system, permease component
90	 36.52	0	94494..95246	+	250	116617264	-	LEUM_0111	-	ABC-type polar amino acid transport system, ATPase component
91	 36.52	0	95281..96096	+	271	116617265	-	LEUM_0112	-	ABC-type amino acid transport system, periplasmic component
92	 40.45	0	96122..97288	+	388	116617266	-	LEUM_0113	-	metal-dependent amidase/aminoacylase/carboxypeptidase
93	 37.78	0	97303..97617	+	104	116617267	-	LEUM_0114	-	thioredoxin
94	 38.42	0	98013..98759	+	248	116617268	-	LEUM_0115	-	metal-dependent hydrolase
95	 36.86	0	98761..100092	+	443	116617269	-	LEUM_0116	-	amino acid transporter
96	 39.12	0	100143..100919	+	258	116617270	-	LEUM_0117	-	acetoin reductase
97	 36.00	0	100967..101830	+	287	116617271	-	LEUM_0118	-	ABC-type metal ion transport system, periplasmic component/surface antigen
98	 36.07	0	101869..102525	+	218	116617272	-	LEUM_0119	-	ABC-type amino acid transport system, permease component
99	 33.48	-1	102506..103186	+	226	116617273	-	LEUM_0120	-	ABC-type amino acid transport system, permease component
100	 36.03	0	103179..103919	+	246	116617274	-	LEUM_0121	-	ABC-type polar amino acid transport system, ATPase component
101	 35.82	0	103980..104825	+	281	116617275	-	LEUM_0122	-	amino acid ABC transporter periplasmic protein
102	 39.39	0	104881..106002	+	373	116617276	solA	LEUM_0123	-	N-methyltryptophan oxidase
103	 41.35	+1	106151..106549	+	132	116617277	-	LEUM_0124	-	camphor resistance protein CrcB
104	 43.95	+1	106546..106884	+	112	116617278	-	LEUM_0125	-	camphor resistance protein CrcB
105	 40.93	0	106928..107809	+	293	116617279	-	LEUM_0126	-	hypothetical protein
106	 41.63	+1	107893..108531	+	212	116617280	-	LEUM_0127	-	hemolysin III-like protein
107	 40.14	0	108674..110128	+	484	116617281	-	LEUM_0128	-	D-xylose proton-symporter
108	 39.49	0	110334..111503	+	389	116617282	-	LEUM_0129	-	transcriptional regulator/sugar kinase, xylose operon regulator
109	 38.23	0	111678..113024	+	448	116617283	-	LEUM_0130	-	xylose isomerase
110	 40.87	0	113171..114682	+	503	116617284	-	LEUM_0131	-	xylulokinase
111	 36.96	0	115011..115892	+	293	116617285	-	LEUM_0133	-	undecaprenyl pyrophosphate phosphatase
112	 38.76	0	116440..117471	+	343	116617286	-	LEUM_0134	-	uroporphyrinogen-III decarboxylase
113	 36.93	0	117464..118465	+	333	116617287	-	LEUM_0135	-	uroporphyrinogen-III decarboxylase
114	 38.10	0	118481..119341	+	286	116617288	-	LEUM_0136	-	ABC-type amino acid transport systems, periplasmic component
115	 38.59	0	119365..120087	+	240	116617289	-	LEUM_0137	-	ABC-type amino acid transport permease component
116	 36.15	0	120084..120794	+	236	116617290	-	LEUM_0138	-	ABC-type amino acid transport permease component
117	 37.55	0	120805..121587	+	260	116617291	-	LEUM_0139	-	ABC-type polar amino acid transport system, ATPase component
118	 41.40	+1	121706..123217	+	503	116617292	-	LEUM_0140	-	peptide chain release factor 3
119	 38.31	0	123307..123849	+	180	116617293	-	LEUM_0141	-	hypothetical protein
120	 37.28	0	124136..124693	+	185	116617294	-	LEUM_0142	-	hypothetical protein
121	 41.06	0	124732..125559	+	275	116617295	-	LEUM_0143	-	hydroxymethylpyrimidine/phosphomethylpyrimidine kinase
122	 40.06	0	125576..126259	-	227	116617296	-	LEUM_0144	-	hypothetical protein
123	 40.54	0	126386..127162	+	258	116617297	-	LEUM_0145	-	acetoin reductase
124	 41.07	0	127389..130091	+	900	116617298	-	LEUM_0146	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
125	 41.38	+1	130124..131614	-	496	116617299	-	LEUM_0147	-	tRNA (uracil-5-)-methyltransferase related enzyme
126	 37.97	0	131686..132849	-	387	116617300	-	LEUM_0148	-	hypothetical protein
127	 36.00	0	133123..133347	+	74	116617301	-	LEUM_0149	-	hypothetical protein
128	 43.05	+1	133404..135554	+	716	116617302	-	LEUM_0150	-	ATP-binding subunit of Clp protease and DnaK/DnaJ chaperones
129	 35.85	0	135662..136654	+	330	116617303	-	LEUM_0151	-	hypothetical protein
130	 39.40	0	136666..137604	+	312	116617304	-	LEUM_0152	-	ADP-ribose pyrophosphatase with uncharacterized conserved domain
131	 40.39	0	137636..139066	-	476	116617305	-	LEUM_0153	-	fumarase
132	 42.50	+1	139184..139870	-	228	116617306	-	LEUM_0154	-	ribose-5-phosphate isomerase
133	 38.65	0	139867..140148	-	93	116617307	-	LEUM_0155	-	acetyltransferase
134	 38.70	0	140381..140920	+	179	116617308	-	LEUM_0156	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
135	 41.97	+1	141112..142338	+	408	116617309	-	LEUM_0157	-	DNA repair protein RadA
136	 38.40	0	142341..142715	+	124	116617310	-	LEUM_0158	-	hypothetical protein
137	 37.13	0	142761..143999	-	412	116617311	-	LEUM_0159	-	hypothetical protein
138	 35.20	0	144134..144721	+	195	116617312	-	LEUM_0160	-	transcriptional regulator
139	 41.22	+1	144820..146316	+	498	116617313	-	LEUM_0161	-	glutamyl-tRNA synthetase
140	 39.94	0	146458..147864	+	468	116617314	-	LEUM_0162	-	cysteinyl-tRNA synthetase
141	 40.37	0	155266..156573	+	435	116617315	-	LEUM_0182	-	seryl-tRNA synthetase
142	 39.72	0	156709..159120	+	803	116617316	-	LEUM_0183	-	protein translocase subunit secA
143	 40.57	0	159171..160289	+	372	116617317	-	LEUM_0184	-	peptide chain release factor 2
144	 40.59	0	160435..162915	+	826	116617318	-	LEUM_0185	-	ATP-binding subunit of Clp protease and DnaK/DnaJ chaperones
145	 33.79	-1	162920..163579	-	219	116617319	-	LEUM_0186	-	Type II secretory pathway, prepilin signal peptidase PulO
146	 43.72	+1	163832..164245	+	137	116617320	rpsL	LEUM_0187	-	30S ribosomal protein S12
147	 42.89	+1	164261..164731	+	156	116617321	-	LEUM_0188	-	30S ribosomal protein S7
148	 42.09	+1	164892..167003	+	703	116617322	-	LEUM_0189	-	translation elongation factor 2 (EF-2/EF-G)
149	 38.11	0	167094..168287	+	397	116617323	-	LEUM_0190	-	cyanate permease
150	 36.95	0	168368..169474	+	368	116617324	-	LEUM_0191	-	ABC-type spermidine/putrescine transport systems, ATPase component
151	 37.97	0	169464..170282	+	272	116617325	-	LEUM_0192	-	spermidine/putrescine ABC transporter permease protein
152	 36.46	0	170296..171126	+	276	116617326	-	LEUM_0193	-	spermidine/putrescine ABC transporter permease protein
153	 34.91	0	171128..172207	+	359	116617327	-	LEUM_0194	-	spermidine/putrescine-binding periplasmic protein
154	 43.37	+1	172504..172812	+	102	116617328	-	LEUM_0195	-	SSU ribosomal protein S10P
155	 43.67	+1	172886..173572	+	228	116617329	-	LEUM_0196	-	50S ribosomal protein L3P
156	 41.19	0	173605..174228	+	207	116617330	-	LEUM_0197	-	50S ribosomal protein L4P
157	 40.28	0	174228..174515	+	95	116617331	-	LEUM_0198	-	50S ribosomal protein L23P
158	 45.32	+2	174537..175370	+	277	116617332	rplB	LEUM_0199	-	50S ribosomal protein L2
159	 42.29	+1	175388..175666	+	92	116617333	-	LEUM_0200	-	SSU ribosomal protein S19P
160	 43.98	+1	175681..176037	+	118	116617334	-	LEUM_0201	-	50S ribosomal protein L22P
161	 43.90	+1	176037..176708	+	223	116617335	-	LEUM_0202	-	SSU ribosomal protein S3P
162	 44.93	+2	176723..177136	+	137	116617336	rplP	LEUM_0203	-	50S ribosomal protein L16
163	 41.55	+1	177136..177342	+	68	116617337	-	LEUM_0204	-	50S ribosomal protein L29P
164	 39.33	0	177365..177631	+	88	116617338	-	LEUM_0205	-	SSU ribosomal protein S17P
165	 45.53	+2	177680..178048	+	122	116617339	-	LEUM_0206	-	50S ribosomal protein L14P
166	 42.39	+1	178072..178380	+	102	116617340	-	LEUM_0207	-	50S ribosomal protein L24P
37.86	MEAN

3.35	STD DEV
