IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

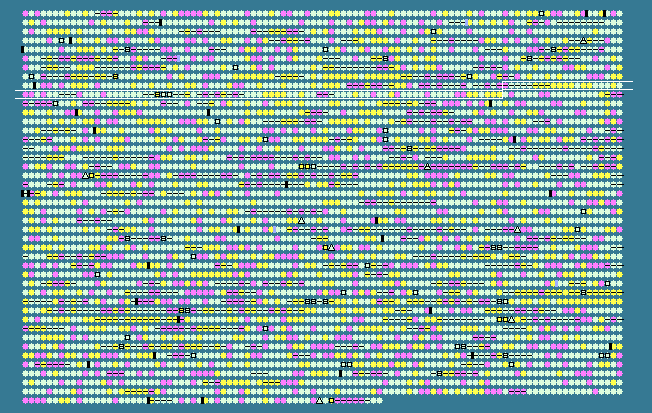

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.02   STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
881	 25.44	-1	878222..878335	-	37	24213581	-	LA0881	-	hypothetical protein
882	 31.62	0	878683..879033	+	116	24213582	-	LA0882	-	hypothetical protein
883	 34.24	0	879087..879527	+	146	24213583	-	LA0883	-	hypothetical protein
884	 37.82	0	880340..881878	-	512	24213584	NuoN	LA0884	-	NADH dehydrogenase I, N subunit
885	 38.25	0	881875..883563	-	562	24213585	NuoM	LA0885	-	NADH dehydrogenase I, M subunit
886	 42.46	+1	883565..885526	-	653	24213586	NuoL	LA0886	-	NADH dehydrogenase I chain L
887	 43.30	+1	885520..885840	-	106	24213587	nuoK	LA0887	-	NADH dehydrogenase I, K subunit
888	 42.31	+1	885837..886538	-	233	24213588	NuoJ	LA0888	-	NADH dehydrogenase I chain J
889	 41.59	+1	886552..887592	-	346	24213589	NuoH	LA0889	-	NADH dehydrogenase I chain H
890	 44.82	+2	887589..888920	-	443	24213590	NuoF	LA0890	-	NADH dehydrogenase I, F subunit
891	 40.79	+1	888936..889418	-	160	24213591	NuoE	LA0891	-	NADH dehydrogenase I chain E
892	 43.02	+1	889415..890632	-	405	24213592	NuoD	LA0892	-	NADH dehydrogenase I, D subunit
893	 35.75	0	890634..891170	-	178	24213593	NuoC	LA0893	-	NADH dehydrogenase I, C subunit
894	 47.06	+2	891167..891727	-	186	24213594	NuoB	LA0894	-	NADH dehydrogenase I chain B
895	 40.23	+1	891718..892152	-	144	24213595	NuoA	LA0895	-	NADH dehydrogenase I, A subunit
896	 31.75	0	892173..892298	+	41	24213596	-	LA0896	-	hypothetical protein
897	 35.71	0	892378..892545	-	55	24213597	-	LA0897	-	hypothetical protein
898	 35.82	0	892717..893118	+	133	24213598	-	LA0898	-	hypothetical protein
899	 42.37	+1	893131..893595	+	154	24213599	-	LA0899	-	MaoC family protein
900	 37.50	0	893626..894081	+	151	24213600	-	LA0900	-	MarR family transcriptional regulator
901	 28.83	-1	894918..895028	+	36	24213601	-	LA0901	-	hypothetical protein
902	 21.62	-2	895059..895169	-	36	24213602	-	LA0902	-	hypothetical protein
903	 35.05	0	895625..897256	+	543	24213603	-	LA0903	-	hypothetical protein
904	 18.70	-2	897731..897853	+	40	24213604	-	LA0904	-	hypothetical protein
905	 35.97	0	897962..898756	+	264	24213605	-	LA0905	-	hypothetical protein
906	 32.14	0	899331..899750	-	139	24213606	-	LA0906	-	hypothetical protein
907	 34.19	0	899922..900038	+	38	24213607	-	LA0907	-	hypothetical protein
908	 33.21	0	900149..900943	-	264	24213608	-	LA0908	-	hypothetical protein
909	 37.36	0	901076..901522	+	148	24213609	mgsA	LA0909	-	methylglyoxal synthase
910	 27.35	-1	902071..902187	-	38	24213610	-	LA0911	-	hypothetical protein
911	 33.33	0	902171..902773	+	200	24213611	-	LA0910	-	hypothetical protein
912	 35.04	0	902770..904767	-	665	24213612	-	LA0912	-	TPR repeat-containing protein
913	 36.34	0	904764..906794	-	676	24213613	-	LA0913	-	NHL repeat-containing protein
914	 27.01	-1	907534..908118	-	194	24213614	-	LA0914	-	hypothetical protein
915	 35.24	0	909020..909961	-	313	24213615	-	LA0915	-	histone deacetylase family protein
916	 32.92	0	910393..911598	+	401	24213616	-	LA0916	-	hypothetical protein
917	 35.48	0	912094..912186	-	30	24213617	-	LA0917	-	hypothetical protein
918	 35.33	0	912698..913498	-	266	24213618	ech2	LA0918	-	enoyl-CoA hydratase
919	 36.93	0	913498..914025	-	175	24213619	-	LA0919	-	hypothetical protein
920	 34.42	0	914659..915945	+	428	24213620	-	LA0920	-	hypothetical protein
921	 35.51	0	916820..916957	-	45	24213621	-	LA0922	-	hypothetical protein
922	 36.73	0	916884..917030	+	48	24213622	-	LA0921	-	hypothetical protein
923	 41.73	+1	917182..917598	-	138	24213623	-	LA0923	-	transposase
924	 37.62	0	917615..917824	-	69	24213624	-	LA0924	-	transposase
925	 36.78	0	917943..918203	-	86	24213625	-	LA0925	-	transposase
926	 37.41	0	918227..918373	-	48	24213626	-	LA0926	-	hypothetical protein
927	 34.46	0	918803..920044	-	413	24213627	-	LA0927	-	hypothetical protein
928	 39.53	0	920748..920876	-	42	24213628	-	LA0928	-	hypothetical protein
929	 33.62	0	920932..921636	-	234	24213629	-	LA0929	-	haloacid dehalogenase-like hydrolase
930	 37.98	0	921642..923039	-	465	24213630	-	LA0930	-	sugar and other transporter
931	 30.56	0	923036..923143	-	35	24213631	-	LA0931	-	hypothetical protein
932	 33.44	0	923278..924216	+	312	24213632	-	LA0932	-	alpha/beta fold family hydrolase/acetyltransferase
933	 23.15	-2	925767..925874	+	35	24213633	-	LA0933	-	hypothetical protein
934	 39.80	0	925932..927848	+	638	24213634	-	LA0934	-	hypothetical protein
935	 33.99	0	929033..930100	-	355	24213635	-	LA0935	-	hypothetical protein
936	 31.33	0	930217..930615	-	132	24213636	-	LA0936	-	hypothetical protein
937	 33.33	0	930617..930850	-	77	24213637	-	LA0937	-	hypothetical protein
938	 36.11	0	931489..932100	-	203	24213638	-	LA0938	-	hypothetical protein
939	 35.38	0	932102..933856	-	584	24213639	-	LA0939	-	hypothetical protein
940	 35.03	0	933847..935025	-	392	24213640	-	LA0940	-	hypothetical protein
941	 42.33	+1	935202..935690	+	162	24213641	-	LA0941	-	hypothetical protein
942	 41.50	+1	935692..937074	+	460	24213642	nusA	LA0942	-	transcription elongation factor NusA
943	 44.31	+1	937088..939730	+	880	24213643	infB	LA0943	-	translation initiation factor IF-2
944	 42.37	+1	939740..940093	+	117	24213644	rbfA1	LA0944	-	ribosome binding factor A
945	 36.99	0	940050..940979	+	309	161484955	truB	LA0945	-	tRNA pseudouridine synthase B
946	 32.58	0	941031..941297	+	88	161484954	rpsO	LA0946	-	30S ribosomal protein S15
947	 39.58	0	941309..943405	+	698	24213647	-	LA0947	-	polynucleotide phosphorylase/polyadenylase
948	 35.82	0	943424..944710	+	428	24213648	-	LA0948	-	zinc protease
949	 33.33	0	944738..944872	+	44	24213649	-	LA0949	-	hypothetical protein
950	 28.75	-1	945479..945718	+	79	24213650	-	LA0950	-	hypothetical protein
951	 29.98	-1	945989..946852	+	287	24213651	-	LA0951	-	hypothetical protein
952	 34.02	0	946804..947532	+	242	24213652	-	LA0952	-	rhomboid family protein
953	 37.41	0	948258..948404	-	48	24213653	-	LA0953	-	hypothetical protein
954	 38.24	0	948414..949739	+	441	24213654	-	LA0954	-	hypothetical protein
955	 31.91	0	949824..949964	-	46	24213655	-	LA0955	-	hypothetical protein
956	 41.09	+1	950162..954658	+	1498	24213656	gltB1	LA0956	-	glutamate synthase [NADPH] large chain precursor
957	 36.20	0	955645..957318	-	557	24213657	-	LA0957	-	outer membrane efflux protein
958	 37.01	0	957334..959484	+	716	24213658	-	LA0958	-	hypothetical protein
959	 24.73	-2	960100..960378	+	92	24213659	-	LA0959	-	hypothetical protein
960	 31.89	0	960762..961454	-	230	24213660	-	LA0960	-	hypothetical protein
961	 36.59	0	961476..961598	-	40	24213661	-	LA0961	-	hypothetical protein
962	 39.87	+1	961648..964173	-	841	24213662	-	LA0962	-	lipoprotein
963	 26.42	-1	964423..964581	-	52	24213663	-	LA0963	-	hypothetical protein
964	 34.37	0	964882..966330	-	482	24213664	recQ2	LA0964	-	DNA helicase RecQ
965	 34.33	0	966435..969833	+	1132	24213665	recC	LA0965	-	exodeoxyribonuclease V, gamma chain
966	 33.68	0	969823..972963	+	1046	24213666	recB	LA0966	-	exodeoxyribonuclease V, beta chain
967	 33.23	0	972945..974798	+	617	24213667	recD	LA0967	-	ATP-dependent exoDNAse, alpha subunit
968	 31.53	0	974930..975040	-	36	24213668	-	LA0968	-	hypothetical protein
969	 35.95	0	975112..976104	+	330	24213669	-	LA0969	-	ABC transporter, ATP-binding protein
970	 34.78	0	976101..976862	+	253	24213670	-	LA0970	-	ABC transporter
971	 36.69	0	976866..977729	+	287	24213671	-	LA0971	-	3-oxoacyl-(acyl carrier protein) reductase
972	 35.20	0	979126..979446	-	106	24213672	-	LA0973	-	hypothetical protein
973	 25.40	-1	979440..979565	+	41	24213673	-	LA0972	-	hypothetical protein
974	 29.49	-1	979582..979737	+	51	24213674	-	LA0974	-	hypothetical protein
975	 40.41	+1	979812..981239	+	475	24213675	-	LA0975	-	Fimh-like protein
976	 39.02	0	981264..981386	-	40	24213676	-	LA0976	-	hypothetical protein
977	 34.96	0	981714..981836	+	40	24213677	-	LA0977	-	hypothetical protein
978	 40.12	+1	981901..982902	+	333	24213678	-	LA0978	-	hypothetical protein
979	 39.52	0	983141..984142	+	333	24213679	-	LA0979	-	hypothetical protein
980	 39.78	0	984277..985764	-	495	24213680	thiC	LA0980	-	thiamine biosynthesis protein ThiC
35.02	MEAN

4.84	STD DEV
