IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

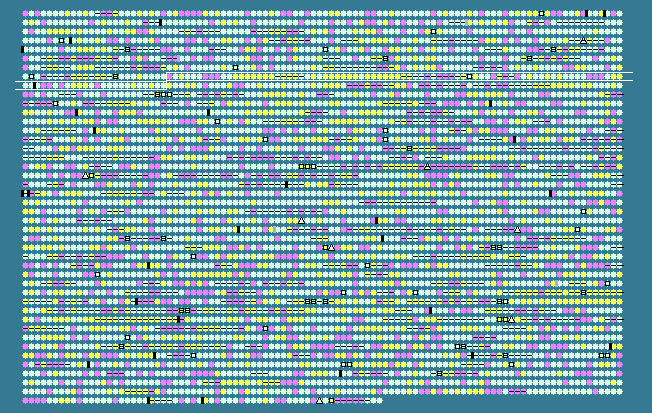

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.02   STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
725	 26.67	-1	745162..745266	-	34	24213425	-	LA0725	-	hypothetical protein
726	 33.22	0	745967..748531	+	854	24213426	-	LA0726	-	sulfatase
727	 39.96	+1	748658..751978	+	1106	24213427	carB	LA0727	-	carbamoyl phosphate synthase large subunit
728	 35.33	0	753043..753594	+	183	24213428	-	LA0728	-	hypothetical protein
729	 35.24	0	753971..754075	-	34	24213429	-	LA0729	-	hypothetical protein
730	 32.99	0	754350..755216	+	288	24213430	-	LA0730	-	hypothetical protein
731	 27.65	-1	755750..756013	-	87	24213431	-	LA0732	-	hypothetical protein
732	 25.71	-1	755988..756092	+	34	24213432	-	LA0731	-	hypothetical protein
733	 20.45	-2	756239..756370	-	43	24213433	-	LA0733	-	hypothetical protein
734	 36.78	0	756386..756937	+	183	24213434	-	LA0734	-	hypothetical protein
735	 33.50	0	756942..758168	+	408	24213435	-	LA0735	-	hypothetical protein
736	 40.46	+1	758831..760696	+	621	24213436	fusA2	LA0736	-	elongation factor G
737	 43.62	+1	760747..761952	+	401	24213437	-	LA0737	-	elongation factor Tu
738	 41.10	+1	761967..762275	+	102	24213438	rpsJ	LA0738	-	30S ribosomal protein S10
739	 45.25	+2	762287..762907	+	206	24213439	rplC	LA0739	-	50S ribosomal protein L3
740	 38.99	0	762925..763560	+	211	24213440	rplD	LA0740	-	50S ribosomal protein L4
741	 39.37	0	763557..763871	+	104	24213441	rplW	LA0741	-	50S ribosomal protein L23
742	 44.29	+1	763875..764714	+	279	24213442	rplB	LA0742	-	50S ribosomal protein L2
743	 37.59	0	764723..765004	+	93	24213443	rpsS	LA0743	-	30S ribosomal protein S19
744	 40.84	+1	765004..765336	+	110	24213444	rplV	LA0744	-	50S ribosomal protein L22
745	 39.68	0	765349..766026	+	225	24213445	rpsC	LA0745	-	30S ribosomal protein S3
746	 43.24	+1	766049..766462	+	137	24213446	rplP	LA0746	-	50S ribosomal protein L16
747	 35.44	0	766459..766743	+	94	24213447	rpmC	LA0747	-	50S ribosomal protein L29
748	 36.67	0	766753..767022	+	89	24213448	rpsQ	LA0748	-	30S ribosomal protein S17
749	 42.49	+1	767024..767416	+	130	24213449	rplN	LA0749	-	50S ribosomal protein L14
750	 34.72	0	767416..767775	+	119	24213450	rplX	LA0750	-	50S ribosomal protein L24
751	 40.44	+1	767779..768327	+	182	24213451	rplE	LA0751	-	50S ribosomal protein L5
752	 44.62	+1	768347..768532	+	61	24213452	rpsN	LA0752	-	30S ribosomal protein S14
753	 38.56	0	768552..768953	+	133	24213453	rpsH	LA0753	-	30S ribosomal protein S8
754	 38.52	0	768980..769519	+	179	24213454	rplF	LA0754	-	50S ribosomal protein L6
755	 42.55	+1	769523..769891	+	122	24213455	rplR	LA0755	-	50S ribosomal protein L18
756	 41.76	+1	769854..770399	+	181	24213456	rpsE	LA0756	-	30S ribosomal protein S5
757	 36.67	0	770412..770591	+	59	24213457	rpmD	LA0757	-	50S ribosomal protein L30
758	 41.62	+1	770607..771149	+	180	24213458	rplO	LA0758	-	50S ribosomal protein L15
759	 38.68	0	771164..772546	+	460	24213459	secY	LA0759	-	preprotein translocase subunit SecY
760	 41.13	+1	772554..773117	+	187	24213460	-	LA0760	-	adenylate kinase
761	 42.92	+1	773120..773338	+	72	24213461	infA	LA0761	-	translation initiation factor IF-1
762	 40.21	+1	773464..773841	+	125	24213462	rpsM	LA0762	-	30S ribosomal protein S13
763	 44.53	+1	773844..774254	+	136	24213463	rpsK	LA0763	-	30S ribosomal protein S11
764	 40.54	+1	774266..774889	+	207	24213464	rpsD	LA0764	-	30S ribosomal protein S4
765	 39.98	+1	774912..775889	+	325	24213465	rpoA	LA0765	-	DNA-directed RNA polymerase subunit alpha
766	 33.91	0	775891..776406	+	171	24213466	rplQ	LA0766	-	50S ribosomal protein L17
767	 31.78	0	777130..777258	-	42	24213467	-	LA0767	-	hypothetical protein
768	 26.67	-1	777524..777628	+	34	24213468	-	LA0768	-	hypothetical protein
769	 38.33	0	777688..779607	-	639	24213469	-	LA0769	-	hypothetical protein
770	 21.05	-2	779955..780068	-	37	24213470	-	LA0770	-	hypothetical protein
771	 22.36	-2	780041..780286	-	81	24213471	-	LA0771	-	hypothetical protein
772	 24.11	-2	781512..781652	+	46	24213472	-	LA0772	-	hypothetical protein
773	 33.42	0	781642..782787	-	381	24213473	-	LA0773	-	hypothetical protein
774	 42.75	+1	783555..783692	+	45	24213474	-	LA0774	-	hypothetical protein
775	 36.87	0	784005..785078	+	357	24213475	-	LA0775	-	transposase
776	 40.10	+1	786377..787603	-	408	24213476	-	LA0776	-	L,L-diaminopimelate aminotransferase
777	 37.09	0	787587..787985	-	132	24213477	-	LA0777	-	hypothetical protein
778	 38.32	0	787958..788920	-	320	24213478	pyrB	LA0778	-	aspartate carbamoyltransferase catalytic subunit
779	 30.78	0	788921..790015	-	364	24213479	-	LA0779	-	fatty acid desaturase
780	 40.65	+1	790077..790199	-	40	24213480	-	LA0780	-	hypothetical protein
781	 30.10	-1	790374..790682	-	102	24213481	-	LA0781	-	hypothetical protein
782	 37.07	0	790743..791063	-	106	24213482	-	LA0782	-	hypothetical protein
783	 28.70	-1	791250..791357	+	35	24213483	-	LA0783	-	hypothetical protein
784	 34.49	0	791696..792214	+	172	24213484	-	LA0784	-	hypothetical protein
785	 39.08	0	792615..793658	+	347	24213485	-	LA0785	-	hypothetical protein
786	 36.09	0	793868..794992	-	374	24213486	-	LA0786	-	Lipid-A-disaccharide synthetase(lpxB) like protein
787	 35.09	0	794989..795843	-	284	24213487	-	LA0787	-	SpoU rRNA methylase family protein
788	 38.71	0	795810..796757	-	315	24213488	-	LA0788	-	SAM dependent methyltransferase
789	 33.16	0	796735..798510	-	591	24213489	-	LA0789	-	dihydrofolate reductase
790	 40.31	+1	798393..799682	-	429	24213490	gltA2	LA0790	-	citrate synthase
791	 35.96	0	799794..802043	-	749	24213491	-	LA0791	-	soluble lytic murein transglycosylase precursor
792	 36.23	0	802101..803414	+	437	24213492	-	LA0792	-	hypothetical protein
793	 37.08	0	803742..804275	-	177	24213493	-	LA0793	-	hypothetical protein
794	 33.33	0	804471..805016	+	181	24213494	-	LA0794	-	acetyltransferase
795	 21.93	-2	805138..805251	-	37	24213495	-	LA0796	-	hypothetical protein
796	 30.65	0	805224..805895	+	223	24213496	-	LA0795	-	hypothetical protein
797	 30.05	-1	806187..806369	+	60	24213497	-	LA0797	-	hypothetical protein
798	 37.76	0	806685..807452	+	255	24213498	-	LA0798	-	hypothetical protein
799	 39.00	0	807572..808012	+	146	24213499	-	LA0799	-	hypothetical protein
800	 40.23	+1	808070..809128	+	352	24213500	pdxA	LA0800	-	pyridoxal phosphate biosynthetic protein pdxA
801	 32.66	0	809172..809615	+	147	24213501	-	LA0801	-	hypothetical protein
802	 37.52	0	809634..810134	+	166	24213502	-	LA0802	-	TPR repeat-containing protein
803	 37.98	0	810795..811181	+	128	24213503	-	LA0803	-	hypothetical protein
804	 27.08	-1	811328..812047	-	239	24213504	-	LA0804	-	hypothetical protein
805	 25.00	-2	812152..812271	-	39	24213505	-	LA0805	-	hypothetical protein
806	 33.89	0	812521..812877	-	118	24213506	-	LA0806	-	thymidylate kinase
807	 30.56	0	813080..813223	+	47	24213507	-	LA0807	-	hypothetical protein
808	 32.85	0	813245..813868	+	207	24213508	-	LA0808	-	hypothetical protein
809	 42.93	+1	814091..815257	+	388	24213509	-	LA0809	-	serine protease DO
810	 39.86	+1	815258..816283	+	341	24213510	ruvB	LA0810	-	Holliday junction DNA helicase B
811	 41.83	+1	816258..817175	+	305	24213511	-	LA0811	-	hypothetical protein
812	 38.42	0	817172..817525	+	117	24213512	-	LA0812	-	hypothetical protein
813	 31.20	0	817522..817989	+	155	24213513	-	LA0813	-	hypothetical protein
814	 34.95	0	818173..818358	-	61	24213514	-	LA0814	-	hypothetical protein
815	 32.30	0	818394..820229	-	611	24213515	-	LA0815	-	sensory transduction histidine kinase
816	 34.90	0	820230..820931	-	233	24213516	-	LA0816	-	two-component response regulator transcriptional regulator protein
817	 34.28	0	821590..822012	-	140	24213517	-	LA0817	-	hypothetical protein
818	 36.41	0	822036..823043	-	335	24213518	-	LA0818	-	hypothetical protein
819	 43.78	+1	823139..823339	+	66	24213519	-	LA0819	-	hypothetical protein
820	 37.31	0	823309..823911	+	200	24213520	-	LA0820	-	hypothetical protein
821	 34.74	0	823908..824474	+	188	24213521	-	LA0821	-	methylase
822	 54.63	+2	824984..825091	-	35	24213522	-	LA0822	-	hypothetical protein
823	 37.50	0	825197..826108	-	303	24213523	-	LA0823	-	alpha/beta hydrolase fold
824	 37.72	0	826224..826724	-	166	24213524	-	LA0824	-	methionine sulfoxide reductase B
35.02	MEAN

4.84	STD DEV
