IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

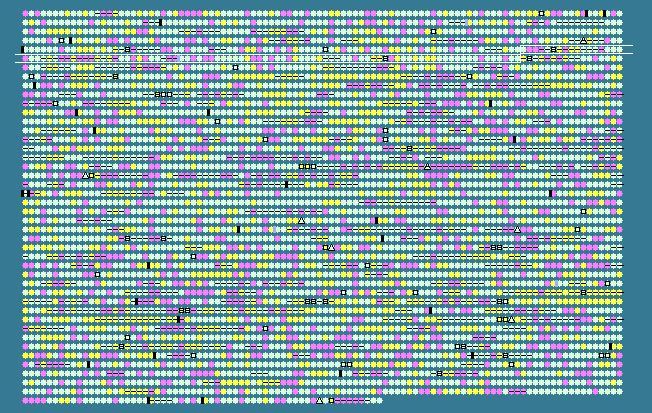

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
484	 33.23	0	477404..478360	+	318	24213184	-	LA0484	-	hypothetical protein
485	 26.85	-1	479075..479182	+	35	24213185	-	LA0485	-	hypothetical protein
486	 26.09	-1	479216..479353	-	45	24213186	-	LA0486	-	hypothetical protein
487	 28.16	-1	479750..479923	+	57	24213187	-	LA0487	-	hypothetical protein
488	 33.41	0	479892..481193	-	433	24213188	pcrA1	LA0488	-	ATP-dependent DNA helicase pcrA
489	 36.87	0	481684..482757	-	357	24213189	-	LA0489	-	transposase
490	 42.59	+1	483008..483115	+	35	24213190	-	LA0490	-	hypothetical protein
491	 25.17	-2	483351..483497	+	48	24213191	-	LA0491	-	hypothetical protein
492	 40.05	+1	484261..485361	+	366	24213192	lipL36	LA0492	-	lipL36 protein
493	 50.00	+2	486371..486484	+	37	24213193	-	LA0493	-	hypothetical protein
494	 36.06	0	486687..487382	-	231	24213194	-	LA0494	-	hypothetical protein
495	 31.55	0	489009..489401	+	130	24213195	-	LA0495	-	hypothetical protein
496	 36.97	0	489931..490287	+	118	24213196	-	LA0496	-	hypothetical protein
497	 23.21	-2	490695..490862	-	55	24213197	-	LA0497	-	hypothetical protein
498	 37.95	0	490959..491630	-	223	24213198	motB1	LA0498	-	chemotaxis motB protein
499	 31.91	0	491620..491760	-	46	24213199	-	LA0499	-	hypothetical protein
500	 32.74	0	491761..492438	+	225	24213200	-	LA0500	-	hypothetical protein
501	 30.59	0	492599..492817	-	72	24213201	-	LA0501	-	hypothetical protein
502	 35.15	0	493227..494324	+	365	24213202	desA	LA0502	-	Fatty acid desaturase
503	 36.07	0	495409..496503	-	364	24213203	dinP	LA0503	-	DNA damage-inducible protein
504	 32.54	0	496525..497280	-	251	24213204	comF	LA0504	-	late competence protein comFC-like protein
505	 40.96	+1	497374..498474	-	366	24213205	-	LA0505	-	glycosyl hydrolase
506	 33.92	0	498559..499236	+	225	24213206	-	LA0506	-	hypothetical protein
507	 26.83	-1	499246..499368	-	40	24213207	-	LA0507	-	hypothetical protein
508	 30.61	0	499825..499971	-	48	24213208	-	LA0508	-	hypothetical protein
509	 44.24	+1	500337..500831	+	164	24213209	-	LA0509	-	hypothetical protein
510	 23.91	-2	501209..501346	-	45	24213210	-	LA0510	-	hypothetical protein
511	 31.31	0	501538..501834	+	98	24213211	-	LA0511	-	transcriptional regulator
512	 24.04	-2	502279..502461	-	60	24213212	-	LA0513	-	hypothetical protein
513	 39.00	0	502451..503473	+	340	24213213	lpxD1	LA0512	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
514	 36.70	0	504378..505268	+	296	24213214	-	LA0514	-	hypothetical protein
515	 38.58	0	505532..506770	+	412	24213215	-	LA0515	-	pyridine nucleotide-disulphide oxidoreductase
516	 29.73	-1	506907..507017	-	36	24213216	-	LA0516	-	hypothetical protein
517	 34.52	0	507005..507340	-	111	24213217	-	LA0517	-	hypothetical protein
518	 33.33	0	507337..507615	-	92	24213218	-	LA0518	-	hypothetical protein
519	 30.48	0	507748..507852	+	34	24213219	-	LA0519	-	hypothetical protein
520	 38.51	0	508318..508761	-	147	24213220	-	LA0520	-	hypothetical protein
521	 26.67	-1	508825..508944	-	39	24213221	-	LA0521	-	hypothetical protein
522	 37.11	0	509194..509643	-	149	24213222	-	LA0522	-	MarR family transcriptional regulator
523	 33.99	0	509738..510964	+	408	24213223	-	LA0523	-	hypothetical protein
524	 34.21	0	511781..513262	+	493	24213224	lat1	LA0524	-	amino acid transporter
525	 30.99	0	513286..513669	+	127	24213225	-	LA0525	-	hypothetical protein
526	 30.72	0	514941..515093	+	50	24213226	-	LA0526	-	hypothetical protein
527	 34.57	0	519055..519297	-	80	24213227	-	LA0528	-	hypothetical protein
528	 33.33	0	519278..519433	+	51	24213228	-	LA0527	-	hypothetical protein
529	 22.01	-2	519686..519844	+	52	24213229	-	LA0529	-	hypothetical protein
530	 34.43	0	520226..521506	-	426	24213230	-	LA0530	-	hypothetical protein
531	 27.62	-1	522206..522310	+	34	24213231	-	LA0531	-	hypothetical protein
532	 30.44	0	523242..524141	+	299	24213232	-	LA0532	-	hypothetical protein
533	 35.77	0	525038..526147	+	369	24213233	-	LA0533	-	DegT/DnrJ/EryC2/StrS family protein
534	 35.03	0	527414..528004	+	196	24213234	-	LA0534	-	hypothetical protein
535	 33.65	0	528555..529508	-	317	24213235	-	LA0535	-	hypothetical protein
536	 32.94	0	529556..530575	+	339	24213236	-	LA0536	-	hypothetical protein
537	 33.91	0	531188..531877	-	229	24213237	-	LA0537	-	haloacid dehalogenase-like hydrolase
538	 40.14	+1	531977..532681	+	234	24213238	-	LA0538	-	ThiJ/PfpI family protein
539	 27.67	-1	532671..532829	-	52	24213239	-	LA0539	-	hypothetical protein
540	 28.47	-1	533806..534237	-	143	24213240	-	LA0540	-	hypothetical protein
541	 33.06	0	534342..534710	-	122	24213241	-	LA0541	-	hypothetical protein
542	 29.91	-1	534716..534832	+	38	24213242	-	LA0542	-	hypothetical protein
543	 35.07	0	535017..536339	-	440	24213243	-	LA0543	-	hypothetical protein
544	 33.33	0	536808..537983	-	391	24213244	-	LA0544	-	hypothetical protein
545	 26.13	-1	537996..538106	-	36	24213245	-	LA0545	-	hypothetical protein
546	 38.84	0	538108..540633	+	841	24213246	-	LA0546	-	hypothetical protein
547	 37.99	0	541191..541877	-	228	24213247	-	LA0547	-	hypothetical protein
548	 35.91	0	542037..542501	+	154	24213248	-	LA0548	-	hypothetical protein
549	 34.66	0	542501..543028	+	175	24213249	-	LA0549	-	hypothetical protein
550	 40.43	+1	544692..548003	+	1103	24213250	-	LA0550	-	NolG efflux transporter
551	 37.06	0	549062..549625	+	187	24213251	hisI	LA0551	-	phosphoribosyl-AMP cyclohydrolase
552	 36.18	0	549674..550690	+	338	24213252	-	LA0552	-	hypothetical protein
553	 36.51	0	551323..551448	+	41	24213253	-	LA0553	-	hypothetical protein
554	 32.95	0	551866..552123	+	85	24213254	-	LA0554	-	hypothetical protein
555	 32.28	0	552354..552542	+	62	24213255	-	LA0555	-	hypothetical protein
556	 30.32	0	552594..553157	-	187	24213256	-	LA0556	-	hypothetical protein
557	 32.46	0	553226..555616	-	796	24213257	-	LA0557	-	NADH dehydrogenase subunit 2
558	 35.06	0	556101..556853	+	250	24213258	-	LA0558	-	lipoprotein
559	 41.38	+1	557074..558129	-	351	24213259	-	LA0559	-	hypothetical protein
560	 42.89	+1	558482..560155	+	557	24213260	-	LA0560	-	Acyl-CoA dehydrogenase
561	 36.78	0	561278..562351	+	357	24213261	-	LA0561	-	transposase
562	 28.16	-1	562637..563119	+	160	24213262	-	LA0562	-	hypothetical protein
563	 38.66	0	563305..564693	-	462	24213263	-	LA0563	-	hypothetical protein
564	 32.15	0	564940..565446	+	168	24213264	-	LA0564	-	hypothetical protein
565	 38.31	0	565819..567063	-	414	24213265	cyaA3	LA0565	-	adenylate cyclase
566	 38.55	0	567852..569441	+	529	24213266	-	LA0566	-	short-chain dehydrogenase
567	 36.96	0	570261..570398	+	45	24213267	-	LA0567	-	hypothetical protein
568	 39.73	0	570430..571851	-	473	24213268	-	LA0568	-	hypothetical protein
569	 39.75	0	572120..574348	+	742	24213269	-	LA0569	-	hypothetical protein
570	 35.97	0	574385..575257	+	290	24213270	-	LA0570	-	hypothetical protein
571	 33.83	0	575264..576472	+	402	24213271	-	LA0571	-	hypothetical protein
572	 35.79	0	576485..579010	+	841	24213272	-	LA0572	-	hypothetical protein
573	 31.92	0	579117..579470	+	117	24213273	-	LA0573	-	hypothetical protein
574	 35.50	0	579723..580367	+	214	24213274	-	LA0574	-	dedA protein
575	 38.00	0	580408..581415	+	335	24213275	-	LA0575	-	hypothetical protein
576	 33.60	0	581690..582829	-	379	24213276	-	LA0576	-	hypothetical protein
577	 31.11	0	583195..583329	+	44	24213277	-	LA0577	-	hypothetical protein
578	 33.56	0	583552..584001	+	149	24213278	-	LA0578	-	hypothetical protein
579	 36.04	0	584016..586268	+	750	24213279	icfA	LA0579	-	carbonic anhydrase
580	 35.98	0	586865..587242	+	125	24213280	-	LA0580	-	hypothetical protein
581	 30.95	0	587261..587386	-	41	24213281	-	LA0582	-	hypothetical protein
582	 33.62	0	587366..588745	+	459	24213282	-	LA0581	-	outer membrane efflux protein
583	 37.41	0	588711..591827	+	1038	24213283	czcA1	LA0583	-	cation efflux system protein CZCA
35.02	MEAN

4.84	STD DEV
