IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

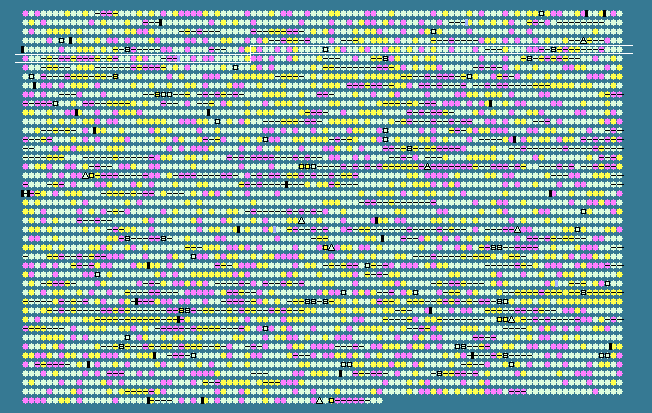

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
439	 39.06	0	436339..437997	-	552	24213139	pmgI	LA0439	-	phosphoglyceromutase
440	 30.00	-1	438260..438379	+	39	24213140	-	LA0440	-	hypothetical protein
441	 33.83	0	438376..440394	+	672	24213141	-	LA0441	-	hypothetical protein
442	 36.46	0	441059..441922	-	287	24213142	-	LA0442	-	hypothetical protein
443	 31.33	0	442005..442553	+	182	24213143	-	LA0443	-	RNA polymerase ECF-type sigma factor
444	 35.37	0	442683..443762	+	359	24213144	-	LA0444	-	hypothetical protein
445	 28.95	-1	444965..445078	+	37	24213145	-	LA0445	-	hypothetical protein
446	 40.65	+1	445240..445704	-	154	24213146	-	LA0446	-	hypothetical protein
447	 33.33	0	447001..447171	+	56	24213147	-	LA0447	-	hypothetical protein
448	 35.96	0	447243..449183	+	646	24213148	-	LA0448	-	ABC transporter, ATP-binding protein
449	 37.72	0	449681..450022	+	113	24213149	-	LA0449	-	rhodanese-like protein
450	 32.14	0	450507..451343	+	278	24213150	-	LA0450	-	hypothetical protein
451	 36.87	0	452072..453145	-	357	24213151	-	LA0451	-	transposase
452	 37.44	0	453648..453842	-	64	24213152	-	LA0452	-	hypothetical protein
453	 44.65	+1	453980..454138	+	52	24213153	-	LA0453	-	hypothetical protein
454	 26.88	-1	454253..454438	+	61	24213154	-	LA0454	-	hypothetical protein
455	 38.07	0	454664..455275	-	203	24213155	-	LA0455	-	TetR family transcriptional regulator
456	 34.69	0	455600..455746	+	48	24213156	-	LA0456	-	hypothetical protein
457	 44.67	+1	456145..457326	+	393	24213157	thiL1	LA0457	-	acetyl-CoA acetyltransferase
458	 31.26	0	457437..457871	+	144	24213158	-	LA0458	-	hypothetical protein
459	 36.32	0	457968..459305	-	445	24213159	amiB1	LA0459	-	N-acetylmuramoyl-L-alanine amidase
460	 33.33	0	459302..459883	-	193	24213160	-	LA0460	-	hypothetical protein
461	 31.48	0	459994..460155	+	53	24213161	-	LA0461	-	hypothetical protein
462	 39.16	0	460361..461167	-	268	24213162	-	LA0462	-	hypothetical protein
463	 45.61	+2	461277..461732	+	151	24213163	ribH	LA0463	-	riboflavin synthase beta chain
464	 37.65	0	461733..462149	+	138	24213164	nusB	LA0464	-	transcription antitermination protein NusB
465	 39.72	0	462142..464208	+	688	24213165	-	LA0465	-	TPR repeat-containing protein
466	 36.67	0	464229..465545	+	438	24213166	-	LA0466	-	PBS lyase HEAT-like protein
467	 30.88	0	466137..466991	-	284	24213167	-	LA0467	-	hypothetical protein
468	 35.29	0	467352..467453	+	33	24213168	-	LA0468	-	hypothetical protein
469	 39.94	+1	468252..469538	+	428	24213169	leuA2	LA0469	-	alpha-isopropylmalate synthase
470	 37.10	0	469546..469731	-	61	24213170	-	LA0470	-	hypothetical protein
471	 35.65	0	469977..470450	-	157	24213171	-	LA0471	-	PBS lyase HEAT-like protein
472	 26.02	-1	470627..470749	-	40	24213172	-	LA0472	-	hypothetical protein
473	 32.32	0	470998..471195	+	65	24213173	-	LA0473	-	hypothetical protein
474	 35.40	0	471212..472372	+	386	24213174	-	LA0474	-	hypothetical protein
475	 32.56	0	472841..472969	-	42	24213175	-	LA0475	-	hypothetical protein
476	 31.15	0	473250..473432	+	60	24213176	-	LA0476	-	hypothetical protein
477	 37.41	0	473474..474895	+	473	24213177	-	LA0477	-	alcohol dehydrogenase
478	 34.77	0	475443..475859	-	138	24213178	-	LA0478	-	hypothetical protein
479	 33.01	0	475906..476211	+	101	24213179	-	LA0479	-	hypothetical protein
480	 36.99	0	476297..476515	+	72	24213180	-	LA0480	-	hypothetical protein
481	 40.13	+1	476631..476939	+	102	24213181	-	LA0481	-	hypothetical protein
482	 36.57	0	476987..477202	-	71	24213182	-	LA0482	-	hypothetical protein
483	 35.06	0	477129..477359	-	76	24213183	-	LA0483	-	hypothetical protein
484	 33.23	0	477404..478360	+	318	24213184	-	LA0484	-	hypothetical protein
485	 26.85	-1	479075..479182	+	35	24213185	-	LA0485	-	hypothetical protein
486	 26.09	-1	479216..479353	-	45	24213186	-	LA0486	-	hypothetical protein
487	 28.16	-1	479750..479923	+	57	24213187	-	LA0487	-	hypothetical protein
488	 33.41	0	479892..481193	-	433	24213188	pcrA1	LA0488	-	ATP-dependent DNA helicase pcrA
489	 36.87	0	481684..482757	-	357	24213189	-	LA0489	-	transposase
490	 42.59	+1	483008..483115	+	35	24213190	-	LA0490	-	hypothetical protein
491	 25.17	-2	483351..483497	+	48	24213191	-	LA0491	-	hypothetical protein
492	 40.05	+1	484261..485361	+	366	24213192	lipL36	LA0492	-	lipL36 protein
493	 50.00	+2	486371..486484	+	37	24213193	-	LA0493	-	hypothetical protein
494	 36.06	0	486687..487382	-	231	24213194	-	LA0494	-	hypothetical protein
495	 31.55	0	489009..489401	+	130	24213195	-	LA0495	-	hypothetical protein
496	 36.97	0	489931..490287	+	118	24213196	-	LA0496	-	hypothetical protein
497	 23.21	-2	490695..490862	-	55	24213197	-	LA0497	-	hypothetical protein
498	 37.95	0	490959..491630	-	223	24213198	motB1	LA0498	-	chemotaxis motB protein
499	 31.91	0	491620..491760	-	46	24213199	-	LA0499	-	hypothetical protein
500	 32.74	0	491761..492438	+	225	24213200	-	LA0500	-	hypothetical protein
501	 30.59	0	492599..492817	-	72	24213201	-	LA0501	-	hypothetical protein
502	 35.15	0	493227..494324	+	365	24213202	desA	LA0502	-	Fatty acid desaturase
503	 36.07	0	495409..496503	-	364	24213203	dinP	LA0503	-	DNA damage-inducible protein
504	 32.54	0	496525..497280	-	251	24213204	comF	LA0504	-	late competence protein comFC-like protein
505	 40.96	+1	497374..498474	-	366	24213205	-	LA0505	-	glycosyl hydrolase
506	 33.92	0	498559..499236	+	225	24213206	-	LA0506	-	hypothetical protein
507	 26.83	-1	499246..499368	-	40	24213207	-	LA0507	-	hypothetical protein
508	 30.61	0	499825..499971	-	48	24213208	-	LA0508	-	hypothetical protein
509	 44.24	+1	500337..500831	+	164	24213209	-	LA0509	-	hypothetical protein
510	 23.91	-2	501209..501346	-	45	24213210	-	LA0510	-	hypothetical protein
511	 31.31	0	501538..501834	+	98	24213211	-	LA0511	-	transcriptional regulator
512	 24.04	-2	502279..502461	-	60	24213212	-	LA0513	-	hypothetical protein
513	 39.00	0	502451..503473	+	340	24213213	lpxD1	LA0512	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
514	 36.70	0	504378..505268	+	296	24213214	-	LA0514	-	hypothetical protein
515	 38.58	0	505532..506770	+	412	24213215	-	LA0515	-	pyridine nucleotide-disulphide oxidoreductase
516	 29.73	-1	506907..507017	-	36	24213216	-	LA0516	-	hypothetical protein
517	 34.52	0	507005..507340	-	111	24213217	-	LA0517	-	hypothetical protein
518	 33.33	0	507337..507615	-	92	24213218	-	LA0518	-	hypothetical protein
519	 30.48	0	507748..507852	+	34	24213219	-	LA0519	-	hypothetical protein
520	 38.51	0	508318..508761	-	147	24213220	-	LA0520	-	hypothetical protein
521	 26.67	-1	508825..508944	-	39	24213221	-	LA0521	-	hypothetical protein
522	 37.11	0	509194..509643	-	149	24213222	-	LA0522	-	MarR family transcriptional regulator
523	 33.99	0	509738..510964	+	408	24213223	-	LA0523	-	hypothetical protein
524	 34.21	0	511781..513262	+	493	24213224	lat1	LA0524	-	amino acid transporter
525	 30.99	0	513286..513669	+	127	24213225	-	LA0525	-	hypothetical protein
526	 30.72	0	514941..515093	+	50	24213226	-	LA0526	-	hypothetical protein
527	 34.57	0	519055..519297	-	80	24213227	-	LA0528	-	hypothetical protein
528	 33.33	0	519278..519433	+	51	24213228	-	LA0527	-	hypothetical protein
529	 22.01	-2	519686..519844	+	52	24213229	-	LA0529	-	hypothetical protein
530	 34.43	0	520226..521506	-	426	24213230	-	LA0530	-	hypothetical protein
531	 27.62	-1	522206..522310	+	34	24213231	-	LA0531	-	hypothetical protein
532	 30.44	0	523242..524141	+	299	24213232	-	LA0532	-	hypothetical protein
533	 35.77	0	525038..526147	+	369	24213233	-	LA0533	-	DegT/DnrJ/EryC2/StrS family protein
534	 35.03	0	527414..528004	+	196	24213234	-	LA0534	-	hypothetical protein
535	 33.65	0	528555..529508	-	317	24213235	-	LA0535	-	hypothetical protein
536	 32.94	0	529556..530575	+	339	24213236	-	LA0536	-	hypothetical protein
537	 33.91	0	531188..531877	-	229	24213237	-	LA0537	-	haloacid dehalogenase-like hydrolase
538	 40.14	+1	531977..532681	+	234	24213238	-	LA0538	-	ThiJ/PfpI family protein
35.02	MEAN

4.84	STD DEV
