IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

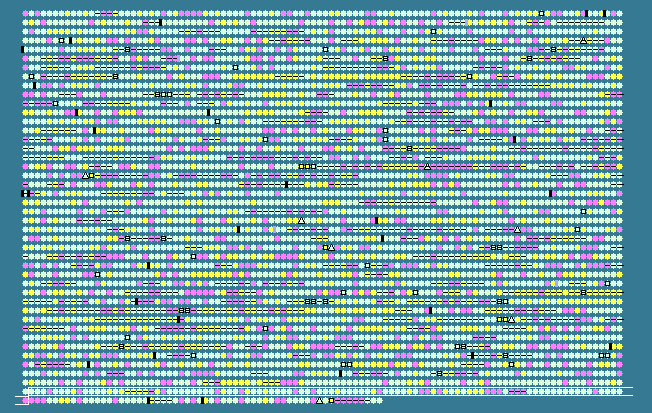

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4202	 37.98	0	4170968..4171807	+	279	24216902	-	LA4203	-	hypothetical protein
4203	 36.71	0	4171968..4173002	+	344	24216903	-	LA4204	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
4204	 34.84	0	4172999..4173796	+	265	24216904	cobS	LA4205	-	cobalamin synthase
4205	 30.77	0	4173781..4174365	+	194	24216905	gpmA	LA4206	-	phosphoglycerate mutase
4206	 34.30	0	4174865..4175998	+	377	24216906	-	LA4207	-	hypothetical protein
4207	 33.71	0	4176002..4177837	-	611	24216907	-	LA4208	-	hypothetical protein
4208	 36.25	0	4177839..4179926	-	695	24216908	-	LA4209	-	hypothetical protein
4209	 38.74	0	4180902..4182749	-	615	24216909	-	LA4210	-	voltage-gated ClC-type chloride channel eriC
4210	 27.13	-1	4182990..4183118	-	42	24216910	-	LA4211	-	hypothetical protein
4211	 32.95	0	4183570..4184346	-	258	24216911	-	LA4212	-	hypothetical protein
4212	 36.18	0	4184343..4185254	-	303	24216912	-	LA4214	-	CAAX amino protease
4213	 35.31	0	4185227..4186237	+	336	24216913	-	LA4213	-	peptidase, M23/M37 family protein
4214	 34.54	0	4186230..4187306	+	358	24216914	-	LA4215	-	strictosidine synthase precursor
4215	 41.55	+1	4187316..4188788	-	490	24216915	sirA	LA4216	-	sulfite reductase subunit beta
4216	 34.48	0	4189038..4189646	-	202	24216916	-	LA4217	-	siroheme synthase
4217	 39.88	+1	4189636..4190475	-	279	24216917	cysG	LA4218	-	uroporphyrinogen III methyltransferase
4218	 39.81	0	4190479..4191729	-	416	24216918	cysN	LA4219	-	hypothetical protein
4219	 40.74	+1	4191729..4192646	-	305	24216919	cysD	LA4220	-	sulfate adenylyltransferase subunit 2
4220	 40.62	+1	4192643..4193383	-	246	24216920	cysH	LA4221	-	phosphoadenosine phosphosulfate reductase
4221	 40.54	+1	4193313..4193423	-	36	24216921	-	LA4222	-	hypothetical protein
4222	 29.35	-1	4194021..4194221	-	66	24216922	-	LA4223	-	hypothetical protein
4223	 45.55	+2	4195011..4196369	+	452	24216923	-	LA4224	-	styrene monooxygenase component 1-like protein
4224	 25.83	-1	4197317..4197436	+	39	24216924	-	LA4225	-	hypothetical protein
4225	 31.91	0	4197749..4198660	+	303	24216925	-	LA4226	-	CAAX amino protease
4226	 35.47	0	4199625..4200746	+	373	24216926	-	LA4227	-	hypothetical protein
4227	 36.40	0	4200848..4201858	+	336	24216927	dppB	LA4228	-	peptide ABC transporter permease
4228	 36.02	0	4201819..4202898	+	359	24216928	dppC	LA4229	-	peptide ABC transporter permease
4229	 37.82	0	4202895..4203896	+	333	24216929	dppD	LA4230	-	peptide ABC transporter ATP-binding protein
4230	 34.59	0	4203893..4204846	+	317	24216930	oppF	LA4231	-	oligopeptide transport ATP-binding protein oppF
4231	 33.72	0	4204825..4206906	+	693	24216931	-	LA4232	-	hypothetical protein
4232	 34.28	0	4206930..4207352	+	140	24216932	-	LA4233	-	hypothetical protein
4233	 27.78	-1	4207601..4207708	+	35	24216933	-	LA4234	-	hypothetical protein
4234	 38.61	0	4207733..4208263	+	176	24216934	-	LA4235	-	hypothetical protein
4235	 33.28	0	4208352..4210184	-	610	24216935	mutS3	LA4236	-	MutS-like mismatch repair protein, ATPase
4236	 37.55	0	4210181..4210417	-	78	24216936	-	LA4237	-	hypothetical protein
4237	 30.56	0	4210422..4210529	+	35	24216937	-	LA4238	-	hypothetical protein
4238	 38.63	0	4211011..4212633	-	540	24216938	-	LA4240	-	hypothetical protein
4239	 32.41	0	4212605..4212712	+	35	24216939	-	LA4239	-	hypothetical protein
4240	 33.33	0	4213068..4213202	+	44	24216940	-	LA4241	-	hypothetical protein
4241	 39.91	+1	4213216..4214340	-	374	24216941	ilvC	LA4242	-	ketol-acid reductoisomerase
4242	 35.91	0	4215230..4216822	-	530	24216942	-	LA4243	-	methyl-accepting chemotaxis protein
4243	 32.06	0	4217501..4217971	+	156	24216943	-	LA4244	-	hypothetical protein
4244	 35.50	0	4218339..4219772	+	477	24216944	-	LA4245	-	flavin-containing monooxygenase
4245	 32.51	0	4219880..4221211	+	443	24216945	-	LA4246	-	phosphodiesterase/alkaline phosphatase D
4246	 30.90	0	4221218..4222039	+	273	24216946	-	LA4247	-	phospholipase/carboxylesterase family protein
4247	 37.27	0	4222691..4223554	-	287	24216947	-	LA4248	-	methylthioadenosine phosphorylase
4248	 34.10	0	4224195..4225763	-	522	24216948	-	LA4249	-	methyl-accepting chemotaxis protein
4249	 26.67	-1	4225804..4225908	+	34	24216949	-	LA4250	-	hypothetical protein
4250	 35.02	0	4226339..4227169	-	276	24216950	-	LA4251	-	ADA regulatory protein
4251	 35.44	0	4227682..4228392	+	236	24216951	-	LA4252	-	hypothetical protein
4252	 35.53	0	4228951..4229724	-	257	24216952	-	LA4253	-	metal binding periplasmic protein
4253	 39.68	0	4229746..4231731	-	661	24216953	-	LA4254	-	acetyl-CoA synthetase
4254	 36.96	0	4231810..4232361	-	183	24216954	folE	LA4255	-	GTP cyclohydrolase I
4255	 36.19	0	4232662..4232766	-	34	24216955	-	LA4257	-	hypothetical protein
4256	 32.01	0	4232755..4233966	+	403	24216956	-	LA4256	-	glycosyl transferase
4257	 35.38	0	4234480..4234968	-	162	24216957	-	LA4258	-	hypothetical protein
4258	 31.64	0	4234949..4235302	-	117	24216958	-	LA4259	-	ArsR family transcriptional regulator
4259	 38.52	0	4235802..4235936	+	44	24216959	-	LA4260	-	hypothetical protein
4260	 31.15	0	4236576..4237535	-	319	24216960	-	LA4261	-	UDP-glucose 4-epimerase
4261	 32.84	0	4237631..4238035	+	134	24216961	-	LA4262	-	hypothetical protein
4262	 35.11	0	4238414..4239202	-	262	24216962	-	LA4263	-	hypothetical protein
4263	 36.30	0	4239308..4241737	+	809	24216963	gpsA3	LA4264	-	glycerol-3-phosphate dehydrogenase
4264	 33.33	0	4242454..4242564	-	36	24216964	-	LA4265	-	hypothetical protein
4265	 39.86	+1	4242776..4243939	-	387	24216965	purT	LA4266	-	phosphoribosylglycinamide formyltransferase 2
4266	 31.87	0	4244096..4245253	-	385	24216966	-	LA4267	-	hypothetical protein
4267	 30.45	0	4245479..4247110	-	543	24216967	-	LA4269	-	AraC family transcriptional regulator
4268	 22.96	-2	4247095..4247229	+	44	24216968	-	LA4268	-	hypothetical protein
4269	 40.84	+1	4247670..4248575	+	301	24216969	-	LA4270	-	hypothetical protein
4270	 21.48	-2	4248720..4248854	+	44	24216970	-	LA4271	-	hypothetical protein
4271	 39.58	0	4248930..4250882	+	650	24216971	-	LA4272	-	hypothetical protein
4272	 38.33	0	4250901..4252622	+	573	24216972	-	LA4273	-	hydrogenase-4 component B
4273	 39.98	+1	4252589..4253476	+	295	24216973	hycD	LA4274	-	hydrogenase-4 component C
4274	 35.59	0	4253495..4254115	+	206	24216974	-	LA4275	-	hydrogenase-4 component E
4275	 38.88	0	4254112..4255320	+	402	24216975	hyfF	LA4276	-	hydrogenase-4 component F
4276	 38.83	0	4255321..4256721	+	466	24216976	hycE	LA4277	-	hydrogenase-3 component E
4277	 40.27	+1	4256718..4257539	+	273	24216977	hycG	LA4278	-	formate hydrogenlyase subunit 7
4278	 23.70	-2	4257717..4258505	+	262	24216978	-	LA4279	-	hypothetical protein
4279	 23.81	-2	4258502..4259047	+	181	24216979	-	LA4280	-	hypothetical protein
4280	 23.28	-2	4259012..4259419	-	135	24216980	-	LA4281	-	hypothetical protein
4281	 35.17	0	4259531..4260946	-	471	24216981	-	LA4282	-	hypothetical protein
4282	 20.72	-2	4261120..4261230	+	36	24216982	-	LA4283	-	hypothetical protein
4283	 29.73	-1	4262044..4262154	+	36	24216983	-	LA4284	-	hypothetical protein
4284	 28.82	-1	4262120..4263049	-	309	24216984	-	LA4285	-	hypothetical protein
4285	 34.57	0	4263163..4264053	+	296	24216985	-	LA4286	-	hypothetical protein
4286	 34.38	0	4264366..4264746	+	126	24216986	-	LA4287	-	ABC-type multidrug transport system, ATP-ase component
4287	 35.63	0	4264747..4265313	+	188	24216987	-	LA4288	-	ABC transporter, ATP-binding protein
4288	 35.73	0	4265310..4266392	+	360	24216988	-	LA4289	-	hypothetical protein
4289	 35.60	0	4266389..4267537	+	382	24216989	pyrD	LA4290	-	dihydroorotate dehydrogenase 2
4290	 38.18	0	4267641..4269083	+	480	24216990	-	LA4291	-	hypothetical protein
4291	 31.85	0	4269073..4269678	+	201	24216991	-	LA4292	-	hypothetical protein
4292	 36.15	0	4270157..4270831	-	224	24216992	-	LA4293	-	hypothetical protein
4293	 35.83	0	4270861..4271421	+	186	24216993	-	LA4294	-	phosphoglycerate mutase family protein
4294	 32.97	0	4271421..4271972	+	183	24216994	-	LA4295	-	hypoxanthine-guanine phosphoribosyltransferase
4295	 36.83	0	4272264..4274036	+	590	24216995	kefC	LA4296	-	glutathione-regulated potassium-efflux system protein kefC
4296	 29.57	-1	4274042..4274227	+	61	24216996	-	LA4297	-	hypothetical protein
4297	 32.44	0	4274755..4275201	-	148	24216997	-	LA4298	-	MarR family transcriptional regulator
4298	 32.33	0	4275225..4275722	-	165	24216998	-	LA4299	-	glutathione peroxidase
4299	 37.78	0	4276374..4277138	+	254	24216999	-	LA4300	-	ThiJ/PfpI family protein
4300	 35.39	0	4277149..4278945	+	598	24217000	kefB	LA4301	-	glutathione-regulated potassium-efflux system protein kefB
4301	 29.41	-1	4279102..4279305	+	67	24217001	-	LA4302	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
