IslandPathversion 1.0

IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

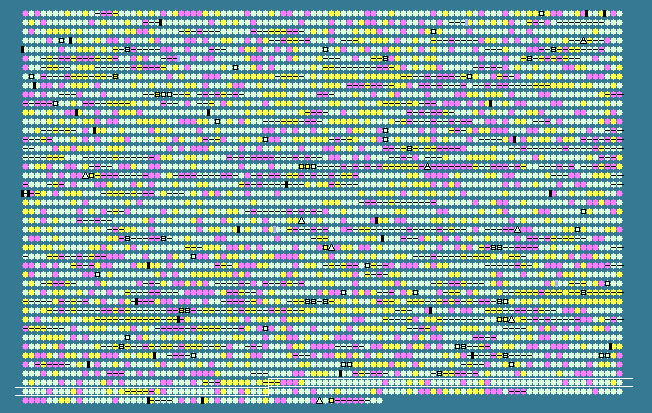

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4142	 38.81	0	4113616..4114491	+	291	24216842	-	LA4143	-	lipoprotein
4143	 38.54	0	4114558..4114749	-	63	24216843	-	LA4144	-	hypothetical protein
4144	 31.51	0	4114883..4115101	-	72	24216844	-	LA4145	-	hypothetical protein
4145	 31.51	0	4116081..4116959	+	292	24216845	-	LA4146	-	hypothetical protein
4146	 27.03	-1	4117153..4117263	-	36	24216846	-	LA4147	-	hypothetical protein
4147	 43.00	+1	4117558..4117764	+	68	24216847	-	LA4148	-	hypothetical protein
4148	 35.99	0	4118316..4118729	-	137	24216848	-	LA4149	-	4-hydroxybenzoyl-CoA thioesterase
4149	 35.28	0	4118731..4119756	-	341	24216849	pheS	LA4150	-	phenylalanyl-tRNA synthetase alpha chain
4150	 36.77	0	4119753..4121150	-	465	24216850	-	LA4151	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso- diaminopimelate ligase
4151	 33.66	0	4121147..4121764	-	205	24216851	-	LA4152	-	hypothetical protein
4152	 35.69	0	4121751..4122854	-	367	24216852	-	LA4153	-	hypothetical protein
4153	 36.83	0	4122851..4124878	-	675	24216853	-	LA4154	-	hypothetical protein
4154	 34.57	0	4124866..4125594	-	242	24216854	-	LA4155	-	ABC transporter permease
4155	 37.74	0	4125599..4126528	-	309	24216855	-	LA4156	-	ABC transporter ATP-binding protein
4156	 35.14	0	4126916..4127137	-	73	24216856	-	LA4157	-	hypothetical protein
4157	 35.99	0	4127119..4127682	-	187	24216857	-	LA4158	-	hypothetical protein
4158	 37.74	0	4127844..4129001	+	385	24216858	-	LA4159	-	malonyl-CoA transacylase
4159	 32.52	0	4129340..4130563	+	407	24216859	-	LA4160	-	hypothetical protein
4160	 37.72	0	4130892..4133237	-	781	24216860	-	LA4161	-	thermolysin
4161	 27.12	-1	4133234..4133410	-	58	24216861	-	LA4162	-	hypothetical protein
4162	 32.16	0	4133712..4133882	-	56	24216862	-	LA4163	-	hypothetical protein
4163	 36.82	0	4134306..4136684	-	792	24216863	-	LA4164	-	thermolysin
4164	 35.94	0	4137365..4137556	-	63	24216864	-	LA4166	-	hypothetical protein
4165	 39.60	0	4137548..4138759	+	403	24216865	-	LA4165	-	argininosuccinate synthase
4166	 36.02	0	4138756..4139238	+	160	24216866	coaD	LA4167	-	phosphopantetheine adenylyltransferase
4167	 40.58	+1	4139248..4139661	+	137	24216867	-	LA4168	-	nucleoside diphosphate kinase
4168	 22.86	-2	4139772..4139876	-	34	24216868	-	LA4169	-	hypothetical protein
4169	 36.51	0	4140130..4140318	+	62	24216869	-	LA4170	-	hypothetical protein
4170	 38.38	0	4141233..4142699	+	488	24216870	icd2	LA4171	-	isocitrate dehydrogenase
4171	 33.33	0	4142912..4143343	+	143	24216871	-	LA4172	-	hypothetical protein
4172	 36.50	0	4143872..4144282	-	136	24216872	-	LA4173	-	two-component response regulator
4173	 33.78	0	4144266..4145825	-	519	24216873	-	LA4174	-	two-component hybrid sensor and regulator
4174	 25.93	-1	4145926..4146033	+	35	24216874	-	LA4175	-	hypothetical protein
4175	 37.86	0	4146321..4146563	-	80	24216875	-	LA4176	-	hypothetical protein
4176	 34.92	0	4146644..4147210	+	188	24216876	-	LA4177	-	hypothetical protein
4177	 39.95	+1	4147207..4148763	+	518	24216877	-	LA4178	-	GMC oxidoreductase
4178	 30.42	0	4149415..4149654	+	79	24216878	-	LA4179	-	hypothetical protein
4179	 33.42	0	4149651..4150829	+	392	24216879	-	LA4180	-	aminotransferase
4180	 37.06	0	4151843..4152835	-	330	24216880	-	LA4181	-	carboxypeptidase
4181	 32.85	0	4152844..4153257	-	137	24216881	-	LA4182	-	lipoprotein
4182	 37.31	0	4153269..4153997	-	242	24216882	motB4	LA4183	-	flagellar motor protein MotB
4183	 35.33	0	4153994..4154644	-	216	24216883	-	LA4184	-	hypothetical protein
4184	 36.34	0	4154641..4155870	-	409	24216884	-	LA4185	-	hypothetical protein
4185	 35.77	0	4155966..4156088	+	40	24216885	-	LA4186	-	hypothetical protein
4186	 38.26	0	4156160..4156687	-	175	24216886	-	LA4187	-	hypothetical protein
4187	 33.91	0	4156824..4157684	-	286	24216887	-	LA4188	-	hypothetical protein
4188	 35.71	0	4157686..4158273	-	195	24216888	-	LA4189	-	hypothetical protein
4189	 37.80	0	4158346..4159911	-	521	24216889	gltX	LA4190	-	glutamyl-tRNA synthetase
4190	 34.64	0	4159908..4160822	-	304	24216890	-	LA4191	-	hypothetical protein
4191	 30.23	0	4160836..4160964	+	42	24216891	-	LA4192	-	hypothetical protein
4192	 36.79	0	4161026..4162414	+	462	24216892	gyrA2	LA4193	-	DNA gyrase subunit A
4193	 37.36	0	4162411..4164546	+	711	24216893	gyrB2	LA4194	-	DNA gyrase B subunit
4194	 36.92	0	4164607..4165080	+	157	24216894	-	LA4195	-	hypothetical protein
4195	 27.23	-1	4165364..4166215	+	283	24216895	-	LA4196	-	hypothetical protein
4196	 32.48	0	4166235..4166351	+	38	24216896	-	LA4197	-	hypothetical protein
4197	 35.60	0	4166365..4167336	-	323	24216897	-	LA4198	-	hypothetical protein
4198	 31.86	0	4167652..4167855	+	67	24216898	-	LA4199	-	hypothetical protein
4199	 38.62	0	4168147..4169490	-	447	24216899	-	LA4200	-	L-amino acid oxidase
4200	 36.60	0	4170097..4170249	+	50	24216900	-	LA4201	-	hypothetical protein
4201	 33.16	0	4170254..4170823	+	189	24216901	-	LA4202	-	hypothetical protein
4202	 37.98	0	4170968..4171807	+	279	24216902	-	LA4203	-	hypothetical protein
4203	 36.71	0	4171968..4173002	+	344	24216903	-	LA4204	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
4204	 34.84	0	4172999..4173796	+	265	24216904	cobS	LA4205	-	cobalamin synthase
4205	 30.77	0	4173781..4174365	+	194	24216905	gpmA	LA4206	-	phosphoglycerate mutase
4206	 34.30	0	4174865..4175998	+	377	24216906	-	LA4207	-	hypothetical protein
4207	 33.71	0	4176002..4177837	-	611	24216907	-	LA4208	-	hypothetical protein
4208	 36.25	0	4177839..4179926	-	695	24216908	-	LA4209	-	hypothetical protein
4209	 38.74	0	4180902..4182749	-	615	24216909	-	LA4210	-	voltage-gated ClC-type chloride channel eriC
4210	 27.13	-1	4182990..4183118	-	42	24216910	-	LA4211	-	hypothetical protein
4211	 32.95	0	4183570..4184346	-	258	24216911	-	LA4212	-	hypothetical protein
4212	 36.18	0	4184343..4185254	-	303	24216912	-	LA4214	-	CAAX amino protease
4213	 35.31	0	4185227..4186237	+	336	24216913	-	LA4213	-	peptidase, M23/M37 family protein
4214	 34.54	0	4186230..4187306	+	358	24216914	-	LA4215	-	strictosidine synthase precursor
4215	 41.55	+1	4187316..4188788	-	490	24216915	sirA	LA4216	-	sulfite reductase subunit beta
4216	 34.48	0	4189038..4189646	-	202	24216916	-	LA4217	-	siroheme synthase
4217	 39.88	+1	4189636..4190475	-	279	24216917	cysG	LA4218	-	uroporphyrinogen III methyltransferase
4218	 39.81	0	4190479..4191729	-	416	24216918	cysN	LA4219	-	hypothetical protein
4219	 40.74	+1	4191729..4192646	-	305	24216919	cysD	LA4220	-	sulfate adenylyltransferase subunit 2
4220	 40.62	+1	4192643..4193383	-	246	24216920	cysH	LA4221	-	phosphoadenosine phosphosulfate reductase
4221	 40.54	+1	4193313..4193423	-	36	24216921	-	LA4222	-	hypothetical protein
4222	 29.35	-1	4194021..4194221	-	66	24216922	-	LA4223	-	hypothetical protein
4223	 45.55	+2	4195011..4196369	+	452	24216923	-	LA4224	-	styrene monooxygenase component 1-like protein
4224	 25.83	-1	4197317..4197436	+	39	24216924	-	LA4225	-	hypothetical protein
4225	 31.91	0	4197749..4198660	+	303	24216925	-	LA4226	-	CAAX amino protease
4226	 35.47	0	4199625..4200746	+	373	24216926	-	LA4227	-	hypothetical protein
4227	 36.40	0	4200848..4201858	+	336	24216927	dppB	LA4228	-	peptide ABC transporter permease
4228	 36.02	0	4201819..4202898	+	359	24216928	dppC	LA4229	-	peptide ABC transporter permease
4229	 37.82	0	4202895..4203896	+	333	24216929	dppD	LA4230	-	peptide ABC transporter ATP-binding protein
4230	 34.59	0	4203893..4204846	+	317	24216930	oppF	LA4231	-	oligopeptide transport ATP-binding protein oppF
4231	 33.72	0	4204825..4206906	+	693	24216931	-	LA4232	-	hypothetical protein
4232	 34.28	0	4206930..4207352	+	140	24216932	-	LA4233	-	hypothetical protein
4233	 27.78	-1	4207601..4207708	+	35	24216933	-	LA4234	-	hypothetical protein
4234	 38.61	0	4207733..4208263	+	176	24216934	-	LA4235	-	hypothetical protein
4235	 33.28	0	4208352..4210184	-	610	24216935	mutS3	LA4236	-	MutS-like mismatch repair protein, ATPase
4236	 37.55	0	4210181..4210417	-	78	24216936	-	LA4237	-	hypothetical protein
4237	 30.56	0	4210422..4210529	+	35	24216937	-	LA4238	-	hypothetical protein
4238	 38.63	0	4211011..4212633	-	540	24216938	-	LA4240	-	hypothetical protein
4239	 32.41	0	4212605..4212712	+	35	24216939	-	LA4239	-	hypothetical protein
4240	 33.33	0	4213068..4213202	+	44	24216940	-	LA4241	-	hypothetical protein
4241	 39.91	+1	4213216..4214340	-	374	24216941	ilvC	LA4242	-	ketol-acid reductoisomerase
35.02	MEAN

4.84	STD DEV
