IslandPathversion 1.0

IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

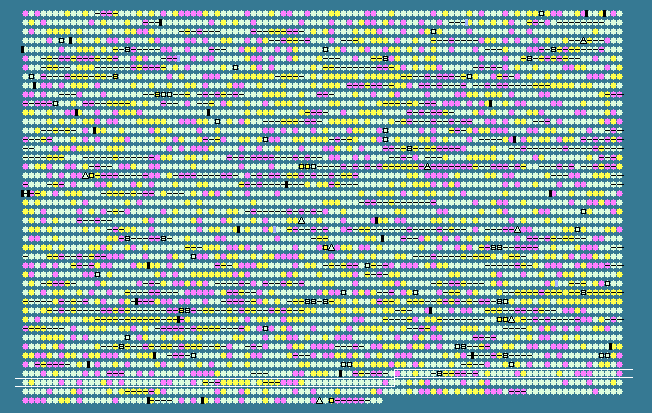

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4063	 28.43	-1	4037645..4038052	+	135	24216763	-	LA4064	-	hypothetical protein
4064	 31.91	0	4038049..4038819	+	256	24216764	-	LA4065	-	two-component response regulator
4065	 34.96	0	4038816..4039490	-	224	24216765	-	LA4066	-	hypothetical protein
4066	 42.27	+1	4039585..4040781	-	398	24216766	icd1	LA4067	-	isocitrate dehydrogenase
4067	 35.63	0	4040850..4041503	-	217	24216767	-	LA4068	-	hypothetical protein
4068	 32.66	0	4041687..4042133	+	148	24216768	-	LA4069	-	hypothetical protein
4069	 34.23	0	4042165..4043280	+	371	24216769	-	LA4070	-	hypothetical protein
4070	 36.78	0	4043737..4044810	+	357	24216770	-	LA4071	-	transposase
4071	 40.00	+1	4045068..4045172	+	34	24216771	-	LA4072	-	hypothetical protein
4072	 39.85	0	4045398..4046870	-	490	24216772	-	LA4073	-	hypothetical protein
4073	 21.93	-2	4046985..4047098	-	37	24216773	-	LA4074	-	hypothetical protein
4074	 29.46	-1	4047307..4047435	-	42	24216774	-	LA4075	-	hypothetical protein
4075	 36.40	0	4047885..4048373	-	162	24216775	-	LA4076	-	hypothetical protein
4076	 27.64	-1	4048377..4048499	-	40	24216776	-	LA4077	-	hypothetical protein
4077	 36.41	0	4048522..4050309	-	595	24216777	-	LA4078	-	apolipoprotein N-acyltransferase
4078	 42.96	+1	4050560..4051858	+	432	24216778	murA	LA4079	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
4079	 38.05	0	4051855..4052511	+	218	24216779	mauM	LA4080	-	methylamine utilization ferredoxin-type protein mauM
4080	 34.68	0	4052553..4052924	+	123	24216780	-	LA4081	-	hypothetical protein
4081	 33.33	0	4054132..4054620	-	162	24216781	-	LA4082	-	hypothetical protein
4082	 33.93	0	4054630..4054965	-	111	24216782	-	LA4083	-	hypothetical protein
4083	 31.06	0	4055432..4056004	-	190	24216783	-	LA4084	-	hypothetical protein
4084	 39.39	0	4055988..4057010	-	340	24216784	-	LA4085	-	Zinc-binding dehydrogenase
4085	 37.00	0	4057007..4057333	-	108	24216785	-	LA4086	-	[2Fe-2S] ferredoxin
4086	 33.94	0	4057727..4058221	+	164	24216786	-	LA4087	-	hypothetical protein
4087	 33.94	0	4058200..4059189	+	329	24216787	-	LA4088	-	hypothetical protein
4088	 37.21	0	4059198..4060022	-	274	24216788	-	LA4089	-	PhzF family phenazine biosynthesis protein
4089	 32.48	0	4060251..4060367	+	38	24216789	-	LA4090	-	hypothetical protein
4090	 40.39	+1	4061034..4062506	-	490	24216790	purF	LA4092	-	amidophosphoribosyltransferase
4091	 35.78	0	4062449..4063714	+	421	24216791	-	LA4091	-	ribonuclease D
4092	 36.16	0	4063746..4064417	+	223	24216792	-	LA4093	-	MutT/nudix family protein
4093	 27.19	-1	4065650..4065763	-	37	24216793	-	LA4094	-	hypothetical protein
4094	 26.67	-1	4065972..4066076	-	34	24216794	-	LA4095	-	hypothetical protein
4095	 29.89	-1	4066146..4066319	+	57	24216795	-	LA4096	-	hypothetical protein
4096	 35.86	0	4066316..4066711	+	131	24216796	-	LA4097	-	hypothetical protein
4097	 35.23	0	4066711..4067289	+	192	24216797	rpoE2	LA4098	-	RNA polymerase ECF-type sigma factor
4098	 33.87	0	4067273..4067644	+	123	24216798	-	LA4099	-	hypothetical protein
4099	 31.99	0	4067641..4068087	+	148	24216799	-	LA4100	-	hypothetical protein
4100	 31.43	0	4068468..4068572	+	34	24216800	-	LA4101	-	hypothetical protein
4101	 33.33	0	4069267..4069407	-	46	24216801	-	LA4103	-	hypothetical protein
4102	 38.60	0	4069396..4070097	+	233	24216802	regX	LA4102	-	sensory transduction protein regX3
4103	 36.93	0	4070087..4071478	+	463	24216803	-	LA4104	-	two-component hybrid sensor and regulator
4104	 37.22	0	4071547..4072704	+	385	24216804	argJ	LA4105	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
4105	 33.33	0	4072685..4073989	+	434	24216805	-	LA4106	-	hypothetical protein
4106	 33.21	0	4073986..4076364	+	792	24216806	rsbP	LA4107	-	sigmaB regulation protein phosphatase 2C rsbP
4107	 31.44	0	4076718..4077404	-	228	24216807	-	LA4108	-	hypothetical protein
4108	 37.60	0	4077609..4078733	-	374	24216808	-	LA4109	-	hypothetical protein
4109	 35.69	0	4078730..4078984	-	84	24216809	-	LA4110	-	hypothetical protein
4110	 28.57	-1	4079545..4079691	+	48	24216810	-	LA4111	-	hypothetical protein
4111	 36.19	0	4079753..4079857	+	34	24216811	-	LA4112	-	hypothetical protein
4112	 34.45	0	4080320..4080676	-	118	24216812	-	LA4113	-	hypothetical protein
4113	 36.42	0	4080696..4082219	-	507	24216813	-	LA4114	-	3-keto-acyl-CoA thiolase
4114	 38.89	0	4082496..4082945	-	149	24216814	-	LA4115	-	MaoC family protein
4115	 27.03	-1	4083564..4083674	+	36	24216815	-	LA4116	-	hypothetical protein
4116	 35.51	0	4083775..4085379	-	534	24216816	-	LA4117	-	Acyl-CoA dehydrogenase
4117	 22.76	-2	4085774..4085896	-	40	24216817	-	LA4118	-	hypothetical protein
4118	 37.19	0	4086408..4088453	-	681	24216818	ligA	LA4119	-	DNA ligase
4119	 36.73	0	4088472..4089443	-	323	24216819	-	LA4120	-	M23/M37 familypeptidase
4120	 35.28	0	4089724..4090083	-	119	24216820	-	LA4121	-	hypothetical protein
4121	 33.92	0	4090101..4090610	-	169	24216821	rpoE3	LA4122	-	RNA polymerase ECF-type sigma factor
4122	 37.80	0	4090618..4091199	-	193	24216822	-	LA4123	-	hypothetical protein
4123	 35.50	0	4091332..4092024	+	230	24216823	sanA	LA4124	-	SanA protein
4124	 22.48	-2	4092842..4092970	+	42	24216824	-	LA4125	-	hypothetical protein
4125	 30.60	0	4093319..4094452	-	377	24216825	-	LA4126	-	sensory transduction histidine kinase
4126	 32.10	0	4094657..4095787	-	376	24216826	-	LA4127	-	sensory transduction histidine kinase
4127	 38.26	0	4096183..4096527	-	114	24216827	-	LA4128	-	lipoprotein
4128	 37.23	0	4096524..4097036	-	170	24216828	-	LA4129	-	ankyrin repeat-containing protein
4129	 30.30	0	4097575..4098102	+	175	24216829	-	LA4130	-	LuxR family transcriptional regulator
4130	 34.75	0	4098661..4100640	+	659	24216830	-	LA4131	-	M48 family peptidase
4131	 40.12	+1	4101122..4101283	-	53	24216831	-	LA4132	-	hypothetical protein
4132	 33.33	0	4101613..4102140	+	175	24216832	-	LA4133	-	Appr-1''-p processing enzyme family protein
4133	 27.19	-1	4102557..4102670	+	37	24216833	-	LA4134	-	hypothetical protein
4134	 41.48	+1	4102858..4105446	-	862	24216834	-	LA4135	-	hypothetical protein
4135	 38.76	0	4106184..4106312	-	42	24216835	-	LA4136	-	hypothetical protein
4136	 45.00	+2	4107516..4108055	-	179	24216836	-	LA4137	-	NADPH-dependent FMN reductase
4137	 42.33	+1	4108362..4109672	+	436	24216837	had	LA4138	-	3-hydroxyacyl-CoA dehydrogenase
4138	 43.13	+1	4109688..4110953	+	421	24216838	fadA	LA4139	-	acetyl-CoA acetyltransferase
4139	 35.62	0	4110956..4111393	+	145	24216839	-	LA4140	-	hypothetical protein
4140	 44.44	+1	4111947..4112099	+	50	24216840	-	LA4141	-	hypothetical protein
4141	 38.63	0	4112124..4113086	-	320	24216841	-	LA4142	-	lipoprotein
4142	 38.81	0	4113616..4114491	+	291	24216842	-	LA4143	-	lipoprotein
4143	 38.54	0	4114558..4114749	-	63	24216843	-	LA4144	-	hypothetical protein
4144	 31.51	0	4114883..4115101	-	72	24216844	-	LA4145	-	hypothetical protein
4145	 31.51	0	4116081..4116959	+	292	24216845	-	LA4146	-	hypothetical protein
4146	 27.03	-1	4117153..4117263	-	36	24216846	-	LA4147	-	hypothetical protein
4147	 43.00	+1	4117558..4117764	+	68	24216847	-	LA4148	-	hypothetical protein
4148	 35.99	0	4118316..4118729	-	137	24216848	-	LA4149	-	4-hydroxybenzoyl-CoA thioesterase
4149	 35.28	0	4118731..4119756	-	341	24216849	pheS	LA4150	-	phenylalanyl-tRNA synthetase alpha chain
4150	 36.77	0	4119753..4121150	-	465	24216850	-	LA4151	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso- diaminopimelate ligase
4151	 33.66	0	4121147..4121764	-	205	24216851	-	LA4152	-	hypothetical protein
4152	 35.69	0	4121751..4122854	-	367	24216852	-	LA4153	-	hypothetical protein
4153	 36.83	0	4122851..4124878	-	675	24216853	-	LA4154	-	hypothetical protein
4154	 34.57	0	4124866..4125594	-	242	24216854	-	LA4155	-	ABC transporter permease
4155	 37.74	0	4125599..4126528	-	309	24216855	-	LA4156	-	ABC transporter ATP-binding protein
4156	 35.14	0	4126916..4127137	-	73	24216856	-	LA4157	-	hypothetical protein
4157	 35.99	0	4127119..4127682	-	187	24216857	-	LA4158	-	hypothetical protein
4158	 37.74	0	4127844..4129001	+	385	24216858	-	LA4159	-	malonyl-CoA transacylase
4159	 32.52	0	4129340..4130563	+	407	24216859	-	LA4160	-	hypothetical protein
4160	 37.72	0	4130892..4133237	-	781	24216860	-	LA4161	-	thermolysin
4161	 27.12	-1	4133234..4133410	-	58	24216861	-	LA4162	-	hypothetical protein
4162	 32.16	0	4133712..4133882	-	56	24216862	-	LA4163	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
