IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

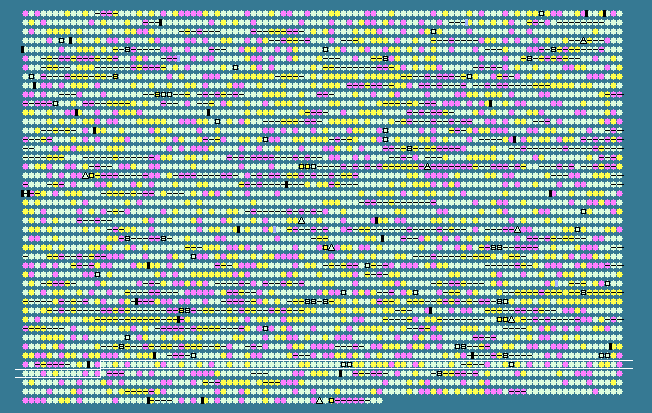

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3914	 33.16	0	3883055..3884215	+	386	24216614	-	LA3914	-	AraC family transcriptional regulator
3915	 34.33	0	3885750..3886754	-	334	24216615	-	LA3916	-	hypothetical protein
3916	 38.82	0	3886829..3887338	-	169	24216616	-	LA3917	-	hypothetical protein
3917	 36.73	0	3887449..3889596	+	715	24216617	metG	LA3918	-	methionyl-tRNA synthetase
3918	 29.17	-1	3889606..3889725	+	39	24216618	-	LA3919	-	hypothetical protein
3919	 33.33	0	3889694..3889810	-	38	24216619	-	LA3920	-	hypothetical protein
3920	 35.61	0	3890562..3893192	+	876	24216620	glnD	LA3921	-	uridylyltransferase
3921	 32.42	0	3893236..3893781	-	181	24216621	-	LA3922	-	hypothetical protein
3922	 35.65	0	3893797..3894531	-	244	24216622	-	LA3923	-	hypothetical protein
3923	 39.96	+1	3895004..3895969	-	321	24216623	-	LA3924	-	NAD(P)-dependent steroid dehydrogenase
3924	 27.03	-1	3896469..3896579	+	36	24216624	-	LA3925	-	hypothetical protein
3925	 38.45	0	3896933..3900100	+	1055	24216625	-	LA3926	-	transmembrane efflux pump protein
3926	 32.74	0	3900728..3902758	+	676	24216626	tolC	LA3927	-	Outer membrane protein tolC precursor
3927	 39.43	0	3902801..3904588	+	595	24216627	fadE2	LA3928	-	acyl-CoA dehydrogenase
3928	 35.26	0	3905449..3906432	+	327	24216628	-	LA3929	-	GGDEF domain-containing protein
3929	 35.95	0	3906651..3907643	-	330	24216629	murB	LA3930	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3930	 41.27	+1	3907703..3907828	+	41	24216630	-	LA3931	-	hypothetical protein
3931	 35.90	0	3907787..3907903	-	38	24216631	-	LA3932	-	hypothetical protein
3932	 27.36	-1	3908335..3908535	-	66	24216632	-	LA3933	-	hypothetical protein
3933	 36.43	0	3908616..3908873	+	85	24216633	-	LA3934	-	hypothetical protein
3934	 36.39	0	3909009..3909695	-	228	24216634	-	LA3935	-	pantothenate metabolism flavoprotein-like protein
3935	 40.88	+1	3909712..3910254	-	180	24216635	-	LA3936	-	phosphopantothenoylcysteine decarboxylase
3936	 36.70	0	3910270..3911604	-	444	24216636	hlyC	LA3937	-	hemolysin-like protein
3937	 34.18	0	3911824..3914409	-	861	24216637	-	LA3938	-	hypothetical protein
3938	 38.79	0	3914415..3915422	-	335	24216638	gpsA2	LA3939	-	glycerol-3-phosphate dehydrogenase
3939	 33.19	0	3915551..3916237	+	228	24216639	-	LA3940	-	hypothetical protein
3940	 31.88	0	3916241..3916378	-	45	24216640	-	LA3942	-	hypothetical protein
3941	 37.28	0	3916364..3917350	+	328	24216641	-	LA3941	-	phosphoesterase
3942	 35.55	0	3917353..3918030	+	225	24216642	-	LA3943	-	hypothetical protein
3943	 37.38	0	3918027..3918446	+	139	24216643	-	LA3944	-	hypothetical protein
3944	 38.07	0	3918427..3920601	+	724	24216644	recG	LA3945	-	ATP-dependent DNA helicase recG
3945	 37.36	0	3922088..3922435	-	115	24216645	-	LA3946	-	hypothetical protein
3946	 34.42	0	3922636..3923370	+	244	24216646	-	LA3947	-	D-alanyl-D-alanine carboxypeptidase family protein
3947	 40.43	+1	3923371..3924342	-	323	24216647	galE4	LA3948	-	UDP-glucose 4-epimerase
3948	 38.59	0	3924339..3925118	-	259	24216648	lpxA	LA3949	-	UDP-N-acetylglucosamine acyltransferase
3949	 37.93	0	3925265..3925612	+	115	24216649	-	LA3950	-	hypothetical protein
3950	 34.67	0	3925793..3925942	-	49	24216650	-	LA3951	-	hypothetical protein
3951	 38.37	0	3925982..3926914	+	310	24216651	-	LA3952	-	huntingtin interacting protein E-like protein
3952	 35.09	0	3926943..3927056	-	37	24216652	-	LA3953	-	hypothetical protein
3953	 36.71	0	3928076..3928786	+	236	24216653	-	LA3954	-	hypothetical protein
3954	 38.32	0	3928771..3929151	+	126	24216654	-	LA3955	-	transposase
3955	 36.78	0	3929476..3930549	+	357	24216655	-	LA3956	-	transposase
3956	 40.91	+1	3931006..3932127	-	373	24216656	aroF	LA3957	-	DAHP synthase
3957	 39.47	0	3932202..3932999	-	265	24216657	panB	LA3958	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
3958	 33.78	0	3932983..3933432	-	149	24216658	folK	LA3959	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
3959	 39.74	0	3933429..3934286	-	285	24216659	dnaC	LA3960	-	DNA replication protein C
3960	 40.07	+1	3934973..3935893	+	306	24216660	-	LA3961	-	hypothetical protein
3961	 38.85	0	3936747..3937145	+	132	24216661	-	LA3962	-	hypothetical protein
3962	 26.85	-1	3937406..3937513	+	35	24216662	-	LA3963	-	hypothetical protein
3963	 40.96	+1	3937840..3938862	-	340	24216663	-	LA3964	-	GDP-mannose 4,6 dehydratase
3964	 38.96	0	3938906..3940327	-	473	24216664	-	LA3965	-	hypothetical protein
3965	 38.26	0	3940766..3941293	-	175	24216665	-	LA3966	-	hypothetical protein
3966	 26.83	-1	3941328..3941450	+	40	24216666	-	LA3967	-	hypothetical protein
3967	 51.11	+2	3941461..3941595	-	44	24216667	-	LA3968	-	hypothetical protein
3968	 36.27	0	3942065..3943390	+	441	24216668	-	LA3969	-	adenosine deaminase
3969	 38.34	0	3943556..3944473	+	305	24216669	-	LA3970	-	hypothetical protein
3970	 35.83	0	3944473..3946272	+	599	24216670	-	LA3971	-	Na+-transporting ATP synthase
3971	 37.27	0	3946285..3946995	+	236	24216671	ktrA	LA3972	-	K+ transport systems, NAD-binding component
3972	 39.42	0	3946980..3948047	-	355	24216672	kvb2	LA3973	-	aldo/keto reductase family protein
3973	 32.17	0	3948529..3949731	+	400	24216673	-	LA3974	-	hypothetical protein
3974	 36.11	0	3949757..3950044	-	95	24216674	acyp	LA3975	-	acylphosphatase
3975	 40.18	+1	3950034..3950471	-	145	24216675	-	LA3976	-	globin-like protein
3976	 37.63	0	3950471..3950959	-	162	24216676	invA	LA3977	-	invasion-associated protein A
3977	 36.34	0	3951505..3951936	+	143	24216677	-	LA3978	-	SET family protein
3978	 26.09	-1	3951958..3952095	-	45	24216678	-	LA3979	-	hypothetical protein
3979	 35.23	0	3952359..3953147	-	262	24216679	glpQ2	LA3980	-	glycerophosphoryl diester phosphodiesterase
3980	 31.82	0	3953158..3953289	+	43	24216680	-	LA3981	-	hypothetical protein
3981	 38.80	0	3953282..3953665	-	127	24216681	-	LA3982	-	hypothetical protein
3982	 36.69	0	3954536..3955609	+	357	24216682	-	LA3983	-	transposase
3983	 40.00	+1	3955671..3955805	-	44	24216683	-	LA3984	-	hypothetical protein
3984	 32.79	0	3956038..3957138	-	366	24216684	mltA	LA3985	-	membrane-bound lytic murein transglycosylase A precursor
3985	 31.21	0	3957241..3958845	-	534	24216685	-	LA3986	-	AraC family transcriptional regulator
3986	 32.14	0	3959427..3959927	-	166	24216686	-	LA3987	-	hypothetical protein
3987	 37.41	0	3960871..3962340	-	489	24216687	-	LA3988	-	potassium/proton antiporter
3988	 27.08	-1	3962637..3962780	-	47	24216688	-	LA3989	-	hypothetical protein
3989	 35.19	0	3962817..3963032	-	71	24216689	-	LA3990	-	hypothetical protein
3990	 32.46	0	3963054..3963509	-	151	24216690	-	LA3991	-	acetyltransferase
3991	 27.13	-1	3963592..3963720	-	42	24216691	-	LA3992	-	hypothetical protein
3992	 38.00	0	3964179..3965465	-	428	24216692	-	LA3993	-	hypothetical protein
3993	 35.57	0	3965573..3967270	+	565	24216693	-	LA3994	-	methyltransferase
3994	 32.93	0	3967396..3969858	-	820	24216694	-	LA3996	-	two-component hybrid sensor and regulator
3995	 23.70	-2	3969833..3969967	+	44	24216695	-	LA3995	-	hypothetical protein
3996	 37.96	0	3970218..3971297	-	359	24216696	-	LA3997	-	GTPase
3997	 38.82	0	3972263..3975670	+	1135	24216697	-	LA3998	-	cholesterol oxidase
3998	 40.60	+1	3975717..3977285	+	522	24216698	choB	LA3999	-	cholesterol oxidase precursor
3999	 36.44	0	3977576..3978316	+	246	24216699	-	LA4000	-	hypothetical protein
4000	 26.13	-1	3978649..3978759	-	36	24216700	-	LA4001	-	hypothetical protein
4001	 32.80	0	3979052..3979237	-	61	24216701	-	LA4002	-	hypothetical protein
4002	 38.04	0	3979254..3979763	-	169	24216702	-	LA4003	-	hypothetical protein
4003	 32.56	0	3980227..3981903	+	558	24216703	sph3	LA4004	-	sphingomyelinase C precursor
4004	 15.22	-2	3982138..3982275	-	45	24216704	-	LA4006	-	hypothetical protein
4005	 34.41	0	3982264..3982914	+	216	24216705	-	LA4005	-	hypothetical protein
4006	 39.86	0	3983902..3984039	+	45	24216706	-	LA4007	-	hypothetical protein
4007	 38.44	0	3984244..3988434	-	1396	24216707	cyaA16	LA4008	-	adenylate cyclase
4008	 37.68	0	3988742..3990466	-	574	24216708	choA	LA4009	-	cholesterol oxidase precursor
4009	 32.89	0	3990495..3990941	-	148	24216709	-	LA4010	-	hypothetical protein
4010	 38.11	0	3990926..3991741	-	271	24216710	-	LA4011	-	hypothetical protein
4011	 31.43	0	3991876..3991980	-	34	24216711	-	LA4012	-	hypothetical protein
4012	 37.86	0	3993138..3994064	+	308	24216712	czcD2	LA4013	-	cobalt-zinc-cadmium resistance protein czcD
4013	 30.00	-1	3994398..3994517	-	39	24216713	-	LA4014	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
