IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

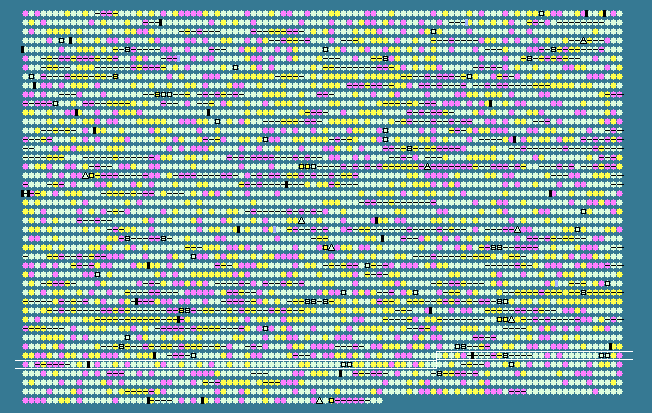

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3870	 37.55	0	3833477..3836629	-	1050	24216570	czcA5	LA3871	-	cation efflux system protein CZCA
3871	 39.62	0	3837244..3838197	+	317	24216571	sppA3	LA3872	-	signal peptide peptidase sppA
3872	 34.83	0	3838204..3838803	+	199	24216572	-	LA3873	-	hypothetical protein
3873	 38.51	0	3838800..3839552	+	250	24216573	surE	LA3874	-	stationary-phase survival protein surE-like protein
3874	 19.05	-2	3840066..3840170	-	34	24216574	-	LA3875	-	hypothetical protein
3875	 32.20	0	3840493..3841200	+	235	24216575	-	LA3876	-	TPR repeat-containing protein
3876	 32.61	0	3841970..3842245	-	91	24216576	-	LA3877	-	hypothetical protein
3877	 36.59	0	3842532..3842654	+	40	24216577	-	LA3878	-	hypothetical protein
3878	 35.30	0	3842661..3843575	+	304	24216578	-	LA3879	-	hypothetical protein
3879	 30.83	0	3843632..3843751	-	39	24216579	-	LA3880	-	hypothetical protein
3880	 42.98	+1	3844076..3847681	-	1201	24216580	-	LA3881	-	hypothetical protein
3881	 36.87	0	3849260..3850333	+	357	24216581	-	LA3882	-	transposase
3882	 35.76	0	3850548..3851165	-	205	24216582	-	LA3883	-	Uracil-DNA glycosylase
3883	 34.23	0	3851179..3851622	-	147	24216583	-	LA3884	-	anti-sigma factor antagonist
3884	 33.91	0	3851619..3852662	-	347	24216584	galK	LA3885	-	galactokinase
3885	 33.33	0	3853056..3853187	-	43	24216585	-	LA3886	-	hypothetical protein
3886	 33.33	0	3853462..3853569	-	35	24216586	-	LA3887	-	hypothetical protein
3887	 37.52	0	3854186..3855523	+	445	24216587	pgi	LA3888	-	glucose-6-phosphate isomerase
3888	 30.77	0	3856513..3856629	+	38	24216588	-	LA3889	-	hypothetical protein
3889	 35.49	0	3857065..3857943	+	292	24216589	-	LA3890	-	hypothetical protein
3890	 29.73	-1	3858252..3858362	-	36	24216590	-	LA3891	-	hypothetical protein
3891	 34.71	0	3858359..3859087	-	242	24216591	rfbM2	LA3892	-	GDP-mannose pyrophosphorylase
3892	 33.13	0	3859084..3860079	-	331	24216592	-	LA3893	-	hypothetical protein
3893	 36.35	0	3860084..3861607	-	507	24216593	-	LA3894	-	two-component hybrid sensor and regulator
3894	 35.78	0	3861636..3863960	-	774	24216594	-	LA3895	-	two-component hybrid sensor and regulator
3895	 31.86	0	3863996..3864199	-	67	24216595	-	LA3896	-	hypothetical protein
3896	 33.89	0	3864796..3865701	+	301	24216596	-	LA3897	-	alpha/beta fold family hydrolase/acetyltransferase
3897	 37.06	0	3866398..3867471	-	357	24216597	-	LA3898	-	transposase
3898	 36.20	0	3868659..3869042	-	127	24216598	-	LA3899	-	transposase
3899	 42.68	+1	3869011..3869406	-	131	24216599	-	LA3900	-	hypothetical protein
3900	 30.16	-1	3869877..3870002	-	41	24216600	-	LA3901	-	hypothetical protein
3901	 29.71	-1	3870155..3870292	-	45	24216601	-	LA3902	-	hypothetical protein
3902	 36.45	0	3870494..3871360	-	288	24216602	-	LA3903	-	metallo-beta-lactamase superfamily protein
3903	 30.89	0	3871444..3871566	-	40	24216603	-	LA3904	-	hypothetical protein
3904	 43.01	+1	3872367..3873575	+	402	24216604	-	LA3905	-	DegT/DnrJ/EryC3/StrS family protein
3905	 24.24	-2	3873756..3873887	-	43	24216605	-	LA3906	-	hypothetical protein
3906	 30.60	0	3874833..3875234	-	133	24216606	-	LA3907	-	hypothetical protein
3907	 25.71	-1	3875331..3875435	+	34	24216607	-	LA3908	-	hypothetical protein
3908	 33.40	0	3875890..3877404	+	504	24216608	-	LA3909	-	hypothetical protein
3909	 33.45	0	3878000..3878872	-	290	24216609	-	LA3910	-	hypothetical protein
3910	 39.06	0	3878916..3879509	+	197	24216610	-	LA3911	-	hypothetical protein
3911	 36.99	0	3879560..3880435	+	291	24216611	-	LA3912	-	hypothetical protein
3912	 32.80	0	3881083..3881649	-	188	24216612	-	LA3913	-	hypothetical protein
3913	 29.58	-1	3882854..3883066	-	70	24216613	-	LA3915	-	hypothetical protein
3914	 33.16	0	3883055..3884215	+	386	24216614	-	LA3914	-	AraC family transcriptional regulator
3915	 34.33	0	3885750..3886754	-	334	24216615	-	LA3916	-	hypothetical protein
3916	 38.82	0	3886829..3887338	-	169	24216616	-	LA3917	-	hypothetical protein
3917	 36.73	0	3887449..3889596	+	715	24216617	metG	LA3918	-	methionyl-tRNA synthetase
3918	 29.17	-1	3889606..3889725	+	39	24216618	-	LA3919	-	hypothetical protein
3919	 33.33	0	3889694..3889810	-	38	24216619	-	LA3920	-	hypothetical protein
3920	 35.61	0	3890562..3893192	+	876	24216620	glnD	LA3921	-	uridylyltransferase
3921	 32.42	0	3893236..3893781	-	181	24216621	-	LA3922	-	hypothetical protein
3922	 35.65	0	3893797..3894531	-	244	24216622	-	LA3923	-	hypothetical protein
3923	 39.96	+1	3895004..3895969	-	321	24216623	-	LA3924	-	NAD(P)-dependent steroid dehydrogenase
3924	 27.03	-1	3896469..3896579	+	36	24216624	-	LA3925	-	hypothetical protein
3925	 38.45	0	3896933..3900100	+	1055	24216625	-	LA3926	-	transmembrane efflux pump protein
3926	 32.74	0	3900728..3902758	+	676	24216626	tolC	LA3927	-	Outer membrane protein tolC precursor
3927	 39.43	0	3902801..3904588	+	595	24216627	fadE2	LA3928	-	acyl-CoA dehydrogenase
3928	 35.26	0	3905449..3906432	+	327	24216628	-	LA3929	-	GGDEF domain-containing protein
3929	 35.95	0	3906651..3907643	-	330	24216629	murB	LA3930	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3930	 41.27	+1	3907703..3907828	+	41	24216630	-	LA3931	-	hypothetical protein
3931	 35.90	0	3907787..3907903	-	38	24216631	-	LA3932	-	hypothetical protein
3932	 27.36	-1	3908335..3908535	-	66	24216632	-	LA3933	-	hypothetical protein
3933	 36.43	0	3908616..3908873	+	85	24216633	-	LA3934	-	hypothetical protein
3934	 36.39	0	3909009..3909695	-	228	24216634	-	LA3935	-	pantothenate metabolism flavoprotein-like protein
3935	 40.88	+1	3909712..3910254	-	180	24216635	-	LA3936	-	phosphopantothenoylcysteine decarboxylase
3936	 36.70	0	3910270..3911604	-	444	24216636	hlyC	LA3937	-	hemolysin-like protein
3937	 34.18	0	3911824..3914409	-	861	24216637	-	LA3938	-	hypothetical protein
3938	 38.79	0	3914415..3915422	-	335	24216638	gpsA2	LA3939	-	glycerol-3-phosphate dehydrogenase
3939	 33.19	0	3915551..3916237	+	228	24216639	-	LA3940	-	hypothetical protein
3940	 31.88	0	3916241..3916378	-	45	24216640	-	LA3942	-	hypothetical protein
3941	 37.28	0	3916364..3917350	+	328	24216641	-	LA3941	-	phosphoesterase
3942	 35.55	0	3917353..3918030	+	225	24216642	-	LA3943	-	hypothetical protein
3943	 37.38	0	3918027..3918446	+	139	24216643	-	LA3944	-	hypothetical protein
3944	 38.07	0	3918427..3920601	+	724	24216644	recG	LA3945	-	ATP-dependent DNA helicase recG
3945	 37.36	0	3922088..3922435	-	115	24216645	-	LA3946	-	hypothetical protein
3946	 34.42	0	3922636..3923370	+	244	24216646	-	LA3947	-	D-alanyl-D-alanine carboxypeptidase family protein
3947	 40.43	+1	3923371..3924342	-	323	24216647	galE4	LA3948	-	UDP-glucose 4-epimerase
3948	 38.59	0	3924339..3925118	-	259	24216648	lpxA	LA3949	-	UDP-N-acetylglucosamine acyltransferase
3949	 37.93	0	3925265..3925612	+	115	24216649	-	LA3950	-	hypothetical protein
3950	 34.67	0	3925793..3925942	-	49	24216650	-	LA3951	-	hypothetical protein
3951	 38.37	0	3925982..3926914	+	310	24216651	-	LA3952	-	huntingtin interacting protein E-like protein
3952	 35.09	0	3926943..3927056	-	37	24216652	-	LA3953	-	hypothetical protein
3953	 36.71	0	3928076..3928786	+	236	24216653	-	LA3954	-	hypothetical protein
3954	 38.32	0	3928771..3929151	+	126	24216654	-	LA3955	-	transposase
3955	 36.78	0	3929476..3930549	+	357	24216655	-	LA3956	-	transposase
3956	 40.91	+1	3931006..3932127	-	373	24216656	aroF	LA3957	-	DAHP synthase
3957	 39.47	0	3932202..3932999	-	265	24216657	panB	LA3958	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
3958	 33.78	0	3932983..3933432	-	149	24216658	folK	LA3959	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
3959	 39.74	0	3933429..3934286	-	285	24216659	dnaC	LA3960	-	DNA replication protein C
3960	 40.07	+1	3934973..3935893	+	306	24216660	-	LA3961	-	hypothetical protein
3961	 38.85	0	3936747..3937145	+	132	24216661	-	LA3962	-	hypothetical protein
3962	 26.85	-1	3937406..3937513	+	35	24216662	-	LA3963	-	hypothetical protein
3963	 40.96	+1	3937840..3938862	-	340	24216663	-	LA3964	-	GDP-mannose 4,6 dehydratase
3964	 38.96	0	3938906..3940327	-	473	24216664	-	LA3965	-	hypothetical protein
3965	 38.26	0	3940766..3941293	-	175	24216665	-	LA3966	-	hypothetical protein
3966	 26.83	-1	3941328..3941450	+	40	24216666	-	LA3967	-	hypothetical protein
3967	 51.11	+2	3941461..3941595	-	44	24216667	-	LA3968	-	hypothetical protein
3968	 36.27	0	3942065..3943390	+	441	24216668	-	LA3969	-	adenosine deaminase
3969	 38.34	0	3943556..3944473	+	305	24216669	-	LA3970	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
