IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

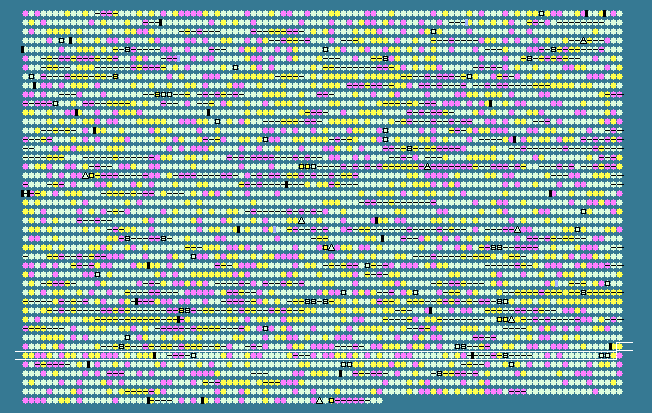

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3800	 39.33	0	3764133..3765965	+	610	24216500	glmS	LA3801	-	glucosamine--fructose-6-phosphate aminotransferase
3801	 39.26	0	3765971..3767017	+	348	24216501	rfbA	LA3802	-	glucose-1-phosphate thymidylyltransferase
3802	 40.35	+1	3767034..3768644	+	536	24216502	pccB2	LA3803	-	propionyl-CoA carboxylase beta chain
3803	 31.53	0	3768826..3768936	+	36	24216503	-	LA3804	-	hypothetical protein
3804	 29.47	-1	3769783..3769989	+	68	24216504	-	LA3805	-	hypothetical protein
3805	 42.38	+1	3770039..3771331	+	430	24216505	amtB	LA3806	-	ammonium transporter
3806	 37.97	0	3771370..3771714	+	114	24216506	glnB	LA3807	-	nitrogen regulatory protein P-II
3807	 28.83	-1	3772127..3772237	-	36	24216507	-	LA3808	-	hypothetical protein
3808	 39.77	0	3772247..3774280	+	677	24216508	-	LA3809	-	hypothetical protein
3809	 40.00	+1	3774837..3775031	+	64	24216509	-	LA3810	-	hypothetical protein
3810	 35.94	0	3775039..3776535	+	498	24216510	speE1	LA3811	-	spermidine synthase
3811	 30.59	0	3776572..3776790	-	72	24216511	-	LA3812	-	hypothetical protein
3812	 38.89	0	3776793..3776918	-	41	24216512	-	LA3813	-	hypothetical protein
3813	 45.44	+2	3777281..3777784	-	167	24216513	-	LA3814	-	hypothetical protein
3814	 30.56	0	3777921..3778064	-	47	24216514	-	LA3815	-	hypothetical protein
3815	 30.77	0	3778334..3778723	+	129	24216515	-	LA3816	-	hypothetical protein
3816	 31.25	0	3778779..3778922	+	47	24216516	-	LA3817	-	hypothetical protein
3817	 35.24	0	3779507..3779977	-	156	24216517	-	LA3818	-	hypothetical protein
3818	 40.35	+1	3779974..3781941	-	655	24216518	ftsH	LA3819	-	cell division protein ftsH
3819	 36.35	0	3782101..3782664	-	187	24216519	-	LA3820	-	peptidyl-tRNA hydrolase
3820	 41.31	+1	3782711..3783349	-	212	24216520	rplY	LA3821	-	50S ribosomal protein L25/general stress protein Ctc
3821	 39.30	0	3783367..3784305	-	312	24216521	prsA	LA3822	-	ribose-phosphate pyrophosphokinase
3822	 40.45	+1	3784302..3785060	-	252	24216522	glmU	LA3823	-	UDP-N-acetylglucosamine pyrophosphorylase
3823	 37.92	0	3785166..3786059	-	297	24216523	ychB	LA3824	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
3824	 35.13	0	3786562..3787506	-	314	24216524	-	LA3825	-	transcription regulator
3825	 32.62	0	3788816..3788956	+	46	24216525	-	LA3826	-	hypothetical protein
3826	 30.81	0	3790365..3790919	+	184	24216526	-	LA3827	-	hypothetical protein
3827	 28.52	-1	3791404..3791673	+	89	24216527	-	LA3828	-	hypothetical protein
3828	 37.20	0	3792027..3792362	-	111	24216528	-	LA3829	-	hypothetical protein
3829	 36.96	0	3794099..3795172	+	357	24216529	-	LA3830	-	transposase
3830	 35.71	0	3795165..3795332	-	55	24216530	-	LA3831	-	hypothetical protein
3831	 33.00	0	3795646..3796251	-	201	24216531	-	LA3832	-	DNA-3-methyladenine glycosidase I tag
3832	 37.38	0	3796825..3797838	-	337	24216532	-	LA3833	-	hypothetical protein
3833	 36.76	0	3798233..3799660	+	475	24216533	-	LA3834	-	hypothetical protein
3834	 41.92	+1	3799811..3800101	-	96	24216534	-	LA3835	-	hypothetical protein
3835	 25.45	-1	3800475..3800639	+	54	24216535	-	LA3836	-	hypothetical protein
3836	 34.29	0	3800804..3800908	+	34	24216536	-	LA3837	-	hypothetical protein
3837	 36.69	0	3801488..3802828	-	446	24216537	-	LA3838	-	hypothetical protein
3838	 40.29	+1	3803664..3804209	-	181	24216538	-	LA3839	-	phosphatidylethanolamine-binding family protein
3839	 25.19	-2	3804293..3804427	-	44	24216539	-	LA3840	-	hypothetical protein
3840	 25.64	-1	3804577..3804693	+	38	24216540	-	LA3841	-	hypothetical protein
3841	 33.33	0	3805898..3806065	-	55	24216541	-	LA3842	-	hypothetical protein
3842	 35.95	0	3806148..3808055	+	635	24216542	cyaA15	LA3843	-	adenylate cyclase
3843	 34.07	0	3808155..3808289	+	44	24216543	-	LA3844	-	hypothetical protein
3844	 33.97	0	3808608..3809240	-	210	24216544	-	LA3845	-	TetR family transcriptional regulator
3845	 39.58	0	3809347..3812598	-	1083	24216545	-	LA3846	-	hypothetical protein
3846	 30.00	-1	3812836..3812985	+	49	24216546	-	LA3847	-	hypothetical protein
3847	 37.80	0	3814294..3815010	-	238	24216547	-	LA3848	-	lipoprotein
3848	 33.88	0	3815020..3815754	-	244	24216548	-	LA3849	-	hypothetical protein
3849	 30.95	0	3815751..3815876	-	41	24216549	-	LA3850	-	hypothetical protein
3850	 33.33	0	3816177..3817184	+	335	24216550	-	LA3851	-	hydrolase of the alpha/beta-hydrolase fold
3851	 25.69	-1	3817158..3817301	-	47	24216551	-	LA3852	-	hypothetical protein
3852	 31.38	0	3817372..3818241	+	289	24216552	-	LA3853	-	hypothetical protein
3853	 39.76	0	3819181..3819600	-	139	24216553	-	LA3854	-	hypothetical protein
3854	 40.18	+1	3819673..3820578	-	301	24216554	-	LA3855	-	Pirin-related protein
3855	 31.01	0	3820629..3821102	+	157	24216555	-	LA3856	-	hypothetical protein
3856	 39.30	0	3821169..3821537	+	122	24216556	-	LA3857	-	hypothetical protein
3857	 34.16	0	3821522..3822844	+	440	24216557	-	LA3858	-	two-component hybrid sensor and regulator
3858	 25.69	-1	3823107..3823250	+	47	24216558	-	LA3859	-	hypothetical protein
3859	 33.33	0	3823345..3823467	-	40	24216559	-	LA3860	-	hypothetical protein
3860	 38.58	0	3823530..3824177	-	215	24216560	-	LA3861	-	hypothetical protein
3861	 35.89	0	3824231..3824974	-	247	24216561	-	LA3862	-	hypothetical protein
3862	 34.98	0	3824971..3825699	-	242	24216562	coaE	LA3863	-	dephospho-CoA kinase
3863	 28.79	-1	3826107..3826304	-	65	24216563	-	LA3864	-	hypothetical protein
3864	 29.46	-1	3826743..3826871	+	42	24216564	-	LA3865	-	hypothetical protein
3865	 20.95	-2	3826956..3827060	-	34	24216565	-	LA3866	-	hypothetical protein
3866	 37.60	0	3827155..3828465	+	436	24216566	-	LA3867	-	lipoprotein
3867	 37.10	0	3828548..3829609	+	353	24216567	-	LA3868	-	sensory transduction histidine kinase
3868	 37.65	0	3829606..3830277	+	223	24216568	-	LA3869	-	two-component response regulator transcriptional regulator protein
3869	 38.38	0	3831203..3832867	+	554	24216569	-	LA3870	-	hypothetical protein
3870	 37.55	0	3833477..3836629	-	1050	24216570	czcA5	LA3871	-	cation efflux system protein CZCA
3871	 39.62	0	3837244..3838197	+	317	24216571	sppA3	LA3872	-	signal peptide peptidase sppA
3872	 34.83	0	3838204..3838803	+	199	24216572	-	LA3873	-	hypothetical protein
3873	 38.51	0	3838800..3839552	+	250	24216573	surE	LA3874	-	stationary-phase survival protein surE-like protein
3874	 19.05	-2	3840066..3840170	-	34	24216574	-	LA3875	-	hypothetical protein
3875	 32.20	0	3840493..3841200	+	235	24216575	-	LA3876	-	TPR repeat-containing protein
3876	 32.61	0	3841970..3842245	-	91	24216576	-	LA3877	-	hypothetical protein
3877	 36.59	0	3842532..3842654	+	40	24216577	-	LA3878	-	hypothetical protein
3878	 35.30	0	3842661..3843575	+	304	24216578	-	LA3879	-	hypothetical protein
3879	 30.83	0	3843632..3843751	-	39	24216579	-	LA3880	-	hypothetical protein
3880	 42.98	+1	3844076..3847681	-	1201	24216580	-	LA3881	-	hypothetical protein
3881	 36.87	0	3849260..3850333	+	357	24216581	-	LA3882	-	transposase
3882	 35.76	0	3850548..3851165	-	205	24216582	-	LA3883	-	Uracil-DNA glycosylase
3883	 34.23	0	3851179..3851622	-	147	24216583	-	LA3884	-	anti-sigma factor antagonist
3884	 33.91	0	3851619..3852662	-	347	24216584	galK	LA3885	-	galactokinase
3885	 33.33	0	3853056..3853187	-	43	24216585	-	LA3886	-	hypothetical protein
3886	 33.33	0	3853462..3853569	-	35	24216586	-	LA3887	-	hypothetical protein
3887	 37.52	0	3854186..3855523	+	445	24216587	pgi	LA3888	-	glucose-6-phosphate isomerase
3888	 30.77	0	3856513..3856629	+	38	24216588	-	LA3889	-	hypothetical protein
3889	 35.49	0	3857065..3857943	+	292	24216589	-	LA3890	-	hypothetical protein
3890	 29.73	-1	3858252..3858362	-	36	24216590	-	LA3891	-	hypothetical protein
3891	 34.71	0	3858359..3859087	-	242	24216591	rfbM2	LA3892	-	GDP-mannose pyrophosphorylase
3892	 33.13	0	3859084..3860079	-	331	24216592	-	LA3893	-	hypothetical protein
3893	 36.35	0	3860084..3861607	-	507	24216593	-	LA3894	-	two-component hybrid sensor and regulator
3894	 35.78	0	3861636..3863960	-	774	24216594	-	LA3895	-	two-component hybrid sensor and regulator
3895	 31.86	0	3863996..3864199	-	67	24216595	-	LA3896	-	hypothetical protein
3896	 33.89	0	3864796..3865701	+	301	24216596	-	LA3897	-	alpha/beta fold family hydrolase/acetyltransferase
3897	 37.06	0	3866398..3867471	-	357	24216597	-	LA3898	-	transposase
3898	 36.20	0	3868659..3869042	-	127	24216598	-	LA3899	-	transposase
3899	 42.68	+1	3869011..3869406	-	131	24216599	-	LA3900	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
