IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

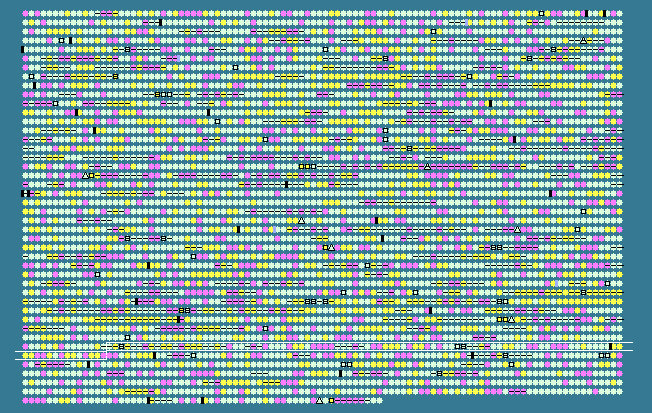

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3715	 37.70	0	3672769..3673203	-	144	24216415	-	LA3716	-	hypothetical protein
3716	 39.80	0	3673338..3673538	-	66	24216416	-	LA3717	-	hypothetical protein
3717	 35.65	0	3673787..3674737	+	316	24216417	-	LA3718	-	transposase
3718	 40.61	+1	3674766..3675425	-	219	24216418	-	LA3719	-	hypothetical protein
3719	 32.82	0	3675558..3676535	-	325	24216419	-	LA3720	-	nuclease family protein
3720	 35.71	0	3676602..3676895	-	97	24216420	-	LA3721	-	hypothetical protein
3721	 30.23	0	3677081..3678013	-	310	24216421	-	LA3722	-	lipoprotein
3722	 40.10	+1	3678080..3678286	-	68	24216422	-	LA3723	-	hypothetical protein
3723	 33.81	0	3678589..3679215	-	208	24216423	-	LA3724	-	lipoprotein
3724	 41.92	+1	3679212..3687569	-	2785	24216424	-	LA3725	-	phenazine biosynthesis family protein
3725	 42.34	+1	3687710..3689242	-	510	24216425	-	LA3726	-	hypothetical protein
3726	 32.30	0	3689460..3689942	-	160	24216426	-	LA3727	-	hypothetical protein
3727	 29.29	-1	3690273..3690470	-	65	24216427	-	LA3728	-	hypothetical protein
3728	 43.52	+1	3690505..3691044	-	179	24216428	-	LA3729	-	Fimh-like protein
3729	 41.49	+1	3691586..3694453	-	955	24216429	-	LA3730	-	lipoprotein
3730	 38.96	0	3695022..3698219	-	1065	24216430	-	LA3731	-	Fmh-like protein
3731	 34.13	0	3698624..3698749	-	41	24216431	-	LA3732	-	hypothetical protein
3732	 35.72	0	3698773..3700194	+	473	24216432	-	LA3733	-	outer membrane efflux protein
3733	 41.05	+1	3700206..3702032	+	608	24216433	-	LA3734	-	hypothetical protein
3734	 34.20	0	3702056..3702751	+	231	24216434	-	LA3735	-	lipoprotein
3735	 29.91	-1	3702753..3703394	+	213	24216435	-	LA3736	-	TPR repeat-containing protein
3736	 34.61	0	3703741..3705234	+	497	24216436	hlyD	LA3737	-	HlyD family secretion protein
3737	 33.30	0	3705231..3708311	+	1026	24216437	czcA4	LA3738	-	cobalt-zinc-cadmium resistance protein CZCA
3738	 35.44	0	3708323..3709273	+	316	24216438	-	LA3739	-	acriflavine resistance protein
3739	 29.28	-1	3709260..3711209	+	649	24216439	-	LA3740	-	hypothetical protein
3740	 34.11	0	3711139..3711909	+	256	24216440	-	LA3741	-	hypothetical protein
3741	 27.01	-1	3711906..3712601	+	231	24216441	-	LA3742	-	hypothetical protein
3742	 32.58	0	3713200..3713331	+	43	24216442	-	LA3743	-	hypothetical protein
3743	 38.08	0	3713517..3714590	-	357	24216443	-	LA3744	-	hypothetical protein
3744	 35.54	0	3714602..3715327	-	241	24216444	-	LA3745	-	hypothetical protein
3745	 31.01	0	3715624..3715752	+	42	24216445	-	LA3746	-	hypothetical protein
3746	 39.93	+1	3715836..3717185	-	449	24216446	thrC	LA3747	-	threonine synthase
3747	 39.58	0	3717189..3718181	-	330	24216447	-	LA3748	-	hypothetical protein
3748	 35.74	0	3718272..3718853	-	193	24216448	-	LA3749	-	hypothetical protein
3749	 26.67	-1	3718944..3719108	+	54	24216449	-	LA3750	-	hypothetical protein
3750	 30.58	0	3719105..3720700	+	531	24216450	-	LA3751	-	hypothetical protein
3751	 30.99	0	3721041..3722576	+	511	24216451	-	LA3752	-	hypothetical protein
3752	 27.58	-1	3723505..3725103	+	532	24216452	-	LA3753	-	hypothetical protein
3753	 35.01	0	3725147..3725743	+	198	24216453	sipC	LA3754	-	Signal peptidase I
3754	 32.54	0	3726112..3726237	+	41	24216454	-	LA3755	-	hypothetical protein
3755	 34.22	0	3726328..3727005	-	225	24216455	-	LA3757	-	acetyltransferase
3756	 28.46	-1	3726980..3727225	+	81	24216456	-	LA3756	-	hypothetical protein
3757	 34.10	0	3727258..3727518	+	86	24216457	rbpA3	LA3758	-	RNA-binding protein
3758	 32.38	0	3727667..3727771	-	34	24216458	-	LA3759	-	hypothetical protein
3759	 26.24	-1	3727890..3728030	-	46	24216459	-	LA3760	-	hypothetical protein
3760	 20.34	-2	3728206..3728382	-	58	24216460	-	LA3761	-	hypothetical protein
3761	 41.72	+1	3728686..3729114	+	142	24216461	-	LA3762	-	hypothetical protein
3762	 40.39	+1	3729293..3731941	+	882	161484946	valS	LA3763	-	valyl-tRNA synthetase
3763	 40.59	+1	3731931..3733211	+	426	24216463	purD	LA3764	-	phosphoribosylamine--glycine ligase
3764	 35.34	0	3733213..3734058	+	281	24216464	-	LA3765	-	hypothetical protein
3765	 26.54	-1	3734094..3734255	-	53	24216465	-	LA3766	-	hypothetical protein
3766	 40.31	+1	3734940..3736043	+	367	24216466	prfB	LA3767	-	peptide chain release factor 2
3767	 42.74	+1	3736077..3736193	-	38	24216467	-	LA3768	-	hypothetical protein
3768	 31.50	0	3736218..3736871	+	217	24216468	-	LA3769	-	hypothetical protein
3769	 35.66	0	3736934..3737707	+	257	24216469	-	LA3770	-	lipoprotein
3770	 28.83	-1	3738016..3738126	-	36	24216470	-	LA3772	-	hypothetical protein
3771	 36.75	0	3738053..3738169	+	38	24216471	-	LA3771	-	hypothetical protein
3772	 34.38	0	3738320..3738511	+	63	24216472	-	LA3773	-	hypothetical protein
3773	 38.33	0	3738864..3739163	+	99	24216473	-	LA3774	-	transposase
3774	 37.22	0	3739163..3740011	+	282	24216474	-	LA3775	-	transposase
3775	 32.41	0	3740433..3740540	+	35	24216475	-	LA3776	-	hypothetical protein
3776	 35.16	0	3741094..3741477	+	127	24216476	-	LA3777	-	protein crcB-like protein
3777	 39.24	0	3741921..3747596	+	1891	24216477	-	LA3778	-	surface protein Lk90-like protein
3778	 31.46	0	3747598..3748077	+	159	24216478	-	LA3779	-	hypothetical protein
3779	 35.70	0	3748052..3748432	+	126	24216479	-	LA3780	-	hypothetical protein
3780	 32.45	0	3748442..3748780	+	112	24216480	-	LA3781	-	hypothetical protein
3781	 43.95	+1	3748762..3749166	-	134	24216481	-	LA3782	-	glyoxalase/bleomycin resistance protein/dioxygenase family protein
3782	 39.65	0	3749420..3750748	-	442	24216482	-	LA3783	-	adenosine deaminase
3783	 36.59	0	3750798..3750920	-	40	24216483	-	LA3784	-	hypothetical protein
3784	 31.85	0	3751431..3751565	-	44	24216484	-	LA3785	-	hypothetical protein
3785	 28.57	-1	3751756..3751860	-	34	24216485	-	LA3786	-	hypothetical protein
3786	 30.07	-1	3752038..3752190	+	50	24216486	-	LA3787	-	hypothetical protein
3787	 34.04	0	3752187..3753038	+	283	24216487	-	LA3788	-	alpha/beta fold family hydrolase/acetyltransferase
3788	 34.09	0	3753399..3754193	+	264	24216488	-	LA3789	-	hypothetical protein
3789	 28.67	-1	3754271..3754720	+	149	24216489	-	LA3790	-	hypothetical protein
3790	 26.44	-1	3754856..3755116	-	86	24216490	-	LA3791	-	hypothetical protein
3791	 27.32	-1	3755210..3755392	-	60	24216491	-	LA3792	-	hypothetical protein
3792	 36.03	0	3755677..3756456	+	259	24216492	-	LA3793	-	hypothetical protein
3793	 35.71	0	3756539..3757630	+	363	24216493	-	LA3794	-	hypothetical protein
3794	 38.51	0	3758630..3759325	-	231	24216494	-	LA3795	-	glycosyl transferase
3795	 36.74	0	3759328..3760119	-	263	24216495	-	LA3796	-	hypothetical protein
3796	 36.12	0	3760132..3761208	-	358	24216496	-	LA3797	-	hypothetical protein
3797	 33.55	0	3761202..3761672	-	156	24216497	-	LA3798	-	hypothetical protein
3798	 37.83	0	3762362..3762628	+	88	24216498	rpsT	LA3799	-	30S ribosomal protein S20
3799	 40.56	+1	3762748..3764130	+	460	24216499	pgm	LA3800	-	phosphoglucosamine mutase
3800	 39.33	0	3764133..3765965	+	610	24216500	glmS	LA3801	-	glucosamine--fructose-6-phosphate aminotransferase
3801	 39.26	0	3765971..3767017	+	348	24216501	rfbA	LA3802	-	glucose-1-phosphate thymidylyltransferase
3802	 40.35	+1	3767034..3768644	+	536	24216502	pccB2	LA3803	-	propionyl-CoA carboxylase beta chain
3803	 31.53	0	3768826..3768936	+	36	24216503	-	LA3804	-	hypothetical protein
3804	 29.47	-1	3769783..3769989	+	68	24216504	-	LA3805	-	hypothetical protein
3805	 42.38	+1	3770039..3771331	+	430	24216505	amtB	LA3806	-	ammonium transporter
3806	 37.97	0	3771370..3771714	+	114	24216506	glnB	LA3807	-	nitrogen regulatory protein P-II
3807	 28.83	-1	3772127..3772237	-	36	24216507	-	LA3808	-	hypothetical protein
3808	 39.77	0	3772247..3774280	+	677	24216508	-	LA3809	-	hypothetical protein
3809	 40.00	+1	3774837..3775031	+	64	24216509	-	LA3810	-	hypothetical protein
3810	 35.94	0	3775039..3776535	+	498	24216510	speE1	LA3811	-	spermidine synthase
3811	 30.59	0	3776572..3776790	-	72	24216511	-	LA3812	-	hypothetical protein
3812	 38.89	0	3776793..3776918	-	41	24216512	-	LA3813	-	hypothetical protein
3813	 45.44	+2	3777281..3777784	-	167	24216513	-	LA3814	-	hypothetical protein
3814	 30.56	0	3777921..3778064	-	47	24216514	-	LA3815	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
