IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

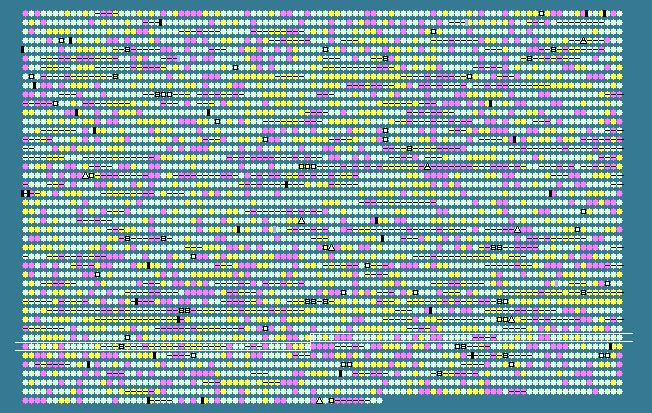

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3649	 34.23	0	3604514..3604624	+	36	24216349	-	LA3650	-	hypothetical protein
3650	 33.33	0	3605556..3605819	-	87	24216350	-	LA3651	-	hypothetical protein
3651	 39.74	0	3605809..3606354	-	181	24216351	-	LA3652	-	RNA polymerase ECF-type sigma factor
3652	 35.61	0	3606344..3606826	-	160	24216352	-	LA3653	-	hypothetical protein
3653	 24.24	-2	3606998..3607129	+	43	24216353	-	LA3654	-	hypothetical protein
3654	 26.95	-1	3607387..3607527	-	46	24216354	-	LA3655	-	hypothetical protein
3655	 31.25	0	3607472..3607615	-	47	24216355	-	LA3656	-	hypothetical protein
3656	 33.63	0	3608213..3608896	-	227	24216356	-	LA3657	-	two-component response regulator
3657	 38.36	0	3609362..3609520	+	52	24216357	-	LA3658	-	hypothetical protein
3658	 36.44	0	3610391..3611131	-	246	24216358	-	LA3659	-	hypothetical protein
3659	 37.17	0	3611439..3611933	+	164	24216359	-	LA3660	-	hypothetical protein
3660	 40.07	+1	3612158..3612958	+	266	24216360	-	LA3661	-	alpha/beta fold family hydrolase/acetyltransferase
3661	 34.82	0	3612959..3615049	+	696	24216361	-	LA3662	-	two-component hybrid sensor and regulator
3662	 38.44	0	3615484..3616599	-	371	24216362	-	LA3664	-	hypothetical protein
3663	 25.64	-1	3616593..3616709	+	38	24216363	-	LA3663	-	hypothetical protein
3664	 34.54	0	3617208..3617705	+	165	24216364	-	LA3665	-	anti-sigma factor antagonist
3665	 37.54	0	3617702..3618295	+	197	24216365	-	LA3666	-	xanthosine triphosphate pyrophosphatase
3666	 25.64	-1	3619430..3619585	-	51	24216366	-	LA3667	-	hypothetical protein
3667	 40.48	+1	3619612..3620241	+	209	24216367	-	LA3668	-	Uracil-DNA glycosylase
3668	 33.83	0	3620207..3621220	-	337	24216368	-	LA3669	-	hypothetical protein
3669	 29.86	-1	3621207..3621350	-	47	24216369	-	LA3670	-	hypothetical protein
3670	 29.08	-1	3621453..3621593	-	46	24216370	-	LA3671	-	hypothetical protein
3671	 36.59	0	3621638..3622711	-	357	24216371	-	LA3672	-	alpha/beta fold family hydrolase/acetyltransferase
3672	 36.70	0	3622938..3623501	-	187	24216372	-	LA3673	-	peptide methionine sulfoxide reductase
3673	 35.19	0	3623672..3623779	-	35	24216373	-	LA3674	-	hypothetical protein
3674	 33.07	0	3623915..3625405	-	496	24216374	-	LA3675	-	hypothetical protein
3675	 37.35	0	3625887..3627602	+	571	24216375	-	LA3676	-	Acyl-CoA dehydrogenase
3676	 21.43	-2	3627604..3627729	+	41	24216376	-	LA3677	-	hypothetical protein
3677	 22.22	-2	3628996..3629103	+	35	24216377	-	LA3678	-	hypothetical protein
3678	 36.68	0	3629207..3629863	+	218	24216378	-	LA3679	-	macrolide acetyltransferase
3679	 30.53	0	3630866..3631186	+	106	24216379	-	LA3680	-	hypothetical protein
3680	 35.50	0	3631168..3632505	-	445	24216380	-	LA3681	-	phage-related-like protein
3681	 33.33	0	3633392..3633496	+	34	24216381	-	LA3682	-	hypothetical protein
3682	 35.04	0	3633715..3633831	-	38	24216382	-	LA3683	-	hypothetical protein
3683	 40.37	+1	3633806..3635440	-	544	24216383	-	LA3684	-	ABC transporter, ATP-binding protein
3684	 36.16	0	3635541..3637523	+	660	24216384	-	LA3685	-	Outer membrane protein
3685	 41.24	+1	3638193..3638369	+	58	24216385	-	LA3686	-	hypothetical protein
3686	 37.75	0	3638652..3638900	-	82	24216386	-	LA3687	-	hypothetical protein
3687	 30.84	0	3639087..3639887	+	266	24216387	-	LA3688	-	hypothetical protein
3688	 27.38	-1	3640050..3640217	-	55	24216388	-	LA3689	-	hypothetical protein
3689	 35.20	0	3640261..3641064	+	267	24216389	-	LA3690	-	hypothetical protein
3690	 36.71	0	3641209..3641415	+	68	24216390	-	LA3691	-	hypothetical protein
3691	 38.69	0	3641402..3643828	+	808	24216391	-	LA3692	-	penicillin-binding protein 1A
3692	 35.26	0	3643806..3645365	-	519	24216392	-	LA3693	-	peptide ABC transporter, periplasmic peptide-binding protein
3693	 38.76	0	3645365..3647245	+	626	24216393	msbA2	LA3694	-	transport ATP-binding protein msbA
3694	 31.61	0	3647269..3648312	+	347	24216394	lpxK	LA3695	-	tetraacyldisaccharide 4'-kinase
3695	 34.38	0	3649224..3649703	+	159	24216395	-	LA3696	-	hypothetical protein
3696	 34.22	0	3650167..3652311	-	714	24216396	-	LA3697	-	hypothetical protein
3697	 38.25	0	3652330..3654138	-	602	24216397	ftsI	LA3698	-	penicillin-binding protein
3698	 32.06	0	3654531..3655157	+	208	24216398	arsC	LA3699	-	arsenate reductase
3699	 32.59	0	3655330..3655464	+	44	24216399	-	LA3700	-	hypothetical protein
3700	 35.29	0	3656076..3656228	+	50	24216400	-	LA3701	-	hypothetical protein
3701	 28.89	-1	3656247..3656381	+	44	24216401	-	LA3702	-	hypothetical protein
3702	 37.12	0	3656414..3657442	+	342	24216402	hrcA	LA3703	-	heat-inducible transcription repressor hrcA
3703	 38.50	0	3657456..3658094	+	212	24216403	grpE	LA3704	-	GrpE protein
3704	 43.48	+1	3658129..3660069	+	646	24216404	dnaK	LA3705	-	chaperone protein dnaK
3705	 31.75	0	3660237..3660362	-	41	24216405	-	LA3707	-	hypothetical protein
3706	 42.54	+1	3660362..3661480	+	372	24216406	dnaJ4	LA3706	-	chaperone protein dnaJ
3707	 30.07	-1	3661630..3661782	+	50	24216407	-	LA3708	-	hypothetical protein
3708	 37.05	0	3661766..3662734	+	322	24216408	-	LA3709	-	Gfo/Idh/MocA family oxidoreductase
3709	 36.07	0	3662758..3663306	+	182	24216409	-	LA3710	-	hypothetical protein
3710	 32.28	0	3663868..3664152	+	94	24216410	-	LA3711	-	hypothetical protein
3711	 35.30	0	3664471..3667008	-	845	24216411	-	LA3712	-	hypothetical protein
3712	 34.09	0	3667005..3667796	-	263	24216412	-	LA3713	-	ABC transporter, ATP-binding protein
3713	 39.35	0	3668266..3670857	+	863	161484947	leuS	LA3714	-	leucyl-tRNA synthetase
3714	 35.42	0	3671805..3671948	+	47	24216414	-	LA3715	-	hypothetical protein
3715	 37.70	0	3672769..3673203	-	144	24216415	-	LA3716	-	hypothetical protein
3716	 39.80	0	3673338..3673538	-	66	24216416	-	LA3717	-	hypothetical protein
3717	 35.65	0	3673787..3674737	+	316	24216417	-	LA3718	-	transposase
3718	 40.61	+1	3674766..3675425	-	219	24216418	-	LA3719	-	hypothetical protein
3719	 32.82	0	3675558..3676535	-	325	24216419	-	LA3720	-	nuclease family protein
3720	 35.71	0	3676602..3676895	-	97	24216420	-	LA3721	-	hypothetical protein
3721	 30.23	0	3677081..3678013	-	310	24216421	-	LA3722	-	lipoprotein
3722	 40.10	+1	3678080..3678286	-	68	24216422	-	LA3723	-	hypothetical protein
3723	 33.81	0	3678589..3679215	-	208	24216423	-	LA3724	-	lipoprotein
3724	 41.92	+1	3679212..3687569	-	2785	24216424	-	LA3725	-	phenazine biosynthesis family protein
3725	 42.34	+1	3687710..3689242	-	510	24216425	-	LA3726	-	hypothetical protein
3726	 32.30	0	3689460..3689942	-	160	24216426	-	LA3727	-	hypothetical protein
3727	 29.29	-1	3690273..3690470	-	65	24216427	-	LA3728	-	hypothetical protein
3728	 43.52	+1	3690505..3691044	-	179	24216428	-	LA3729	-	Fimh-like protein
3729	 41.49	+1	3691586..3694453	-	955	24216429	-	LA3730	-	lipoprotein
3730	 38.96	0	3695022..3698219	-	1065	24216430	-	LA3731	-	Fmh-like protein
3731	 34.13	0	3698624..3698749	-	41	24216431	-	LA3732	-	hypothetical protein
3732	 35.72	0	3698773..3700194	+	473	24216432	-	LA3733	-	outer membrane efflux protein
3733	 41.05	+1	3700206..3702032	+	608	24216433	-	LA3734	-	hypothetical protein
3734	 34.20	0	3702056..3702751	+	231	24216434	-	LA3735	-	lipoprotein
3735	 29.91	-1	3702753..3703394	+	213	24216435	-	LA3736	-	TPR repeat-containing protein
3736	 34.61	0	3703741..3705234	+	497	24216436	hlyD	LA3737	-	HlyD family secretion protein
3737	 33.30	0	3705231..3708311	+	1026	24216437	czcA4	LA3738	-	cobalt-zinc-cadmium resistance protein CZCA
3738	 35.44	0	3708323..3709273	+	316	24216438	-	LA3739	-	acriflavine resistance protein
3739	 29.28	-1	3709260..3711209	+	649	24216439	-	LA3740	-	hypothetical protein
3740	 34.11	0	3711139..3711909	+	256	24216440	-	LA3741	-	hypothetical protein
3741	 27.01	-1	3711906..3712601	+	231	24216441	-	LA3742	-	hypothetical protein
3742	 32.58	0	3713200..3713331	+	43	24216442	-	LA3743	-	hypothetical protein
3743	 38.08	0	3713517..3714590	-	357	24216443	-	LA3744	-	hypothetical protein
3744	 35.54	0	3714602..3715327	-	241	24216444	-	LA3745	-	hypothetical protein
3745	 31.01	0	3715624..3715752	+	42	24216445	-	LA3746	-	hypothetical protein
3746	 39.93	+1	3715836..3717185	-	449	24216446	thrC	LA3747	-	threonine synthase
3747	 39.58	0	3717189..3718181	-	330	24216447	-	LA3748	-	hypothetical protein
3748	 35.74	0	3718272..3718853	-	193	24216448	-	LA3749	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
