IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

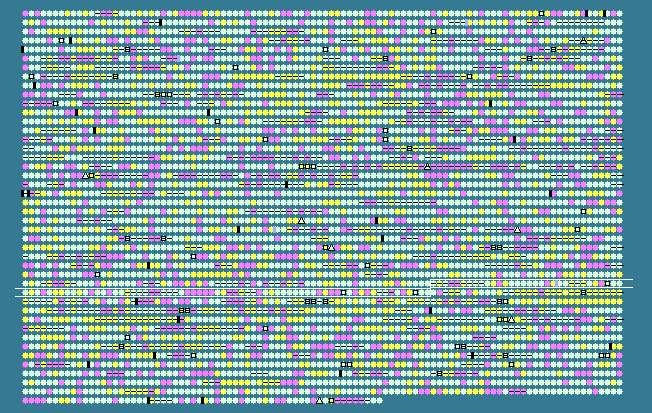

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3069	 34.50	0	3039422..3039763	-	113	24215769	-	LA3070	-	anti-sigma factor antagonist
3070	 38.96	0	3039941..3040936	+	331	24215770	-	LA3071	-	glycosyl transferase
3071	 35.03	0	3040969..3042849	+	626	24215771	-	LA3072	-	hypothetical protein
3072	 27.50	-1	3042944..3043063	+	39	24215772	-	LA3073	-	hypothetical protein
3073	 26.67	-1	3044246..3044365	-	39	24215773	-	LA3074	-	hypothetical protein
3074	 42.04	+1	3044798..3050668	+	1956	24215774	-	LA3075	-	surface protein Lk90-like protein
3075	 36.69	0	3050681..3051067	+	128	24215775	-	LA3076	-	hypothetical protein
3076	 36.00	0	3051055..3051579	+	174	24215776	-	LA3077	-	hypothetical protein
3077	 31.99	0	3051617..3052435	-	272	24215777	-	LA3078	-	sterol desaturase family protein
3078	 33.97	0	3054623..3055405	-	260	24215778	-	LA3079	-	hypothetical protein
3079	 40.78	+1	3055406..3056707	-	433	24215779	purB	LA3080	-	adenylosuccinate lyase
3080	 27.78	-1	3056724..3056885	-	53	24215780	-	LA3081	-	hypothetical protein
3081	 46.20	+2	3057204..3057374	+	56	24215781	-	LA3082	-	hypothetical protein
3082	 36.42	0	3057407..3058474	-	355	24215782	-	LA3083	-	hypothetical protein
3083	 34.74	0	3058485..3060329	-	614	24215783	-	LA3084	-	peptide ABC transporter, periplasmic peptide-binding protein
3084	 38.37	0	3060298..3062340	-	680	24215784	relA	LA3085	-	GTP pyrophosphokinase
3085	 38.14	0	3062327..3063241	-	304	24215785	nadC	LA3086	-	nicotinate-nucleotide pyrophosphorylase
3086	 32.59	0	3063264..3063398	-	44	24215786	-	LA3087	-	hypothetical protein
3087	 31.75	0	3063379..3063504	-	41	24215787	-	LA3088	-	hypothetical protein
3088	 29.06	-1	3063982..3064098	-	38	24215788	-	LA3089	-	hypothetical protein
3089	 46.38	+2	3064117..3064254	-	45	24215789	-	LA3090	-	16S ribosomal RNA
3090	 32.80	0	3067777..3068526	+	249	24215790	-	LA3091	-	hypothetical protein
3091	 37.14	0	3069370..3071262	-	630	24215791	-	LA3093	-	M23/M37 familypeptidase
3092	 40.64	+1	3071213..3071773	+	186	24215792	-	LA3092	-	hypothetical protein
3093	 34.37	0	3071804..3072286	+	160	24215793	-	LA3094	-	Fe2+/Zn2+ uptake regulation proteins
3094	 39.73	0	3072283..3073407	+	374	24215794	-	LA3095	-	tRNA-guanine transglycosylase
3095	 34.52	0	3073478..3073813	+	111	24215795	-	LA3096	-	anti-sigma factor antagonist
3096	 39.27	0	3073861..3075528	+	555	24215796	tmpB	LA3097	-	treponemal membrane protein B precursor-like protein
3097	 23.26	-2	3075990..3076118	-	42	24215797	-	LA3098	-	hypothetical protein
3098	 38.44	0	3077613..3077984	-	123	24215798	-	LA3099	-	transposase
3099	 33.23	0	3078169..3079098	-	309	24215799	-	LA3100	-	alpha/beta fold family hydrolase/acetyltransferase
3100	 34.04	0	3079504..3080496	+	330	24215800	-	LA3101	-	hypothetical protein
3101	 33.46	0	3080587..3082866	-	759	24215801	-	LA3102	-	hypothetical protein
3102	 40.35	+1	3083485..3083883	-	132	24215802	-	LA3103	-	hypothetical protein
3103	 32.44	0	3084310..3085203	-	297	24215803	-	LA3104	-	hypothetical protein
3104	 28.70	-1	3085204..3085419	+	71	24215804	-	LA3105	-	hypothetical protein
3105	 38.48	0	3086208..3086615	+	135	24215805	-	LA3106	-	hypothetical protein
3106	 40.42	+1	3086612..3087331	+	239	24215806	-	LA3107	-	hypothetical protein
3107	 39.33	0	3087641..3088324	-	227	24215807	kdpE	LA3108	-	regulatory protein KdpE
3108	 36.78	0	3088328..3090940	-	870	24215808	kdpD	LA3109	-	two-component sensor KdpD
3109	 37.34	0	3090937..3091560	-	207	24215809	kdpC	LA3110	-	potassium-transporting ATPase, C chain
3110	 39.59	0	3091506..3093599	-	697	24215810	kdpB	LA3111	-	potassium-transporting ATPase, B chain
3111	 36.44	0	3093610..3095283	-	557	24215811	kdpA	LA3112	-	potassium-transporting ATPase subunit A
3112	 31.47	0	3095529..3100724	-	1731	24215812	-	LA3113	-	Serine/threonine protein kinase
3113	 36.05	0	3100925..3102988	-	687	24215813	-	LA3114	-	hypothetical protein
3114	 36.36	0	3103085..3104008	-	307	24215814	-	LA3115	-	hypothetical protein
3115	 27.16	-1	3104774..3104935	+	53	24215815	-	LA3116	-	hypothetical protein
3116	 32.14	0	3105250..3105669	+	139	24215816	-	LA3117	-	hypothetical protein
3117	 35.69	0	3106449..3107510	-	353	24215817	-	LA3118	-	hypothetical protein
3118	 39.11	0	3107512..3108480	-	322	24215818	-	LA3119	-	hypothetical protein
3119	 36.23	0	3108551..3110071	+	506	24215819	-	LA3120	-	zinc-binding carboxypeptidase
3120	 36.09	0	3110071..3110976	+	301	24215820	-	LA3121	-	permease
3121	 37.07	0	3111139..3111459	+	106	24215821	-	LA3122	-	hypothetical protein
3122	 30.46	0	3111528..3111701	-	57	24215822	-	LA3123	-	hypothetical protein
3123	 23.68	-2	3111706..3111819	-	37	24215823	-	LA3124	-	hypothetical protein
3124	 32.18	0	3112140..3112313	-	57	24215824	-	LA3125	-	hypothetical protein
3125	 35.11	0	3112573..3113361	+	262	24215825	-	LA3126	-	hypothetical protein
3126	 35.31	0	3113366..3114274	+	302	24215826	nctP2	LA3127	-	sodium bile acid symporter family Na(+) dependent transporter
3127	 35.51	0	3114258..3115361	-	367	24215827	-	LA3128	-	hypothetical protein
3128	 28.07	-1	3115512..3115625	+	37	24215828	-	LA3129	-	hypothetical protein
3129	 28.57	-1	3115689..3115793	-	34	24215829	-	LA3130	-	hypothetical protein
3130	 27.67	-1	3116199..3116357	-	52	24215830	-	LA3132	-	hypothetical protein
3131	 27.78	-1	3116332..3116457	+	41	24215831	-	LA3131	-	hypothetical protein
3132	 31.13	0	3117584..3118765	+	393	24215832	-	LA3133	-	AraC family transcriptional regulator
3133	 37.78	0	3119516..3119650	+	44	24215833	-	LA3134	-	hypothetical protein
3134	 42.00	+1	3119989..3121200	+	403	24215834	fadE	LA3135	-	acetyl-CoA acetyltransferase
3135	 28.46	-1	3122086..3122208	-	40	24215835	-	LA3136	-	hypothetical protein
3136	 25.56	-1	3122198..3122596	-	132	24215836	-	LA3137	-	hypothetical protein
3137	 41.72	+1	3122777..3123790	+	337	24215837	ompL1	LA3138	-	transmembrane outer membrane protein L1
3138	 33.96	0	3123894..3124853	-	319	24215838	-	LA3139	-	lipoprotein
3139	 33.33	0	3125052..3125177	-	41	24215839	-	LA3140	-	hypothetical protein
3140	 30.13	-1	3125652..3125807	+	51	24215840	-	LA3141	-	hypothetical protein
3141	 33.84	0	3126095..3126292	-	65	24215841	-	LA3142	-	hypothetical protein
3142	 41.61	+1	3126270..3127526	-	418	24215842	-	LA3143	-	Acyl-CoA dehydrogenase
3143	 37.60	0	3127708..3128880	-	390	24215843	-	LA3144	-	Alpha-methylacyl-CoA racemase
3144	 37.33	0	3129315..3130391	+	358	24215844	-	LA3145	-	NHL repeat-containing protein
3145	 38.24	0	3130906..3131292	-	128	24215845	-	LA3146	-	hypothetical protein
3146	 33.68	0	3131340..3132203	+	287	24215846	-	LA3147	-	alpha/beta fold family hydrolase/acetyltransferase
3147	 35.74	0	3132680..3133012	+	110	24215847	-	LA3148	-	hypothetical protein
3148	 36.63	0	3133058..3135391	+	777	24215848	-	LA3149	-	hemin receptor
3149	 37.07	0	3135402..3135776	+	124	24215849	-	LA3150	-	hypothetical protein
3150	 29.01	-1	3135821..3135982	-	53	24215850	-	LA3151	-	hypothetical protein
3151	 39.43	0	3136320..3136877	-	185	24215851	-	LA3152	-	CopG family transcriptional regulator
3152	 22.22	-2	3138033..3138149	+	38	24215852	-	LA3153	-	hypothetical protein
3153	 23.27	-2	3138423..3138581	+	52	24215853	-	LA3154	-	hypothetical protein
3154	 32.42	0	3138623..3139282	+	219	24215854	-	LA3155	-	transposase
3155	 37.38	0	3139596..3141002	+	468	24215855	-	LA3156	-	flavin-containing monooxygenase
3156	 29.74	-1	3141090..3141284	-	64	24215856	-	LA3157	-	hypothetical protein
3157	 38.95	0	3141427..3142440	-	337	24215857	-	LA3158	-	alcohol dehydrogenase
3158	 24.11	-2	3142518..3142658	-	46	24215858	-	LA3159	-	hypothetical protein
3159	 39.46	0	3143227..3145218	+	663	24215859	gcpE	LA3160	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
3160	 34.64	0	3145303..3145455	-	50	24215860	-	LA3162	-	hypothetical protein
3161	 33.99	0	3145310..3145462	+	50	24215861	-	LA3161	-	hypothetical protein
3162	 31.48	0	3145576..3145683	+	35	24215862	-	LA3163	-	hypothetical protein
3163	 37.61	0	3146789..3147442	-	217	24215863	-	LA3165	-	MORN repeat-containing protein
3164	 31.29	0	3147421..3147567	+	48	24215864	-	LA3164	-	hypothetical protein
3165	 39.50	0	3147755..3148597	-	280	24215865	-	LA3166	-	DNA repair exonuclease
3166	 36.87	0	3148654..3149727	-	357	24215866	-	LA3167	-	transposase
3167	 31.57	0	3149971..3150366	-	131	24215867	-	LA3168	-	hypothetical protein
3168	 33.80	0	3150373..3150585	+	70	24215868	-	LA3169	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
