IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

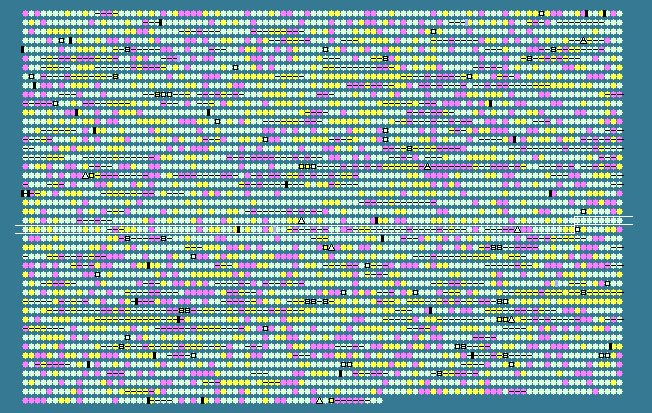

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2393	 32.61	0	2362349..2362486	+	45	24215093	-	LA2392	-	hypothetical protein
2394	 36.11	0	2362909..2363556	-	215	24215094	-	LA2394	-	ribulose-phosphate 3-epimerase
2395	 34.84	0	2363553..2364548	-	331	24215095	-	LA2395	-	outermembrane protein
2396	 38.18	0	2364545..2365183	-	212	24215096	-	LA2396	-	methionyl-tRNA formyltransferase
2397	 36.04	0	2365460..2365570	+	36	24215097	-	LA2397	-	hypothetical protein
2398	 36.57	0	2365619..2367562	-	647	24215098	priA	LA2398	-	primosomal protein N'
2399	 37.44	0	2367559..2368410	-	283	24215099	-	LA2399	-	hypothetical protein
2400	 35.93	0	2368403..2369749	-	448	24215100	ntrX	LA2400	-	nitrogen assimilation regulatory protein Ntrx
2401	 34.12	0	2369757..2371547	-	596	24215101	-	LA2401	-	two-component hybrid sensor and regulator
2402	 39.39	0	2371561..2371824	-	87	24215102	ptsH	LA2402	-	phosphocarrier protein HPr
2403	 39.13	0	2371796..2372761	-	321	24215103	hprK	LA2403	-	HPr kinase/phosphorylase
2404	 35.86	0	2372766..2374187	-	473	24215104	rpoN	LA2404	-	transcription initiation factor sigma 54
2405	 39.12	0	2374184..2374909	-	241	24215105	-	LA2405	-	ABC transport system, ATPase component
2406	 35.08	0	2374922..2376292	-	456	24215106	-	LA2406	-	hypothetical protein
2407	 35.04	0	2376289..2376873	-	194	24215107	-	LA2407	-	hypothetical protein
2408	 37.59	0	2376885..2377754	-	289	24215108	kdsA	LA2408	-	2-dehydro-3-deoxyphosphooctonate aldolase
2409	 38.31	0	2377751..2379379	-	542	24215109	pyrG	LA2409	-	CTP synthetase
2410	 37.11	0	2379566..2380042	-	158	24215110	tagD	LA2410	-	glycerol-3-phosphate cytidylyltransferase
2411	 38.66	0	2380043..2381056	-	337	24215111	rfaE2	LA2411	-	ADP-heptose synthase
2412	 33.64	0	2381078..2381731	+	217	24215112	-	LA2412	-	ATP-dependent proteinase
2413	 39.47	0	2382023..2383294	-	423	24215113	nlpC	LA2413	-	lipoprotein NlpC
2414	 34.79	0	2383344..2384648	-	434	24215114	-	LA2414	-	peptide transporter
2415	 36.23	0	2384624..2385175	-	183	24215115	-	LA2415	-	hypothetical protein
2416	 29.52	-1	2385179..2385283	+	34	24215116	-	LA2416	-	hypothetical protein
2417	 41.84	+1	2385507..2386364	+	285	24215117	flaB3	LA2417	-	hook-associated protein, flagellin family
2418	 43.82	+1	2386943..2387791	-	282	24215118	flaB4	LA2418	-	hook-associated protein, flagellin family
2419	 39.74	0	2388333..2388863	+	176	24215119	-	LA2419	-	hypothetical protein
2420	 38.37	0	2388985..2389977	+	330	24215120	lytB	LA2420	-	penicillin tolerance protein
2421	 35.38	0	2390567..2392762	+	731	24215121	-	LA2421	-	two-component hybrid sensor and regulator
2422	 31.15	0	2392707..2393987	+	426	24215122	-	LA2422	-	two-component response regulator
2423	 37.44	0	2393950..2394363	+	137	24215123	-	LA2423	-	two-component response regulator
2424	 31.73	0	2394360..2394734	+	124	24215124	-	LA2424	-	anti-sigma factor antagonist
2425	 34.97	0	2394738..2396879	+	713	24215125	cheA2	LA2425	-	chemotaxis protein CheA
2426	 38.11	0	2396924..2399854	+	976	24215126	-	LA2426	-	methyl-accepting chemotaxis protein
2427	 32.95	0	2399867..2400382	+	171	24215127	cheW3	LA2427	-	chemotaxis protein cheW
2428	 37.72	0	2400379..2400879	+	166	24215128	cheD1	LA2428	-	chemotaxis protein CheD
2429	 38.22	0	2400876..2401919	+	347	24215129	cheB3	LA2429	-	methylesterase CheB/methylase CheR
2430	 28.89	-1	2401934..2402068	-	44	24215130	-	LA2430	-	hypothetical protein
2431	 31.71	0	2402464..2402709	-	81	24215131	-	LA2431	-	hypothetical protein
2432	 38.69	0	2402749..2405493	-	914	24215132	accC1	LA2432	-	biotin carboxylase
2433	 42.09	+1	2405500..2407167	-	555	24215133	pccB1	LA2433	-	methylmalonyl-CoA decarboxylase
2434	 34.24	0	2407244..2407573	-	109	24215134	-	LA2434	-	anti-sigma factor antagonist
2435	 36.95	0	2407557..2410373	-	938	24215135	-	LA2435	-	sigma factor sigB regulation protein rsbU
2436	 40.04	+1	2410388..2410849	-	153	24215136	-	LA2436	-	hypothetical protein
2437	 31.86	0	2410986..2411666	+	226	24215137	-	LA2437	-	hypothetical protein
2438	 40.60	+1	2411669..2412205	+	178	24215138	-	LA2438	-	polypeptide deformylase
2439	 38.42	0	2412225..2415467	+	1080	24215139	-	LA2439	-	acriflavin resistance protein
2440	 32.32	0	2415619..2416701	-	360	24215140	-	LA2440	-	hypothetical protein
2441	 29.06	-1	2417321..2417437	-	38	24215141	-	LA2441	-	hypothetical protein
2442	 46.38	+2	2417456..2417593	-	45	24215142	-	LA2442	-	hypothetical protein
2443	 37.44	0	2420583..2422163	-	526	24215143	-	LA2443	-	outermembrane protein
2444	 36.78	0	2422251..2423237	-	328	24215144	-	LA2444	-	outermembrane protein
2445	 39.26	0	2423579..2423713	+	44	24215145	-	LA2445	-	hypothetical protein
2446	 29.06	-1	2423710..2423943	-	77	24215146	-	LA2446	-	leucine-rich repeat-containing protein
2447	 34.40	0	2424001..2425497	-	498	24215147	-	LA2447	-	outermembrane protein
2448	 33.10	0	2425568..2426854	-	428	24215148	-	LA2448	-	outermembrane protein
2449	 21.57	-2	2426885..2427037	+	50	24215149	-	LA2449	-	hypothetical protein
2450	 35.86	0	2427064..2428965	-	633	24215150	-	LA2450	-	outermembrane protein
2451	 22.88	-2	2428996..2429148	+	50	24215151	-	LA2451	-	hypothetical protein
2452	 33.56	0	2429175..2430044	-	289	24215152	-	LA2452	-	leucine-rich repeat-containing protein
2453	 35.68	0	2430374..2431312	-	312	24215153	-	LA2453	-	4Fe-4S binding protein
2454	 29.93	-1	2431327..2431767	+	146	24215154	-	LA2454	-	hypothetical protein
2455	 27.49	-1	2431833..2432003	-	56	24215155	-	LA2455	-	hypothetical protein
2456	 37.04	0	2432773..2433690	-	305	24215156	-	LA2456	-	hypothetical protein
2457	 40.97	+1	2433701..2434459	-	252	24215157	-	LA2457	-	methionine aminopeptidase
2458	 39.92	+1	2434466..2434708	-	80	24215158	-	LA2458	-	hypothetical protein
2459	 36.44	0	2434948..2438361	-	1137	24215159	-	LA2459	-	integrin-like protein
2460	 31.79	0	2438602..2439381	+	259	24215160	-	LA2460	-	ubiE/COQ5 methyltransferase family protein
2461	 33.67	0	2439462..2439758	+	98	24215161	-	LA2461	-	hypothetical protein
2462	 33.01	0	2439818..2440756	+	312	24215162	bcrA	LA2462	-	bacitracin transport ATP-binding protein bcrA
2463	 31.59	0	2440737..2441483	+	248	24215163	gldF	LA2463	-	gliding motility protein GldF
2464	 34.04	0	2441480..2443186	+	568	24215164	gldG	LA2464	-	gliding motility protein GldG
2465	 30.96	0	2443183..2444193	+	336	24215165	-	LA2465	-	hypothetical protein
2466	 34.40	0	2444624..2445376	+	250	24215166	-	LA2466	-	protein-S-isoprenylcysteine methyltransferase
2467	 33.73	0	2446071..2446820	-	249	24215167	-	LA2467	-	hypothetical protein
2468	 37.90	0	2446824..2448158	+	444	24215168	-	LA2468	-	hypothetical protein
2469	 38.06	0	2448158..2448622	+	154	24215169	CheX	LA2469	-	chemotaxis protein
2470	 29.17	-1	2449064..2449615	+	183	24215170	-	LA2470	-	hypothetical protein
2471	 34.44	0	2449877..2450872	-	331	24215171	-	LA2471	-	outermembrane protein
2472	 38.58	0	2450869..2451459	-	196	24215172	-	LA2472	-	hypothetical protein
2473	 34.48	0	2451622..2452317	+	231	24215173	-	LA2473	-	fumarate and nitrate reduction regulatory protein
2474	 31.82	0	2452579..2452710	-	43	24215174	-	LA2475	-	hypothetical protein
2475	 37.58	0	2452685..2454379	+	564	24215175	-	LA2474	-	hypothetical protein
2476	 27.49	-1	2454486..2454656	-	56	24215176	-	LA2476	-	hypothetical protein
2477	 32.51	0	2454742..2455107	-	121	24215177	-	LA2477	-	hypothetical protein
2478	 35.84	0	2455180..2455578	-	132	24215178	-	LA2478	-	hypothetical protein
2479	 33.33	0	2455575..2455916	-	113	24215179	-	LA2480	-	sensory transduction histidine kinase
2480	 34.23	0	2455898..2456008	+	36	24215180	-	LA2479	-	hypothetical protein
2481	 25.53	-1	2455976..2456116	-	46	24215181	-	LA2481	-	hypothetical protein
2482	 21.90	-2	2456259..2456363	-	34	24215182	-	LA2482	-	hypothetical protein
2483	 34.89	0	2456497..2457393	-	298	24215183	-	LA2483	-	integrase/recombinase xerD
2484	 31.39	0	2457491..2458366	+	291	24215184	-	LA2484	-	hypothetical protein
2485	 26.54	-1	2458339..2458500	+	53	24215185	-	LA2485	-	hypothetical protein
2486	 35.37	0	2458497..2459525	+	342	24215186	-	LA2486	-	hypothetical protein
2487	 35.09	0	2459605..2459718	+	37	24215187	-	LA2487	-	hypothetical protein
2488	 34.26	0	2460116..2460655	+	179	24215188	-	LA2488	-	hypothetical protein
2489	 34.86	0	2460702..2462138	-	478	24215189	-	LA2489	-	alginate O-acetylation protein
2490	 37.12	0	2462128..2463315	-	395	24215190	-	LA2490	-	hypothetical protein
2491	 39.47	0	2463388..2463501	-	37	24215191	-	LA2491	-	hypothetical protein
2492	 43.57	+1	2464128..2464547	+	139	24215192	-	LA2492	-	hypothetical protein
35.02	MEAN

4.84	STD DEV
