IslandPathversion 1.0

IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

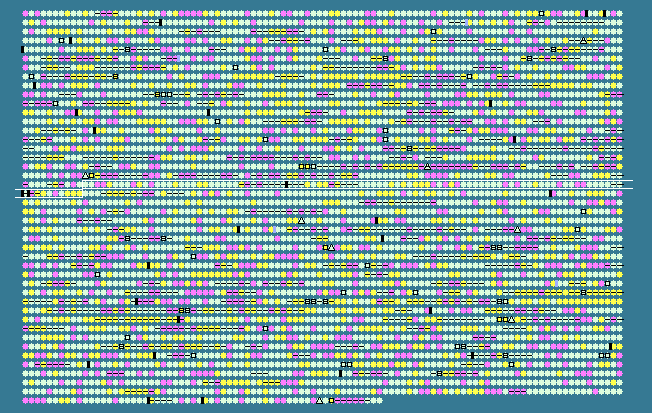

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1911	 37.62	0	1880379..1881614	-	411	24214611	serA	LA1911	-	D-3-phosphoglycerate dehydrogenase
1912	 32.96	0	1881819..1882355	+	178	24214612	-	LA1912	-	outermembrane protein
1913	 31.48	0	1882464..1882679	-	71	24214613	-	LA1913	-	hypothetical protein
1914	 23.48	-2	1882709..1882840	-	43	24214614	-	LA1914	-	hypothetical protein
1915	 40.42	+1	1882896..1886495	-	1199	24214615	-	LA1915	-	TPR repeat-containing protein
1916	 35.75	0	1886649..1887557	+	302	24214616	-	LA1916	-	isoamylase family protein
1917	 35.64	0	1887604..1888341	+	245	24214617	-	LA1917	-	hypothetical protein
1918	 33.33	0	1888546..1888815	+	89	24214618	-	LA1918	-	hypothetical protein
1919	 30.64	0	1888989..1890584	-	531	24214619	-	LA1919	-	regulatory protein
1920	 42.75	+1	1892061..1892336	+	91	24214620	rbpA2	LA1920	-	RNA-binding protein
1921	 37.70	0	1892652..1892834	+	60	24214621	-	LA1921	-	hypothetical protein
1922	 28.68	-1	1893062..1893190	-	42	24214622	-	LA1923	-	hypothetical protein
1923	 35.50	0	1893183..1893920	+	245	24214623	-	LA1922	-	MORN repeat-containing protein
1924	 34.61	0	1894933..1896027	-	364	24214624	-	LA1924	-	hypothetical protein
1925	 35.46	0	1896029..1896829	-	266	24214625	tatC	LA1925	-	Sec-independent protein translocase protein tatC
1926	 39.56	0	1896826..1897098	-	90	24214626	-	LA1926	-	mttA/Hcf106 family protein
1927	 34.20	0	1897487..1898296	+	269	24214627	-	LA1927	-	hypothetical protein
1928	 38.06	0	1898302..1898661	+	119	24214628	trxA	LA1928	-	thioredoxin (TRX)
1929	 37.08	0	1898684..1900843	+	719	24214629	cgs1	LA1929	-	cAMP-dependent protein kinase regulatory chain
1930	 40.05	+1	1900861..1901991	+	376	24214630	-	LA1930	-	Acyl-CoA dehydrogenase
1931	 41.22	+1	1902031..1903209	+	392	24214631	-	LA1931	-	outermembrane protein
1932	 34.31	0	1903315..1903926	+	203	24214632	-	LA1932	-	hypothetical protein
1933	 35.58	0	1904646..1905983	-	445	24214633	tetA2	LA1933	-	tetracycline resistance protein
1934	 37.81	0	1906026..1906427	-	133	24214634	-	LA1934	-	hypothetical protein
1935	 38.22	0	1906471..1907043	-	190	24214635	-	LA1935	-	hypothetical protein
1936	 38.03	0	1907103..1908974	-	623	24214636	-	LA1936	-	alpha/beta fold family hydrolase/acetyltransferase
1937	 39.96	+1	1910320..1910877	-	185	24214637	-	LA1937	-	CopG family transcriptional regulator
1938	 29.71	-1	1911293..1911430	+	45	24214638	-	LA1938	-	hypothetical protein
1939	 33.75	0	1911998..1912477	-	159	24214639	-	LA1939	-	outermembrane protein
1940	 30.13	-1	1912580..1912735	+	51	24214640	-	LA1940	-	hypothetical protein
1941	 33.08	0	1913206..1913607	-	133	24214641	-	LA1941	-	hypothetical protein
1942	 32.17	0	1913929..1914273	-	114	24214642	-	LA1942	-	hypothetical protein
1943	 36.75	0	1914587..1914703	-	38	24214643	-	LA1943	-	hypothetical protein
1944	 34.34	0	1914832..1915029	-	65	24214644	-	LA1944	-	lipoprotein
1945	 32.33	0	1915443..1916042	-	199	24214645	-	LA1945	-	hypothetical protein
1946	 32.94	0	1915993..1916502	-	169	24214646	-	LA1946	-	outermembrane protein
1947	 37.88	0	1916507..1917715	-	402	24214647	-	LA1947	-	outermembrane protein
1948	 39.67	0	1917732..1918220	-	162	24214648	-	LA1948	-	two-component response regulator
1949	 34.77	0	1918291..1919403	-	370	24214649	-	LA1949	-	hypothetical protein
1950	 38.68	0	1919667..1920227	-	186	24214650	-	LA1950	-	hypothetical protein
1951	 40.34	+1	1920897..1922195	+	432	24214651	eno	LA1951	-	enolase
1952	 26.67	-1	1922282..1922476	+	64	24214652	-	LA1952	-	hypothetical protein
1953	 40.07	+1	1922969..1923562	+	197	161484953	clpP1	LA1953	-	ATP-dependent Clp protease, proteolytic subunit
1954	 31.93	0	1923576..1923932	+	118	24214654	-	LA1954	-	hypothetical protein
1955	 37.49	0	1923956..1924966	+	336	24214655	-	LA1955	-	alpha/beta fold family hydrolase/acetyltransferase
1956	 34.41	0	1924977..1925534	+	185	24214656	-	LA1956	-	hypothetical protein
1957	 32.64	0	1925509..1926084	+	191	24214657	-	LA1957	-	lipoprotein
1958	 36.31	0	1926248..1926919	+	223	24214658	-	LA1958	-	outermembrane protein
1959	 37.87	0	1926916..1927665	+	249	24214659	-	LA1959	-	glutamine amidotransferase
1960	 38.42	0	1927770..1930502	+	910	24214660	secA	LA1960	-	preprotein translocase subunit SecA
1961	 34.93	0	1930526..1930963	+	145	24214661	-	LA1961	-	hypothetical protein
1962	 38.89	0	1931064..1931441	+	125	24214662	-	LA1962	-	hypothetical protein
1963	 37.80	0	1931541..1932995	+	484	24214663	-	LA1963	-	outer membrane protein precursor CzcC
1964	 42.51	+1	1933568..1934014	+	148	24214664	-	LA1964	-	cation efflux system membrane protein
1965	 38.42	0	1934004..1934750	+	248	24214665	-	LA1965	-	outermembrane protein
1966	 40.90	+1	1934756..1938085	+	1109	24214666	czcA2	LA1966	-	cation efflux system protein
1967	 39.72	0	1938620..1941940	+	1106	24214667	czcA3	LA1967	-	cation efflux system protein
1968	 40.16	+1	1942469..1944124	-	551	24214668	-	LA1968	-	outermembrane protein
1969	 26.85	-1	1944290..1944397	-	35	24214669	-	LA1969	-	hypothetical protein
1970	 34.26	0	1945541..1946839	-	432	24214670	papS	LA1970	-	Poly(A) polymerase
1971	 31.09	0	1946832..1947233	-	133	24214671	-	LA1971	-	hypothetical protein
1972	 40.00	+1	1947579..1947968	-	129	24214672	rnhA	LA1972	-	ribonuclease H-like protein
1973	 30.82	0	1947965..1948282	-	105	24214673	-	LA1973	-	hypothetical protein
1974	 33.98	0	1948666..1949439	+	257	24214674	-	LA1974	-	arginyl-tRNA-protein transferase
1975	 32.41	0	1949409..1949516	-	35	24214675	-	LA1976	-	hypothetical protein
1976	 38.46	0	1949500..1950240	+	246	24214676	-	LA1975	-	3-oxoacyl-(acyl carrier protein) reductase
1977	 36.13	0	1950259..1951761	+	500	24214677	-	LA1977	-	oxidoreductase, FAD-binding
1978	 32.19	0	1951762..1953243	+	493	24214678	-	LA1978	-	hypothetical protein
1979	 35.10	0	1953262..1954395	+	377	24214679	-	LA1979	-	glycosyl transferase
1980	 31.56	0	1954740..1955414	+	224	24214680	-	LA1980	-	hypothetical protein
1981	 30.68	0	1956255..1957877	-	540	24214681	-	LA1981	-	hypothetical protein
1982	 32.43	0	1957881..1959866	-	661	24214682	-	LA1982	-	hypothetical protein
1983	 31.52	0	1959977..1961794	-	605	24214683	-	LA1984	-	hypothetical protein
1984	 34.51	0	1961776..1963050	+	424	24214684	-	LA1983	-	hypothetical protein
1985	 35.31	0	1964315..1965427	-	370	24214685	-	LA1985	-	hypothetical protein
1986	 40.28	+1	1965498..1967024	+	508	24214686	-	LA1986	-	inosine-5'-monophosphate dehydrogenase
1987	 33.59	0	1967025..1967807	+	260	24214687	-	LA1987	-	outermembrane protein
1988	 35.79	0	1967816..1968508	+	230	24214688	-	LA1988	-	hypothetical protein
1989	 36.49	0	1968498..1968782	-	94	24214689	-	LA1989	-	outermembrane protein
1990	 28.99	-1	1969210..1969347	+	45	24214690	-	LA1990	-	hypothetical protein
1991	 35.04	0	1969358..1970002	+	214	24214691	thiE	LA1991	-	thiamine-phosphate pyrophosphorylase
1992	 36.71	0	1970057..1970884	+	275	24214692	tagA	LA1992	-	UDP-N-acetyl-D-mannosamine transferase
1993	 30.61	0	1971073..1971219	+	48	24214693	-	LA1993	-	hypothetical protein
1994	 29.76	-1	1971602..1971769	+	55	24214694	-	LA1994	-	hypothetical protein
1995	 38.44	0	1971908..1973395	-	495	24214695	lysS1	LA1995	-	lysyl-tRNA synthetase
1996	 35.02	0	1973404..1974054	-	216	24214696	-	LA1996	-	hypothetical protein
1997	 35.08	0	1974104..1976284	-	726	24214697	-	LA1997	-	cellulose synthase catalytic subunit-like protein
1998	 35.99	0	1976495..1977397	-	300	24214698	-	LA1998	-	polysaccharide deacetylase
1999	 33.12	0	1977418..1977888	-	156	24214699	-	LA1999	-	hypothetical protein
2000	 35.21	0	1977873..1978139	-	88	24214700	-	LA2000	-	hypothetical protein
2001	 33.93	0	1978761..1979435	-	224	24214701	pgsA2	LA2001	-	phosphatidylglycerophosphate synthase
2002	 26.19	-1	1980535..1980660	+	41	24214702	-	LA2002	-	hypothetical protein
2003	 39.44	0	1981077..1982321	+	414	24214703	-	LA2003	-	hypothetical protein
2004	 44.02	+1	1982318..1983178	+	286	24214704	-	LA2004	-	outermembrane protein
2005	 32.38	0	1983494..1983598	+	34	24214705	-	LA2005	-	hypothetical protein
2006	 27.19	-1	1983821..1984048	-	75	24214706	-	LA2006	-	hypothetical protein
2007	 36.57	0	1984321..1985340	-	339	24214707	fliG2	LA2007	-	flagellar motor switch protein
2008	 42.48	+1	1985346..1986722	-	458	24214708	pdhC	LA2008	-	dihydrolipoamide acetyltransferase component of pyruvate dehydrogenase complex E2
2009	 43.08	+1	1986744..1987718	-	324	24214709	aceE1	LA2009	-	pyruvate dehydrogenase subunit beta
2010	 42.48	+1	1987718..1988701	-	327	24214710	aceE2	LA2010	-	pyruvate dehydrogenase E1 component, alpha subunit
35.02	MEAN

4.84	STD DEV
