IslandPath Analysis: Leptospira interrogans serovar Lai str. 56601

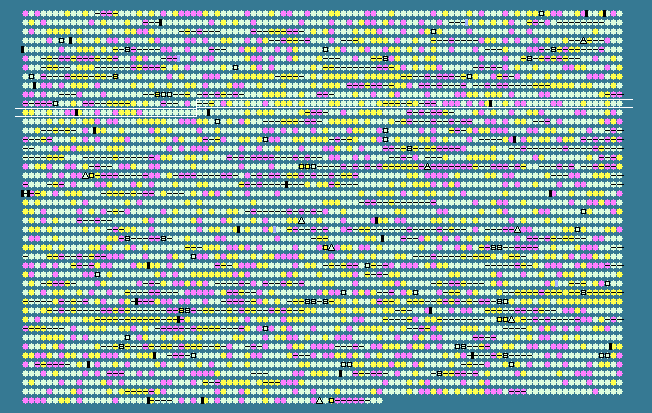

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.02 STD DEV: 4.84
Leptospira interrogans serovar Lai str. 56601 chromosome I, complete sequence - 1..4332241
4360 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1030	 36.75	0	1041419..1042267	-	282	24213730	-	LA1030	-	TPR repeat-containing protein
1031	 36.11	0	1042379..1042558	+	59	24213731	-	LA1031	-	hypothetical protein
1032	 40.22	+1	1042560..1043387	-	275	24213732	ech3	LA1032	-	enoyl-CoA hydratase
1033	 34.20	0	1043462..1043692	+	76	24213733	-	LA1033	-	hypothetical protein
1034	 27.78	-1	1043700..1043843	-	47	24213734	-	LA1034	-	hypothetical protein
1035	 40.14	+1	1043959..1044105	-	48	24213735	-	LA1035	-	hypothetical protein
1036	 37.39	0	1045339..1046718	-	459	24213736	-	LA1036	-	two-component hybrid sensor and regulator
1037	 32.16	0	1047045..1047215	-	56	24213737	-	LA1037	-	hypothetical protein
1038	 39.33	0	1047269..1047568	+	99	24213738	-	LA1038	-	hypothetical protein
1039	 34.52	0	1047636..1048310	-	224	24213739	-	LA1039	-	hypothetical protein
1040	 36.10	0	1048414..1049496	-	360	24213740	-	LA1040	-	hypothetical protein
1041	 24.56	-2	1049493..1049606	-	37	24213741	-	LA1041	-	hypothetical protein
1042	 33.33	0	1049817..1049924	-	35	24213742	-	LA1042	-	hypothetical protein
1043	 39.23	0	1050234..1051352	-	372	24213743	-	LA1043	-	peptidase, M23/M37 family protein
1044	 43.80	+1	1051406..1051816	-	136	24213744	-	LA1044	-	hypothetical protein
1045	 41.38	+1	1051918..1054401	-	827	24213745	-	LA1045	-	penicillin-binding protein 1A
1046	 37.98	0	1054408..1055484	-	358	24213746	-	LA1046	-	hypothetical protein
1047	 41.06	+1	1055560..1056828	+	422	24213747	lysA	LA1047	-	diaminopimelate decarboxylase
1048	 36.82	0	1056806..1057522	+	238	24213748	ygbP	LA1048	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
1049	 32.67	0	1057819..1057968	+	49	24213749	-	LA1049	-	hypothetical protein
1050	 32.54	0	1058289..1058414	-	41	24213750	-	LA1050	-	hypothetical protein
1051	 35.81	0	1059114..1059638	+	174	24213751	-	LA1051	-	hypothetical protein
1052	 40.87	+1	1059635..1061014	+	459	24213752	-	LA1052	-	hypothetical protein
1053	 39.90	+1	1061028..1061438	+	136	24213753	-	LA1053	-	hypothetical protein
1054	 36.45	0	1061435..1061755	+	106	24213754	-	LA1054	-	hypothetical protein
1055	 36.53	0	1061862..1062080	+	72	24213755	-	LA1055	-	hypothetical protein
1056	 36.57	0	1062126..1063946	+	606	24213756	-	LA1056	-	hypothetical protein
1057	 40.03	+1	1063943..1064554	+	203	24213757	-	LA1057	-	hypothetical protein
1058	 32.15	0	1064572..1064910	+	112	24213758	-	LA1058	-	hypothetical protein
1059	 37.97	0	1064907..1065725	+	272	24213759	-	LA1059	-	hypothetical protein
1060	 41.32	+1	1065692..1066405	+	237	24213760	-	LA1060	-	bacteriophage protein-like protein
1061	 39.42	0	1066402..1066746	+	114	24213761	-	LA1061	-	hypothetical protein
1062	 40.23	+1	1066743..1067960	+	405	24213762	-	LA1062	-	hypothetical protein
1063	 38.77	0	1067957..1068931	+	324	24213763	-	LA1063	-	hypothetical protein
1064	 35.51	0	1068928..1069203	+	91	24213764	-	LA1064	-	hypothetical protein
1065	 43.29	+1	1069200..1070093	+	297	24213765	-	LA1065	-	hypothetical protein
1066	 42.17	+1	1070235..1071128	+	297	24213766	-	LA1066	-	hypothetical protein
1067	 34.56	0	1071128..1071859	+	243	24213767	-	LA1067	-	hypothetical protein
1068	 29.46	-1	1071893..1072021	+	42	24213768	-	LA1068	-	hypothetical protein
1069	 29.28	-1	1072862..1073725	-	287	24213769	-	LA1069	-	alpha/beta fold family hydrolase/acetyltransferase
1070	 32.79	0	1073851..1074951	-	366	24213770	cyaA5	LA1070	-	adenylate cyclase
1071	 30.73	0	1074957..1075148	-	63	24213771	-	LA1071	-	hypothetical protein
1072	 30.66	0	1075813..1076898	-	361	24213772	-	LA1072	-	hypothetical protein
1073	 30.11	-1	1077010..1077537	-	175	24213773	-	LA1073	-	hypothetical protein
1074	 34.70	0	1078268..1079218	-	316	24213774	-	LA1074	-	fumarylacetoacetate hydrolase family protein
1075	 27.59	-1	1079709..1079882	+	57	24213775	-	LA1075	-	hypothetical protein
1076	 35.90	0	1080620..1080970	-	116	24213776	-	LA1076	-	hypothetical protein
1077	 23.73	-2	1081091..1081267	+	58	24213777	-	LA1077	-	hypothetical protein
1078	 41.47	+1	1081517..1081774	+	85	24213778	-	LA1078	-	hypothetical protein
1079	 33.88	0	1081969..1082700	-	243	24213779	-	LA1079	-	hypothetical protein
1080	 37.25	0	1082697..1085351	-	884	24213780	pepN	LA1080	-	aminopeptidase N
1081	 41.53	+1	1085491..1086795	-	434	24213781	-	LA1081	-	MFS permease
1082	 36.79	0	1086749..1087327	-	192	24213782	-	LA1082	-	MutT/nudix family protein
1083	 26.02	-1	1087393..1087515	-	40	24213783	-	LA1083	-	hypothetical protein
1084	 25.00	-2	1087551..1087658	-	35	24213784	-	LA1084	-	hypothetical protein
1085	 37.98	0	1087834..1089858	+	674	24213785	pcrA2	LA1085	-	ATP-dependent DNA helicase pcrA
1086	 34.41	0	1089861..1090511	+	216	24213786	-	LA1086	-	hypothetical protein
1087	 36.43	0	1090529..1092721	+	730	24213787	-	LA1087	-	hypothetical protein
1088	 32.84	0	1092691..1093095	+	134	24213788	-	LA1088	-	hypothetical protein
1089	 21.97	-2	1093405..1093536	+	43	24213789	-	LA1089	-	hypothetical protein
1090	 31.32	0	1093623..1094069	+	148	24213790	-	LA1090	-	hypothetical protein
1091	 34.76	0	1094187..1094537	-	116	24213791	-	LA1091	-	ArsR family transcriptional regulator
1092	 35.40	0	1094570..1095052	+	160	24213792	-	LA1092	-	hypothetical protein
1093	 35.46	0	1095184..1095606	-	140	24213793	-	LA1093	-	hypothetical protein
1094	 38.68	0	1096219..1096461	+	80	24213794	-	LA1094	-	aminoglycoside N6'-acetyltransferase
1095	 37.84	0	1096458..1096679	+	73	24213795	-	LA1095	-	acetyltransferase
1096	 35.96	0	1097194..1098489	-	431	24213796	lpxB	LA1096	-	Lipid-A-disaccharide synthase
1097	 37.10	0	1098443..1099291	-	282	24213797	-	LA1097	-	hypothetical protein
1098	 41.15	+1	1099304..1099546	-	80	24213798	-	LA1098	-	hypothetical protein
1099	 37.87	0	1099585..1101018	-	477	24213799	-	LA1099	-	hypothetical protein
1100	 37.08	0	1101040..1102641	-	533	24213800	-	LA1100	-	outer membrane efflux protein
1101	 46.00	+2	1102904..1103779	-	291	24213801	sucD	LA1101	-	succinyl-CoA synthetase alpha subunit
1102	 43.65	+1	1103792..1104964	-	390	24213802	sucC	LA1102	-	succinyl-CoA synthetase beta chain
1103	 35.97	0	1106173..1106817	-	214	24213803	-	LA1103	-	hypothetical protein
1104	 33.97	0	1106786..1107415	-	209	24213804	dnaJ3	LA1104	-	chaperone DnaJ
1105	 39.70	0	1107515..1108864	+	449	24213805	-	LA1105	-	epimerase
1106	 35.97	0	1108861..1110756	+	631	24213806	-	LA1106	-	hypothetical protein
1107	 35.48	0	1110788..1111624	+	278	24213807	-	LA1107	-	hypothetical protein
1108	 30.63	0	1112496..1112606	+	36	24213808	-	LA1108	-	hypothetical protein
1109	 27.60	-1	1112748..1112939	-	63	24213809	-	LA1109	-	hypothetical protein
1110	 39.83	0	1113143..1114420	-	425	24213810	purA	LA1110	-	adenylosuccinate synthetase
1111	 34.98	0	1114458..1115492	-	344	24213811	hisS2	LA1111	-	histidyl-tRNA synthetase
1112	 36.72	0	1115799..1117808	+	669	24213812	gpsA1	LA1112	-	glycerol-3-phosphate dehydrogenase
1113	 26.81	-1	1118233..1118370	-	45	24213813	-	LA1113	-	hypothetical protein
1114	 34.22	0	1118414..1119547	+	377	24213814	-	LA1114	-	Rieske 2Fe-2S family protein
1115	 33.95	0	1119730..1119891	+	53	24213815	-	LA1115	-	hypothetical protein
1116	 29.37	-1	1120857..1120982	+	41	24213816	-	LA1116	-	hypothetical protein
1117	 40.17	+1	1121251..1122201	-	316	24213817	-	LA1118	-	outermembrane protein
1118	 41.27	+1	1122189..1122314	+	41	24213818	-	LA1117	-	hypothetical protein
1119	 38.58	0	1122707..1123144	+	145	24213819	-	LA1119	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1120	 27.93	-1	1123952..1124062	-	36	24213820	-	LA1120	-	hypothetical protein
1121	 36.59	0	1124315..1124836	+	173	24213821	-	LA1121	-	hypothetical protein
1122	 35.49	0	1125009..1126028	-	339	24213822	-	LA1122	-	outermembrane protein
1123	 34.64	0	1126519..1127358	-	279	24213823	-	LA1123	-	hypothetical protein
1124	 34.43	0	1127289..1129019	-	576	24213824	cutE	LA1124	-	apolipoprotein N-acyltransferase
1125	 33.24	0	1129025..1130059	-	344	24213825	-	LA1125	-	outermembrane protein
1126	 36.67	0	1130146..1131165	+	339	24213826	-	LA1126	-	phosphoglycerate dehydrogenase
1127	 32.67	0	1131884..1132033	-	49	24213827	-	LA1127	-	hypothetical protein
1128	 32.12	0	1132502..1133404	-	300	24213828	-	LA1128	-	hypothetical protein
1129	 33.19	0	1133382..1134068	-	228	24213829	-	LA1129	-	DNA alkylation repair enzyme-like protein
35.02	MEAN

4.84	STD DEV
