IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

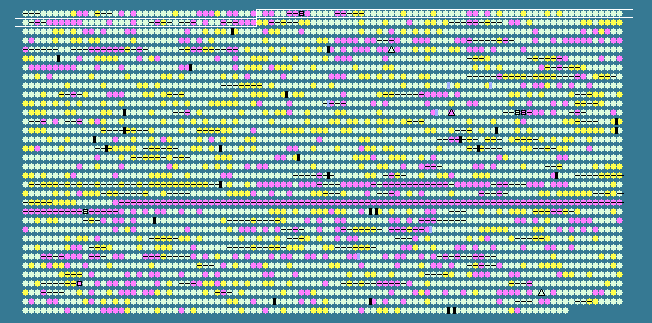

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.82   STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
40	 35.84	0	41212..41730	-	172	183219467	-	LEPBI_I0040	-	putative signal peptide
41	 32.58	-1	41811..42209	-	132	183219468	-	LEPBI_I0041	-	hypothetical protein
42	 32.72	-1	42233..42718	-	161	183219469	-	LEPBI_I0042	-	putative acetyltransferase
43	 39.15	0	42885..43727	+	280	183219470	-	LEPBI_I0043	-	aromatic-ring-opening dioxygenase domain-containing protein
44	 38.25	0	43771..44421	+	216	183219471	-	LEPBI_I0044	-	putative carboxylesterase 2
45	 34.15	-1	44434..45171	-	245	183219472	-	LEPBI_I0045	-	hypothetical protein
46	 34.92	0	45579..45704	+	41	183219473	-	LEPBI_I0046	-	hypothetical protein
47	 34.94	0	45843..46835	-	330	183219474	-	LEPBI_I0047	-	IS30 family transposase
48	 32.47	-1	47002..47232	-	76	183219475	-	LEPBI_I0048	-	hypothetical protein
49	 41.07	0	47282..48586	-	434	183219476	purB	LEPBI_I0049	-	adenylosuccinate lyase
50	 41.41	0	48695..49462	+	255	183219477	fabG3b	LEPBI_I0050	-	3-oxoacyl-[acyl-carrier-protein] reductase
51	 38.32	0	49449..51413	-	654	183219478	-	LEPBI_I0051	-	hypothetical protein
52	 38.31	0	51508..52290	-	260	183219479	-	LEPBI_I0052	-	putative enoyl-CoA hydratase
53	 33.98	-1	52407..53330	-	307	183219480	-	LEPBI_I0053	-	hypothetical protein
54	 34.74	0	53386..54735	-	449	183219481	-	LEPBI_I0054	-	hypothetical protein
55	 41.46	0	54824..55069	+	81	183219482	yeaQ	LEPBI_I0055	-	hypothetical protein
56	 45.03	+1	55184..55927	-	247	183219483	-	LEPBI_I0056	-	hypothetical protein
57	 44.22	+1	56051..57217	+	388	183219484	acdA2	LEPBI_I0057	-	Acyl-CoA dehydrogenase
58	 38.25	0	57274..57843	+	189	183219485	trpG2	LEPBI_I0058	-	anthranilate synthase component II
59	 39.08	0	57840..59735	+	631	183219486	-	LEPBI_I0059	-	ABC transporter, atp-binding protein; putative membrane protein
60	 41.04	0	59732..60133	+	133	183219487	-	LEPBI_I0060	-	putative response regulator receiver
61	 39.15	0	60120..61994	-	624	183219488	-	LEPBI_I0061	-	hypothetical protein
62	 41.23	0	62138..63694	+	518	183219489	-	LEPBI_I0062	-	GTP-binding protein
63	 37.37	0	63681..64052	-	123	183219490	-	LEPBI_I0063	-	putative anti-sigma factor antagonist
64	 45.33	+1	64057..65340	-	427	183219491	hom	LEPBI_I0064	-	homoserine dehydrogenase (HDH)
65	 40.00	0	65440..66144	+	234	183219492	-	LEPBI_I0065	-	hypothetical protein
66	 39.54	0	66148..66759	-	203	183219493	-	LEPBI_I0066	-	hypothetical protein
67	 40.38	0	66761..68122	+	453	183219494	-	LEPBI_I0067	-	hypothetical protein
68	 40.26	0	68131..68592	-	153	183219495	-	LEPBI_I0068	-	MarR family transcriptional regulator
69	 42.53	0	68630..70216	-	528	183219496	-	LEPBI_I0069	-	putative dehydrogenase-related protein
70	 38.77	0	70219..71652	-	477	183219497	-	LEPBI_I0070	-	hypothetical protein
71	 41.55	0	71745..72608	+	287	183219498	-	LEPBI_I0071	-	putative S-methyl-5-thioadenosine phosphorylase
72	 36.13	0	72605..72997	-	130	183219499	-	LEPBI_I0072	-	putative anti-sigma factor antagonist
73	 39.15	0	72994..74163	-	389	183219500	galK	LEPBI_I0073	-	galactokinase (galactose kinase)
74	 40.35	0	74208..75560	+	450	183219501	pgi	LEPBI_I0074	-	glucose-6-phosphate isomerase
75	 34.85	0	75537..76259	-	240	183219502	-	LEPBI_I0075	-	putative nucleotide-diphospho-sugar transferase
76	 34.14	-1	76256..77245	-	329	183219503	-	LEPBI_I0076	-	putative kinase
77	 36.71	0	77254..78765	-	503	183219504	-	LEPBI_I0077	-	putative sensor protein
78	 34.00	-1	78758..80551	-	597	183219505	-	LEPBI_I0078	-	ABC transporter ATPase
79	 37.13	0	80553..81422	+	289	183219506	-	LEPBI_I0079	-	putative proline iminopeptidase
80	 43.59	+1	81423..81656	-	77	183219507	-	LEPBI_I0080	-	putative ferredoxin
81	 38.25	0	81706..82071	+	121	183219508	-	LEPBI_I0081	-	putative response regulator
82	 38.24	0	82068..82841	-	257	183219509	-	LEPBI_I0082	-	putative ribosomal RNA methyltransferase, putative hemolysine TlyA-like protein
83	 40.15	0	82822..83745	-	307	183219510	ispA	LEPBI_I0083	-	geranyltranstransferase
84	 43.72	+1	83799..84212	-	137	183219511	ndk	LEPBI_I0084	-	nucleoside diphosphate kinase
85	 41.16	0	84255..86363	-	702	183219512	kefB	LEPBI_I0085	-	glutathione-regulated potassium-efflux system protein KefB; putative membrane protein
86	 40.37	0	86381..86863	-	160	183219513	coaD	LEPBI_I0086	-	phosphopantetheine adenylyltransferase
87	 41.77	0	86865..88073	-	402	183219514	argG	LEPBI_I0087	-	argininosuccinate synthase (citrulline--aspartate ligase)
88	 42.47	0	88155..89303	+	382	183219515	-	LEPBI_I0088	-	putative signal peptide
89	 41.52	0	89314..89814	+	166	183219516	-	LEPBI_I0089	-	putative signal peptide
90	 43.47	+1	89804..91372	+	522	183219517	-	LEPBI_I0090	-	putative oxidase
91	 40.75	0	91365..92564	-	399	183219518	-	LEPBI_I0091	-	putative tRNA (uracil-5-)-methyltransferase
92	 40.32	0	92561..93634	-	357	183219519	pyrD	LEPBI_I0092	-	dihydroorotate dehydrogenase (dihydroorotate oxydase)
93	 36.91	0	93732..95351	+	539	183219520	-	LEPBI_I0093	-	putative sensor protein
94	 37.63	0	95348..96277	+	309	183219521	-	LEPBI_I0094	-	putative two-component response regulator
95	 35.67	0	96280..96921	-	213	183219522	-	LEPBI_I0095	-	putative beta-phosphoglucomutase
96	 36.83	0	96911..97624	-	237	183219523	rluD	LEPBI_I0096	-	pseudouridine synthase (Uracil hydrolyase)
97	 37.51	0	97621..98793	-	390	183219524	-	LEPBI_I0097	-	ankyrin repeat-containing protein
98	 39.09	0	98787..100142	-	451	183219525	-	LEPBI_I0098	-	hypothetical protein
99	 36.73	0	100261..101466	+	401	183219526	-	LEPBI_I0099	-	hypothetical protein
100	 36.79	0	101487..102065	-	192	183219527	-	LEPBI_I0100	-	TetR family transcriptional regulator
101	 37.42	0	102190..102801	+	203	183219528	-	LEPBI_I0101	-	hypothetical protein
102	 38.20	0	102794..104335	+	513	183219529	-	LEPBI_I0102	-	putative oxidoreductase
103	 34.58	-1	104337..105215	+	292	183219530	-	LEPBI_I0103	-	putative transporter, sodium/bile acid transporter family protein
104	 39.80	0	105216..106343	+	375	183219531	acdA1	LEPBI_I0104	-	Acyl-CoA dehydrogenase
105	 34.26	-1	106345..107313	+	322	183219532	-	LEPBI_I0105	-	hypothetical protein
106	 34.66	-1	107324..108154	+	276	183219533	-	LEPBI_I0106	-	putative short chain dehydrogenase
107	 33.59	-1	108163..110088	+	641	183219534	-	LEPBI_I0107	-	long-chain-fatty-acid--CoA ligase
108	 32.70	-1	110100..110885	+	261	183219535	-	LEPBI_I0108	-	putative enoyl-CoA hydratase/carnithine racemase
109	 34.36	-1	110888..112450	+	520	183219536	-	LEPBI_I0109	-	putative methyl-accepting chemotaxis protein; putative membrane protein
110	 34.31	-1	112479..113708	+	409	183219537	-	LEPBI_I0110	-	hypothetical protein
111	 40.62	0	113710..114876	-	388	183219538	-	LEPBI_I0111	-	putative signal peptide
112	 40.15	0	114906..116696	-	596	183219539	-	LEPBI_I0112	-	hypothetical protein
113	 40.06	0	116686..117651	-	321	183219540	-	LEPBI_I0113	-	putative UDP-glucose 4-epimerase (UDP-galactose 4-epimerase)
114	 38.26	0	117653..118546	-	297	183219541	-	LEPBI_I0114	-	putative transporter, sodium/bile acid cotransporter family protein
115	 34.76	0	118904..119323	-	139	183219542	-	LEPBI_I0115	-	hypothetical protein
116	 37.99	0	119511..121076	+	521	183219543	-	LEPBI_I0116	-	putative methyl-accepting chemotaxis protein; putative membrane protein
117	 39.22	0	121078..121977	-	299	183219544	-	LEPBI_I0117	-	hypothetical protein
118	 40.20	0	121989..122585	-	198	183219545	-	LEPBI_I0118	-	hypothetical protein
119	 33.84	-1	122692..123288	+	198	183219546	-	LEPBI_I0119	-	hypothetical protein
120	 40.60	0	123425..123988	-	187	183219547	-	LEPBI_I0120	-	hypothetical protein
121	 36.07	0	124037..124474	-	145	183219548	-	LEPBI_I0121	-	hypothetical protein
122	 39.67	0	124652..125077	+	141	183219549	-	LEPBI_I0122	-	hypothetical protein
123	 31.22	-1	125251..125439	-	62	183219550	-	LEPBI_I0123	-	hypothetical protein
124	 43.94	+1	125446..126105	+	219	183219551	-	LEPBI_I0124	-	hypothetical protein
125	 35.83	0	126179..126499	+	106	183219552	-	LEPBI_I0125	-	hypothetical protein
126	 40.74	0	126550..127305	-	251	183219553	fabG2	LEPBI_I0126	-	3-oxoacyl-[acyl-carrier-protein] reductase
127	 41.33	0	127573..128460	+	295	183219554	-	LEPBI_I0127	-	putative HTH-type transcriptional regulator
128	 41.58	0	128612..130006	+	464	183219555	-	LEPBI_I0128	-	putative signal peptide
129	 33.71	-1	130010..130534	+	174	183219556	-	LEPBI_I0130	-	hypothetical protein
130	 38.00	0	130774..131202	-	142	183219557	-	LEPBI_I0131	-	hypothetical protein
131	 34.36	-1	131384..131773	+	129	183219558	-	LEPBI_I0132	-	hypothetical protein
132	 35.98	0	131787..132164	-	125	183219559	-	LEPBI_I0133	-	hypothetical protein
133	 37.63	0	133073..134260	+	395	183219560	-	LEPBI_I0134	-	hypothetical protein
134	 35.17	0	134352..135005	+	217	183219561	-	LEPBI_I0135	-	hypothetical protein
135	 37.17	0	135002..135730	+	242	183219562	-	LEPBI_I0136	-	putative MotB protein
136	 29.25	-2	135801..136412	+	203	183219563	-	LEPBI_I0137	-	hypothetical protein
137	 35.16	0	136531..136968	+	145	183219564	-	LEPBI_I0138	-	hypothetical protein
138	 28.94	-2	136965..138308	-	447	183219565	-	LEPBI_I0139	-	putative sensor protein
139	 31.11	-1	138351..138440	-	29	183219566	-	LEPBI_I0141	-	hypothetical protein
38.82	MEAN

4.08	STD DEV
