IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

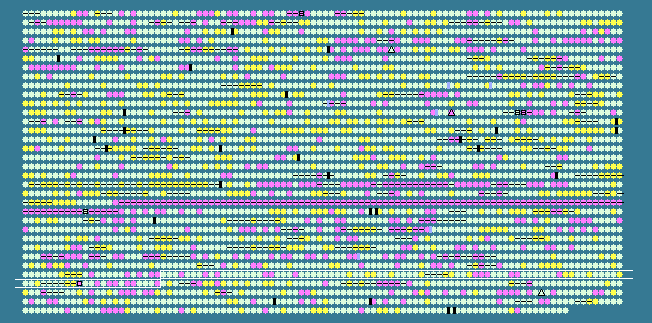

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.82 STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2924	 35.43	0	3111277..3113466	-	729	183222351	-	LEPBI_I3004	-	putative penicillin-binding protein (peptidoglycan glycosyltransferase)
2925	 36.04	0	3113463..3118532	-	1689	183222352	-	LEPBI_I3005	-	hypothetical protein
2926	 40.82	0	3118686..3119126	+	146	183222353	-	LEPBI_I3006	-	hypothetical protein
2927	 34.93	0	3119168..3121543	+	791	183222354	-	LEPBI_I3007	-	putative sensor kinase
2928	 39.29	0	3121529..3123088	-	519	183222355	ahpF	LEPBI_I3008	-	Alkyl hydroperoxide reductase subunit F
2929	 42.02	0	3123133..3123696	-	187	183222356	ahpC1	LEPBI_I3009	-	Alkyl hydroperoxide reductase subunit C
2930	 35.51	0	3123807..3124724	-	305	183222357	-	LEPBI_I3010	-	LysR family regulatory protein
2931	 34.84	0	3124815..3126740	+	641	183222358	-	LEPBI_I3011	-	putative phosphoserine phosphatase; putative membrane protein; putative signal peptide
2932	 35.91	0	3126749..3127486	+	245	183222359	-	LEPBI_I3012	-	putative two-component response regulator
2933	 33.58	-1	3127581..3127985	+	134	183222360	-	LEPBI_I3013	-	putative signal peptide
2934	 36.82	0	3127995..3128396	+	133	183222361	-	LEPBI_I3015	-	hypothetical protein
2935	 36.84	0	3128393..3128734	+	113	183222362	-	LEPBI_I3016	-	putative signal peptide
2936	 38.54	0	3128898..3131222	+	774	183222363	-	LEPBI_I3017	-	putative signal peptide
2937	 37.10	0	3131222..3131725	+	167	183222364	-	LEPBI_I3018	-	hypothetical protein
2938	 36.75	0	3131727..3132341	+	204	183222365	exbB2	LEPBI_I3019	-	biopolymer transport ExbB protein; putative membrane protein
2939	 37.56	0	3132344..3132745	+	133	183222366	exbD3	LEPBI_I3020	-	biopolymer transport ExbD protein
2940	 38.99	0	3132742..3133395	+	217	183222367	-	LEPBI_I3021	-	putative TonB protein
2941	 30.30	-2	3133398..3135311	+	637	183222368	-	LEPBI_I3022	-	hypothetical protein
2942	 34.55	-1	3135289..3135864	-	191	183222369	-	LEPBI_I3023	-	SenC family respiratory system protein
2943	 38.97	0	3135846..3136910	-	354	183222370	-	LEPBI_I3024	-	hypothetical protein
2944	 35.58	0	3136925..3137236	-	103	183222371	-	LEPBI_I3025	-	hypothetical protein
2945	 38.25	0	3137250..3139223	-	657	183222372	-	LEPBI_I3026	-	putative signal peptide
2946	 34.13	-1	3139300..3139926	-	208	183222373	-	LEPBI_I3027	-	TetR family transcriptional regulator
2947	 37.24	0	3139923..3141869	-	648	183222374	-	LEPBI_I3028	-	ABC-type transport system, ATP-binding protein; putative membrane protein
2948	 36.19	0	3141873..3142817	-	314	183222375	-	LEPBI_I3029	-	putative permease
2949	 36.50	0	3142807..3144162	-	451	183222376	-	LEPBI_I3030	-	hypothetical protein
2950	 38.80	0	3144252..3145166	-	304	183222377	-	LEPBI_I3031	-	hypothetical protein
2951	 38.62	0	3145223..3146830	-	535	183222378	-	LEPBI_I3032	-	putative sulfate transporter family protein
2952	 35.84	0	3146861..3148534	-	557	183222379	-	LEPBI_I3033	-	AraC family transcriptional regulator
2953	 39.21	0	3148574..3149560	+	328	183222380	-	LEPBI_I3034	-	putative permease; putative membrane protein
2954	 39.27	0	3149598..3151433	+	611	183222381	-	LEPBI_I3035	-	hypothetical protein
2955	 43.11	+1	3151495..3152118	+	207	183222382	-	LEPBI_I3036	-	TetR family transcriptional regulator
2956	 36.05	0	3152115..3152888	-	257	183222383	-	LEPBI_I3037	-	putative acyltransferase
2957	 40.00	0	3153350..3153979	+	209	183222384	-	LEPBI_I3038	-	hypothetical protein
2958	 44.01	+1	3154019..3154870	+	283	183222385	-	LEPBI_I3039	-	putative signal peptide
2959	 43.95	+1	3155051..3155785	+	244	183222386	-	LEPBI_I3040	-	hypothetical protein
2960	 38.71	0	3155798..3156355	+	185	183222387	-	LEPBI_I3041	-	putative ATPase
2961	 39.08	0	3156369..3156716	+	115	183222388	-	LEPBI_I3042	-	hypothetical protein
2962	 42.60	0	3156727..3157902	-	391	183222389	-	LEPBI_I3043	-	hypothetical protein
2963	 42.18	0	3158022..3159242	+	406	183222390	-	LEPBI_I3044	-	hypothetical protein
2964	 39.58	0	3159247..3159534	+	95	183222391	-	LEPBI_I3045	-	hypothetical protein
2965	 40.60	0	3159542..3160477	+	311	183222392	-	LEPBI_I3046	-	putative adenylate/guanylate cyclase
2966	 38.97	0	3160509..3161093	+	194	183222393	-	LEPBI_I3047	-	hypothetical protein
2967	 45.14	+1	3161068..3161643	-	191	183222394	-	LEPBI_I3048	-	TetR family transcriptional regulator
2968	 40.75	0	3161770..3162780	+	336	183222395	-	LEPBI_I3049	-	hypothetical protein
2969	 40.38	0	3162777..3163202	+	141	183222396	-	LEPBI_I3050	-	hypothetical protein
2970	 39.12	0	3163199..3164839	-	546	183222397	-	LEPBI_I3051	-	putative ankyrin-like protein
2971	 43.84	+1	3164926..3165753	+	275	183222398	-	LEPBI_I3052	-	hypothetical protein
2972	 44.38	+1	3165809..3166831	+	340	183222399	-	LEPBI_I3053	-	putative L-threonine 3-dehydrogenase
2973	 39.65	0	3166930..3167721	+	263	183222400	-	LEPBI_I3054	-	hypothetical protein
2974	 42.26	0	3167763..3168356	+	197	183222401	-	LEPBI_I3055	-	hypothetical protein
2975	 44.73	+1	3168393..3169208	+	271	183222402	-	LEPBI_I3056	-	hypothetical protein
2976	 30.43	-2	3169797..3169934	-	45	183222403	-	LEPBI_I3057	-	hypothetical protein
2977	 31.45	-1	3170068..3170385	-	105	183222404	-	LEPBI_I3058	-	hypothetical protein
2978	 30.30	-2	3170571..3170768	+	65	183222405	-	LEPBI_I3059	-	hypothetical protein
2979	 39.81	0	3170765..3173140	+	791	183222406	-	LEPBI_I3060	-	hypothetical protein
2980	 38.31	0	3173480..3174664	+	394	183222407	-	LEPBI_I3061	-	hypothetical protein
2981	 37.41	0	3174936..3175082	-	48	183222408	-	LEPBI_I3062	-	hypothetical protein
2982	 35.19	0	3175118..3175816	+	232	183222409	-	LEPBI_I3063	-	hypothetical protein
2983	 30.88	-1	3176156..3176725	-	189	183222410	-	LEPBI_I3064	-	hypothetical protein
2984	 40.09	0	3176796..3177728	-	310	183222411	-	LEPBI_I3065	-	MORN repeat-containing protein
2985	 35.36	0	3177800..3178144	-	114	183222412	chpK	LEPBI_I3066	-	ChpK toxin protein
2986	 37.35	0	3178131..3178379	-	82	183222413	chpI	LEPBI_I3067	-	antitoxin protein ChpI
2987	 37.50	0	3178571..3179458	-	295	183222414	-	LEPBI_I3068	-	putative ankyrin-like protein
2988	 38.08	0	3179841..3180662	-	273	183222415	-	LEPBI_I3069	-	putative ankyrin-like protein
2989	 36.07	0	3180787..3181590	-	267	183222416	-	LEPBI_I3070	-	MORN repeat-containing protein
2990	 31.48	-1	3181607..3181822	-	71	183222417	-	LEPBI_I3071	-	hypothetical protein
2991	 49.45	+2	3182149..3182787	+	212	183222418	-	LEPBI_I3072	-	hypothetical protein
2992	 43.61	+1	3182854..3184050	+	398	183222419	mreC	LEPBI_I3073	-	rod shape-determining protein MreC
2993	 40.12	0	3184047..3184562	+	171	183222420	mreD	LEPBI_I3074	-	rod shape-determining protein MreD; putative membrane protein
2994	 41.64	0	3184559..3186496	+	645	183222421	mrdA	LEPBI_I3075	-	penicillin-binding protein 2
2995	 42.97	+1	3186496..3188010	+	504	183222422	mrdB	LEPBI_I3076	-	rod shape-determining protein; putative membrane protein
2996	 35.84	0	3188019..3188855	+	278	183222423	-	LEPBI_I3077	-	hypothetical protein
2997	 40.11	0	3188901..3189830	-	309	183222424	ribF	LEPBI_I3078	-	riboflavin biosynthesis protein RibF
2998	 42.28	0	3189867..3190436	+	189	183222425	-	LEPBI_I3079	-	hypothetical protein
2999	 40.00	0	3190437..3190781	-	114	183222426	-	LEPBI_I3080	-	putative anti-sigma factor antagonist
3000	 42.50	0	3190901..3191620	+	239	183222427	-	LEPBI_I3081	-	putative signal peptide
3001	 41.95	0	3191649..3192344	+	231	183222428	-	LEPBI_I3082	-	putative chaperone protein DnaJ
3002	 41.40	0	3192356..3193372	+	338	183222429	manA	LEPBI_I3083	-	mannose-6-phosphate isomerase
3003	 43.79	+1	3193495..3194355	-	286	183222430	-	LEPBI_I3084	-	putative pirin-like protein
3004	 39.15	0	3194352..3195314	-	320	183222431	-	LEPBI_I3085	-	hypothetical protein
3005	 38.89	0	3195262..3195477	-	71	183222432	-	LEPBI_I3086	-	hypothetical protein
3006	 37.38	0	3195492..3196034	-	180	183222433	-	LEPBI_I3087	-	putative signal peptide
3007	 41.44	0	3196077..3197396	-	439	183222434	glpT	LEPBI_I3088	-	putative glycerol-3-phosphate transporter; putative membrane protein
3008	 43.28	+1	3197443..3198417	+	324	183222435	cysK2	LEPBI_I3089	-	cysteine synthase A
3009	 44.90	+1	3198689..3203641	+	1650	183222436	-	LEPBI_I3090	-	hypothetical protein
3010	 35.15	0	3203654..3204646	+	330	183222437	-	LEPBI_I3091	-	IS30 family transposase
3011	 39.53	0	3204692..3205675	+	327	183222438	-	LEPBI_I3092	-	hypothetical protein
3012	 39.57	0	3205672..3206088	+	138	183222439	-	LEPBI_I3093	-	hypothetical protein
3013	 34.12	-1	3206133..3206894	-	253	183222440	-	LEPBI_I3094	-	hypothetical protein
3014	 36.60	0	3206891..3208849	-	652	183222441	acsA1	LEPBI_I3095	-	acetoacetyl-coenzyme A synthetase
3015	 32.46	-1	3208943..3210313	+	456	183222442	-	LEPBI_I3096	-	putative membrane bound 0-acyl transferase, putative alginate biosynthesis protein; putative membrane protein
3016	 33.24	-1	3210322..3211410	+	362	183222443	-	LEPBI_I3097	-	hypothetical protein
3017	 36.11	0	3211415..3211810	+	131	183222444	-	LEPBI_I3098	-	hypothetical protein
3018	 33.11	-1	3211859..3213190	+	443	183222445	-	LEPBI_I3099	-	putative efflux system outer membrane protein CzcC
3019	 33.25	-1	3213187..3214326	+	379	183222446	-	LEPBI_I3100	-	putative cation efflux system protein CzcB; putative signal peptide
3020	 35.71	0	3214328..3217438	+	1036	183222447	-	LEPBI_I3101	-	putative cation efflux system protein CzcA; putative membrane protein
3021	 37.30	0	3217387..3218193	-	268	183222448	-	LEPBI_I3102	-	putative carboxymethylenebutenolidase
3022	 38.12	0	3218554..3220266	+	570	183222449	-	LEPBI_I3103	-	Acyl-CoA dehydrogenase
3023	 35.03	0	3220359..3221540	-	393	183222450	-	LEPBI_I3104	-	putative fatty acid desaturase
38.82	MEAN

4.08	STD DEV
