IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

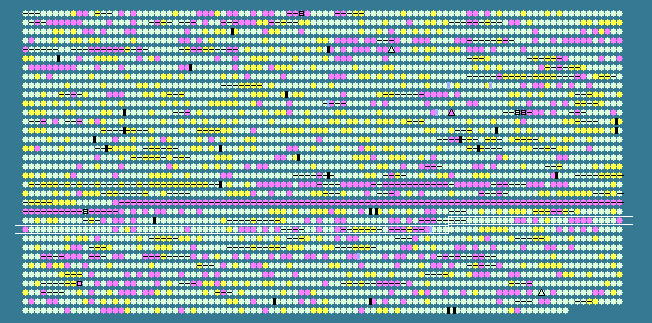

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.82 STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2372	 39.21	0	2504007..2504993	-	328	183221799	-	LEPBI_I2430	-	putative di-haem cytochrome C peroxidase (CCP)
2373	 38.06	0	2505275..2505634	+	119	183221800	-	LEPBI_I2431	-	hypothetical protein
2374	 38.69	0	2505716..2506648	+	310	183221801	argF	LEPBI_I2432	-	ornithine carbamoyltransferase (OTCase)
2375	 42.15	0	2506765..2507229	-	154	183221802	-	LEPBI_I2433	-	putative globin
2376	 40.00	0	2507321..2507500	+	59	183221803	-	LEPBI_I2434	-	hypothetical protein
2377	 41.19	0	2507491..2508483	+	330	183221804	-	LEPBI_I2435	-	putative malate synthase-like protein
2378	 38.54	0	2508541..2510613	-	690	183221805	-	LEPBI_I2436	-	putative methyl-accepting chemotaxis protein McpB
2379	 39.30	0	2510771..2511943	-	390	183221806	-	LEPBI_I2437	-	putative signal peptide
2380	 39.02	0	2511985..2512635	-	216	183221807	-	LEPBI_I2438	-	hypothetical protein
2381	 38.80	0	2512693..2513955	-	420	183221808	-	LEPBI_I2439	-	putative voltage-gated chloride channel protein; putative membrane protein; putative signal peptide
2382	 37.93	0	2513991..2514164	+	57	183221809	-	LEPBI_I2440	-	hypothetical protein
2383	 32.04	-1	2514225..2514998	-	257	183221810	-	LEPBI_I2441	-	hypothetical protein
2384	 35.19	0	2515069..2517225	-	718	183221811	-	LEPBI_I2442	-	putative two-component response regulator
2385	 37.28	0	2517368..2518813	-	481	183221812	-	LEPBI_I2443	-	putative apolipoprotein N-acyltransferase; putative membrane protein
2386	 34.17	-1	2518810..2519523	-	237	183221813	-	LEPBI_I2444	-	hypothetical protein
2387	 38.25	0	2519737..2520672	-	311	183221814	xerC	LEPBI_I2445	-	tyrosine recombinase XerC
2388	 45.45	+1	2520970..2522133	+	387	183221815	recA	LEPBI_I2446	-	protein RecA (recombinase A)
2389	 36.29	0	2522313..2523362	+	349	183221816	-	LEPBI_I2447	-	hypothetical protein
2390	 37.92	0	2523373..2524200	-	275	183221817	dkgA	LEPBI_I2448	-	2,5-diketo-D-gluconic acid reductase A
2391	 38.69	0	2524272..2526659	-	795	183221818	clpB	LEPBI_I2449	-	chaperone ClpB
2392	 34.20	-1	2526817..2528784	+	655	183221819	-	LEPBI_I2450	-	putative serine phosphatase RsbU regulator; putative membrane protein; putative signal peptide
2393	 32.55	-1	2528788..2530959	-	723	183221820	-	LEPBI_I2451	-	putative two-component regulator
2394	 32.40	-1	2531003..2532940	-	645	183221821	-	LEPBI_I2452	-	putative two-component regulator
2395	 35.30	0	2532940..2533803	-	287	183221822	-	LEPBI_I2453	-	hypothetical protein
2396	 36.04	0	2533827..2536340	-	837	183221823	-	LEPBI_I2454	-	putative cation-transporting ATPase; putative membrane protein
2397	 35.93	0	2536393..2537742	+	449	183221824	-	LEPBI_I2455	-	putative peptidase
2398	 36.53	0	2537719..2538906	-	395	183221825	-	LEPBI_I2456	-	putative hydroxypyruvate reductase
2399	 36.56	0	2538911..2541172	-	753	183221826	-	LEPBI_I2457	-	putative thioredoxin-disulfide reductase; putative membrane protein
2400	 33.10	-1	2541215..2542519	-	434	183221827	-	LEPBI_I2458	-	putative two-component sensor protein; putative membrane protein
2401	 33.65	-1	2542516..2544405	-	629	183221828	-	LEPBI_I2459	-	putative serine phosphatase RsbU; putative membrane protein; putative signal peptide
2402	 37.04	0	2544410..2544598	-	62	183221829	-	LEPBI_I2460	-	hypothetical protein
2403	 40.46	0	2544866..2545300	+	144	183221830	-	LEPBI_I2461	-	ferric uptake regulation protein
2404	 36.72	0	2545330..2545713	-	127	183221831	-	LEPBI_I2462	-	putative signal peptide
2405	 35.90	0	2545814..2546788	+	324	183221832	panE	LEPBI_I2463	-	2-dehydropantoate 2-reductase
2406	 38.41	0	2546811..2547125	-	104	183221833	-	LEPBI_I2464	-	hypothetical protein
2407	 36.72	0	2547150..2547533	-	127	183221834	-	LEPBI_I2465	-	putative lipoprotein involved in motility and chitin utilization; putative membrane protein
2408	 40.03	0	2547581..2548789	-	402	183221835	-	LEPBI_I2466	-	putative cAMP-binding protein
2409	 37.85	0	2548831..2550225	-	464	183221836	-	LEPBI_I2467	-	putative type I phosphodiesterase/nucleotide pyrophosphatase
2410	 35.90	0	2550240..2551448	-	402	183221837	-	LEPBI_I2468	-	hypothetical protein
2411	 35.57	0	2551439..2552602	-	387	183221838	aroB1	LEPBI_I2469	-	3-dehydroquinate synthase
2412	 37.73	0	2552608..2553471	-	287	183221839	-	LEPBI_I2470	-	hypothetical protein
2413	 40.04	0	2553472..2554500	-	342	183221840	-	LEPBI_I2471	-	putative metallo-dependent hydrolase
2414	 36.41	0	2554506..2555318	-	270	183221841	-	LEPBI_I2472	-	putative signal peptide
2415	 40.28	0	2555614..2557455	+	613	183221842	-	LEPBI_I2473	-	hypothetical protein
2416	 34.54	-1	2557463..2558125	-	220	183221843	-	LEPBI_I2474	-	TetR family transcriptional regulator
2417	 37.81	0	2558230..2559234	+	334	183221844	-	LEPBI_I2475	-	putative alcohol dehydrogenase, zinc-containing
2418	 42.94	+1	2559649..2560377	-	242	183221845	-	LEPBI_I2477	-	putative hemolysin-III related protein; putative membrane protein; putative signal peptide
2419	 31.33	-1	2560403..2560552	-	49	183221846	-	LEPBI_I2478	-	hypothetical protein
2420	 35.71	0	2560732..2561109	-	125	183221847	-	LEPBI_I2479	-	putative signal peptide
2421	 40.28	0	2561137..2562891	-	584	183221848	-	LEPBI_I2480	-	Acyl-CoA dehydrogenase
2422	 40.30	0	2562902..2564896	-	664	183221849	fadH	LEPBI_I2481	-	2,4-dienoyl-CoA reductase (NADPH)
2423	 38.38	0	2565024..2565677	+	217	183221850	-	LEPBI_I2482	-	TetR family transcriptional regulator
2424	 38.61	0	2565682..2566344	-	220	183221851	-	LEPBI_Ia2473	-	TetR family transcriptional regulator
2425	 42.00	0	2566442..2568610	-	722	183221852	-	LEPBI_I2485	-	putative neutral/alkaline ceramidase; putative signal peptide
2426	 38.70	0	2568925..2571030	+	701	183221853	-	LEPBI_I2486	-	glycoside hydrolase family protein 5
2427	 37.67	0	2571194..2572024	-	276	183221854	-	LEPBI_I2487	-	hypothetical protein
2428	 33.33	-1	2572045..2572860	-	271	183221855	-	LEPBI_I2488	-	putative transcriptional regulator
2429	 39.10	0	2573054..2574058	+	334	183221856	-	LEPBI_I2489	-	hypothetical protein
2430	 39.51	0	2574136..2575188	+	350	183221857	-	LEPBI_I2490	-	putative lipoprotein
2431	 37.96	0	2575199..2575912	-	237	183221858	-	LEPBI_I2491	-	hypothetical protein
2432	 37.52	0	2576584..2577372	-	262	183221859	eutC	LEPBI_I2492	-	ethanolamine ammonia-lyase, light chain (ethanolamine ammonia-lyase small subunit)
2433	 40.55	0	2577378..2578763	-	461	183221860	eutB	LEPBI_I2493	-	ethanolamine ammonia-lyase, heavy chain (ethanolamine ammonia-lyase large subunit)
2434	 36.07	0	2578860..2580359	+	499	183221861	-	LEPBI_I2494	-	putative deoxyribodipyrimidine photo-lyase
2435	 43.67	+1	2580556..2582781	+	741	183221862	katG	LEPBI_I2495	-	peroxidase/catalase
2436	 39.15	0	2582782..2583159	+	125	183221863	-	LEPBI_I2496	-	putative high-potential iron-sulfur protein
2437	 34.97	0	2583402..2585417	+	671	183221864	ppc	LEPBI_I2497	-	phosphoenolpyruvate carboxylase
2438	 32.41	-1	2585568..2585783	+	71	183221865	ppc	LEPBI_I2499	-	phosphoenolpyruvate carboxylase (PEPCase; PEPC)
2439	 34.31	-1	2585823..2586128	-	101	183221866	-	LEPBI_I2500	-	hypothetical protein
2440	 37.13	0	2586304..2586804	-	166	183221867	-	LEPBI_I2501	-	hypothetical protein
2441	 34.40	-1	2586946..2587227	+	93	183221868	-	LEPBI_I2502	-	hypothetical protein
2442	 37.76	0	2587224..2588669	-	481	183221869	recQ2	LEPBI_I2503	-	ATP-dependent DNA helicase RecQ
2443	 34.44	-1	2588753..2590012	-	419	183221870	-	LEPBI_I2504	-	putative transcriptional regulator; putative membrane protein
2444	 39.58	0	2590017..2590352	-	111	183221871	-	LEPBI_I2505	-	hypothetical protein
2445	 41.84	0	2590513..2591100	-	195	183221872	-	LEPBI_I2506	-	hypothetical protein
2446	 34.84	0	2591656..2592846	+	396	183221873	-	LEPBI_I2508	-	putative adenylate cyclase; putative membrane protein
2447	 36.85	0	2592959..2593981	-	340	183221874	-	LEPBI_I2509	-	hypothetical protein
2448	 37.67	0	2594301..2594876	+	191	183221875	-	LEPBI_I2510	-	hypothetical protein
2449	 37.06	0	2594985..2595413	+	142	183221876	-	LEPBI_I2511	-	putative signal peptide
2450	 34.02	-1	2595383..2595964	+	193	183221877	-	LEPBI_I2512	-	putative signal peptide
2451	 38.16	0	2595961..2596995	+	344	183221878	-	LEPBI_I2513	-	hypothetical protein
2452	 38.36	0	2597076..2598089	-	337	183221879	-	LEPBI_I2514	-	hypothetical protein
2453	 32.16	-1	2598297..2599064	-	255	183221880	-	LEPBI_I2515	-	putative two-component response regulator
2454	 31.22	-1	2599066..2601003	-	645	183221881	-	LEPBI_I2516	-	putative signal peptide
2455	 37.64	0	2601122..2602561	+	479	183221882	-	LEPBI_I2517	-	hypothetical protein
2456	 43.62	+1	2602741..2603508	-	255	183221883	-	LEPBI_I2518	-	hypothetical protein
2457	 43.55	+1	2604043..2605197	+	384	183221884	-	LEPBI_I2520	-	putative cAMP-dependent protein kinase
2458	 43.16	+1	2605243..2606361	+	372	183221885	-	LEPBI_I2521	-	putative phopholipase
2459	 45.13	+1	2606458..2608152	+	564	183221886	-	LEPBI_I2522	-	hypothetical protein
2460	 36.56	0	2608153..2608617	+	154	183221887	-	LEPBI_I2523	-	hypothetical protein
2461	 38.15	0	2608951..2609220	+	89	183221888	-	LEPBI_I2524	-	hypothetical protein
2462	 33.09	-1	2609438..2612692	+	1084	183221889	-	LEPBI_I2525	-	putative adenylate cyclase; putative membrane protein
2463	 34.12	-1	2612685..2613323	+	212	183221890	-	LEPBI_I2526	-	putative two-component response regulator
2464	 32.82	-1	2613320..2615269	+	649	183221891	-	LEPBI_I2527	-	hypothetical protein
2465	 50.31	+2	2615897..2616055	+	52	183221892	-	LEPBI_I2528	-	hypothetical protein
2466	 30.83	-1	2616328..2617206	-	292	183221893	-	LEPBI_I2529	-	hypothetical protein
2467	 32.69	-1	2617277..2618362	-	361	183221894	-	LEPBI_I2530	-	hypothetical protein
2468	 33.07	-1	2618364..2619509	-	381	183221895	-	LEPBI_I2531	-	hypothetical protein
2469	 41.29	0	2623360..2623560	-	66	183221896	-	LEPBI_I2535	-	hypothetical protein
2470	 38.10	0	2623843..2624871	+	342	183221897	-	LEPBI_I2536	-	putative signal peptide
2471	 37.85	0	2624881..2626608	+	575	183221898	-	LEPBI_I2537	-	hypothetical protein
38.82	MEAN

4.08	STD DEV
