IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

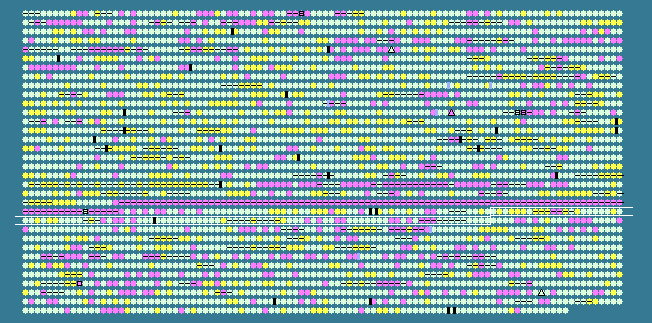

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.82 STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2279	 39.15	0	2404562..2407327	-	921	183221706	greA	LEPBI_I2333	-	GreA/GreB family transcriptional elongation factor
2280	 43.57	+1	2407532..2408518	-	328	183221707	flaA1	LEPBI_I2335	-	flagellar filament outer layer protein A
2281	 40.50	0	2408535..2409260	-	241	183221708	flaA2	LEPBI_I2336	-	flagellar filament outer layer protein precursor (sheath protein); putative signal peptide
2282	 43.64	+1	2409387..2409551	-	54	183221709	-	LEPBI_I2337	-	hypothetical protein
2283	 42.46	0	2409654..2410124	-	156	183221710	-	LEPBI_I2338	-	putative cAMP-binding protein
2284	 46.05	+1	2410314..2410934	+	206	183221711	-	LEPBI_I2339	-	two-component regulatory LuxR family response regulator
2285	 41.92	0	2410938..2413349	-	803	183221712	-	LEPBI_I2340	-	ATPase domain-containing protein of Hsp90; membrane protein
2286	 45.27	+1	2413530..2415113	+	527	183221713	-	LEPBI_I2342	-	putative ATPase
2287	 45.36	+1	2415252..2415542	+	96	183221714	groES	LEPBI_I2343	-	Hsp10 family GroES protein
2288	 44.42	+1	2415565..2417214	+	549	183221715	groEL	LEPBI_I2344	-	Hsp60 family GroEL protein
2289	 31.36	-1	2417379..2417732	+	117	183221716	-	LEPBI_I2345	-	hypothetical protein
2290	 30.00	-2	2417725..2418114	+	129	183221717	-	LEPBI_I2346	-	hypothetical protein
2291	 45.05	+1	2418214..2418546	-	110	183221718	-	LEPBI_I2347	-	putative translation release factor
2292	 41.56	0	2418590..2419282	-	230	183221719	-	LEPBI_I2348	-	hypothetical protein
2293	 44.54	+1	2419330..2420382	-	350	183221720	mrp	LEPBI_I2349	-	Mrp family ATP-binding protein
2294	 41.78	0	2420393..2421256	-	287	183221721	-	LEPBI_I2350	-	putative metallo-dependent phosphatase
2295	 38.55	0	2421253..2421501	-	82	183221722	-	LEPBI_I2351	-	putative dihydrolipoyllysine-residue acetyltransferase component of pyruvate dehydrogenase complex (E2; dihydrolipoamide acetyltransferase component of pyruvate dehydrogenase complex)
2296	 38.11	0	2421585..2422421	+	278	183221723	-	LEPBI_I2352	-	hypothetical protein
2297	 38.42	0	2422418..2424283	+	621	183221724	-	LEPBI_I2353	-	putative para-aminobenzoate synthase component I (ADC synthase)
2298	 41.51	0	2424273..2425691	-	472	183221725	hslU	LEPBI_I2354	-	ATPase component of the HslUV protease
2299	 44.19	+1	2425693..2426226	-	177	183221726	hslV	LEPBI_I2355	-	heat shock protein, HslVU, proteasome-related peptidase subunit
2300	 37.04	0	2426273..2426704	-	143	183221727	-	LEPBI_I2356	-	putative kinase
2301	 38.28	0	2426704..2427612	-	302	183221728	xerD	LEPBI_I2357	-	tyrosine recombinase xerD
2302	 40.80	0	2427710..2428231	+	173	183221729	-	LEPBI_I2358	-	hypothetical protein
2303	 47.77	+2	2428292..2429233	+	313	183221730	trxB	LEPBI_I2359	-	thioredoxin reductase 1
2304	 39.34	0	2429370..2431133	-	587	183221731	-	LEPBI_I2360	-	hypothetical protein
2305	 42.33	0	2431169..2431657	-	162	183221732	ilvH	LEPBI_I2361	-	acetolactate synthase small subunit
2306	 44.73	+1	2431654..2433381	-	575	183221733	ilvB2	LEPBI_I2362	-	acetolactate synthase large subunit
2307	 38.78	0	2433460..2434578	+	372	183221734	-	LEPBI_I2363	-	TPR repeat-containing protein
2308	 37.32	0	2434815..2435993	-	392	183221735	-	LEPBI_I2364	-	major facilitator superfamily permease
2309	 39.05	0	2436170..2437849	-	559	183221736	-	LEPBI_I2365	-	putative signal peptide
2310	 39.62	0	2437972..2439069	+	365	183221737	serC	LEPBI_I2366	-	phosphoserine aminotransferase (psat)
2311	 39.75	0	2439062..2439700	+	212	183221738	-	LEPBI_I2367	-	hypothetical protein
2312	 46.35	+1	2439697..2440134	+	145	183221739	rpiB	LEPBI_I2368	-	ribose-5-phosphate isomerase B (phosphoriboisomerase B)
2313	 37.28	0	2440302..2441795	+	497	183221740	-	LEPBI_I2369	-	hypothetical protein
2314	 34.36	-1	2441760..2442149	-	129	183221741	-	LEPBI_I2370	-	hypothetical protein
2315	 38.02	0	2442146..2442337	-	63	183221742	-	LEPBI_I2371	-	hypothetical protein
2316	 34.57	-1	2442337..2442900	-	187	183221743	-	LEPBI_I2372	-	putative signal peptide
2317	 33.48	-1	2442917..2445715	-	932	183221744	-	LEPBI_I2373	-	hypothetical protein
2318	 41.03	0	2445740..2446714	+	324	183221745	-	LEPBI_I2374	-	hypothetical protein
2319	 34.96	0	2446711..2447880	-	389	183221746	-	LEPBI_I2375	-	hemolysin; putative signal peptide
2320	 38.67	0	2447877..2449562	-	561	183221747	-	LEPBI_I2376	-	putative signal peptide
2321	 41.52	0	2449607..2450302	+	231	183221748	-	LEPBI_I2377	-	putative SAM-dependent methyltransferase
2322	 36.76	0	2450345..2451628	+	427	183221749	pcrA2	LEPBI_I2378	-	ATP-dependent DNA helicase PcrA
2323	 38.49	0	2451792..2452508	+	238	183221750	-	LEPBI_I2380	-	hypothetical protein
2324	 39.23	0	2452534..2453448	+	304	183221751	-	LEPBI_I2381	-	hypothetical protein
2325	 39.89	0	2453491..2454741	+	416	183221752	-	LEPBI_I2382	-	hypothetical protein
2326	 38.16	0	2454731..2456161	+	476	183221753	-	LEPBI_I2383	-	putative alginate o-acetyltransferase; putative membrane protein
2327	 40.37	0	2456298..2456894	-	198	183221754	-	LEPBI_I2384	-	hypothetical protein
2328	 38.17	0	2456943..2458100	-	385	183221755	-	LEPBI_I2385	-	putative signal peptide
2329	 39.26	0	2458097..2458990	-	297	183221756	tyrA	LEPBI_I2386	-	prephenate dehydrogenase
2330	 38.28	0	2458987..2460078	-	363	183221757	pheA	LEPBI_I2387	-	P-protein
2331	 38.03	0	2460071..2460709	-	212	183221758	scpB	LEPBI_I2388	-	chromosome segregation and condensation protein ScpB
2332	 41.26	0	2460716..2461459	-	247	183221759	scpA	LEPBI_I2389	-	chromosome segregation and condensation protein ScpA
2333	 40.22	0	2461463..2461825	-	120	183221760	cheY3	LEPBI_I2390	-	chemotaxis protein CheY
2334	 42.60	0	2461827..2462894	-	355	183221761	cheB3	LEPBI_I2391	-	chemotaxis response regulator protein-glutamate methylesterase
2335	 38.90	0	2462891..2466121	-	1076	183221762	cheA3	LEPBI_I2392	-	chemotaxis protein CheA
2336	 37.50	0	2466140..2466643	-	167	183221763	-	LEPBI_I2393	-	putative chemotaxis protein CheW-like protein
2337	 41.54	0	2466680..2467264	-	194	183221764	-	LEPBI_I2394	-	putative 5-formyltetrahydrofolate cyclo-ligase
2338	 39.94	0	2467261..2467578	-	105	183221765	-	LEPBI_I2395	-	hypothetical protein
2339	 43.86	+1	2467584..2468096	-	170	183221766	-	LEPBI_I2396	-	hypothetical protein
2340	 40.44	0	2468093..2468275	-	60	183221767	-	LEPBI_I2397	-	hypothetical protein
2341	 42.09	0	2468288..2468641	-	117	183221768	rplT	LEPBI_I2398	-	50S ribosomal protein L20
2342	 39.30	0	2468645..2468845	-	66	183221769	rpmI	LEPBI_I2399	-	50S ribosomal protein L35
2343	 43.26	+1	2468854..2469417	-	187	183221770	infC	LEPBI_I2400	-	translation initiation factor IF-3
2344	 46.75	+1	2469507..2470430	-	307	183221771	-	LEPBI_I2401	-	hypothetical protein
2345	 42.04	0	2470440..2472356	-	638	183221772	thrS	LEPBI_I2402	-	threonyl-tRNA synthetase (threonine--tRNA ligase; ThrRS)
2346	 39.56	0	2472406..2472999	-	197	183221773	-	LEPBI_I2403	-	putative transcriptional regulator
2347	 37.63	0	2472984..2473775	-	263	183221774	-	LEPBI_I2404	-	putative alpha/beta hydrolase; putative signal peptide
2348	 34.27	-1	2474082..2475782	+	566	183221775	-	LEPBI_I2405	-	ABC-type transport system, permease and ATPase; putative membrane protein
2349	 36.81	0	2475779..2479060	+	1093	183221776	-	LEPBI_I2406	-	putative cellobiose phosphorylase
2350	 35.07	0	2479124..2479468	-	114	183221777	glnK	LEPBI_I2407	-	nitrogen regulatory protein P-II
2351	 42.27	0	2479489..2480898	-	469	183221778	amtB2	LEPBI_I2408	-	ammonium transporter
2352	 37.36	0	2481168..2482658	+	496	183221779	phr	LEPBI_I2409	-	deoxyribodipyrimidine photo-lyase
2353	 34.74	0	2482655..2482939	+	94	183221780	-	LEPBI_I2410	-	putative ATP-dependent Clp protease adaptor protein C
2354	 34.57	-1	2482936..2483661	+	241	183221781	-	LEPBI_I2411	-	hypothetical protein
2355	 37.42	0	2483658..2485712	-	684	183221782	-	LEPBI_I2412	-	putative adenylate or guanylate cyclase; putative membrane protein
2356	 39.02	0	2485759..2487078	+	439	183221783	-	LEPBI_I2413	-	putative RNA methyltransferase
2357	 39.45	0	2487129..2488256	+	375	183221784	-	LEPBI_I2414	-	putative signal peptide
2358	 39.62	0	2488320..2489162	+	280	183221785	-	LEPBI_I2415	-	hypothetical protein
2359	 35.69	0	2489169..2490401	-	410	183221786	-	LEPBI_I2416	-	putative adenylate or guanylate cyclase
2360	 41.48	0	2490407..2491228	-	273	183221787	hycG	LEPBI_I2417	-	hydrogenase-4 subunit G
2361	 36.48	0	2491225..2492652	-	475	183221788	hycE	LEPBI_I2419	-	hydrogenase-4 subunit E
2362	 32.59	-1	2492649..2493857	-	402	183221789	hyfF	LEPBI_I2420	-	hydrogenase-4 subunit F
2363	 33.66	-1	2493854..2494465	-	203	183221790	hyfE	LEPBI_I2421	-	hydrogenase-4 subunit E
2364	 35.49	0	2494475..2495353	-	292	183221791	hycD	LEPBI_I2422	-	hydrogenase-4 subunit D
2365	 32.82	-1	2495362..2497098	-	578	183221792	hycC	LEPBI_I2423	-	hydrogenase-4 subunit C; putative membrane protein
2366	 35.60	0	2497476..2498180	+	234	183221793	-	LEPBI_I2424	-	ABC-type transport system, ATP binding protein
2367	 30.38	-2	2498177..2500648	+	823	183221794	-	LEPBI_I2425	-	ABC-type transport system, permease; putative membrane protein
2368	 34.78	0	2500687..2501586	+	299	183221795	-	LEPBI_I2426	-	hypothetical protein
2369	 30.94	-1	2501608..2502360	-	250	183221796	-	LEPBI_I2427	-	hypothetical protein
2370	 39.61	0	2502360..2502917	-	185	183221797	pyrE	LEPBI_I2428	-	orotate phosphoribosyltransferase (oprt; oprtase)
2371	 41.70	0	2503338..2504006	+	222	183221798	-	LEPBI_I2429	-	TetR family transcriptional regulator
2372	 39.21	0	2504007..2504993	-	328	183221799	-	LEPBI_I2430	-	putative di-haem cytochrome C peroxidase (CCP)
2373	 38.06	0	2505275..2505634	+	119	183221800	-	LEPBI_I2431	-	hypothetical protein
2374	 38.69	0	2505716..2506648	+	310	183221801	argF	LEPBI_I2432	-	ornithine carbamoyltransferase (OTCase)
2375	 42.15	0	2506765..2507229	-	154	183221802	-	LEPBI_I2433	-	putative globin
2376	 40.00	0	2507321..2507500	+	59	183221803	-	LEPBI_I2434	-	hypothetical protein
2377	 41.19	0	2507491..2508483	+	330	183221804	-	LEPBI_I2435	-	putative malate synthase-like protein
2378	 38.54	0	2508541..2510613	-	690	183221805	-	LEPBI_I2436	-	putative methyl-accepting chemotaxis protein McpB
38.82	MEAN

4.08	STD DEV
