IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

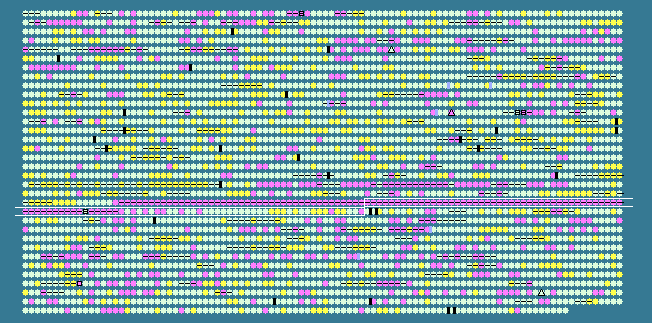

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.82 STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2158	 28.16	-2	2289578..2290486	+	302	183221585	-	LEPBI_I2207	-	hypothetical protein
2159	 31.57	-1	2290691..2291941	+	416	183221586	-	LEPBI_I2208	-	putative nucleoside triphosphate hydrolase
2160	 29.60	-2	2292623..2293426	+	267	183221587	-	LEPBI_I2209	-	hypothetical protein
2161	 21.67	-2	2293791..2294090	+	99	183221588	-	LEPBI_I2210	-	hypothetical protein
2162	 33.95	-1	2295169..2295651	+	160	183221589	-	LEPBI_I2211	-	hypothetical protein
2163	 25.65	-2	2296326..2297171	+	281	183221590	-	LEPBI_I2212	-	hypothetical protein
2164	 25.17	-2	2297371..2297823	+	150	183221591	-	LEPBI_I2213	-	hypothetical protein
2165	 26.02	-2	2298154..2299629	+	491	183221592	-	LEPBI_I2214	-	hypothetical protein
2166	 24.57	-2	2299841..2300593	+	250	183221593	-	LEPBI_I2215	-	hypothetical protein
2167	 30.05	-2	2300794..2301432	+	212	183221594	-	LEPBI_I2216	-	hypothetical protein
2168	 28.65	-2	2301676..2302059	+	127	183221595	-	LEPBI_I2217	-	putative phage-related protein
2169	 26.60	-2	2302056..2302337	+	93	183221596	-	LEPBI_I2218	-	putative transcriptional regulator
2170	 31.13	-1	2302545..2302907	+	120	183221597	-	LEPBI_I2219	-	hypothetical protein
2171	 31.52	-1	2302914..2303408	+	164	183221598	-	LEPBI_I2220	-	hypothetical protein
2172	 22.68	-2	2303695..2304135	+	146	183221599	-	LEPBI_I2221	-	hypothetical protein
2173	 26.94	-2	2304525..2305181	+	218	183221600	-	LEPBI_I2222	-	HAD family hydrolase
2174	 32.70	-1	2305370..2306782	+	470	183221601	-	LEPBI_I2223	-	putative ATP-binding protein
2175	 28.87	-2	2306991..2307281	+	96	183221602	-	LEPBI_I2224	-	hypothetical protein
2176	 30.13	-2	2308037..2308411	+	124	183221603	-	LEPBI_I2226	-	hypothetical protein
2177	 30.06	-2	2308717..2309052	+	111	183221604	-	LEPBI_I2227	-	hypothetical protein
2178	 28.84	-2	2309052..2309429	+	125	183221605	-	LEPBI_I2228	-	hypothetical protein
2179	 30.98	-1	2311107..2311829	+	240	183221606	-	LEPBI_I2229	-	hypothetical protein
2180	 32.98	-1	2312122..2312403	+	93	183221607	-	LEPBI_I2230	-	putative plasmid maintenance system killer protein
2181	 28.07	-2	2312417..2312758	+	113	183221608	-	LEPBI_I2231	-	putative lambda repressor-like DNA-binding protein
2182	 29.35	-2	2313177..2313854	-	225	183221609	-	LEPBI_I2232	-	hypothetical protein
2183	 28.39	-2	2313910..2314293	+	127	183221610	-	LEPBI_I2233	-	MerR family transcriptional regulator
2184	 33.96	-1	2315038..2315196	+	52	183221611	-	LEPBI_I2234	-	hypothetical protein
2185	 33.00	-1	2315454..2315753	+	99	183221612	-	LEPBI_I2235	-	hypothetical protein
2186	 25.00	-2	2315873..2316016	+	47	183221613	-	LEPBI_I2236	-	hypothetical protein
2187	 24.32	-2	2316347..2317012	+	221	183221614	-	LEPBI_I2238	-	hypothetical protein
2188	 27.31	-2	2317304..2317552	+	82	183221615	-	LEPBI_I2239	-	hypothetical protein
2189	 24.29	-2	2317549..2317968	+	139	183221616	-	LEPBI_I2240	-	hypothetical protein
2190	 29.89	-2	2318193..2319149	+	318	183221617	-	LEPBI_I2241	-	hypothetical protein
2191	 27.73	-2	2319352..2320029	+	225	183221618	-	LEPBI_I2242	-	hypothetical protein
2192	 29.58	-2	2320539..2320751	+	70	183221619	-	LEPBI_I2243	-	hypothetical protein
2193	 32.83	-1	2320752..2321150	+	132	183221620	-	LEPBI_I2244	-	putative death-on-curing protein DOC
2194	 26.73	-2	2321346..2322224	+	292	183221621	-	LEPBI_I2245	-	hypothetical protein
2195	 24.14	-2	2322473..2323114	+	213	183221622	-	LEPBI_I2246	-	hypothetical protein
2196	 31.30	-1	2323392..2323637	+	81	183221623	-	LEPBI_I2247	-	putative helix-turn-helix protein CopG
2197	 27.34	-2	2323637..2324053	+	138	183221624	-	LEPBI_I2248	-	hypothetical protein
2198	 31.17	-1	2324336..2324566	+	76	183221625	-	LEPBI_I2249	-	putative virulence-associated protein B
2199	 26.57	-2	2324566..2324964	+	132	183221626	-	LEPBI_I2250	-	PilT protein
2200	 28.31	-2	2325235..2325612	+	125	183221627	-	LEPBI_I2251	-	hypothetical protein
2201	 30.34	-2	2325629..2325895	+	88	183221628	-	LEPBI_I2252	-	hypothetical protein
2202	 33.63	-1	2326106..2326771	+	221	183221629	-	LEPBI_I2253	-	hypothetical protein
2203	 32.74	-1	2326841..2327008	+	55	183221630	-	LEPBI_I2254	-	hypothetical protein
2204	 24.05	-2	2327227..2327754	+	175	183221631	-	LEPBI_I2255	-	hypothetical protein
2205	 32.35	-1	2329457..2329762	+	101	183221632	-	LEPBI_I2256	-	putative plasmid maintenance system antidote-like protein
2206	 25.76	-2	2330247..2330378	+	43	183221633	-	LEPBI_I2257	-	hypothetical protein
2207	 25.00	-2	2330487..2330966	+	159	183221634	-	LEPBI_I2258	-	hypothetical protein
2208	 34.07	-1	2331541..2331945	+	134	183221635	-	LEPBI_I2259	-	transcription regulator
2209	 28.50	-2	2332491..2332883	+	130	183221636	-	LEPBI_I2260	-	MerR family transcriptional regulator
2210	 34.48	-1	2332877..2333224	+	115	183221637	-	LEPBI_I2261	-	hypothetical protein
2211	 36.64	0	2333518..2333970	+	150	183221638	-	LEPBI_I2262	-	putative transposase
2212	 31.76	-1	2334216..2334470	+	84	183221639	-	LEPBI_I2263	-	hypothetical protein
2213	 27.13	-2	2334630..2334887	+	85	183221640	-	LEPBI_I2264	-	hypothetical protein
2214	 30.00	-2	2334890..2335339	+	149	183221641	-	LEPBI_I2265	-	hypothetical protein
2215	 31.81	-1	2335432..2336022	+	196	183221642	-	LEPBI_I2266	-	hypothetical protein
2216	 34.85	0	2336452..2337045	-	197	183221643	-	LEPBI_I2267	-	putative glutathione S-transferase
2217	 35.17	0	2337452..2337778	+	108	183221644	-	LEPBI_I2268	-	quarternary ammonium compound transport protein
2218	 36.11	0	2337803..2338306	+	167	183221645	-	LEPBI_I2269	-	hypothetical protein
2219	 31.89	-1	2338533..2339366	+	277	183221646	-	LEPBI_I2271	-	hypothetical protein
2220	 35.93	0	2339356..2340087	-	243	183221647	rsuA	LEPBI_I2272	-	ribosomal small subunit pseudouridine synthase A (rRNA pseudouridylate synthase A)
2221	 34.94	0	2340203..2342005	+	600	183221648	-	LEPBI_I2273	-	ABC-type transport system, permease ATP binding protein
2222	 36.36	0	2342066..2343190	+	374	183221649	-	LEPBI_I2274	-	hypothetical protein
2223	 31.78	-1	2343206..2343463	+	85	183221650	-	LEPBI_I2275	-	hypothetical protein
2224	 34.36	-1	2343473..2344153	+	226	183221651	-	LEPBI_I2276	-	hypothetical protein
2225	 41.35	0	2344200..2345720	+	506	183221652	-	LEPBI_I2277	-	Short-chain dehydrogenase
2226	 37.52	0	2345837..2346337	-	166	183221653	-	LEPBI_I2278	-	hypothetical protein
2227	 34.81	0	2346568..2348187	+	539	183221654	-	LEPBI_I2279	-	glycosyl transferase family protein
2228	 35.56	0	2348184..2348498	+	104	183221655	-	LEPBI_I2280	-	hypothetical protein
2229	 35.70	0	2348524..2349282	+	252	183221656	-	LEPBI_I2281	-	glycosyl transferase family protein
2230	 34.48	-1	2349349..2349696	+	115	183221657	-	LEPBI_I2282	-	putative anti-anti-sigma regulatory factor
2231	 40.00	0	2349685..2349849	-	54	183221658	-	LEPBI_I2283	-	hypothetical protein
2232	 36.85	0	2349878..2351329	-	483	183221659	-	LEPBI_I2284	-	putative O-glycosyl hydrolase
2233	 38.19	0	2351411..2352172	+	253	183221660	speD	LEPBI_I2285	-	S-adenosylmethionine decarboxylase proenzyme (AdoMetDC; SamDC)
2234	 38.21	0	2352169..2352681	-	170	183221661	-	LEPBI_I2286	-	hypothetical protein
2235	 39.49	0	2352728..2354269	-	513	183221662	-	LEPBI_I2287	-	putative methyl-accepting chemotaxis protein (MCP); putative membrane protein
2236	 37.06	0	2354541..2356715	+	724	183221663	-	LEPBI_I2288	-	hypothetical protein
2237	 38.10	0	2356729..2357358	+	209	183221664	-	LEPBI_I2289	-	leucine-rich repeat-containing protein
2238	 40.94	0	2357420..2360167	+	915	183221665	ileS	LEPBI_I2290	-	isoleucyl-tRNA synthetase (isoleucine--tRNA ligase; IleRS)
2239	 39.29	0	2360321..2361949	-	542	183221666	-	LEPBI_I2291	-	putative virulence factor MviN-like; putative membrane protein
2240	 35.98	0	2361961..2362830	-	289	183221667	-	LEPBI_I2292	-	hypothetical protein
2241	 40.02	0	2362834..2363820	-	328	183221668	-	LEPBI_I2293	-	putative signal peptide
2242	 43.83	+1	2363877..2364419	-	180	183221669	lipB	LEPBI_I2294	-	lipoyltransferase (lipoyl-[acyl-carrier protein]-protein-N-lipoyltransferase; lipoate-protein ligase B)
2243	 43.95	+1	2364513..2365049	+	178	183221670	-	LEPBI_I2295	-	hypothetical protein
2244	 49.86	+2	2365046..2365402	+	118	183221671	panD	LEPBI_I2296	-	aspartate 1-decarboxylase (precursor) (aspartate alpha-decarboxylase)
2245	 37.78	0	2365468..2366322	+	284	183221672	-	LEPBI_I2297	-	putative signal peptide
2246	 48.83	+2	2366617..2366829	-	70	183221673	-	LEPBI_I2298	-	hypothetical protein
2247	 36.13	0	2366903..2367724	+	273	183221674	-	LEPBI_I2299	-	hypothetical protein
2248	 39.42	0	2367797..2368108	+	103	183221675	trxA2	LEPBI_I2300	-	thioredoxin (TRX)
2249	 43.08	+1	2368127..2370280	+	717	183221676	-	LEPBI_I2301	-	putative cAMP-binding protein
2250	 45.18	+1	2370332..2371462	+	376	183221677	-	LEPBI_I2302	-	Acyl coenzyme A dehydrogenase
2251	 43.94	+1	2371675..2373249	-	524	183221678	thiC	LEPBI_I2303	-	thiamine biosynthesis protein ThiC
2252	 34.59	-1	2373520..2375028	-	502	183221679	-	LEPBI_I2304	-	hypothetical protein
2253	 43.82	+1	2375261..2375632	-	123	183221680	-	LEPBI_I2305	-	hypothetical protein
2254	 44.67	+1	2375691..2376899	+	402	183221681	-	LEPBI_I2306	-	putative signal peptide
2255	 41.51	0	2377021..2377644	+	207	183221682	-	LEPBI_I2307	-	hypothetical protein
2256	 38.49	0	2377641..2378921	-	426	183221683	-	LEPBI_I2308	-	MFS family transporter
2257	 34.15	-1	2379002..2379370	-	122	183221684	-	LEPBI_I2309	-	hypothetical protein
38.82	MEAN

4.08	STD DEV
