IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

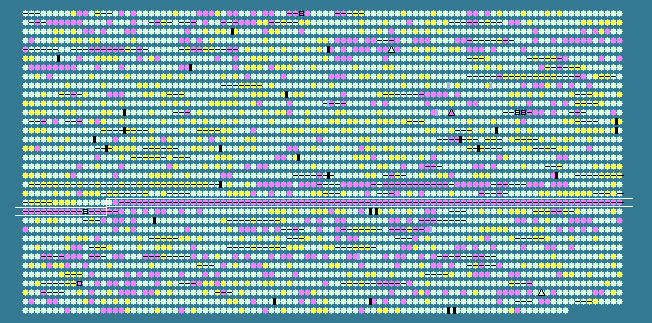

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.82 STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2115	 35.40	0	2249020..2251683	+	887	183221542	-	LEPBI_I2161	-	putative DNA polymerase
2116	 25.11	-2	2252101..2252781	+	226	183221543	-	LEPBI_I2162	-	hypothetical protein
2117	 25.58	-2	2252967..2253443	+	158	183221544	-	LEPBI_I2163	-	hypothetical protein
2118	 30.53	-2	2253819..2254211	+	130	183221545	-	LEPBI_I2164	-	putative glyoxalase family protein
2119	 28.77	-2	2254285..2254635	+	116	183221546	-	LEPBI_I2165	-	hypothetical protein
2120	 30.63	-2	2254911..2255354	+	147	183221547	-	LEPBI_I2166	-	hypothetical protein
2121	 30.77	-1	2255473..2255706	+	77	183221548	-	LEPBI_I2168	-	hypothetical protein
2122	 31.81	-1	2256000..2257376	+	458	183221549	-	LEPBI_I2170	-	putative nucleoside triphosphate hydrolase
2123	 26.97	-2	2257395..2257661	+	88	183221550	-	LEPBI_I2171	-	hypothetical protein
2124	 31.33	-1	2257874..2258620	+	248	183221551	-	LEPBI_I2172	-	hypothetical protein
2125	 31.69	-1	2259333..2259941	+	202	183221552	-	LEPBI_I2173	-	hypothetical protein
2126	 24.82	-2	2260162..2260995	+	277	183221553	-	LEPBI_I2174	-	hypothetical protein
2127	 33.54	-1	2261672..2263135	+	487	183221554	-	LEPBI_I2175	-	putative ATPase
2128	 26.76	-2	2263315..2263983	+	222	183221555	-	LEPBI_I2176	-	hypothetical protein
2129	 28.13	-2	2264269..2264979	+	236	183221556	-	LEPBI_I2177	-	hypothetical protein
2130	 26.91	-2	2265168..2265836	+	222	183221557	-	LEPBI_I2178	-	hypothetical protein
2131	 25.08	-2	2265826..2266467	+	213	183221558	-	LEPBI_I2179	-	hypothetical protein
2132	 27.71	-2	2266691..2267419	+	242	183221559	-	LEPBI_I2180	-	hypothetical protein
2133	 31.68	-1	2267641..2268003	+	120	183221560	-	LEPBI_I2181	-	hypothetical protein
2134	 30.51	-2	2268010..2268504	+	164	183221561	-	LEPBI_I2182	-	hypothetical protein
2135	 29.36	-2	2269241..2269894	+	217	183221562	-	LEPBI_I2183	-	hypothetical protein
2136	 25.93	-2	2269891..2270295	+	134	183221563	-	LEPBI_I2184	-	putative signal peptide
2137	 31.69	-1	2270491..2271282	+	263	183221564	-	LEPBI_I2185	-	putative SAM-dependent methyltransferase
2138	 27.26	-2	2271483..2272568	+	361	183221565	-	LEPBI_I2186	-	hypothetical protein
2139	 31.76	-1	2272786..2273994	+	402	183221566	-	LEPBI_I2187	-	hypothetical protein
2140	 29.99	-2	2274075..2274791	+	238	183221567	-	LEPBI_I2188	-	hypothetical protein
2141	 30.43	-2	2274941..2275078	+	45	183221568	-	LEPBI_I2189	-	hypothetical protein
2142	 29.35	-2	2275470..2276147	-	225	183221569	-	LEPBI_I2190	-	hypothetical protein
2143	 28.39	-2	2276203..2276586	+	127	183221570	-	LEPBI_I2191	-	MerR family transcriptional regulator
2144	 26.17	-2	2276844..2277611	+	255	183221571	-	LEPBI_I2192	-	hypothetical protein
2145	 27.78	-2	2277820..2279547	+	575	183221572	-	LEPBI_I2193	-	hypothetical protein
2146	 22.85	-2	2279720..2280196	+	158	183221573	-	LEPBI_I2194	-	hypothetical protein
2147	 24.36	-2	2281108..2282076	+	322	183221574	-	LEPBI_I2195	-	hypothetical protein
2148	 23.78	-2	2282333..2282761	+	142	183221575	-	LEPBI_I2196	-	hypothetical protein
2149	 26.67	-2	2282955..2283104	+	49	183221576	-	LEPBI_I2197	-	hypothetical protein
2150	 27.97	-2	2283316..2284005	+	229	183221577	-	LEPBI_I2198	-	hypothetical protein
2151	 28.62	-2	2284740..2285036	+	98	183221578	-	LEPBI_I2199	-	hypothetical protein
2152	 29.35	-2	2285033..2285434	+	133	183221579	-	LEPBI_I2200	-	hypothetical protein
2153	 26.67	-2	2285647..2286231	+	194	183221580	-	LEPBI_I2201	-	hypothetical protein
2154	 26.35	-2	2286228..2286800	+	190	183221581	-	LEPBI_I2202	-	hypothetical protein
2155	 32.47	-1	2287093..2287323	+	76	183221582	-	LEPBI_I2203	-	hypothetical protein
2156	 28.76	-2	2287316..2287774	+	152	183221583	-	LEPBI_I2204	-	hypothetical protein
2157	 32.66	-1	2288463..2289059	+	198	183221584	-	LEPBI_I2205	-	hypothetical protein
2158	 28.16	-2	2289578..2290486	+	302	183221585	-	LEPBI_I2207	-	hypothetical protein
2159	 31.57	-1	2290691..2291941	+	416	183221586	-	LEPBI_I2208	-	putative nucleoside triphosphate hydrolase
2160	 29.60	-2	2292623..2293426	+	267	183221587	-	LEPBI_I2209	-	hypothetical protein
2161	 21.67	-2	2293791..2294090	+	99	183221588	-	LEPBI_I2210	-	hypothetical protein
2162	 33.95	-1	2295169..2295651	+	160	183221589	-	LEPBI_I2211	-	hypothetical protein
2163	 25.65	-2	2296326..2297171	+	281	183221590	-	LEPBI_I2212	-	hypothetical protein
2164	 25.17	-2	2297371..2297823	+	150	183221591	-	LEPBI_I2213	-	hypothetical protein
2165	 26.02	-2	2298154..2299629	+	491	183221592	-	LEPBI_I2214	-	hypothetical protein
2166	 24.57	-2	2299841..2300593	+	250	183221593	-	LEPBI_I2215	-	hypothetical protein
2167	 30.05	-2	2300794..2301432	+	212	183221594	-	LEPBI_I2216	-	hypothetical protein
2168	 28.65	-2	2301676..2302059	+	127	183221595	-	LEPBI_I2217	-	putative phage-related protein
2169	 26.60	-2	2302056..2302337	+	93	183221596	-	LEPBI_I2218	-	putative transcriptional regulator
2170	 31.13	-1	2302545..2302907	+	120	183221597	-	LEPBI_I2219	-	hypothetical protein
2171	 31.52	-1	2302914..2303408	+	164	183221598	-	LEPBI_I2220	-	hypothetical protein
2172	 22.68	-2	2303695..2304135	+	146	183221599	-	LEPBI_I2221	-	hypothetical protein
2173	 26.94	-2	2304525..2305181	+	218	183221600	-	LEPBI_I2222	-	HAD family hydrolase
2174	 32.70	-1	2305370..2306782	+	470	183221601	-	LEPBI_I2223	-	putative ATP-binding protein
2175	 28.87	-2	2306991..2307281	+	96	183221602	-	LEPBI_I2224	-	hypothetical protein
2176	 30.13	-2	2308037..2308411	+	124	183221603	-	LEPBI_I2226	-	hypothetical protein
2177	 30.06	-2	2308717..2309052	+	111	183221604	-	LEPBI_I2227	-	hypothetical protein
2178	 28.84	-2	2309052..2309429	+	125	183221605	-	LEPBI_I2228	-	hypothetical protein
2179	 30.98	-1	2311107..2311829	+	240	183221606	-	LEPBI_I2229	-	hypothetical protein
2180	 32.98	-1	2312122..2312403	+	93	183221607	-	LEPBI_I2230	-	putative plasmid maintenance system killer protein
2181	 28.07	-2	2312417..2312758	+	113	183221608	-	LEPBI_I2231	-	putative lambda repressor-like DNA-binding protein
2182	 29.35	-2	2313177..2313854	-	225	183221609	-	LEPBI_I2232	-	hypothetical protein
2183	 28.39	-2	2313910..2314293	+	127	183221610	-	LEPBI_I2233	-	MerR family transcriptional regulator
2184	 33.96	-1	2315038..2315196	+	52	183221611	-	LEPBI_I2234	-	hypothetical protein
2185	 33.00	-1	2315454..2315753	+	99	183221612	-	LEPBI_I2235	-	hypothetical protein
2186	 25.00	-2	2315873..2316016	+	47	183221613	-	LEPBI_I2236	-	hypothetical protein
2187	 24.32	-2	2316347..2317012	+	221	183221614	-	LEPBI_I2238	-	hypothetical protein
2188	 27.31	-2	2317304..2317552	+	82	183221615	-	LEPBI_I2239	-	hypothetical protein
2189	 24.29	-2	2317549..2317968	+	139	183221616	-	LEPBI_I2240	-	hypothetical protein
2190	 29.89	-2	2318193..2319149	+	318	183221617	-	LEPBI_I2241	-	hypothetical protein
2191	 27.73	-2	2319352..2320029	+	225	183221618	-	LEPBI_I2242	-	hypothetical protein
2192	 29.58	-2	2320539..2320751	+	70	183221619	-	LEPBI_I2243	-	hypothetical protein
2193	 32.83	-1	2320752..2321150	+	132	183221620	-	LEPBI_I2244	-	putative death-on-curing protein DOC
2194	 26.73	-2	2321346..2322224	+	292	183221621	-	LEPBI_I2245	-	hypothetical protein
2195	 24.14	-2	2322473..2323114	+	213	183221622	-	LEPBI_I2246	-	hypothetical protein
2196	 31.30	-1	2323392..2323637	+	81	183221623	-	LEPBI_I2247	-	putative helix-turn-helix protein CopG
2197	 27.34	-2	2323637..2324053	+	138	183221624	-	LEPBI_I2248	-	hypothetical protein
2198	 31.17	-1	2324336..2324566	+	76	183221625	-	LEPBI_I2249	-	putative virulence-associated protein B
2199	 26.57	-2	2324566..2324964	+	132	183221626	-	LEPBI_I2250	-	PilT protein
2200	 28.31	-2	2325235..2325612	+	125	183221627	-	LEPBI_I2251	-	hypothetical protein
2201	 30.34	-2	2325629..2325895	+	88	183221628	-	LEPBI_I2252	-	hypothetical protein
2202	 33.63	-1	2326106..2326771	+	221	183221629	-	LEPBI_I2253	-	hypothetical protein
2203	 32.74	-1	2326841..2327008	+	55	183221630	-	LEPBI_I2254	-	hypothetical protein
2204	 24.05	-2	2327227..2327754	+	175	183221631	-	LEPBI_I2255	-	hypothetical protein
2205	 32.35	-1	2329457..2329762	+	101	183221632	-	LEPBI_I2256	-	putative plasmid maintenance system antidote-like protein
2206	 25.76	-2	2330247..2330378	+	43	183221633	-	LEPBI_I2257	-	hypothetical protein
2207	 25.00	-2	2330487..2330966	+	159	183221634	-	LEPBI_I2258	-	hypothetical protein
2208	 34.07	-1	2331541..2331945	+	134	183221635	-	LEPBI_I2259	-	transcription regulator
2209	 28.50	-2	2332491..2332883	+	130	183221636	-	LEPBI_I2260	-	MerR family transcriptional regulator
2210	 34.48	-1	2332877..2333224	+	115	183221637	-	LEPBI_I2261	-	hypothetical protein
2211	 36.64	0	2333518..2333970	+	150	183221638	-	LEPBI_I2262	-	putative transposase
2212	 31.76	-1	2334216..2334470	+	84	183221639	-	LEPBI_I2263	-	hypothetical protein
2213	 27.13	-2	2334630..2334887	+	85	183221640	-	LEPBI_I2264	-	hypothetical protein
2214	 30.00	-2	2334890..2335339	+	149	183221641	-	LEPBI_I2265	-	hypothetical protein
38.82	MEAN

4.08	STD DEV
