IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)'

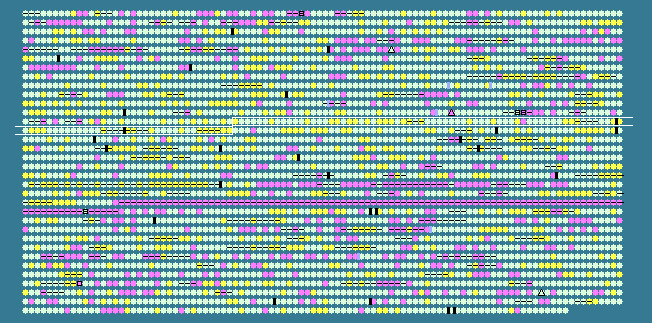

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.82 STD DEV: 4.08
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Paris)' chromosome I, complete sequence - 1..3599677
3391 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1236	 43.48	+1	1318180..1319706	+	508	183220663	guaB	LEPBI_I1272	-	inosine-5'-monophosphate dehydrogenase
1237	 39.30	0	1319716..1320486	+	256	183220664	-	LEPBI_I1273	-	putative signal peptide
1238	 40.09	0	1320499..1321179	+	226	183220665	-	LEPBI_I1274	-	hypothetical protein
1239	 39.23	0	1321551..1323026	+	491	183220666	-	LEPBI_I1276	-	hypothetical protein
1240	 38.40	0	1323027..1324211	+	394	183220667	-	LEPBI_I1277	-	hypothetical protein
1241	 38.30	0	1324224..1325009	+	261	183220668	-	LEPBI_I1278	-	hypothetical protein
1242	 42.90	0	1325197..1330800	+	1867	183220669	-	LEPBI_I1279	-	putative signal peptide
1243	 39.01	0	1330830..1333103	+	757	183220670	-	LEPBI_I1280	-	putative sulfatase; putative membrane protein
1244	 41.73	0	1333121..1336432	+	1103	183220671	carB	LEPBI_I1281	-	carbamoyl-phosphate synthase large subunit
1245	 37.50	0	1336539..1336994	-	151	183220672	-	LEPBI_I1282	-	hypothetical protein
1246	 35.57	0	1337019..1338272	-	417	183220673	-	LEPBI_I1283	-	hypothetical protein
1247	 37.12	0	1338269..1339957	-	562	183220674	-	LEPBI_I1284	-	hypothetical protein
1248	 42.46	0	1340001..1342028	-	675	183220675	ispG	LEPBI_I1285	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase (1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthase)
1249	 41.55	0	1342247..1342453	+	68	183220676	-	LEPBI_I1286	-	hypothetical protein
1250	 38.98	0	1342450..1343511	+	353	183220677	-	LEPBI_I1287	-	putative A/G-specific DNA glycosylase
1251	 38.68	0	1343536..1346247	+	903	183220678	-	LEPBI_I1288	-	hypothetical protein
1252	 42.45	0	1346263..1346679	+	138	183220679	-	LEPBI_I1289	-	putative two-component response regulator
1253	 45.65	+1	1346701..1346976	+	91	183220680	-	LEPBI_I1290	-	putative DNA mismatch repair protein
1254	 42.19	0	1346973..1348508	+	511	183220681	leuA1	LEPBI_I1291	-	2-isopropylmalate synthase (Alpha-isopropylmalate synthase; Alpha-IPM synthetase 1)
1255	 43.03	+1	1348505..1349071	+	188	183220682	pthA	LEPBI_I1292	-	peptidyl-tRNA hydrolase (PTH)
1256	 42.33	0	1349122..1349721	+	199	183220683	-	LEPBI_I1293	-	putative cytoplasmic membrane protein
1257	 38.74	0	1349723..1349944	+	73	183220684	-	LEPBI_I1294	-	hypothetical protein
1258	 46.11	+1	1349946..1351205	+	419	183220685	-	LEPBI_I1295	-	putative ATPase involved in DNA replication
1259	 39.90	0	1351303..1351698	+	131	183220686	nuoA	LEPBI_I1296	-	NADH-quinone oxidoreductase, chain A
1260	 45.81	+1	1351689..1352249	+	186	183220687	nuoB	LEPBI_I1297	-	NADH-quinone oxidoreductase chain B
1261	 43.30	+1	1352246..1352767	+	173	183220688	nuoC	LEPBI_I1298	-	NADH-quinone oxidoreductase, chain C
1262	 43.24	+1	1352784..1354004	+	406	183220689	nuoD	LEPBI_I1299	-	NADH-quinone oxidoreductase, chain D
1263	 41.21	0	1353998..1354492	+	164	183220690	nuoE	LEPBI_I1300	-	NADH-quinone oxidoreductase, chain E
1264	 43.87	+1	1354494..1355765	+	423	183220691	nuoF	LEPBI_I1301	-	NADH-quinone oxidoreductase, chain F
1265	 43.98	+1	1355781..1356851	+	356	183220692	nuoH	LEPBI_I1302	-	NADH-quinone oxidoreductase, chain H
1266	 40.83	0	1356848..1357447	+	199	183220693	nuoJ	LEPBI_I1303	-	NADH-quinone oxidoreductase, chain J
1267	 42.99	+1	1357444..1357764	+	106	183220694	nuoK	LEPBI_I1304	-	NADH-quinone oxidoreductase, chain K
1268	 39.76	0	1357769..1359697	+	642	183220695	nuoL	LEPBI_I1305	-	NADH-quinone oxidoreductase, chain L
1269	 39.83	0	1359699..1361438	+	579	183220696	nuoM	LEPBI_I1306	-	NADH-quinone oxidoreductase, chain M
1270	 41.37	0	1361442..1362884	+	480	183220697	nuoN	LEPBI_I1307	-	NADH-quinone oxidoreductase, chain N
1271	 41.67	0	1362970..1363509	+	179	183220698	-	LEPBI_I1308	-	putative acireductone dioxygenase, ARD
1272	 40.93	0	1363581..1365569	-	662	183220699	recJ	LEPBI_I1309	-	single-stranded-DNA-specific exonuclease RecJ
1273	 37.69	0	1365590..1365910	-	106	183220700	-	LEPBI_I1310	-	hypothetical protein
1274	 42.20	0	1366064..1366390	+	108	183220701	-	LEPBI_I1311	-	hypothetical protein
1275	 42.78	0	1366464..1369754	+	1096	183220702	-	LEPBI_I1312	-	putative heavy metal efflux pump CzcA; putative signal peptide
1276	 39.90	0	1369755..1370378	+	207	183220703	ppa	LEPBI_I1313	-	inorganic pyrophosphatase (pyrophosphate phospho-hydrolase; PPase)
1277	 37.33	0	1370375..1371700	+	441	183220704	-	LEPBI_I1314	-	putative cation efflux system protein CzcC
1278	 38.24	0	1371707..1372888	+	393	183220705	-	LEPBI_I1315	-	putative cobalt-zinc-cadmium resistance protein CzcB
1279	 47.45	+2	1372939..1373547	+	202	183220706	lexA	LEPBI_I1316	-	LexA repressor
1280	 40.89	0	1373584..1373874	+	96	183220707	-	LEPBI_I1317	-	hypothetical protein
1281	 37.86	0	1373867..1375237	+	456	183220708	-	LEPBI_I1318	-	putative carboxy-terminal processing protease
1282	 40.84	0	1375238..1376263	+	341	183220709	-	LEPBI_I1319	-	putative O-sialoglycoprotein endopeptidase
1283	 42.59	0	1376260..1377015	+	251	183220710	pssA	LEPBI_I1320	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1284	 34.63	-1	1377017..1377325	-	102	183220711	-	LEPBI_I1321	-	putative anti-sigma factor antagonist
1285	 39.92	0	1377411..1378367	+	318	183220712	-	LEPBI_I1322	-	beta-lactamase family hydrolase
1286	 41.82	0	1378369..1379865	+	498	183220713	glpK	LEPBI_I1323	-	glycerol kinase
1287	 38.76	0	1379876..1381054	-	392	183220714	-	LEPBI_I1324	-	putative flagellar motor switch protein
1288	 39.02	0	1381051..1381296	-	81	183220715	-	LEPBI_I1325	-	hypothetical protein
1289	 40.96	0	1381304..1382470	-	388	183220716	-	LEPBI_I1326	-	putative alcohol dehydrogenase
1290	 39.76	0	1382554..1382880	-	108	183220717	-	LEPBI_I1327	-	hypothetical protein
1291	 45.92	+1	1382901..1383623	-	240	183220718	-	LEPBI_I1328	-	putative methyltransferase
1292	 47.37	+2	1383613..1384353	-	246	183220719	-	LEPBI_I1329	-	hypothetical protein
1293	 45.83	+1	1384396..1385091	+	231	183220720	-	LEPBI_I1330	-	hypothetical protein
1294	 41.99	0	1385088..1387028	-	646	183220721	-	LEPBI_I1331	-	putative glutamine-dependent NAD(+) synthetase
1295	 39.98	0	1387015..1388292	-	425	183220722	-	LEPBI_I1332	-	putative 3-deoxy-D-manno-octulosonic-acid transferase
1296	 42.17	0	1388293..1389039	-	248	183220723	-	LEPBI_I1333	-	putative signal peptide
1297	 39.73	0	1389112..1389924	+	270	183220724	-	LEPBI_I1334	-	putative signal peptide
1298	 37.77	0	1389927..1390625	+	232	183220725	-	LEPBI_I1335	-	hypothetical protein
1299	 48.12	+2	1390654..1391397	+	247	183220726	proC	LEPBI_I1336	-	pyrroline-5-carboxylate reductase (P5CR; P5C reductase)
1300	 43.03	+1	1391644..1392705	+	353	183220727	-	LEPBI_I1337	-	hypothetical protein
1301	 39.91	0	1392728..1392955	+	75	183220728	-	LEPBI_I1338	-	hypothetical protein
1302	 45.07	+1	1392979..1393830	+	283	183220729	-	LEPBI_I1339	-	hypothetical protein
1303	 42.52	0	1393832..1394974	+	380	183220730	trmU	LEPBI_I1340	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1304	 44.74	+1	1394971..1397223	+	750	183220731	-	LEPBI_I1341	-	putative oxidase or carboxylase
1305	 42.00	0	1397220..1398488	+	422	183220732	-	LEPBI_I1342	-	hypothetical protein
1306	 38.73	0	1398489..1399451	+	320	183220733	-	LEPBI_I1343	-	putative ribosomal large subunit pseudouridine synthase
1307	 38.60	0	1399528..1400685	+	385	183220734	-	LEPBI_I1344	-	putative methyltransferase DNA modification enzyme
1308	 37.53	0	1400697..1401125	+	142	183220735	-	LEPBI_I1345	-	putative signal peptide
1309	 36.69	0	1401130..1401576	-	148	183220736	-	LEPBI_I1346	-	putative signal peptide
1310	 41.92	0	1401577..1402263	-	228	183220737	-	LEPBI_I1347	-	putative signal peptide
1311	 37.09	0	1402273..1403817	+	514	183220738	-	LEPBI_I1348	-	putative metalloendopeptidase
1312	 39.06	0	1403820..1405217	+	465	183220739	-	LEPBI_I1349	-	putative metallopeptidase; putative signal peptide
1313	 37.14	0	1405217..1406056	+	279	183220740	-	LEPBI_I1350	-	putative metallo-hydrolase/oxidoreductase
1314	 42.59	0	1406053..1406700	+	215	183220741	-	LEPBI_I1351	-	putative O-methyltransferase
1315	 39.14	0	1406728..1407519	+	263	183220742	-	LEPBI_I1352	-	putative signal peptide
1316	 39.77	0	1407550..1408917	+	455	183220743	-	LEPBI_I1353	-	hypothetical protein
1317	 37.45	0	1408928..1409704	+	258	183220744	-	LEPBI_I1354	-	hypothetical protein
1318	 43.70	+1	1409800..1410204	-	134	183220745	-	LEPBI_I1355	-	hypothetical protein
1319	 43.43	+1	1410367..1412862	+	831	183220746	-	LEPBI_I1356	-	hypothetical protein
1320	 41.62	0	1413107..1414615	+	502	183220747	-	LEPBI_I1357	-	ABC-type transport system, ATPase
1321	 40.40	0	1414651..1415244	+	197	183220748	ahpC2	LEPBI_I1358	-	Alkyl hydroperoxide reductase subunit C
1322	 43.08	+1	1415281..1416675	+	464	183220749	-	LEPBI_I1359	-	ABC transporter permease
1323	 41.59	0	1416693..1417007	-	104	183220750	-	LEPBI_I1360	-	putative signal peptide
1324	 41.65	0	1417018..1418316	+	432	183220751	-	LEPBI_I1361	-	putative glucose dehydrogenase; putative signal peptide
1325	 40.75	0	1418385..1420379	+	664	183220752	-	LEPBI_I1362	-	putative alkaline phosphatase; putative membrane protein
1326	 41.25	0	1420472..1421683	-	403	183220753	-	LEPBI_I1363	-	putative sterol desaturase-related protein; putative membrane protein
1327	 42.84	0	1421897..1422958	+	353	183220754	-	LEPBI_I1364	-	hypothetical protein
1328	 38.64	0	1422966..1423229	+	87	183220755	-	LEPBI_I1365	-	putative signal peptide
1329	 39.19	0	1423226..1424932	+	568	183220756	-	LEPBI_I1367	-	dolichyl-phosphate-mannose--protein mannosyltransferase family protein
1330	 46.39	+1	1425267..1425779	+	170	183220757	-	LEPBI_I1368	-	putative cytochrome c3; putative signal peptide
1331	 44.10	+1	1425801..1428929	+	1042	183220758	-	LEPBI_I1369	-	putative molybdopterin oxidoreductase, iron-sulfur binding subunit
1332	 45.63	+1	1428949..1430322	+	457	183220759	-	LEPBI_I1370	-	putative molybdopterin oxidoreductase; putative membrane protein
1333	 43.03	+1	1430324..1430890	+	188	183220760	-	LEPBI_I1371	-	hypothetical protein
1334	 44.39	+1	1430887..1431474	+	195	183220761	-	LEPBI_I1372	-	putative cytochrome c_like protein
1335	 43.80	+1	1431483..1432733	+	416	183220762	-	LEPBI_I1373	-	hypothetical protein
38.82	MEAN

4.08	STD DEV
