IslandPath Analysis: Lactobacillus reuteri JCM 1112

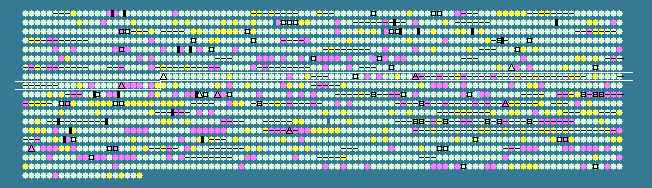

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
724	 40.60	0	836246..837139	+	297	184153379	-	LAR_0724	-	integrase/recombinase
725	 38.66	0	837153..837509	+	118	184153380	-	LAR_0725	-	hypothetical protein
726	 39.02	0	837502..838293	+	263	184153381	-	LAR_0726	-	hypothetical protein
727	 39.44	0	838256..838861	+	201	184153382	-	LAR_0727	-	hypothetical protein
728	 40.17	0	838861..839577	+	238	184153383	-	LAR_0728	-	putative pseudouridylate synthase
729	 40.77	0	840639..841673	+	344	184153384	-	LAR_0729	-	hypothetical protein
730	 38.06	0	841663..843102	+	479	184153385	-	LAR_0730	-	ATP-dependent DNA helicase RecQ
731	 37.70	0	843187..843759	+	190	184153386	-	LAR_0731	-	hypothetical protein
732	 39.30	0	843833..844519	+	228	184153387	-	LAR_0732	-	cytidylate kinase
733	 41.41	0	844592..845842	+	416	184153388	-	LAR_0733	-	30S ribosomal protein S1
734	 39.73	0	846072..847385	+	437	184153389	-	LAR_0734	-	GTP-binding protein
735	 43.84	+1	847595..847870	+	91	184153390	-	LAR_0735	-	DNA-binding protein HU
736	 37.05	0	848006..849271	+	421	184153391	-	LAR_0736	-	hypothetical protein
737	 39.03	0	849397..850608	+	403	184153392	-	LAR_0737	-	polyA polymerase
738	 39.35	0	850610..852520	+	636	184153393	-	LAR_0738	-	ABC transporter ATP-binding component
739	 40.19	0	852539..853501	+	320	184153394	-	LAR_0739	-	thymidylate synthase
740	 38.24	0	853517..854005	+	162	184153395	-	LAR_0740	-	dihydrofolate reductase
741	 40.31	0	853994..854638	-	214	184153396	-	LAR_0741	-	hemolysin III
742	 38.91	0	854817..855659	+	280	184153397	-	LAR_0742	-	hypothetical protein
743	 36.03	0	855752..856678	+	308	184153398	-	LAR_0743	-	hypothetical protein
744	 37.65	0	856681..857283	+	200	184153399	-	LAR_0744	-	hypothetical protein
745	 32.88	-1	857302..857523	+	73	184153400	-	LAR_0745	-	hypothetical protein
746	 40.78	0	857544..858416	+	290	184153401	-	LAR_0746	-	GTPase
747	 41.12	0	858409..859179	+	256	184153402	-	LAR_0747	-	ribonuclease HII
748	 43.72	+1	859230..860105	+	291	184153403	-	LAR_0748	-	DNA processing protein
749	 41.49	0	860227..862347	+	706	184153404	-	LAR_0749	-	DNA topoisomerase I
750	 37.32	0	862482..863360	+	292	184153405	-	LAR_0750	-	hypothetical protein
751	 39.05	0	863402..864031	-	209	184153406	-	LAR_0751	-	hypothetical protein
752	 41.69	0	864257..866266	+	669	184153407	-	LAR_0752	-	topoisomerase IV B subunit
753	 41.52	0	866285..868750	+	821	184153408	-	LAR_0753	-	topoisomerase IV A subunit
754	 39.10	0	868767..869234	+	155	184153409	-	LAR_0754	-	NTP pyrophosphohydrolase
755	 40.92	0	869343..870278	+	311	184153410	-	LAR_0755	-	inorganic pyrophosphatase
756	 41.90	0	870311..871279	-	322	184153411	-	LAR_0756	-	transposase
757	 36.15	0	871488..871877	+	129	184153412	-	LAR_0757	-	hypothetical protein
758	 31.67	-2	872354..872533	+	59	184153413	-	LAR_0758	-	hypothetical protein
759	 37.78	0	872561..873055	+	164	184153414	-	LAR_0759	-	phosphinothricin N-acetyltransferase
760	 34.64	-1	873210..873593	-	127	184153415	-	LAR_0760	-	alkaline shock protein
761	 36.46	0	873611..873802	-	63	184153416	-	LAR_0761	-	hypothetical protein
762	 36.04	0	873817..874371	-	184	184153417	-	LAR_0762	-	hypothetical protein
763	 44.51	+1	874542..876071	-	509	184153418	-	LAR_0763	-	gluconate kinase
764	 42.49	+1	876122..877126	-	334	184153419	-	LAR_0764	-	transcriptional regulator
765	 41.60	0	877221..878357	-	378	184153420	-	LAR_0765	-	gluconate transport protein
766	 34.68	-1	878463..879728	-	421	184153421	-	LAR_0766	-	phage integrase
767	 32.28	-2	880196..881053	-	285	184153422	-	LAR_0767	-	hypothetical protein
768	 38.22	0	881074..881646	-	190	184153423	-	LAR_0768	-	hypothetical protein
769	 37.53	0	881609..882013	-	134	184153424	-	LAR_0769	-	hypothetical protein
770	 34.07	-1	882067..882471	-	134	184153425	-	LAR_0770	-	hypothetical protein
771	 37.90	0	882981..883199	+	72	184153426	-	LAR_0771	-	putative phage repressor
772	 38.50	0	883218..883991	+	257	184153427	-	LAR_0772	-	putative phage antirepressor
773	 43.63	+1	884267..884470	+	67	184153428	-	LAR_0773	-	hypothetical protein
774	 35.03	-1	884911..885087	+	58	184153429	-	LAR_0774	-	hypothetical protein
775	 40.97	0	885352..886281	+	309	184153430	-	LAR_0775	-	hypothetical protein
776	 41.81	0	886205..887089	+	294	184153431	-	LAR_0776	-	hypothetical protein
777	 37.85	0	887067..887951	+	294	184153432	-	LAR_0777	-	phage replication protein
778	 41.94	0	888717..888995	+	92	184153433	-	LAR_0778	-	hypothetical protein
779	 35.66	-1	889785..890171	+	128	184153434	-	LAR_0779	-	hypothetical protein
780	 39.15	0	890171..890359	+	62	184153435	-	LAR_0780	-	hypothetical protein
781	 41.74	0	890618..890938	+	106	184153436	-	LAR_0781	-	hypothetical protein
782	 41.34	0	892860..893558	+	232	184153437	-	LAR_0782	-	hypothetical protein
783	 46.01	+2	893558..893983	+	141	184153438	-	LAR_0783	-	hypothetical protein
784	 40.42	0	894015..894776	+	253	184153439	-	LAR_0784	-	hypothetical protein
785	 42.06	0	894793..895296	+	167	184153440	-	LAR_0785	-	hypothetical protein
786	 43.36	+1	895271..896566	+	431	184153441	-	LAR_0786	-	putative phage terminase
787	 41.82	0	896566..898227	+	553	184153442	-	LAR_0787	-	hypothetical protein
788	 42.06	0	898227..899177	+	316	184153443	-	LAR_0788	-	hypothetical protein
789	 39.09	0	899557..900216	+	219	184153444	-	LAR_0789	-	hypothetical protein
790	 40.85	0	900231..901307	+	358	184153445	-	LAR_0790	-	hypothetical protein
791	 38.25	0	901320..901685	+	121	184153446	-	LAR_0791	-	hypothetical protein
792	 45.37	+1	901676..901999	+	107	184153447	-	LAR_0792	-	hypothetical protein
793	 44.39	+1	901989..902549	+	186	184153448	-	LAR_0793	-	hypothetical protein
794	 41.82	0	902971..903618	+	215	184153449	-	LAR_0794	-	hypothetical protein
795	 41.03	0	903638..904183	+	181	184153450	-	LAR_0795	-	hypothetical protein
796	 46.67	+2	904276..904455	+	59	184153451	-	LAR_0796	-	hypothetical protein
797	 41.52	0	904459..908109	+	1216	184153452	-	LAR_0797	-	hypothetical protein
798	 38.51	0	908106..908993	+	295	184153453	-	LAR_0798	-	hypothetical protein
799	 39.67	0	908981..911221	+	746	184153454	-	LAR_0799	-	hypothetical protein
800	 41.15	0	911190..914786	+	1198	184153455	-	LAR_0800	-	hypothetical protein
801	 38.83	0	914779..915051	+	90	184153456	-	LAR_0801	-	hypothetical protein
802	 36.63	0	915094..915366	+	90	184153457	-	LAR_0802	-	hypothetical protein
803	 41.97	0	915379..916524	+	381	184153458	-	LAR_0803	-	hypothetical protein
804	 41.04	0	916521..917636	+	371	184153459	-	LAR_0804	-	hypothetical protein
805	 37.92	0	917639..918052	+	137	184153460	-	LAR_0805	-	hypothetical protein
806	 39.53	0	918036..918164	+	42	184153461	-	LAR_0806	-	hypothetical protein
807	 36.05	0	918203..918754	+	183	184153462	-	LAR_0807	-	hypothetical protein
808	 42.43	+1	918721..919962	+	413	184153463	-	LAR_0808	-	hypothetical protein
809	 42.54	+1	920410..921615	+	401	184153464	-	LAR_0809	-	pantothenate metabolism flavoprotein
810	 43.92	+1	921867..923396	-	509	184153465	-	LAR_0810	-	gluconate kinase
811	 39.14	0	923624..924157	+	177	184153466	-	LAR_0811	-	putative acetyltransferase
812	 35.50	-1	924665..924895	-	76	184153467	-	LAR_0812	-	hypothetical protein
813	 37.51	0	925644..927581	+	645	184153468	-	LAR_0813	-	putative amidase
814	 40.58	0	927663..927938	+	91	184153469	-	LAR_0814	-	hypothetical protein
815	 39.84	0	927999..928490	-	163	184153470	-	LAR_0815	-	hypothetical protein
816	 36.01	0	928800..930332	+	510	184153471	-	LAR_0816	-	type I restriction system DNA methylase
817	 32.72	-1	931508..932482	+	324	184153472	-	LAR_0817	-	integrase
818	 28.46	-2	932487..933614	+	375	184153473	-	LAR_0818	-	hypothetical protein
819	 35.00	-1	933668..936793	+	1041	184153474	-	LAR_0819	-	type I restriction-modification system restriction subnit
820	 30.42	-2	936850..937089	-	79	184153475	-	LAR_0820	-	hypothetical protein
821	 39.73	0	937445..939712	+	755	184153476	-	LAR_0821	-	hypothetical protein
822	 30.16	-2	939882..940007	+	41	184153477	-	LAR_0822	-	hypothetical protein
823	 43.17	+1	940164..941108	+	314	184153478	-	LAR_0823	-	putative inosine-uridine nucleoside N-ribohydrolase
39.15	MEAN

3.24	STD DEV
