IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

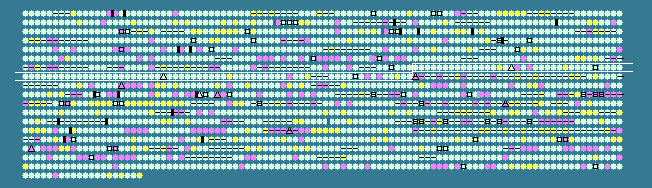

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
666	 39.79	0	766520..768253	+	577	184153321	-	LAR_0666	-	prolyl-tRNA synthase
667	 41.09	0	768329..772660	+	1443	184153322	-	LAR_0667	-	DNA polymerase III alpha subunit
668	 37.76	0	772794..773267	+	157	184153323	-	LAR_0668	-	hypothetical protein
669	 40.91	0	773288..774475	+	395	184153324	-	LAR_0669	-	transcription termination-antitermination factor
670	 36.96	0	774504..774806	+	100	184153325	-	LAR_0670	-	hypothetical protein
671	 38.14	0	774793..775104	+	103	184153326	-	LAR_0671	-	putative ribosomal protein
672	 39.97	0	775118..777376	+	752	184153327	-	LAR_0672	-	translation initiation factor IF-2
673	 36.94	0	777396..777755	+	119	184153328	-	LAR_0673	-	ribosome-binding factor A
674	 37.75	0	777953..778858	+	301	184153329	-	LAR_0674	-	pseudouridylate synthase
675	 40.82	0	778871..779818	+	315	184153330	-	LAR_0675	-	riboflavin biosynthesis protein RibF
676	 37.63	0	779879..780250	-	123	184153331	-	LAR_0676	-	hypothetical protein
677	 39.32	0	780371..781423	+	350	184153332	-	LAR_0677	-	heat-inducible transcription repressor
678	 37.52	0	781436..782008	+	190	184153333	-	LAR_0678	-	heat shock protein GrpE
679	 40.03	0	782033..783898	+	621	184153334	-	LAR_0679	-	heat shock protein DnaK
680	 45.66	+2	784027..785178	+	383	184153335	-	LAR_0680	-	chaperone protein DnaJ
681	 41.23	0	785309..787144	+	611	184153336	-	LAR_0681	-	GTP-binding translation elongation factor LepA
682	 37.30	0	787295..788455	-	386	184153337	-	LAR_0682	-	phage integrase
683	 30.75	-2	788579..789313	-	244	184153338	-	LAR_0683	-	hypothetical protein
684	 36.22	0	789606..790055	-	149	184153339	-	LAR_0684	-	hypothetical protein
685	 30.28	-2	790154..790612	-	152	184153340	-	LAR_0685	-	hypothetical protein
686	 39.55	0	791657..793072	+	471	184153341	-	LAR_0686	-	dipeptidase
687	 41.23	0	793145..794221	+	358	184153342	-	LAR_0687	-	malate dehydrogenase
688	 42.50	+1	794455..795414	-	319	184153343	-	LAR_0688	-	L-lactate dehydrogenase
689	 36.58	0	795864..796202	+	112	184153344	-	LAR_0689	-	hypothetical protein
690	 41.67	0	796280..797239	+	319	184153345	-	LAR_0690	-	ribosomal protein L11 methyltransferase
691	 43.32	+1	797240..797980	+	246	184153346	-	LAR_0691	-	hypothetical protein
692	 40.44	0	798413..800650	+	745	184153347	-	LAR_0692	-	GTP pyrophosphokinase
693	 37.67	0	800661..801098	+	145	184153348	-	LAR_0693	-	hypothetical protein
694	 38.52	0	801256..802104	-	282	184153349	-	LAR_0694	-	hypothetical protein
695	 40.77	0	802486..804288	+	600	184153350	-	LAR_0695	-	aspartyl-tRNA synthase
696	 36.17	0	804517..804975	+	152	184153351	-	LAR_0696	-	transposase
697	 39.11	0	805115..805858	-	247	184153352	-	LAR_0697	-	amino acid ABC transporter ATP-binding component
698	 36.49	0	805848..807179	-	443	184153353	-	LAR_0698	-	amino acid ABC transporter substrate binding and permease components
699	 41.67	0	807660..807851	+	63	184153354	-	LAR_0699	-	30S ribosomal protein S21
700	 36.47	0	807911..808357	+	148	184153355	-	LAR_0700	-	hypothetical protein
701	 37.93	0	808477..809454	+	325	184153356	-	LAR_0701	-	conjugated bile salt hydrolase
702	 40.23	0	809614..810846	+	410	184153357	-	LAR_0702	-	argininosuccinate synthase
703	 39.47	0	810836..812221	+	461	184153358	-	LAR_0703	-	argininosuccinate lyase
704	 39.79	0	812350..812922	+	190	184153359	-	LAR_0704	-	putative biotin biosynthesis protein
705	 38.37	0	812928..813899	+	323	184153360	-	LAR_0705	-	biotin--[acetyl-CoA-carboxylase] ligase and biotin operon repressor
706	 40.28	0	813999..815006	+	335	184153361	-	LAR_0706	-	phosphate starvation-inducible protein
707	 37.71	0	815006..815485	+	159	184153362	-	LAR_0707	-	hypothetical protein
708	 37.12	0	815469..815864	+	131	184153363	-	LAR_0708	-	diacylglycerol kinase
709	 37.53	0	815876..816781	+	301	184153364	-	LAR_0709	-	GTP-binding protein
710	 39.44	0	816797..817582	+	261	184153365	-	LAR_0710	-	DNA repair protein RecO
711	 41.54	0	817843..818829	+	328	184153366	-	LAR_0711	-	glycyl-tRNA synthase alpha subunit
712	 38.01	0	818831..820906	+	691	184153367	-	LAR_0712	-	glycyl-tRNA synthase beta subunit
713	 37.78	0	821041..822906	+	621	184153368	-	LAR_0713	-	DNA primase DnaG
714	 40.07	0	822908..824050	+	380	184153369	-	LAR_0714	-	RNA polymerase sigma-43 factor RpoD
715	 39.92	0	824248..825432	+	394	184153370	-	LAR_0715	-	amino acid aminotransferase
716	 40.85	0	825502..826884	-	460	184153371	-	LAR_0716	-	hypothetical protein
717	 40.11	0	827109..827816	+	235	184153372	-	LAR_0717	-	hypothetical protein
718	 42.18	0	827803..828627	+	274	184153373	-	LAR_0718	-	hypothetical protein
719	 38.53	0	828652..829902	+	416	184153374	-	LAR_0719	-	tripeptidase
720	 38.68	0	829944..830186	-	80	184153375	-	LAR_0720	-	hypothetical protein
721	 40.08	0	830269..833616	+	1115	184153376	-	LAR_0721	-	DNA-directed DNA polymerase III alpha subunit
722	 41.98	0	833802..835223	+	473	184153377	-	LAR_0722	-	pyruvate kinase
723	 39.28	0	835356..836246	+	296	184153378	-	LAR_0723	-	hypothetical protein
724	 40.60	0	836246..837139	+	297	184153379	-	LAR_0724	-	integrase/recombinase
725	 38.66	0	837153..837509	+	118	184153380	-	LAR_0725	-	hypothetical protein
726	 39.02	0	837502..838293	+	263	184153381	-	LAR_0726	-	hypothetical protein
727	 39.44	0	838256..838861	+	201	184153382	-	LAR_0727	-	hypothetical protein
728	 40.17	0	838861..839577	+	238	184153383	-	LAR_0728	-	putative pseudouridylate synthase
729	 40.77	0	840639..841673	+	344	184153384	-	LAR_0729	-	hypothetical protein
730	 38.06	0	841663..843102	+	479	184153385	-	LAR_0730	-	ATP-dependent DNA helicase RecQ
731	 37.70	0	843187..843759	+	190	184153386	-	LAR_0731	-	hypothetical protein
732	 39.30	0	843833..844519	+	228	184153387	-	LAR_0732	-	cytidylate kinase
733	 41.41	0	844592..845842	+	416	184153388	-	LAR_0733	-	30S ribosomal protein S1
734	 39.73	0	846072..847385	+	437	184153389	-	LAR_0734	-	GTP-binding protein
735	 43.84	+1	847595..847870	+	91	184153390	-	LAR_0735	-	DNA-binding protein HU
736	 37.05	0	848006..849271	+	421	184153391	-	LAR_0736	-	hypothetical protein
737	 39.03	0	849397..850608	+	403	184153392	-	LAR_0737	-	polyA polymerase
738	 39.35	0	850610..852520	+	636	184153393	-	LAR_0738	-	ABC transporter ATP-binding component
739	 40.19	0	852539..853501	+	320	184153394	-	LAR_0739	-	thymidylate synthase
740	 38.24	0	853517..854005	+	162	184153395	-	LAR_0740	-	dihydrofolate reductase
741	 40.31	0	853994..854638	-	214	184153396	-	LAR_0741	-	hemolysin III
742	 38.91	0	854817..855659	+	280	184153397	-	LAR_0742	-	hypothetical protein
743	 36.03	0	855752..856678	+	308	184153398	-	LAR_0743	-	hypothetical protein
744	 37.65	0	856681..857283	+	200	184153399	-	LAR_0744	-	hypothetical protein
745	 32.88	-1	857302..857523	+	73	184153400	-	LAR_0745	-	hypothetical protein
746	 40.78	0	857544..858416	+	290	184153401	-	LAR_0746	-	GTPase
747	 41.12	0	858409..859179	+	256	184153402	-	LAR_0747	-	ribonuclease HII
748	 43.72	+1	859230..860105	+	291	184153403	-	LAR_0748	-	DNA processing protein
749	 41.49	0	860227..862347	+	706	184153404	-	LAR_0749	-	DNA topoisomerase I
750	 37.32	0	862482..863360	+	292	184153405	-	LAR_0750	-	hypothetical protein
751	 39.05	0	863402..864031	-	209	184153406	-	LAR_0751	-	hypothetical protein
752	 41.69	0	864257..866266	+	669	184153407	-	LAR_0752	-	topoisomerase IV B subunit
753	 41.52	0	866285..868750	+	821	184153408	-	LAR_0753	-	topoisomerase IV A subunit
754	 39.10	0	868767..869234	+	155	184153409	-	LAR_0754	-	NTP pyrophosphohydrolase
755	 40.92	0	869343..870278	+	311	184153410	-	LAR_0755	-	inorganic pyrophosphatase
756	 41.90	0	870311..871279	-	322	184153411	-	LAR_0756	-	transposase
757	 36.15	0	871488..871877	+	129	184153412	-	LAR_0757	-	hypothetical protein
758	 31.67	-2	872354..872533	+	59	184153413	-	LAR_0758	-	hypothetical protein
759	 37.78	0	872561..873055	+	164	184153414	-	LAR_0759	-	phosphinothricin N-acetyltransferase
760	 34.64	-1	873210..873593	-	127	184153415	-	LAR_0760	-	alkaline shock protein
761	 36.46	0	873611..873802	-	63	184153416	-	LAR_0761	-	hypothetical protein
762	 36.04	0	873817..874371	-	184	184153417	-	LAR_0762	-	hypothetical protein
763	 44.51	+1	874542..876071	-	509	184153418	-	LAR_0763	-	gluconate kinase
764	 42.49	+1	876122..877126	-	334	184153419	-	LAR_0764	-	transcriptional regulator
765	 41.60	0	877221..878357	-	378	184153420	-	LAR_0765	-	gluconate transport protein
39.15	MEAN

3.24	STD DEV
