IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

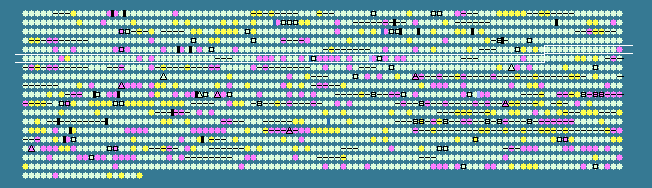

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
488	 40.12	0	565352..566500	+	382	184153143	-	LAR_0488	-	cysteine desulfurase
489	 39.48	0	566522..567742	+	406	184153144	-	LAR_0489	-	thiamine biosynthesis protein ThiI
490	 41.73	0	568069..570723	+	884	184153145	-	LAR_0490	-	valyl-tRNA synthase
491	 38.20	0	571106..572524	+	472	184153146	-	LAR_0491	-	cytochrome D ubiquinol oxidase subunit I
492	 38.25	0	572525..573541	+	338	184153147	-	LAR_0492	-	cytochrome D ubiquinol oxidase subunit II
493	 39.17	0	573548..575278	+	576	184153148	-	LAR_0493	-	cytochrome D ABC transporter ATP-binding and permease components
494	 41.35	0	575271..577016	+	581	184153149	-	LAR_0494	-	cytochrome D ABC transporter ATP-binding and permease components
495	 39.42	0	577071..578285	+	404	184153150	-	LAR_0495	-	putative NADH dehydrogenase
496	 39.80	0	578388..579701	+	437	184153151	-	LAR_0496	-	folylpolyglutamate synthase
497	 38.55	0	579768..580400	+	210	184153152	-	LAR_0497	-	putative DNA repair protein
498	 40.72	0	580536..581537	+	333	184153153	-	LAR_0498	-	cell shape determining protein MreB
499	 38.11	0	581671..582528	+	285	184153154	-	LAR_0499	-	cell shape determining protein MreC
500	 32.03	-2	582535..583071	+	178	184153155	-	LAR_0500	-	cell shape determining protein MreD
501	 37.19	0	583540..584187	+	215	184153156	-	LAR_0501	-	glutamine ABC transporter permease component
502	 38.25	0	584202..584852	+	216	184153157	-	LAR_0502	-	glutamine ABC transporter ATP-binding component
503	 36.97	0	584870..585721	+	283	184153158	-	LAR_0503	-	glutamine ABC transporter substrate binding component
504	 35.90	-1	585925..587172	+	415	184153159	-	LAR_0504	-	hypothetical protein
505	 39.11	0	587177..588475	+	432	184153160	-	LAR_0505	-	zinc-dependent proteinase
506	 39.69	0	588574..589611	+	345	184153161	-	LAR_0506	-	hypothetical protein
507	 34.86	-1	589639..590226	+	195	184153162	-	LAR_0507	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
508	 42.79	+1	590352..591599	+	415	184153163	-	LAR_0508	-	competence-damage protein
509	 40.50	0	591689..592777	+	362	184153164	-	LAR_0509	-	recombinase RecA
510	 39.83	0	593001..594554	+	517	184153165	-	LAR_0510	-	hypothetical protein
511	 39.53	0	594716..597361	+	881	184153166	-	LAR_0511	-	DNA mismatch repair protein MutS
512	 41.95	0	597373..599379	+	668	184153167	-	LAR_0512	-	DNA mismatch repair protein HexB
513	 37.00	0	599392..599991	+	199	184153168	-	LAR_0513	-	holliday junction DNA helicase RuvA
514	 41.79	0	600006..601022	+	338	184153169	-	LAR_0514	-	holliday junction DNA helicase RuvB
515	 41.23	0	601035..602123	+	362	184153170	-	LAR_0515	-	tRNA-guanine transglycosylase
516	 41.29	0	602195..602659	+	154	184153171	-	LAR_0516	-	preprotein translocase
517	 41.46	0	602786..603745	+	319	184153172	-	LAR_0517	-	exopolyphosphatase-related protein
518	 40.68	0	603759..605132	+	457	184153173	-	LAR_0518	-	ATP-dependent RNA helicase
519	 40.63	0	605388..608045	+	885	184153174	-	LAR_0519	-	alanyl-tRNA synthase
520	 34.46	-1	608315..608581	+	88	184153175	-	LAR_0520	-	hypothetical protein
521	 41.22	0	608578..609021	+	147	184153176	-	LAR_0521	-	hypothetical protein
522	 33.33	-1	609031..609327	+	98	184153177	-	LAR_0522	-	hypothetical protein
523	 36.69	0	609426..609962	+	178	184153178	-	LAR_0523	-	hypothetical protein
524	 40.11	0	609964..612339	+	791	184153179	-	LAR_0524	-	DNA mismatch repair protein
525	 35.87	-1	612430..612744	+	104	184153180	-	LAR_0525	-	thioredoxin
526	 40.00	0	612799..613353	-	184	184153181	-	LAR_0526	-	hypothetical protein
527	 37.94	0	613508..614311	+	267	184153182	-	LAR_0527	-	glutamate racemase
528	 39.80	0	614313..614900	+	195	184153183	-	LAR_0528	-	xanthosine triphosphate pyrophosphatase
529	 41.04	0	614906..615424	+	172	184153184	-	LAR_0529	-	putative phosphoesterase
530	 37.16	0	615445..615888	+	147	184153185	-	LAR_0530	-	hypothetical protein
531	 36.44	0	615994..616830	-	278	184153186	-	LAR_0531	-	hypothetical protein
532	 36.64	0	616820..617695	-	291	184153187	-	LAR_0532	-	hypothetical protein
533	 38.55	0	617838..618278	+	146	184153188	-	LAR_0533	-	hypothetical protein
534	 35.95	0	618271..618729	+	152	184153189	-	LAR_0534	-	hypothetical protein
535	 40.42	0	618770..619870	-	366	184153190	-	LAR_0535	-	Xaa-Pro dipeptidase
536	 37.78	0	620031..621041	+	336	184153191	-	LAR_0536	-	catabolite control protein A
537	 37.00	0	621055..621900	+	281	184153192	-	LAR_0537	-	hypothetical protein
538	 42.17	0	621975..622721	+	248	184153193	-	LAR_0538	-	hypothetical protein
539	 38.96	0	622842..623819	+	325	184153194	-	LAR_0539	-	competence protein
540	 34.27	-1	623737..624807	+	356	184153195	-	LAR_0540	-	hypothetical protein
541	 35.58	-1	624807..625118	+	103	184153196	-	LAR_0541	-	hypothetical protein
542	 35.49	-1	626669..627502	+	277	184153197	-	LAR_0542	-	putative modification methylase
543	 39.26	0	627516..628712	+	398	184153198	-	LAR_0543	-	acetate kinase
544	 35.14	-1	628827..629435	+	202	184153199	-	LAR_0544	-	putative phosphoesterase
545	 37.36	0	629456..630001	+	181	184153200	-	LAR_0545	-	hypothetical protein
546	 37.22	0	630010..630780	+	256	184153201	-	LAR_0546	-	sugar phosphatase
547	 32.72	-1	630761..631417	+	218	184153202	-	LAR_0547	-	hypothetical protein
548	 37.19	0	631385..632032	-	215	184153203	-	LAR_0548	-	hypothetical protein
549	 35.98	0	639428..640675	-	415	184153204	-	LAR_0549	-	transposase
550	 32.72	-1	640917..641408	-	163	184153205	-	LAR_0550	-	hypothetical protein
551	 34.83	-1	641656..642057	+	133	184153206	-	LAR_0551	-	hypothetical protein
552	 32.29	-2	642183..642854	+	223	184153207	-	LAR_0552	-	competence negative regulator
553	 35.65	-1	642938..643972	+	344	184153208	-	LAR_0553	-	competence protein
554	 36.02	0	643974..645350	+	458	184153209	-	LAR_0554	-	dipeptidase
555	 34.90	-1	645422..646060	-	212	184153210	-	LAR_0555	-	hypothetical protein
556	 37.77	0	646225..646878	+	217	184153211	-	LAR_0556	-	hypothetical protein
557	 35.79	-1	646882..647694	+	270	184153212	-	LAR_0557	-	hypothetical protein
558	 38.19	0	647694..648599	+	301	184153213	-	LAR_0558	-	pseudouridylate synthase
559	 35.60	-1	655159..655731	-	190	184153214	-	LAR_0559	-	hypothetical protein
560	 39.78	0	655802..656158	-	118	184153215	-	LAR_0560	-	transposase
561	 34.92	-1	656148..656336	-	62	184153216	-	LAR_0561	-	hypothetical protein
562	 37.71	0	656757..657785	-	342	184153217	-	LAR_0562	-	hypothetical protein
563	 34.62	-1	657900..658757	+	285	184153218	-	LAR_0563	-	rRNA large subunit methyltransferase A
564	 34.31	-1	658929..659438	+	169	184153219	-	LAR_0564	-	rRNA methylase
565	 39.85	0	659460..661790	+	776	184153220	-	LAR_0565	-	cell division protein FtsK
566	 38.23	0	662742..663170	+	142	184153221	-	LAR_0566	-	hypothetical protein
567	 39.18	0	663186..664142	+	318	184153222	-	LAR_0567	-	hypothetical protein
568	 38.75	0	664521..666680	+	719	184153223	-	LAR_0568	-	cell division protein FtsI/penicillin-binding protein 2
569	 37.76	0	666705..667676	+	323	184153224	-	LAR_0569	-	UDP-N-acetylmuramyl pentapeptide phosphotransferase/UDP-N-acetylglucosamine-1-phosphate transferase
570	 37.78	0	667689..669059	+	456	184153225	-	LAR_0570	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
571	 40.34	0	669061..670173	+	370	184153226	-	LAR_0571	-	UDP-N-acetylglucosamine:LPS N-acetylglucosamine transferase
572	 36.04	0	670201..671049	+	282	184153227	-	LAR_0572	-	cell division protein FtsQ
573	 39.23	0	671170..672543	+	457	184153228	-	LAR_0573	-	cell division protein FtsA
574	 40.14	0	672561..673808	+	415	184153229	-	LAR_0574	-	cell division protein FtsZ
575	 36.45	0	673878..674294	+	138	184153230	-	LAR_0575	-	hypothetical protein
576	 39.44	0	674596..675381	+	261	184153231	-	LAR_0576	-	hypothetical protein
577	 36.57	0	675403..676143	+	246	184153232	-	LAR_0577	-	cell division initiation protein
578	 40.24	0	676441..679236	+	931	184153233	-	LAR_0578	-	isoleucyl-tRNA synthase
579	 39.71	0	679349..679552	+	67	184153234	-	LAR_0579	-	cold shock protein
580	 39.13	0	679565..680116	+	183	184153235	-	LAR_0580	-	hypothetical protein
581	 38.52	0	680109..680378	+	89	184153236	-	LAR_0581	-	hypothetical protein
582	 39.08	0	680394..681089	+	231	184153237	-	LAR_0582	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
583	 39.05	0	681109..682263	+	384	184153238	-	LAR_0583	-	cysteine desulfurase
584	 31.86	-2	682265..682603	+	112	184153239	-	LAR_0584	-	hypothetical protein
585	 41.89	0	682711..683844	+	377	184153240	-	LAR_0585	-	tRNA (5-methylaminomethyl-2-thiouridylate) methyltransferase
586	 38.05	0	683981..684637	+	218	184153241	-	LAR_0586	-	phosphoglycerate mutase
587	 35.79	-1	684641..685333	+	230	184153242	-	LAR_0587	-	hypothetical protein
39.15	MEAN

3.24	STD DEV
