IslandPathversion 1.0

IslandPath Analysis: Lactobacillus reuteri JCM 1112

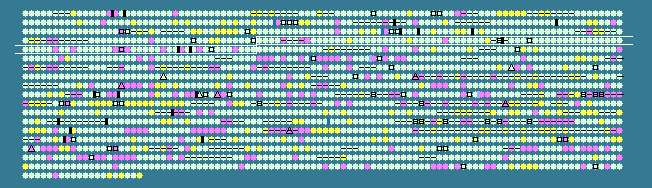

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.15 STD DEV: 3.24
Lactobacillus reuteri F275, complete genome - 1..2039414
1820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
340	 39.78	0	398197..400134	-	645	184152995	-	LAR_0340	-	ABC transporter ATP-binding component
341	 36.90	0	400375..401019	+	214	184152996	-	LAR_0341	-	hypothetical protein
342	 40.35	0	401254..401538	+	94	184152997	-	LAR_0342	-	chaperonin GroES
343	 41.50	0	401630..403258	+	542	184152998	-	LAR_0343	-	chaperonin GroEL
344	 33.33	-1	403352..403840	+	162	184152999	-	LAR_0344	-	putative DNA-binding protein
345	 40.66	0	403922..405532	+	536	184153000	-	LAR_0345	-	transport protein
346	 40.24	0	405617..407455	+	612	184153001	-	LAR_0346	-	transport protein
347	 32.95	-1	407482..407742	+	86	184153002	-	LAR_0347	-	hypothetical protein
348	 35.52	-1	407861..408271	+	136	184153003	-	LAR_0348	-	transcription regulator
349	 36.51	0	408271..409656	+	461	184153004	-	LAR_0349	-	transport protein
350	 39.81	0	409699..410331	-	210	184153005	-	LAR_0350	-	hypothetical protein
351	 39.86	0	410393..411724	+	443	184153006	-	LAR_0351	-	competence protein
352	 38.33	0	411705..412385	+	226	184153007	-	LAR_0352	-	competence protein
353	 38.62	0	412517..413065	+	182	184153008	-	LAR_0353	-	ribosomal subunit interface protein
354	 39.93	0	413277..415640	+	787	184153009	-	LAR_0354	-	preprotein translocase SecA subunit
355	 42.74	+1	415840..416838	+	332	184153010	-	LAR_0355	-	peptide chain release factor 2
356	 36.01	0	416868..417203	+	111	184153011	-	LAR_0356	-	putative stress-responsive transcription regulator
357	 36.13	0	417203..417559	+	118	184153012	-	LAR_0357	-	hypothetical protein
358	 42.26	0	417574..418536	+	320	184153013	-	LAR_0358	-	HPr-P(Ser) kinase/phosphatase
359	 39.49	0	418537..419364	+	275	184153014	-	LAR_0359	-	prolipoprotein diacylglyceryl transferase
360	 40.12	0	419390..420406	+	338	184153015	-	LAR_0360	-	glycerol-3-phosphate dehydrogenase (NAD(P)+)
361	 38.69	0	420471..421385	+	304	184153016	-	LAR_0361	-	UTP-glucose-1-phosphate uridylyltransferase
362	 40.14	0	421457..422191	-	244	184153017	-	LAR_0362	-	hypothetical protein
363	 41.53	0	422184..423671	-	495	184153018	-	LAR_0363	-	iron-sulfur cluster binding protein
364	 40.80	0	423672..424475	-	267	184153019	-	LAR_0364	-	oxidoreductase
365	 42.66	+1	424738..425670	+	310	184153020	-	LAR_0365	-	thioredoxin reductase
366	 39.74	0	425764..426933	+	389	184153021	-	LAR_0366	-	peptidase
367	 36.50	0	427192..428076	+	294	184153022	-	LAR_0367	-	amino acid ABC transporter substrate binding component
368	 40.43	0	428122..428628	+	168	184153023	-	LAR_0368	-	acyl-CoA hydrolase
369	 40.99	0	428718..430442	+	574	184153024	-	LAR_0369	-	phosphoglucomutase
370	 36.46	0	430609..431247	+	212	184153025	-	LAR_0370	-	putative hydrolase
371	 35.16	-1	431352..431624	+	90	184153026	-	LAR_0371	-	hypothetical protein
372	 42.26	0	431846..433861	+	671	184153027	-	LAR_0372	-	excinuclease ABC subunit B
373	 41.50	0	433877..436741	+	954	184153028	-	LAR_0373	-	excinuclease ABC subunit A
374	 39.41	0	437010..438341	+	443	184153029	-	LAR_0374	-	hypothetical protein
375	 37.57	0	438449..439321	+	290	184153030	-	LAR_0375	-	hypothetical protein
376	 39.61	0	439337..440323	+	328	184153031	-	LAR_0376	-	hypothetical protein
377	 39.49	0	440342..441283	+	313	184153032	-	LAR_0377	-	hypothetical protein
378	 45.45	+1	441798..441929	+	43	184153033	-	LAR_0378	-	hypothetical protein
379	 38.89	0	442180..442773	+	197	184153034	-	LAR_0379	-	endopeptidase Clp proteolytic subunit
380	 39.75	0	442840..444414	-	524	184153035	-	LAR_0380	-	transposase
381	 40.48	0	445084..446091	+	335	184153036	-	LAR_0381	-	glyceraldehyde 3-phosphate dehydrogenase
382	 39.64	0	446182..447387	+	401	184153037	-	LAR_0382	-	phosphoglycerate kinase
383	 39.87	0	447503..448252	+	249	184153038	-	LAR_0383	-	triosephosphate isomerase
384	 42.21	0	448292..449665	+	457	184153039	-	LAR_0384	-	enolase
385	 40.66	0	449836..451446	+	536	184153040	-	LAR_0385	-	transposase
386	 38.03	0	451666..453048	+	460	184153041	-	LAR_0386	-	hypothetical protein
387	 38.94	0	453166..454716	+	516	184153042	-	LAR_0387	-	chloride channel protein
388	 40.93	0	455102..455878	+	258	184153043	-	LAR_0388	-	carboxylesterase
389	 39.73	0	455865..458270	+	801	184153044	-	LAR_0389	-	ribonuclease R
390	 36.08	0	458288..458761	+	157	184153045	-	LAR_0390	-	SsrA-binding protein
391	 37.44	0	458818..459402	-	194	184153046	-	LAR_0391	-	hypothetical protein
392	 41.16	0	459553..460242	+	229	184153047	-	LAR_0392	-	uracil-DNA glycosylase
393	 41.64	0	460303..461277	+	324	184153048	-	LAR_0393	-	phosphate acetyltransferase
394	 41.18	0	461397..461855	+	152	184153049	-	LAR_0394	-	hypothetical protein
395	 37.45	0	461855..462364	+	169	184153050	-	LAR_0395	-	putative acetyltransferase
396	 37.59	0	462397..462819	-	140	184153051	-	LAR_0396	-	hypothetical protein
397	 39.63	0	462831..463370	-	179	184153052	-	LAR_0397	-	DNA polymerase III epsilon subunit
398	 40.80	0	463495..464391	+	298	184153053	-	LAR_0398	-	UDP-N-acetylmuramate dehydrogenase
399	 38.96	0	464724..465647	+	307	184153054	-	LAR_0399	-	ribokinase
400	 38.13	0	465659..466054	+	131	184153055	-	LAR_0400	-	ribose transport protein
401	 37.02	0	466073..467428	+	451	184153056	-	LAR_0401	-	fucose transport protein
402	 37.62	0	467576..468439	+	287	184153057	-	LAR_0402	-	hypothetical protein
403	 37.00	0	468423..469322	+	299	184153058	-	LAR_0403	-	hypothetical protein
404	 39.31	0	469350..470705	+	451	184153059	-	LAR_0404	-	phosphoglucosamine mutase
405	 39.26	0	470914..472734	+	606	184153060	-	LAR_0405	-	glutamine-fructose-6-phosphate transaminase
406	 34.29	-1	472995..473306	+	103	184153061	-	LAR_0406	-	hypothetical protein
407	 38.80	0	473368..475233	+	621	184153062	-	LAR_0407	-	putative acyltransferase
408	 35.96	0	475244..475699	+	151	184153063	-	LAR_0408	-	putative transcription regulator
409	 34.57	-1	475704..476510	+	268	184153064	-	LAR_0409	-	hydrolase
410	 41.83	0	476833..477444	+	203	184153065	-	LAR_0410	-	aggregation promoting factor
411	 36.94	0	478054..478773	+	239	184153066	-	LAR_0411	-	two-component system response regulator
412	 37.90	0	478773..480260	+	495	184153067	-	LAR_0412	-	two-component system histidine kinase
413	 39.95	0	480429..481289	+	286	184153068	-	LAR_0413	-	sugar transport protein
414	 40.33	0	481364..481978	-	204	184153069	-	LAR_0414	-	galactoside O-acetyltransferase
415	 40.40	0	482159..483517	+	452	184153070	-	LAR_0415	-	glucose-6-phosphate isomerase
416	 30.00	-2	484004..484303	-	99	184153071	-	LAR_0416	-	hypothetical protein
417	 35.29	-1	484793..485251	-	152	184153072	-	LAR_0417	-	transposase
418	 33.45	-1	485472..486311	-	279	184153073	-	LAR_0418	-	two-component response regulator
419	 40.08	0	486564..487571	+	335	184153074	-	LAR_0419	-	ornithine carbamoyltransferase
420	 40.73	0	487588..488520	+	310	184153075	-	LAR_0420	-	carbamate kinase
421	 37.16	0	488564..489478	-	304	184153076	-	LAR_0421	-	transport protein
422	 41.58	0	489562..490143	-	193	184153077	-	LAR_0422	-	hypothetical protein
423	 36.77	0	490410..490787	+	125	184153078	-	LAR_0423	-	hypothetical protein
424	 35.42	-1	490787..491074	+	95	184153079	-	LAR_0424	-	hypothetical protein
425	 39.63	0	491074..493011	+	645	184153080	-	LAR_0425	-	cation-transporting ATPase
426	 40.88	0	493130..493606	+	158	184153081	-	LAR_0426	-	hypothetical protein
427	 31.52	-2	493835..494164	+	109	184153082	-	LAR_0427	-	hypothetical protein
428	 36.91	0	494359..495783	+	474	184153083	-	LAR_0428	-	Na-H antiporter
429	 37.62	0	496429..496638	-	69	184153084	-	LAR_0429	-	hypothetical protein
430	 32.00	-2	501268..502242	-	324	184153085	-	LAR_0430	-	hypothetical protein
431	 39.70	0	502468..502938	-	156	184153086	-	LAR_0431	-	hypothetical protein
432	 37.38	0	503856..504572	-	238	184153087	-	LAR_0432	-	putative transposase
433	 38.89	0	504681..505274	-	197	184153088	-	LAR_0433	-	hypothetical protein
434	 36.76	0	505465..506484	+	339	184153089	-	LAR_0434	-	hypothetical protein
435	 39.90	0	506692..507924	+	410	184153090	-	LAR_0435	-	arginine deiminase
436	 35.06	-1	508035..508496	+	153	184153091	-	LAR_0436	-	putative arginine transcriptional repressor
437	 39.45	0	508517..509938	+	473	184153092	-	LAR_0437	-	arginine-ornithine antiporter
438	 38.52	0	509987..511393	+	468	184153093	-	LAR_0438	-	arginine-ornithine antiporter
439	 38.84	0	511776..512483	-	235	184153094	-	LAR_0439	-	putative cobyric acid synthase
39.15	MEAN

3.24	STD DEV
